EGR Delete And Repair Kits

EGR Removal and Block-Off Kits for Diesel Engines

EGR systems lower NOx by recirculating exhaust into the intake, but on many diesels, that clever idea becomes a chronic maintenance problem. Soot, condensate, and heat attack EGR valves, coolers, and passages until coolers leak, valves stick, and intake/intercoolers fill with carbon.

For off‑road, race, or heavy‑duty work where emissions equipment can be legally modified, a BMW-specific EGR removal kit or EGR delete (block‑off) kit stops the recurring failure, reduces intake contamination, and makes servicing simpler (when done correctly and where permitted).

What the EGR System Does and Why It Fails

EGR returns a measured portion of exhaust to the intake to lower peak combustion temperatures; on many BMW engines, among others, an EGR cooler also chills the gas first. The cooler and the valve operate in constant contact with soot, condensate, and high temperatures. Failure causes:

1. Carbon/soot accumulation that binds valves and chokes passages.
2. Corrosion and cracking in EGR coolers that allow coolant leaks.
3. Seizure of actuators, sensors, and linkages due to deposits.
4. Thermal cycling.

When metering fails, soot and coolant can contaminate the intake and intercooler. Cleaning helps for sure, but repeated clogging often means the circuit is a liability. For BMW models, we recommend matching a model‑specific removal kit to the engine code rather than repeated partial fixes or cleanings.

Common EGR System Failure Symptoms

Before you order parts, check for these real signs. They usually show as a group rather than one alone:

1. Power loss.
2. Increased turbo lag.
3. Excessive soot.
4. Carbon buildup in the intake/intercooler.
5. White smoke from the exhaust or coolant loss (EGR cooler leak).
6. Engine light with EGR-related flow (position codes).

If several of these are present, the EGR circuit is a likely suspect, so the right BMW kit then makes the repair tidy and repeatable. Also, inspect the intercooler and hoses for trapped oil, since cleaning them before sealing prevents repeat complaints.

When You Need an EGR Removal or EGR Delete Kit

We build kits around different car brands and the parts you actually need. For example:

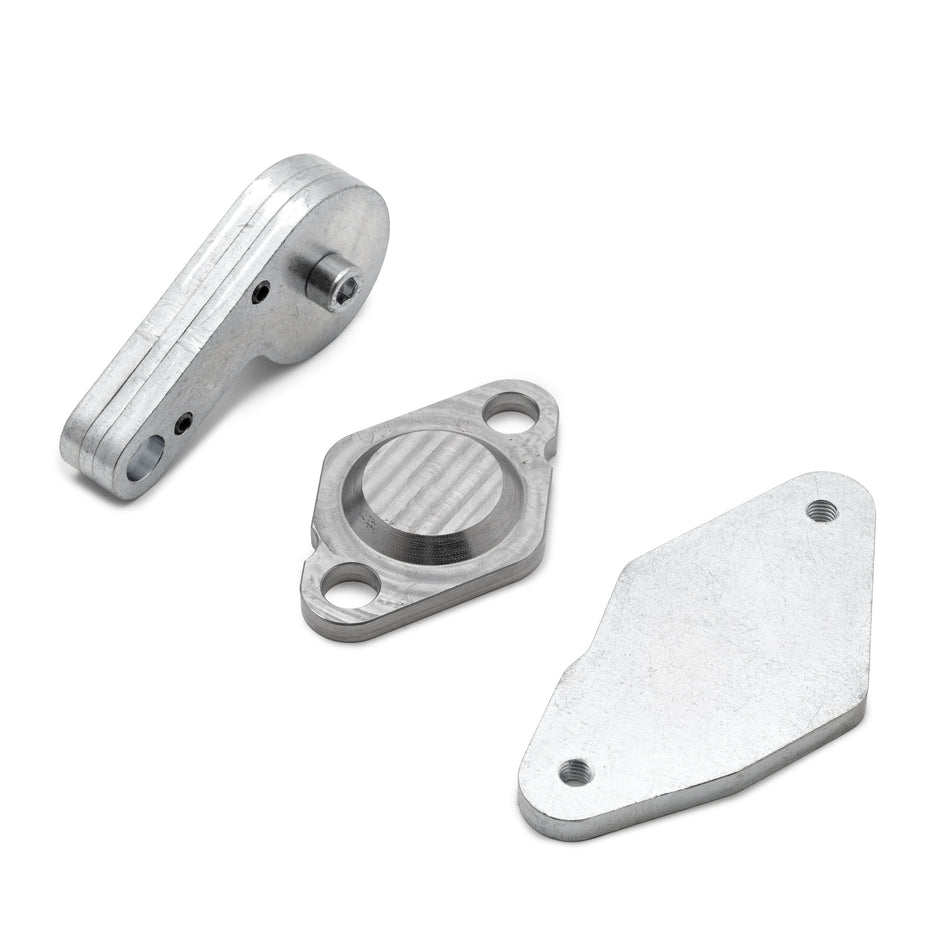

1. EGR block‑off plate kit. CNC stainless or coated plates + high‑temp gaskets to seal the EGR flange cleanly.

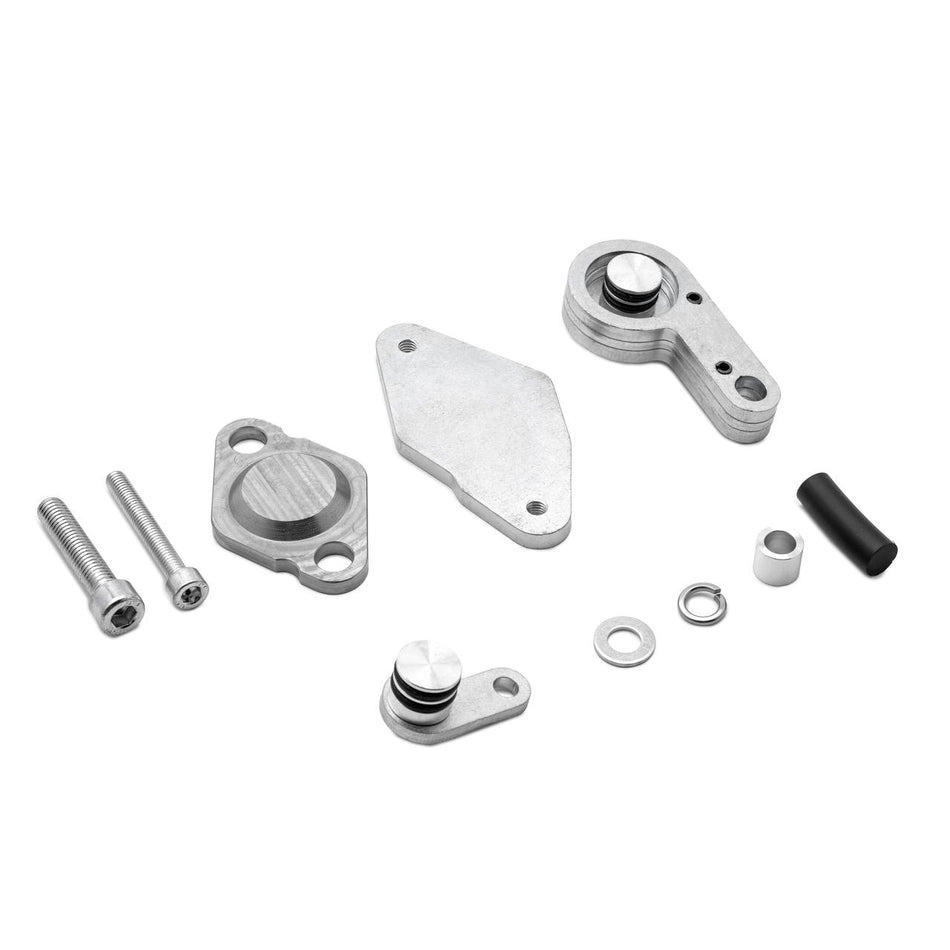

2. Full EGR removal kit. Plates + cooler removal hardware + coolant reroute fittings and hoses for a complete diesel EGR delete kit.
3. EGR plug kit, cooler delete and coolant reroute kit. Plugs, elbows, or quick‑connect fittings to seal and redirect coolant properly.
4. EGR valve blanking plate. Low‑cost reversible option when the cooler is fine but the valve is clogged.
5. Precision gasket set. Correct material gaskets for the specific engine code (prevents leaks).
6. Stainless hardware kit. Bolts, lock washers, and torque specs so the job isn’t jury‑rigged.
7. Heat‑resistant seals and insulating pads. Protects surfaces from thermal cycling after installation.
8. Diagnostic & ECU check service. Scan for EGR codes before and after, and advise on tuning if required for modern ECUs.

These kits minimize bench time, reduce callbacks caused by improvised fixes, and let a tech finish the job in one go. Plates, gasket, coolant parts, and correct hardware all in one box.

Compatibility With TDI, Duramax, Cummins, PowerStroke, International, and More

EGR problems appear across diesel “families,” but the right fix depends on engine “family” and year.

BMW:

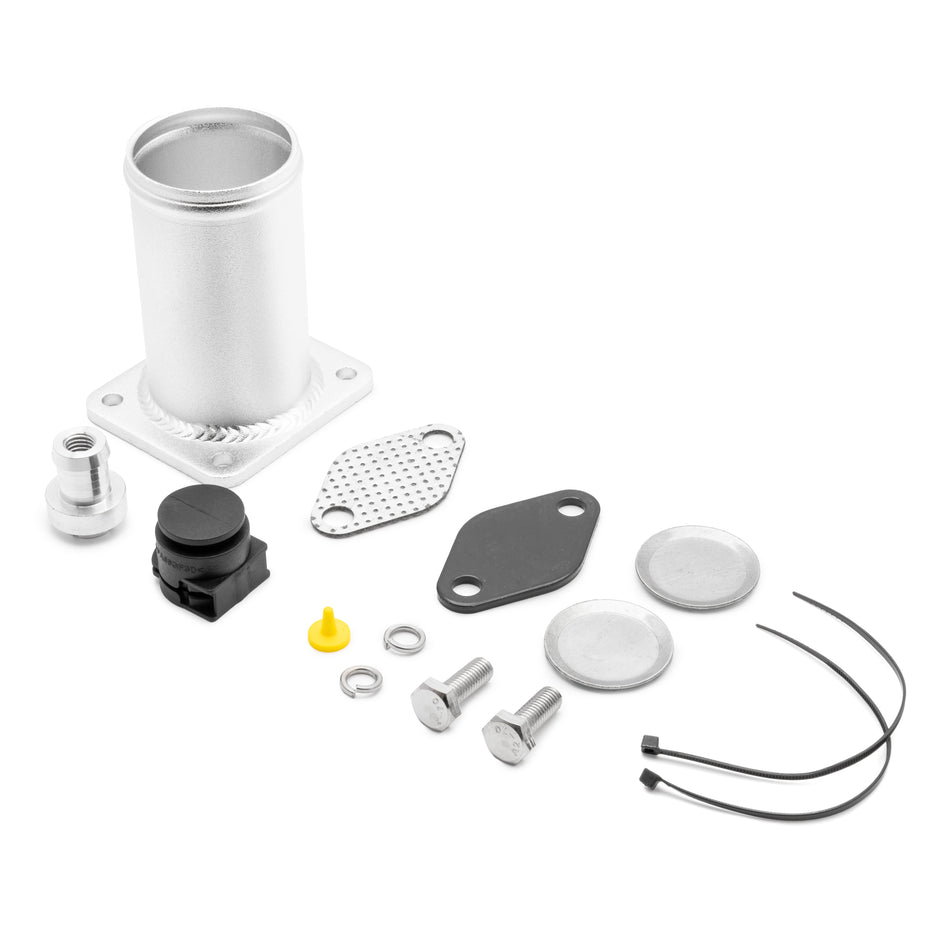

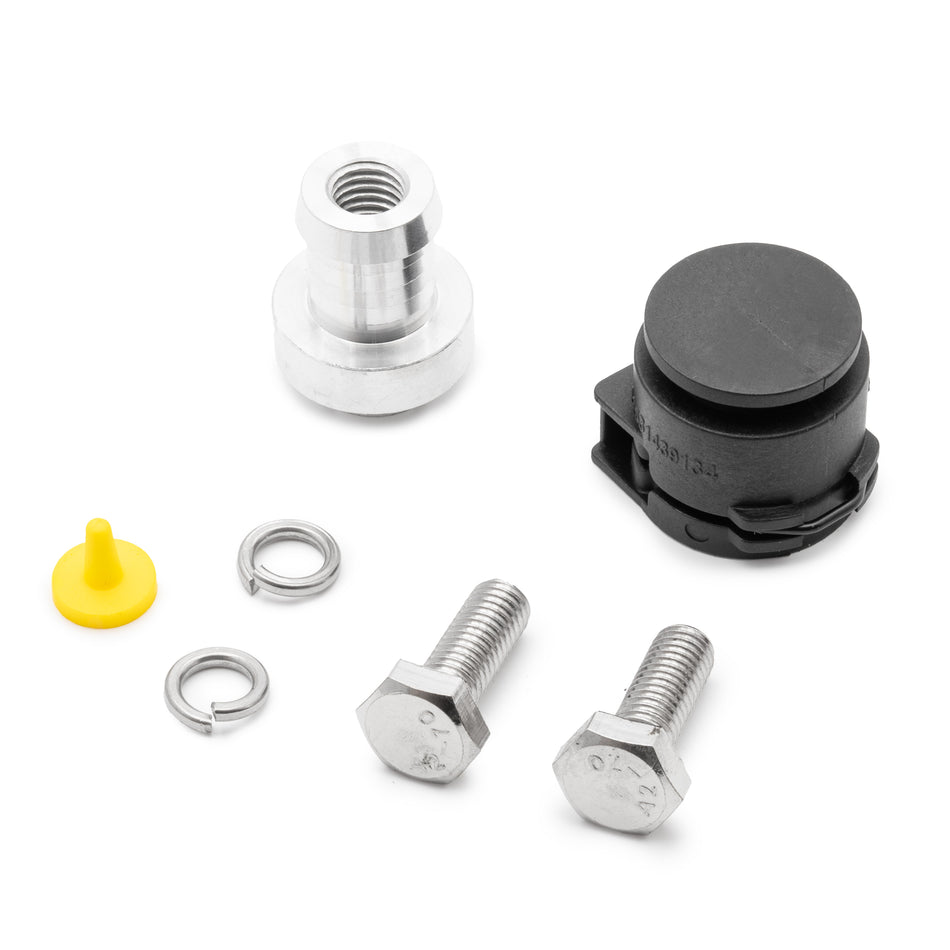

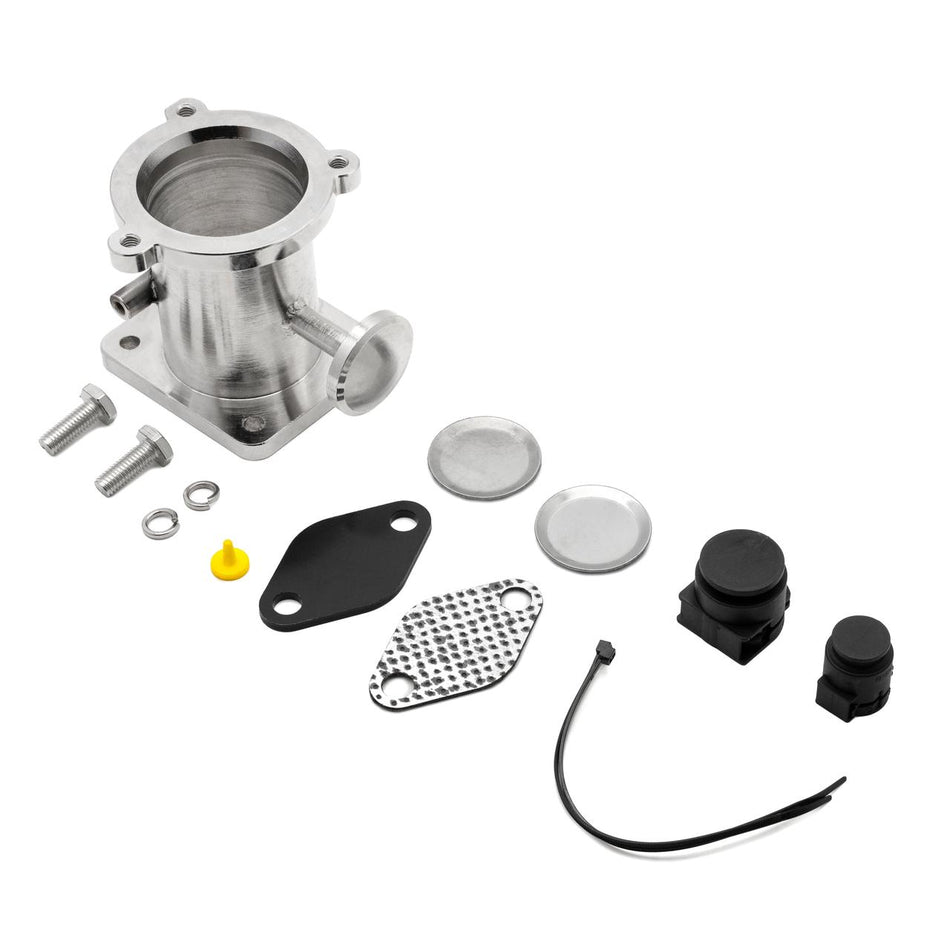

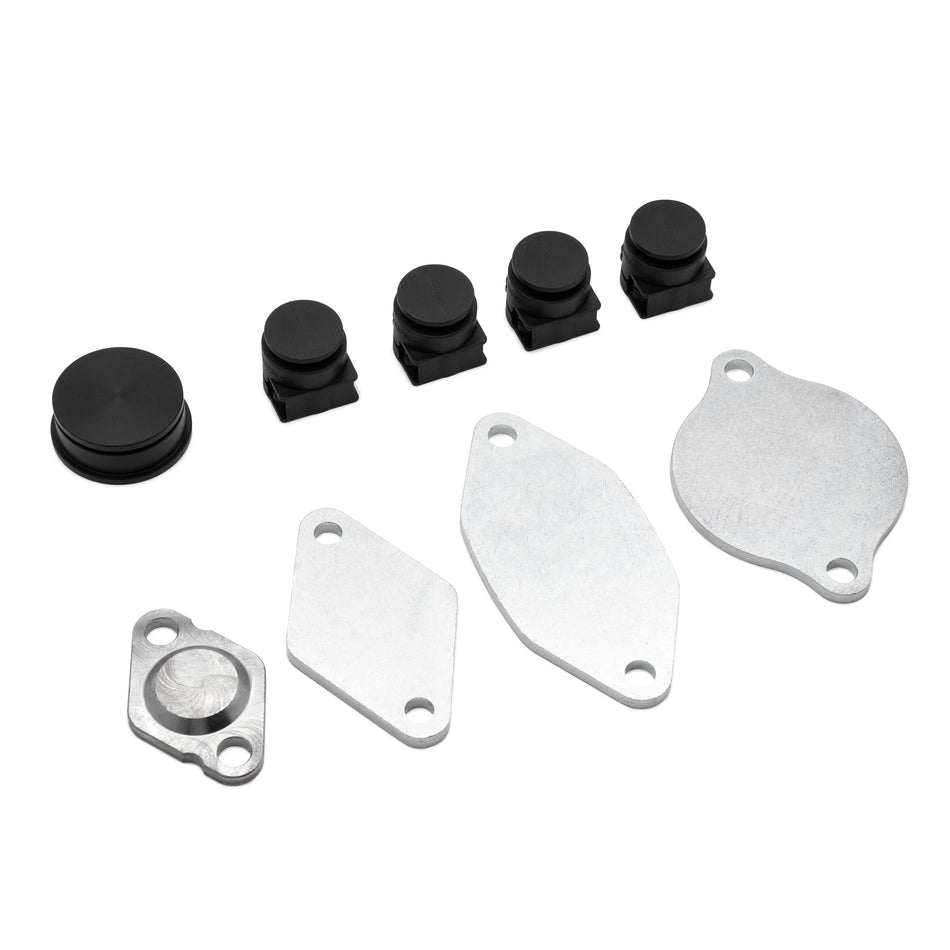

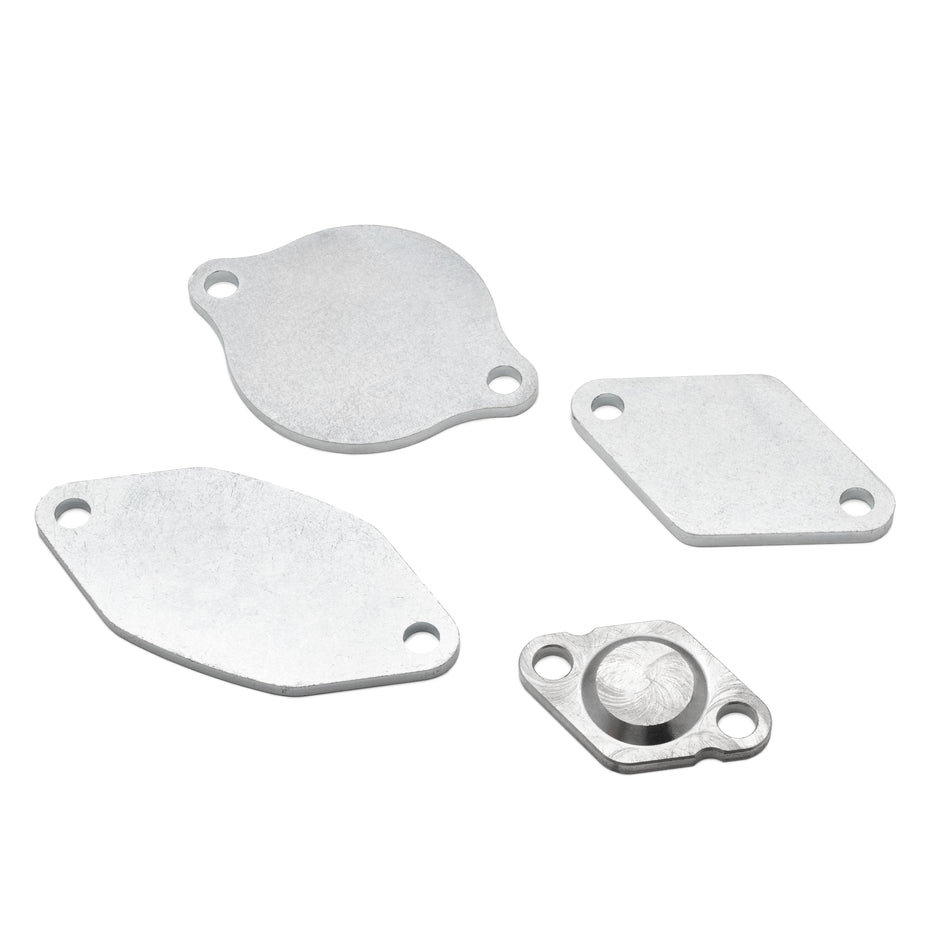

• Common trouble on M47/M57/N47/N57 and B47/B57 families (vortex dampers, cooler leaks, seized valves). BMW EGR removal kits and vortex-damper plugs are tailored to these fitments and supplied by engage core (E46/E39/B47/N47/N57, etc.).

VW/Audi TDI:

• These engines often suffer clogged EGR passages and failing coolers that throw soot into the intake. For TDI, we stock gasket/plug kits and removal options that match common flange patterns.

If you need a EGR delete kit or another specific fitment, send the engine code or VIN, and we’ll specify the correct option.

Why Choose Klifex EGR Removal Kits

Each Klifex EGR kit is built for results: precision‑cut plates, high‑temp gaskets, stainless hardware, and purpose‑made coolant reroute fittings. Parts are matched by engine code, materials resist soot and thermal cycling, and packages include torque specs and install notes. The goal: fewer surprises, shorter bench time, and lower callback rates for shops and fleets.

Ready to match a kit to your BMW, Ford, or Audi? Send your engine code or VIN, and we’ll confirm the exact EGR removal kit and shipping options, or request installation support from our parts team.
