50mm EGR Removal Kit for Volkswagen/Audi 1.9 TDI 75/90/100/115 HP
This 50mm EGR removal kit is designed for compatible VAG diesel applications using 1.9 TDI engines in Volkswagen, Audi, Seat and Skoda vehicles. The kit includes the required blanking components to remove the exhaust gas recirculation system and close the resulting openings on compatible 50mm flange applications.
The EGR system recirculates exhaust gases back into the intake side of the engine. Over time, soot and oil residue can build up inside the EGR valve and intake path, affecting airflow and diesel engine performance. This kit is intended for EGR removal service where such modification is permitted by local emissions regulations.
OEM / Reference Numbers
No OEM or OE reference number is listed for this product.
- Main product reference: VAG 1.9 TDI EGR removal kit

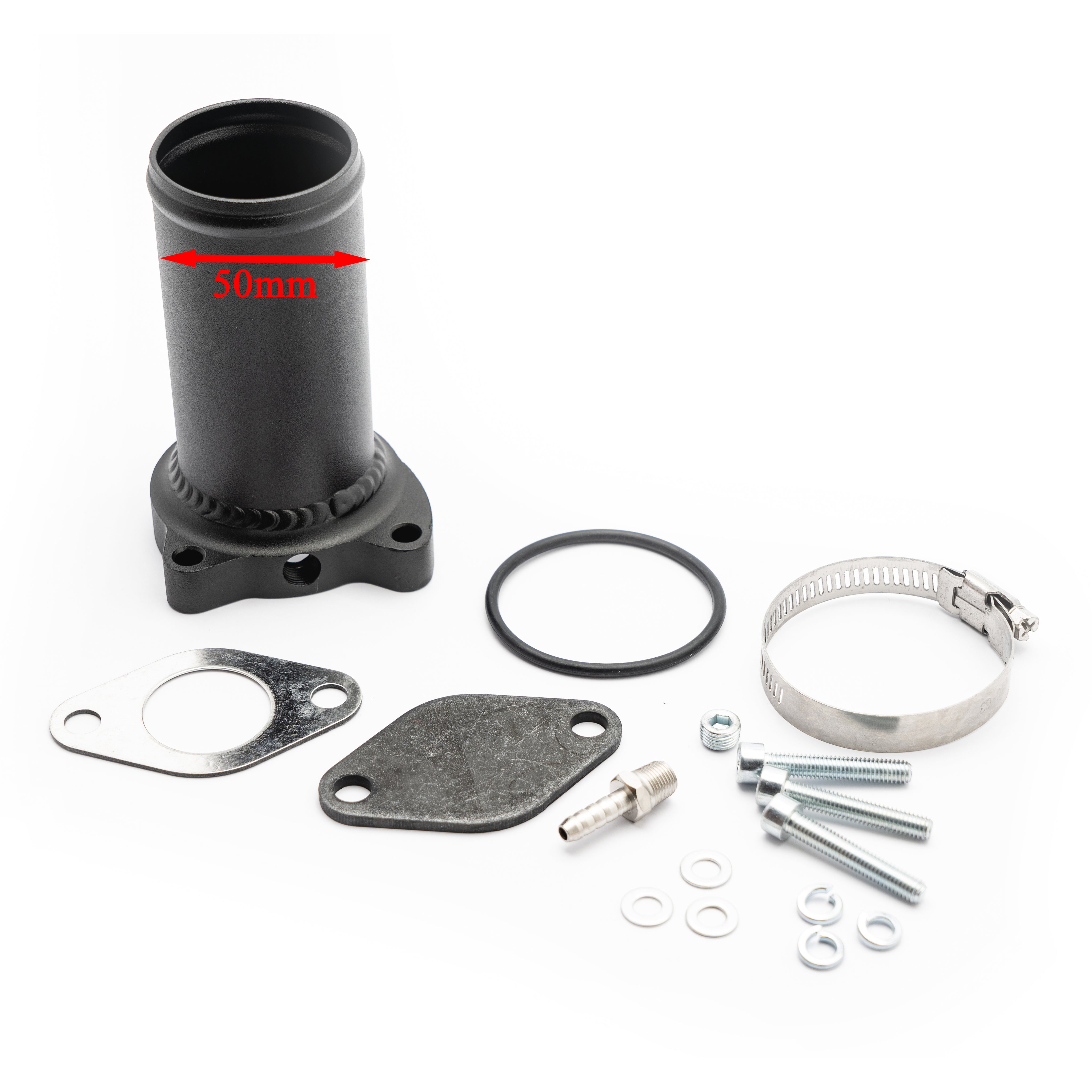

- Flange / kit size: 50 mm
- Application type: EGR removal / EGR blanking service
- Vehicle groups: Volkswagen, Audi, Seat, Skoda
Part Type
- EGR removal kit
- EGR delete kit
- EGR blanking kit
- 50mm EGR blanking plug kit
- VAG diesel EGR service kit
What This Part Does
This kit is used to remove the EGR system on compatible VAG diesel engines and block the openings left after EGR removal. The blanking components help seal the intake and exhaust-side EGR connections during the modification.
When the EGR system becomes contaminated with soot, it can restrict airflow and contribute to unstable operation, poor response or intake contamination. This kit supports a targeted EGR removal setup on compatible vehicles with the correct 50mm flange dimensions.
Compatible Vehicles
This 50mm EGR removal kit is listed for selected VAG diesel vehicles with compatible 1.9 TDI and 1.4 TDI applications.
- Volkswagen Golf Mk4 — AGR / ALH 90, ATD 100, ASV / AHF 110, AJM / AUY 115
- Volkswagen Bora — AGR / ALH 90, ATD 100, ASV / AHF 110, AJM / AUY 115
- Volkswagen Passat — AVB 100
- Volkswagen Beetle — ALH 90
- Volkswagen Caddy — ALH 90
- Volkswagen Jetta — ALH 90
- Skoda Octavia 1.9 TDI — AGR / ALH 90, ATD 100, AHF / ASV 110
- Skoda Fabia 1.4 TDI — AMF 75
- Seat Leon 1.9 TDI — AGR / ALH 90, AHF / ASV 110
- Seat Ibiza 1.9 TDI — AGR / ALH 90, ASV 110
- Seat Toledo 1.9 TDI — AGR / ALH 90, AHF / ASV 110
- Seat Cordoba 1.9 TDI — AGR / ALH 90, ASV 110
- Seat Ibiza 1.4 TDI — AMF 75
- Seat Arosa 1.4 TDI — AMF 75
- Audi A3 1.9 TDI — AGR / ALH 90, ATD 100, AHF / ASV 110

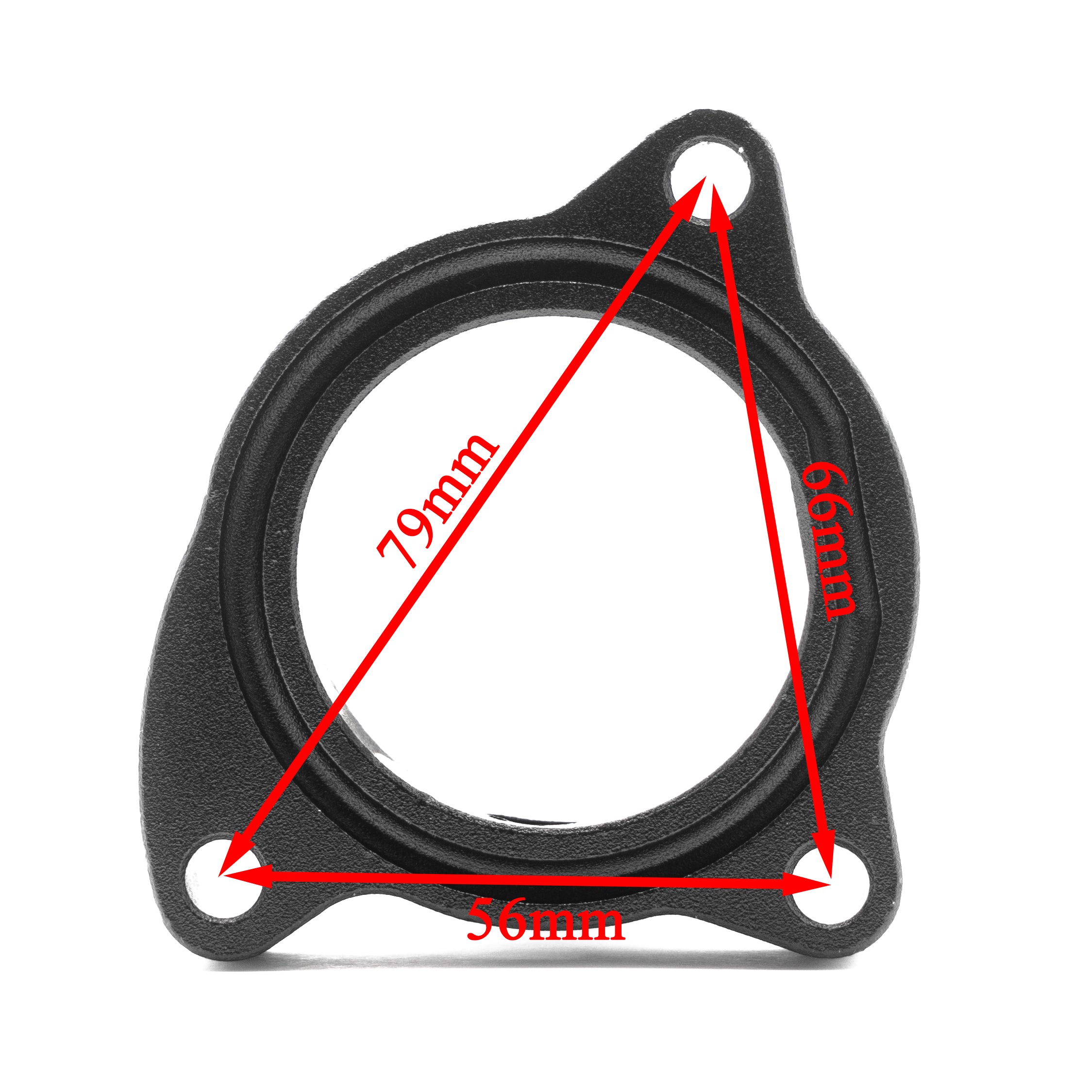

Important: compatibility depends on the flange diameter and the distance between the mounting bolts. Always compare the original EGR flange dimensions before ordering.
Engine / Engine Family / Technical Detail
- Engine family: VAG 1.9 TDI diesel
- Additional listed engine: 1.4 TDI AMF 75
- Engine codes listed: AGR, ALH, ATD, ASV, AHF, AJM, AUY, AVB, AMF
- Power range listed: 75 / 90 / 100 / 110 / 115 HP applications

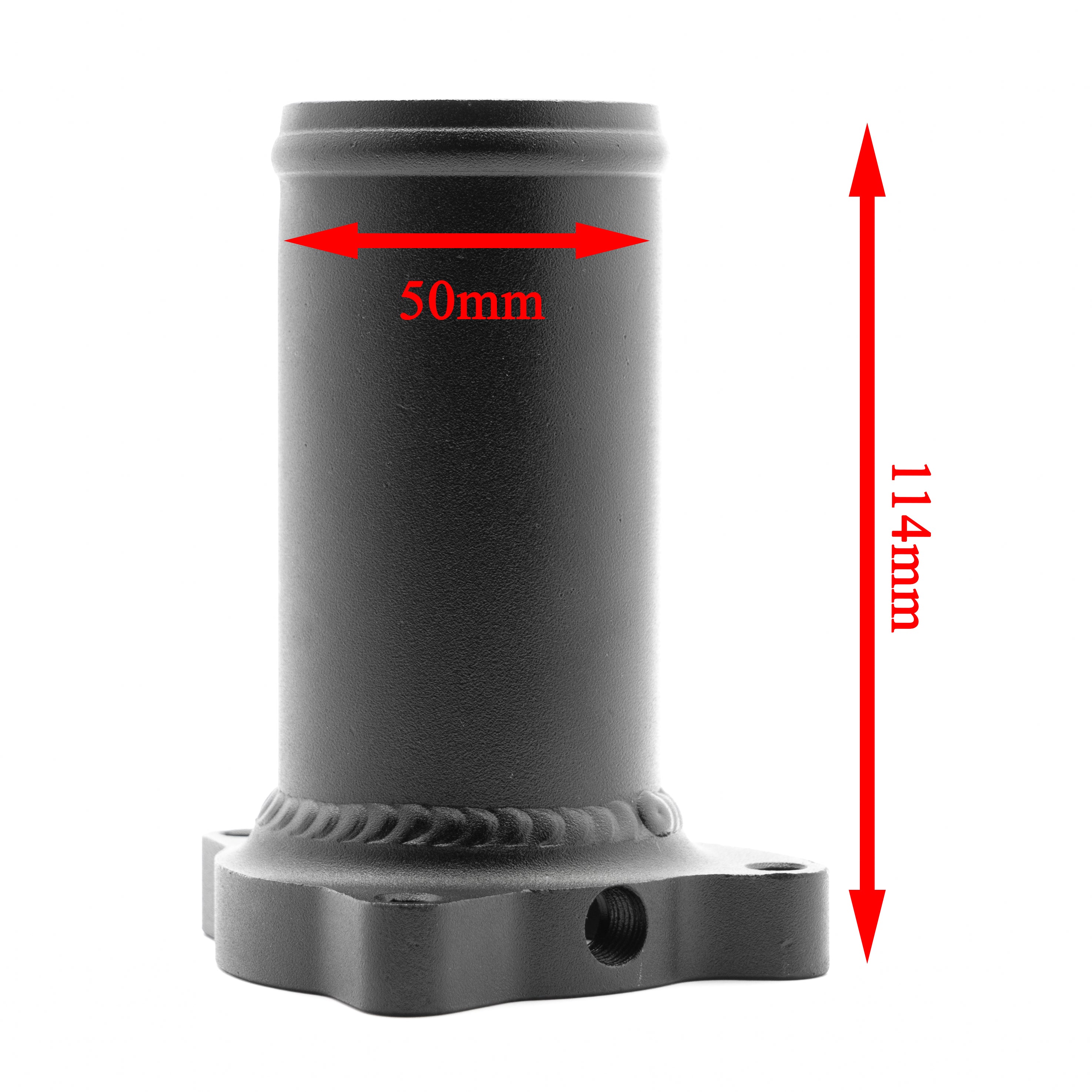

- Kit size: 50 mm
- System: exhaust gas recirculation / EGR
Common Symptoms of EGR System Problems
- Soot buildup inside the EGR valve
- Restricted intake airflow
- Reduced throttle response
- Loss of pulling power
- Rough or unstable diesel engine operation
- Excessive contamination in the intake path
- EGR-related check engine light or fault codes
Why Choose This Replacement
- Designed for 50mm VAG EGR removal applications
- Suitable for selected Volkswagen, Audi, Seat and Skoda diesel models

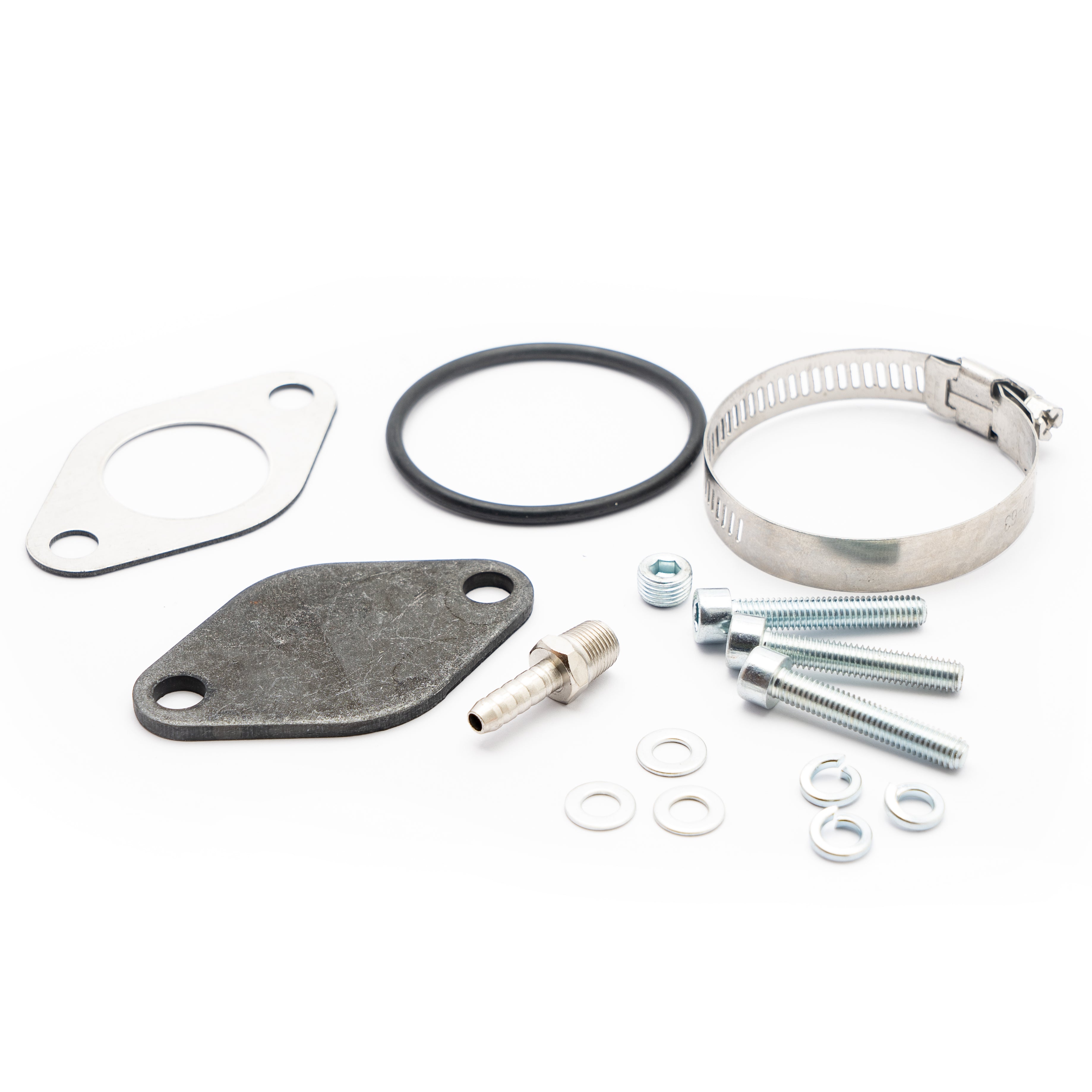

- Includes blanking components for EGR removal service
- Helps close the openings left after EGR system removal
- Useful during intake and EGR system service on compatible TDI engines
- Cost-effective alternative to replacing contaminated EGR components when removal is legally permitted
Important Before Ordering
- Check the EGR flange diameter before purchase.
- Confirm that your application uses a 50mm EGR flange.
- Measure the distance between the mounting bolts.
- Verify your vehicle model, engine code and power output.
- This product is an EGR removal / blanking kit, not a complete EGR valve assembly.
- Use only where EGR modification is permitted by local emissions laws and vehicle regulations.
FAQ
What does this 50mm VAG 1.9 TDI EGR removal kit fit?
This kit is listed for selected Volkswagen, Audi, Seat and Skoda diesel applications, including compatible 1.9 TDI engines with AGR, ALH, ATD, ASV, AHF, AJM, AUY and AVB engine codes. The flange diameter and bolt spacing must be checked before ordering.
Is this kit suitable for AMF 1.4 TDI engines?
Yes, the product page also lists selected AMF 75 HP 1.4 TDI applications, including Skoda Fabia, Seat Ibiza and Seat Arosa. Compatibility still depends on the correct 50mm flange and mounting dimensions.
What does this EGR removal kit do?
The kit is used to remove the exhaust gas recirculation system and block the openings left after EGR removal. It is intended for compatible VAG diesel engines with the correct 50mm EGR flange.
What symptoms can indicate EGR problems on a VAG TDI engine?
Common EGR-related issues include soot buildup, restricted intake airflow, reduced engine response, rough operation, loss of pulling power and EGR-related fault codes. Diagnosis should confirm the EGR system before repair or removal.
Is this a complete EGR valve assembly?
No. This product is an EGR removal / blanking kit. It is not a complete EGR valve assembly and does not replace unrelated intake or exhaust components.
How do I confirm compatibility before ordering?
Confirm your vehicle model, engine code and EGR layout. Measure the EGR flange diameter and the distance between mounting bolts, and order this kit only if your application matches the 50mm flange specification.
