BMW Vanos Repair Kits

BMW VANOS Repair Kits for M50, M52, M54, M62TU, S52, and S54 Engines

If your BMW is coughing on cold starts, losing low-end pull, or throwing a camshaft timing code, a targeted VANOS rebuild can fix the root cause without a full unit swap. Whether you’re hunting for an E46 VANOS rebuilt kit, an M54 kit, or a core VANOS repair, Klifex kits give shops and DIYers the parts they really need.

We focus on small parts that stop the problem from coming back: seals, rings, bearings, correct hardware, and so on, so you or your tech can finish the job in one visit.

How It Works

VANOS is the oil-powered brain that nudges the camshafts. Single VANOS (e.g., M50, M52, S52) tweaks one cam. Double VANOS (M52, M54) adjusts both cams. The job is done by tiny hydraulic chambers, solenoids, and a handful of seals and O-rings.

When seals dry out or leak, oil slips past, and the pistons don’t move properly, resulting in a rough idle, weaker low‑end pull, or a clack on cold starts. A BMW VANOS repair kit helps to fix the sealing and restore cam phasing without changing the whole unit.

Why VANOS Units Fail

The main reasons are old age and contaminated oil. Heat and time make soft rubber hard and brittle, so it loses its sealing properties. Sludge and metal bits clog passages and make solenoids stick.

Some engines have a mechanical weak point: the S54 is famous for hub tab wear, and the bearings on some M-series engines need attention. Swapping better seals (Viton or similar), cleaning the passages, and using clean oil should stop most of these failures from coming back.

When You Need a VANOS Rebuild Kit

Check for clear signs that getting a VANOS rebuild kit is the right move:

1. Cold-start rattle that shuts up after a minute (the VANOS hub saying “hello” and “guten tag”).
2. The car feels flat under ~2500 RPM.
3. Rough idle/hesitation when pulling away from lights.
4. CEL with cam timing codes (P0011/P0014 and friends).
5. Tiny oil seepage around the VANOS cover.

Rebuild vs. Replace:

1. Rebuild when “symptoms” point to seals, O-rings, and anti-rattle parts.
2. Replace or add parts if you find broken hub tabs (S54), score internals, or oversized bearing play.

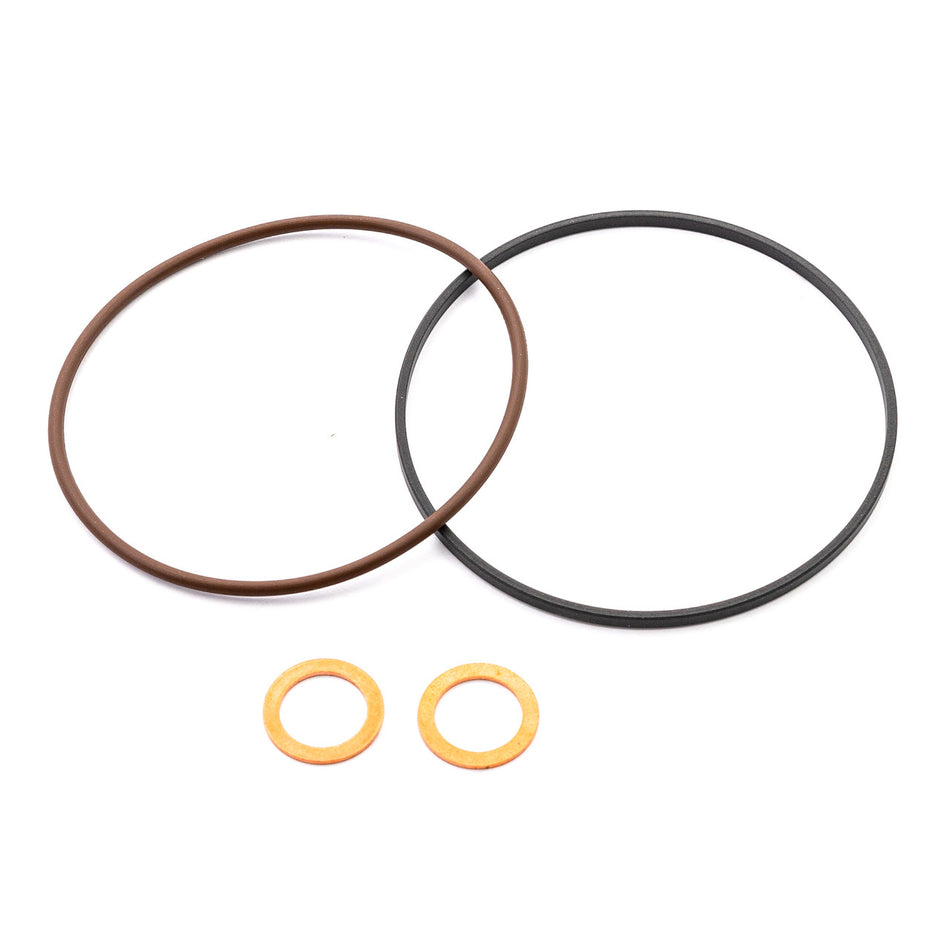

A single VANOS rebuild kit works for most E36/E46/E39 cars. M54 and other double-VANOS engines need double kits. If you’re unsure, send your engine code, and we’ll confirm the right kit.

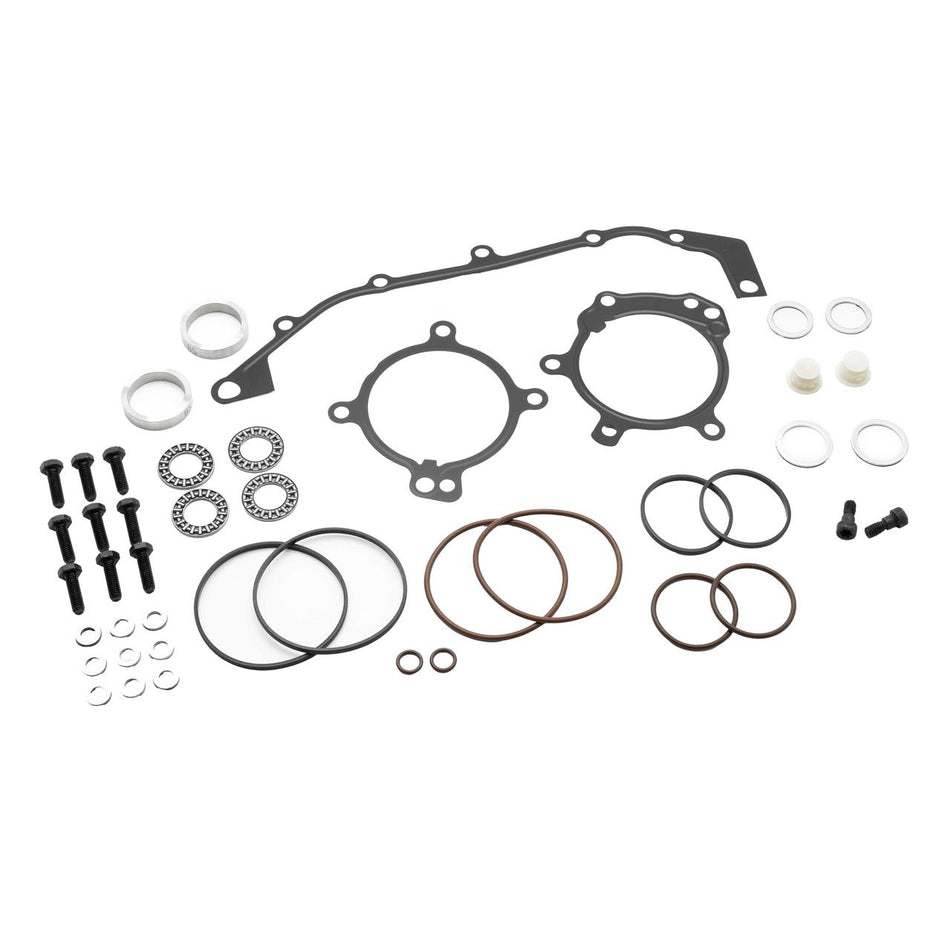

What’s Included in Our VANOS Repair Kits

Everything in the box is there to stop leaks, quiet rattles, and restore oil control:

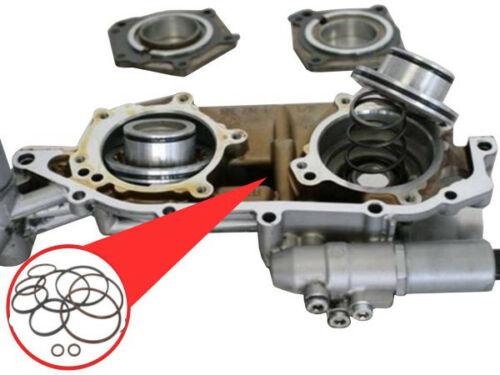

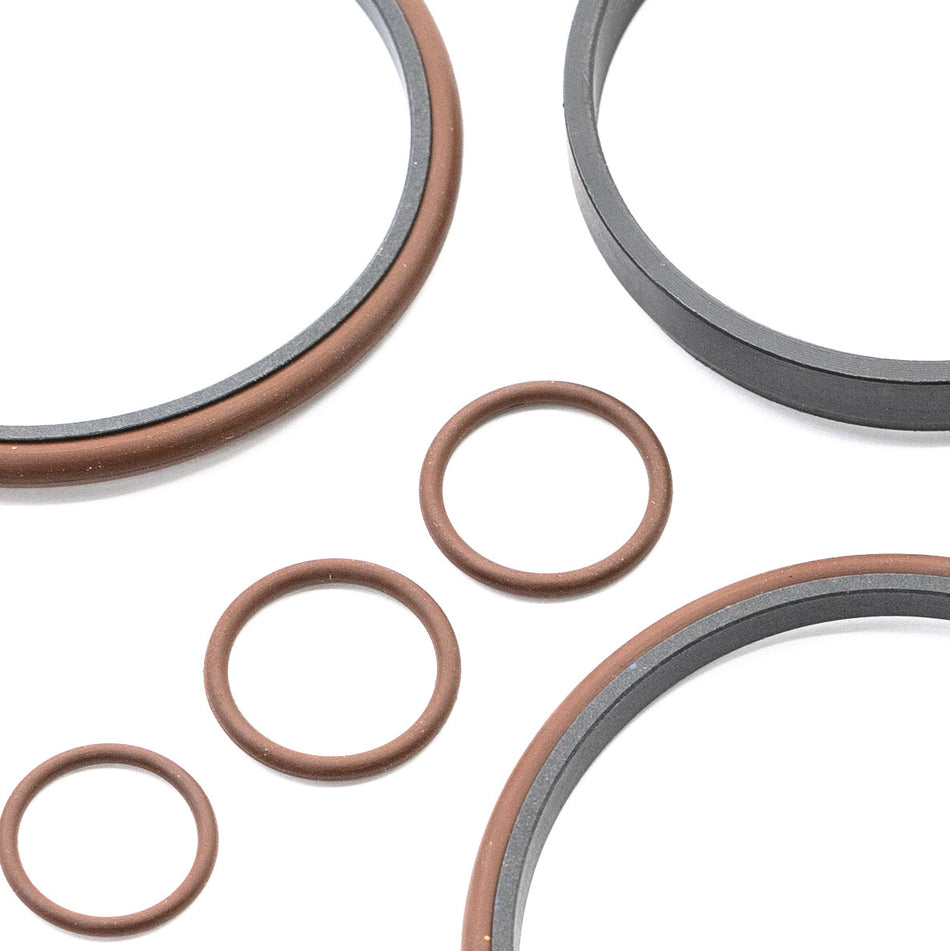

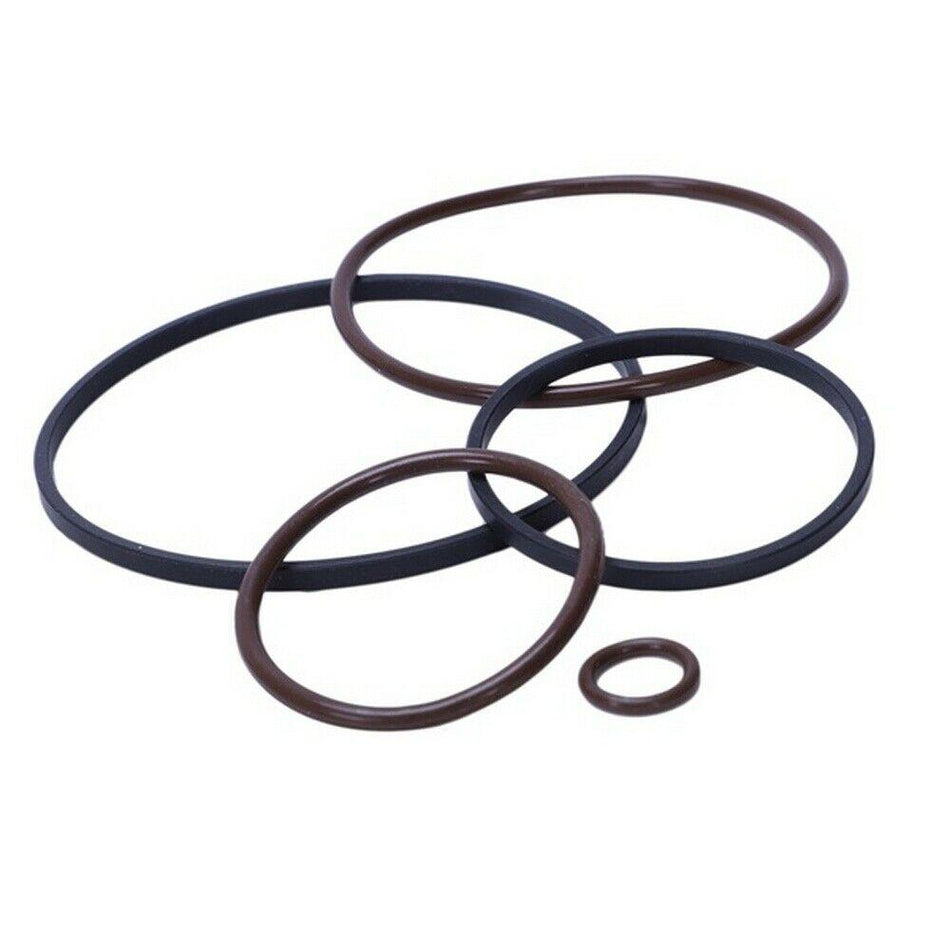

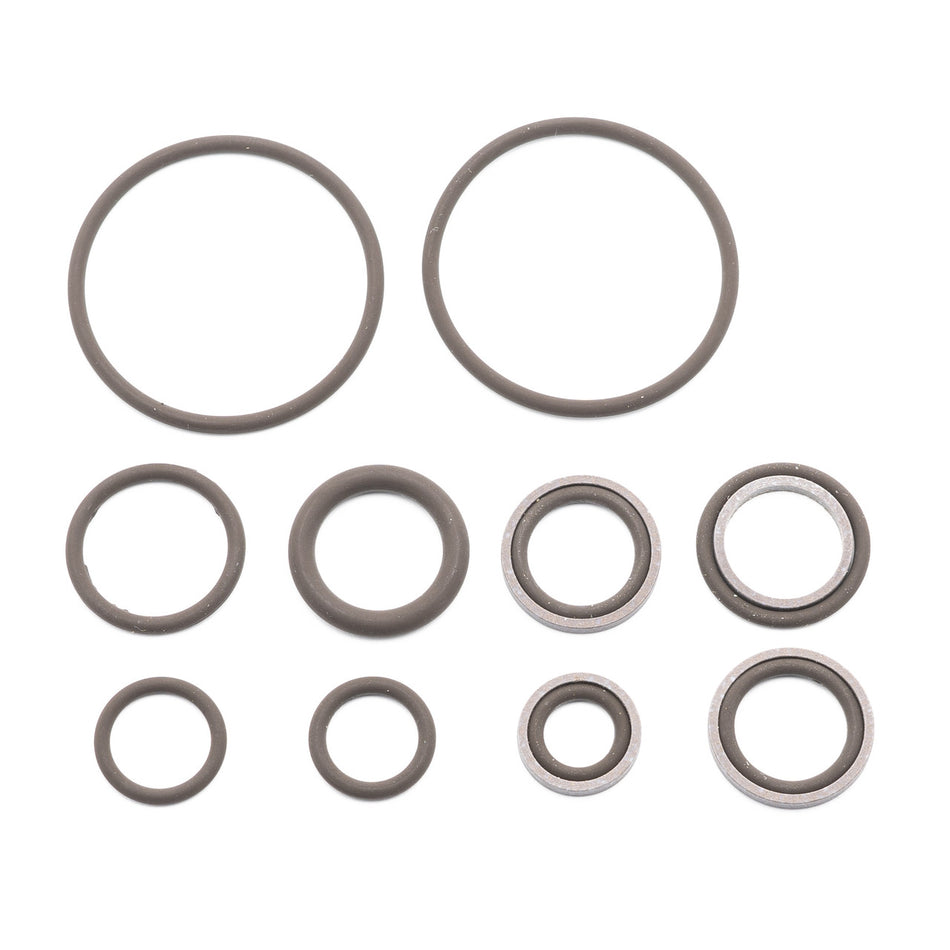

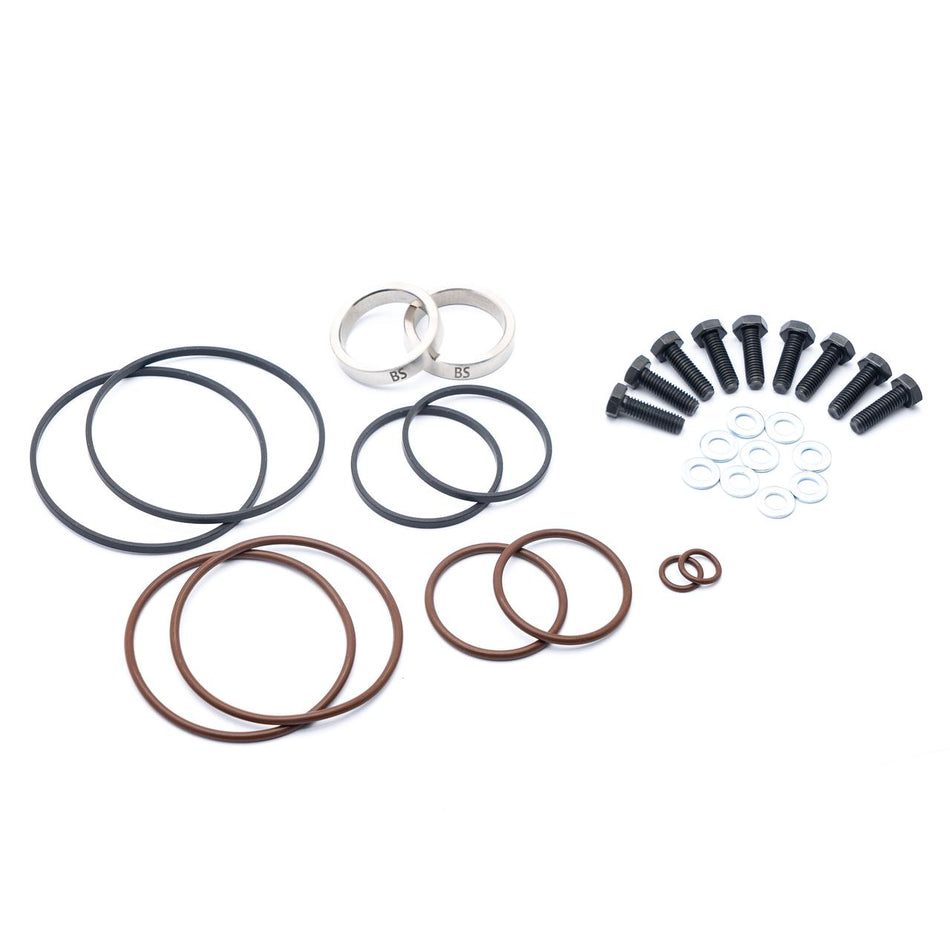

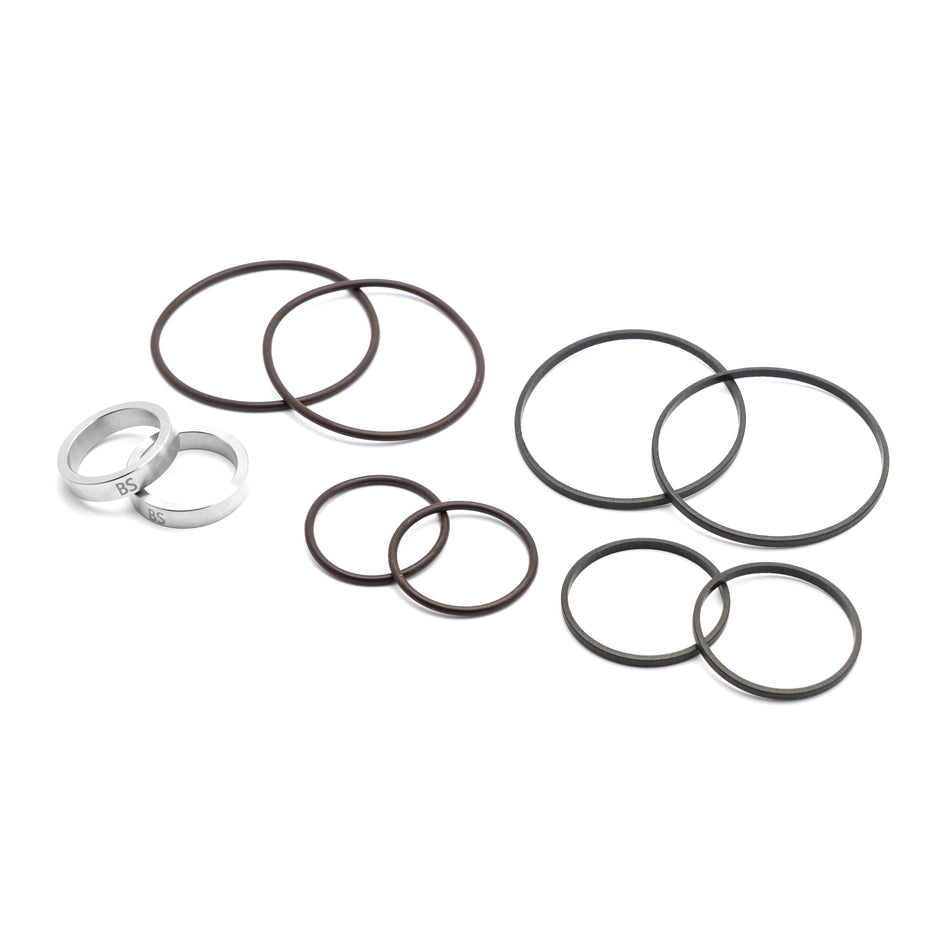

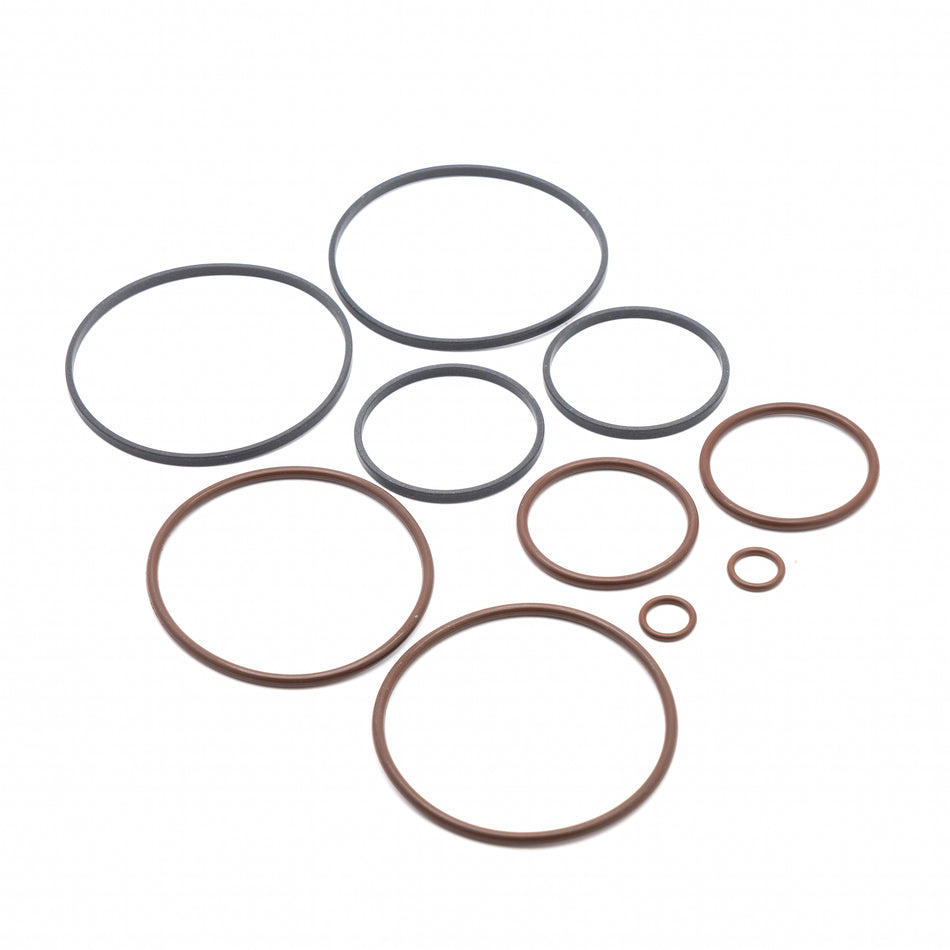

1. Precision seals and O-rings (upgraded elastomers such as Viton when required) – the core “VANOS” seal component that holds hydraulic pressure.
2. Anti-rattle rings/spring plates.

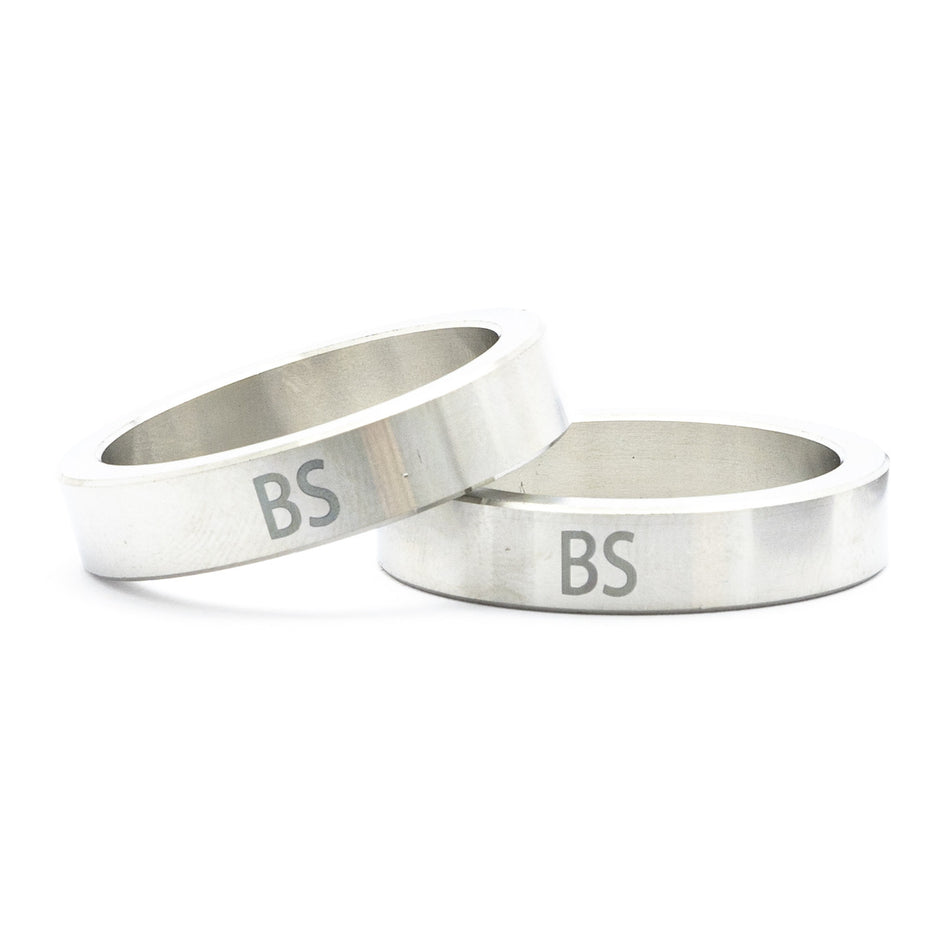

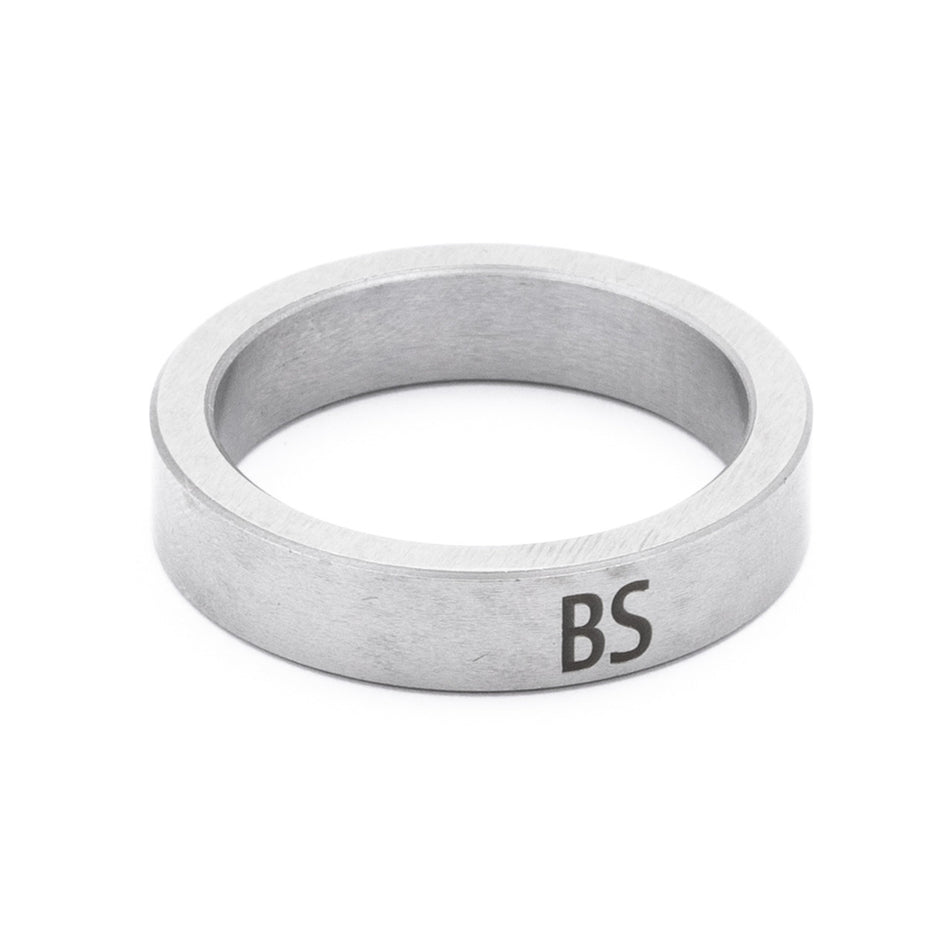

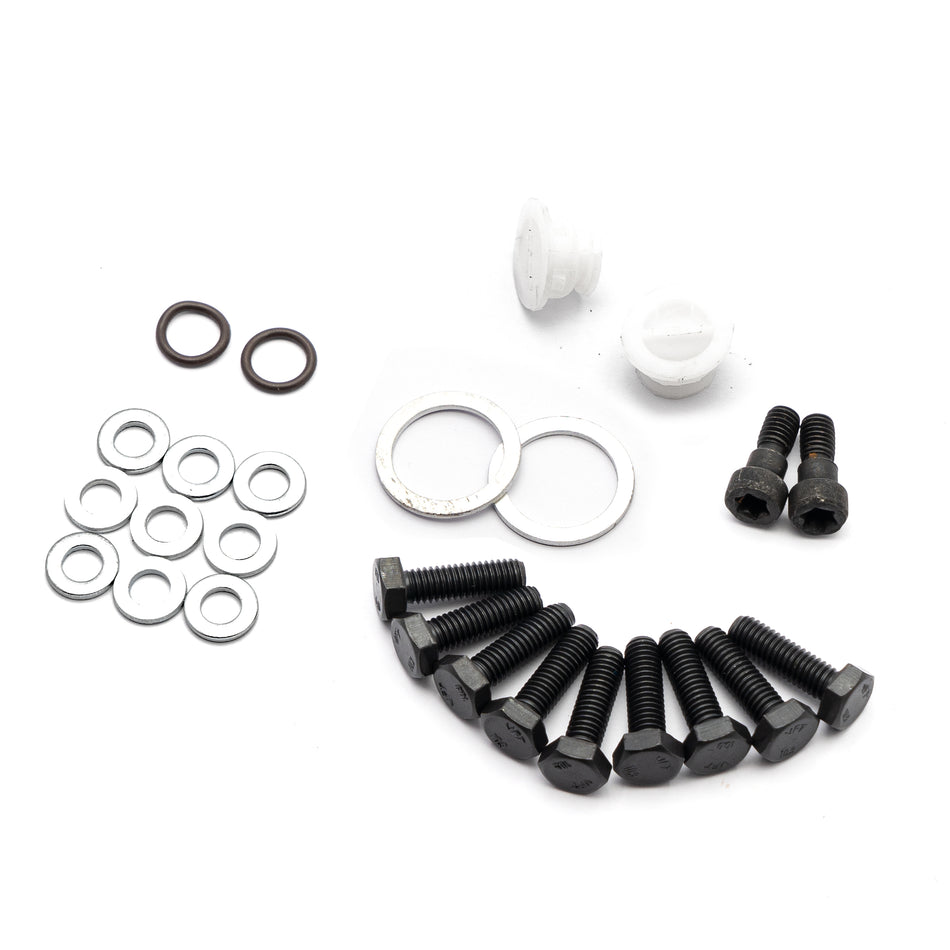

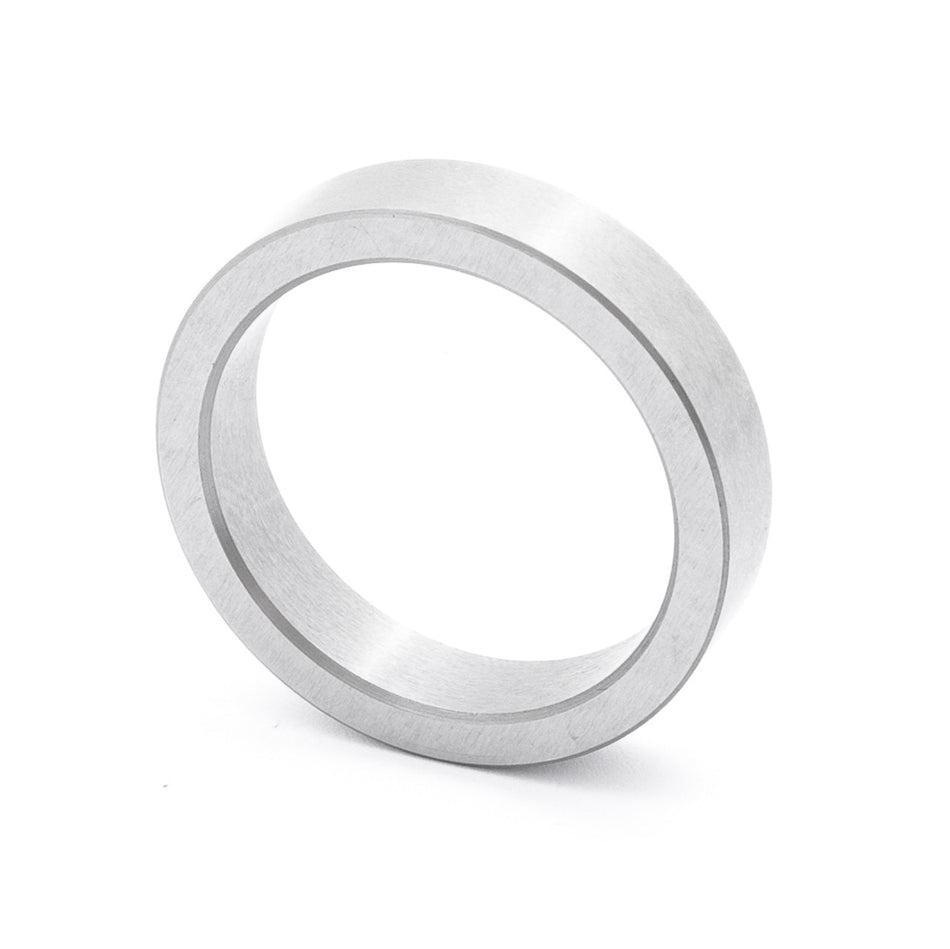

3. Thrust washers, small bearings, or bearing rings  – these replace worn contact surfaces and remove axial play.
4. Engine-specific spacers, shims, and hardware  – correct fitment for double VANOS vs single VANOS applications.
5. Clear labeling and fitment notes for single VANOS rebuild kits and double kits (e.g., E46 VANOS rebuild kit vs. M54 VANOS rebuild kit).
6. A brief installation guide and inspection checklist to tell a tech what to check (hub tabs, solenoid conditions, and oil passages).
7. Parts produced to engineering tolerances. Mating surfaces and sealing edges are specified to avoid sloppy fits.

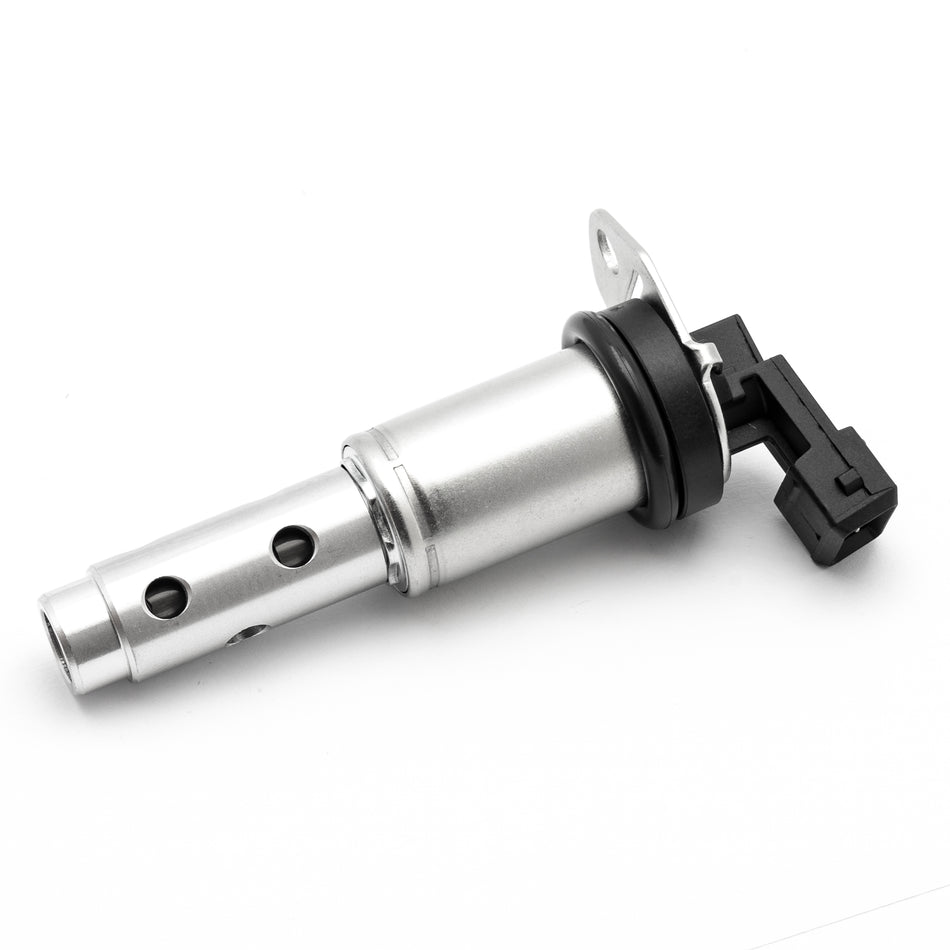

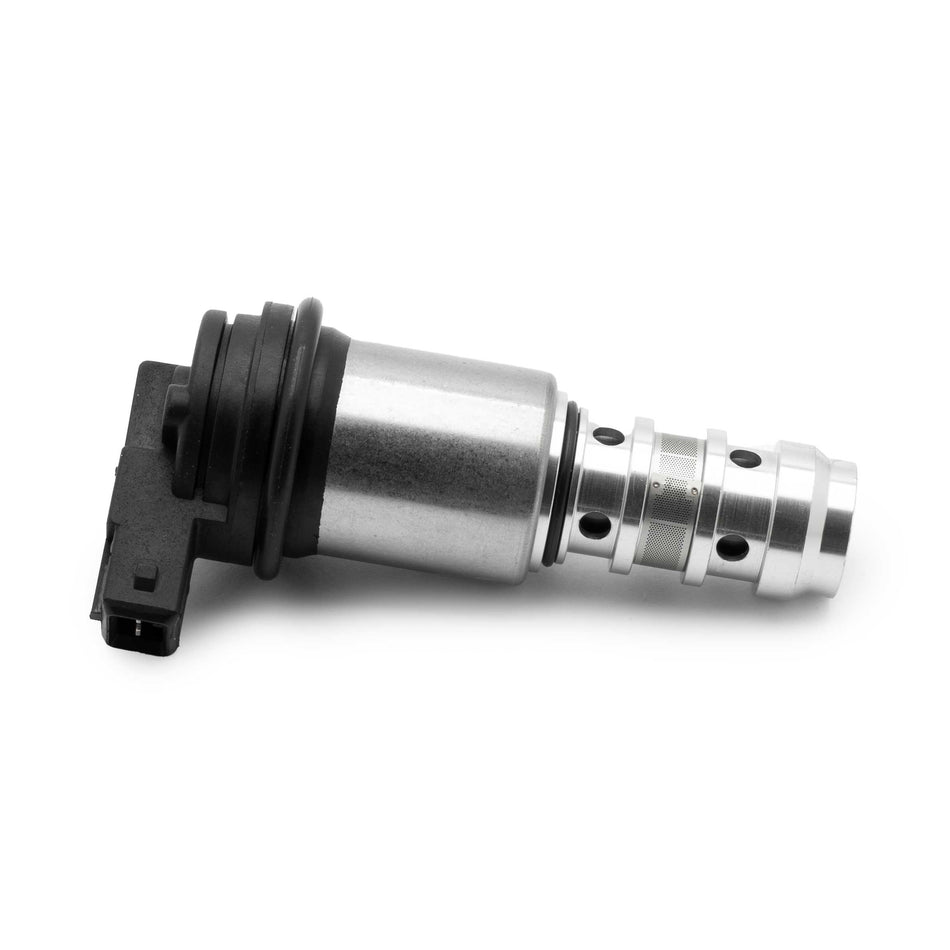

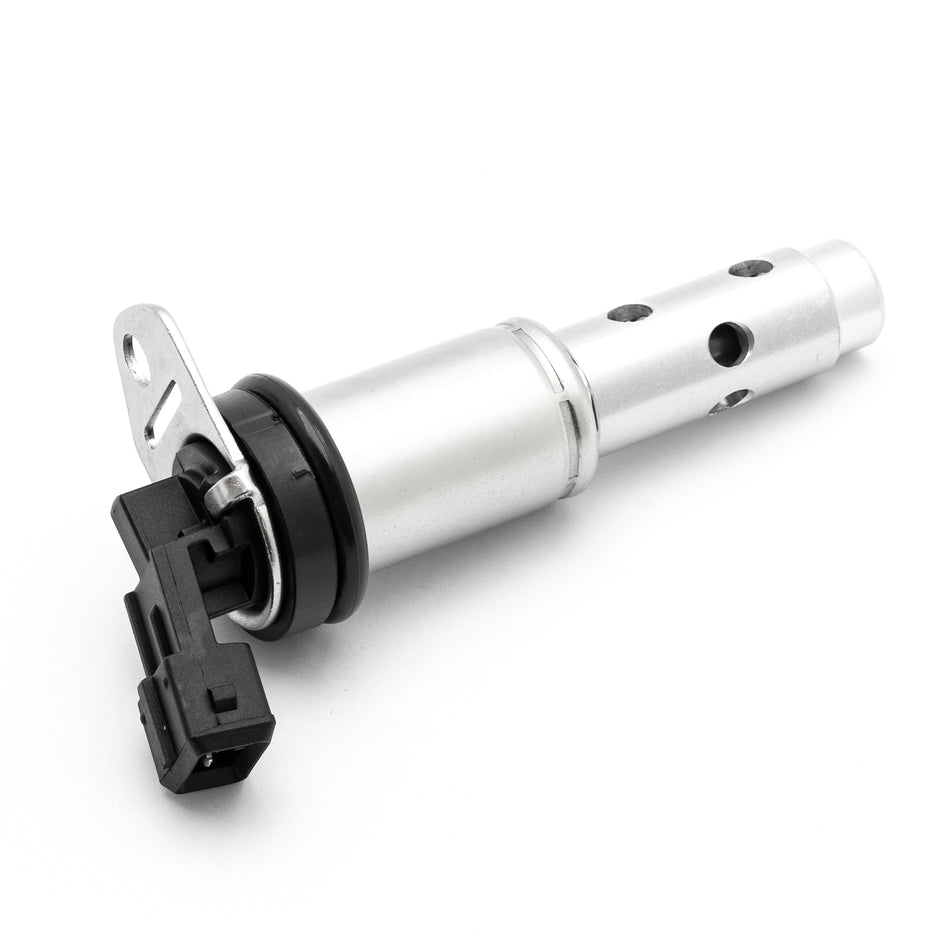

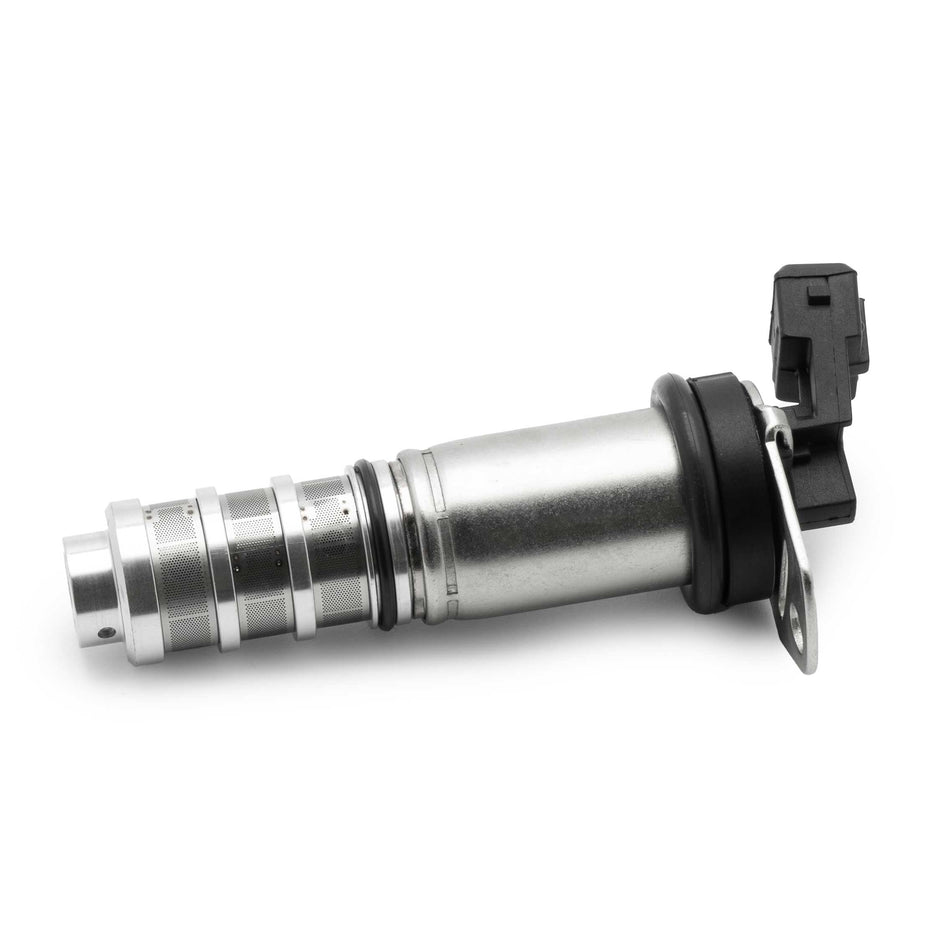

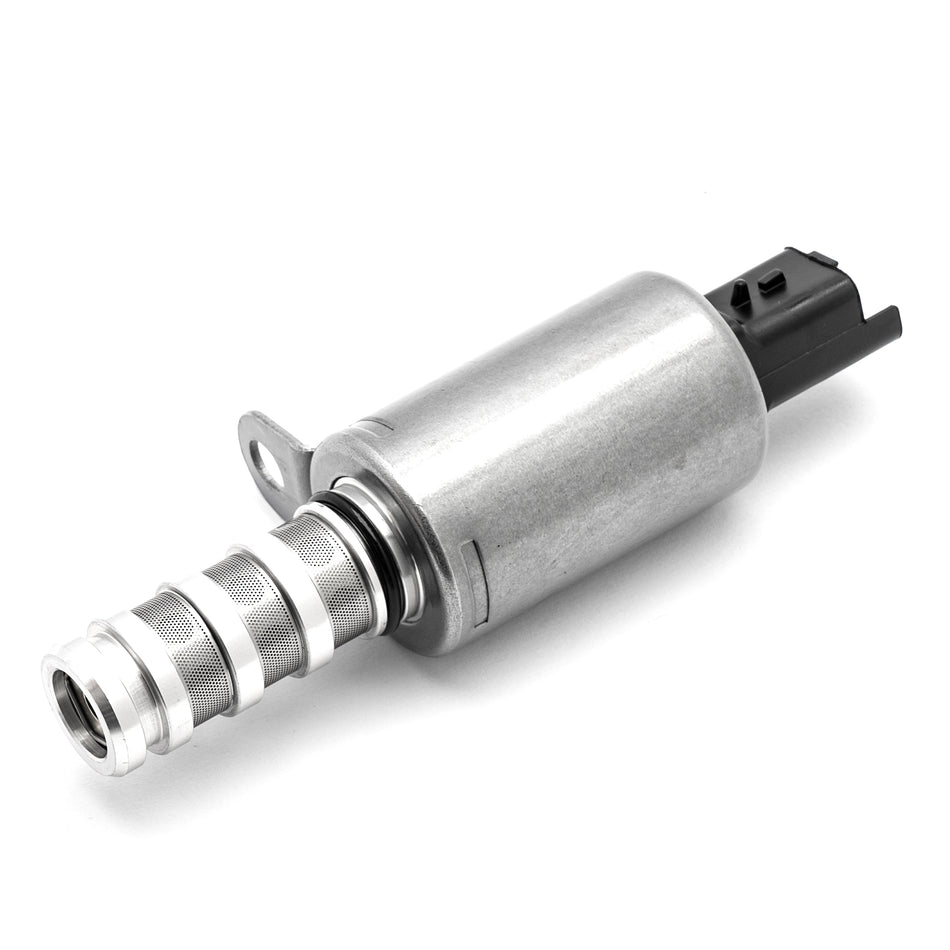

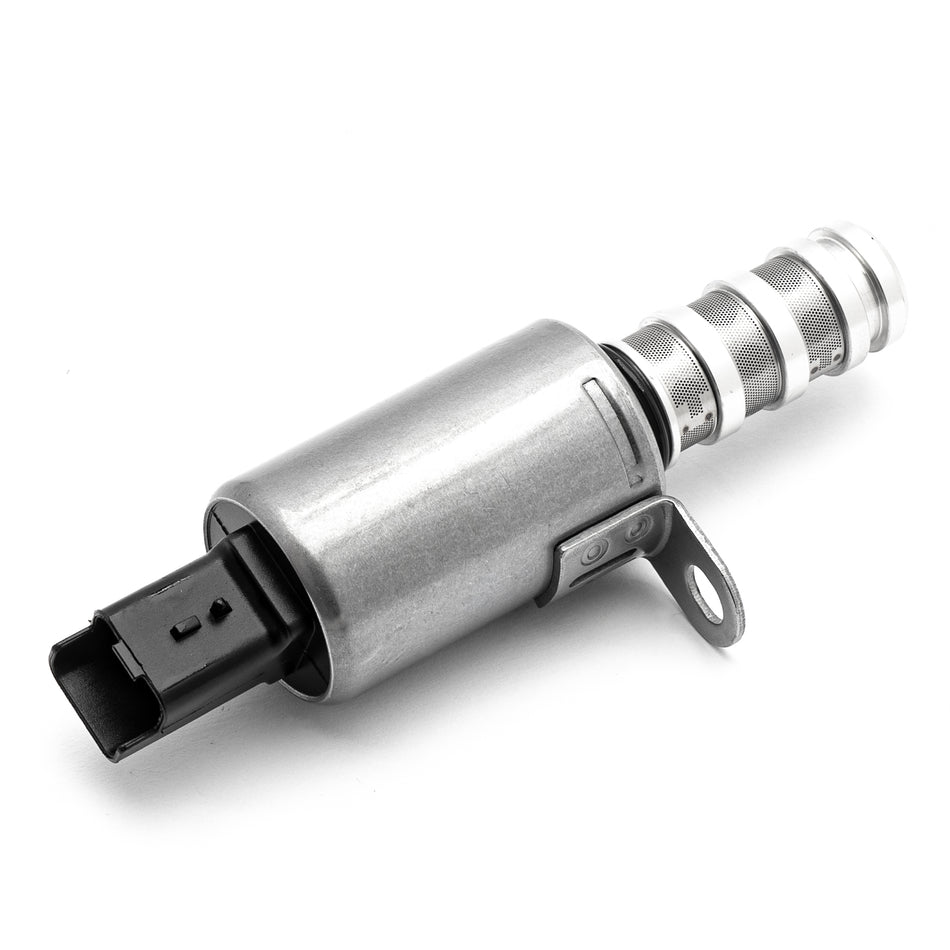

We can also include replacement solenoids in the kit on request, since clogged solenoids are a common follow-up failure.

Why сhoose Klifex VANOS Repair Kits

Klifex kits are built by people who expect their work to last. Here’s why they stand out:

1. Engineering: The kits are mapped to engine codes so you get the right BMW VANOS repair kit for your car, not a one‑size bag of rubber.
2. Upgraded materials: Viton‑class seals and calibrated washers reduce repeat failures versus generic packs.
3. Dimensional control: components made to tolerances that preserve hydraulic sealing and mechanical alignment.
4. Shop‑friendly packaging: full parts list, clear single/double labeling, fewer missing‑part trips.

Match engine code, pick the right BMW VANOS repair kit, and get your BMW behaving again.
