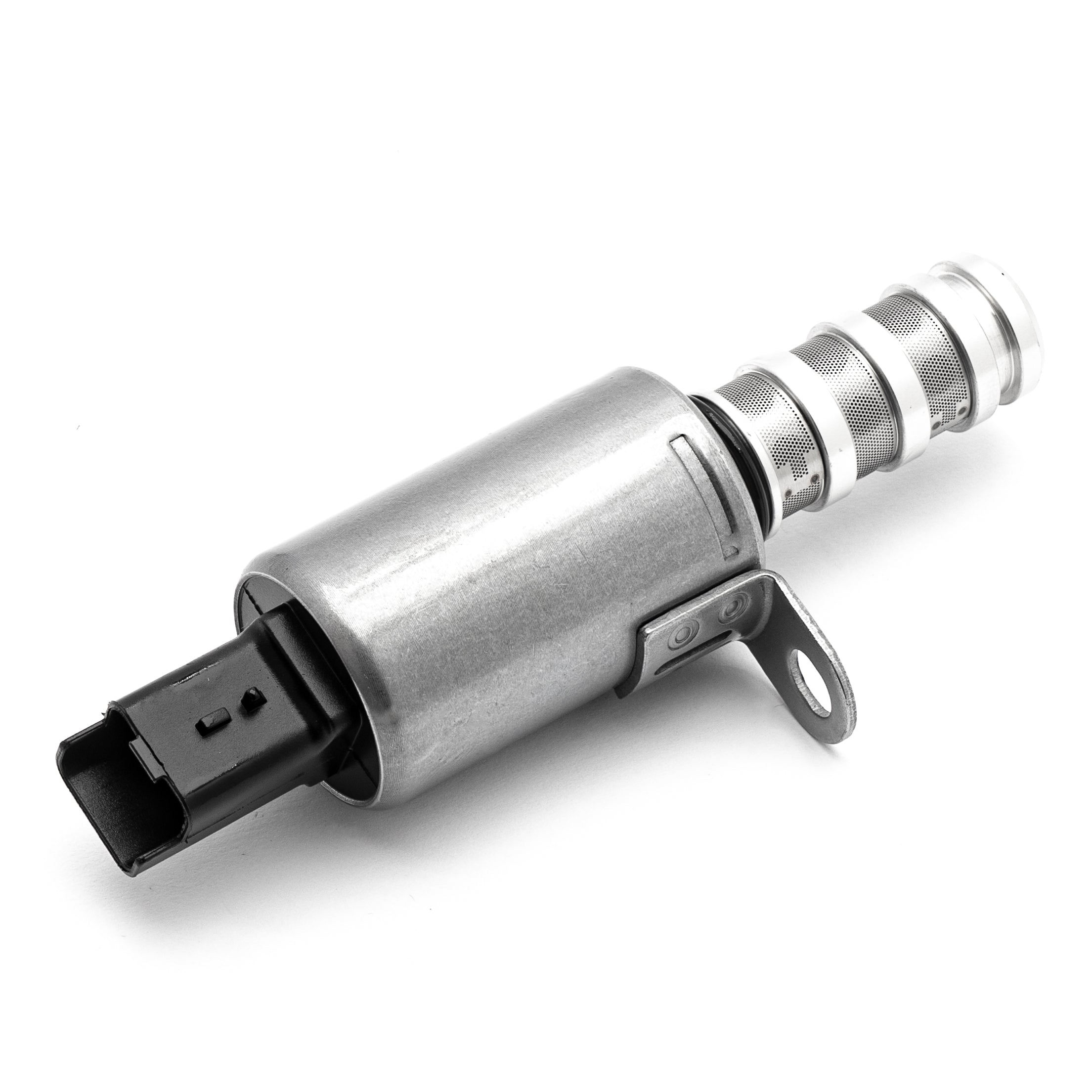

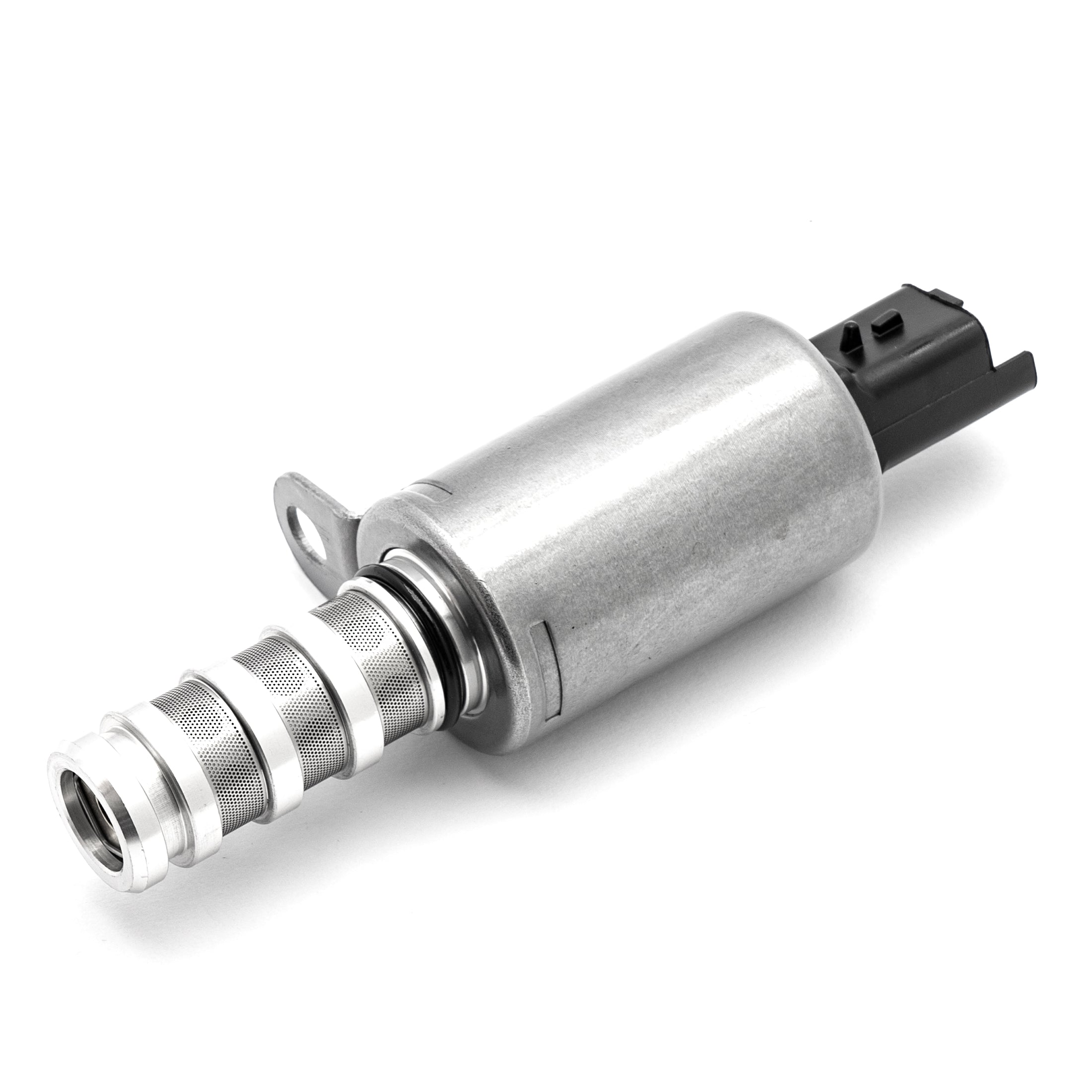

This solenoid valve is a component of the VANOS variable valve timing system on the listed applications. Match the installed valve reference and applicable engine before replacement.
Applications
- BMW 1' F20 (07/2010 - 02/2015)
- BMW 1' F20 LCI (06/2014 - 06/2016)
- BMW 1' F21 (12/2011 - 02/2015)
- BMW 1' F21 LCI (06/2014 - 06/2016)
- BMW 3' F30 (03/2012 - 07/2015)
- BMW 3' F30 LCI (03/2015 - 06/2016)
- BMW 3' F31 (08/2011 - 05/2015)
- MINI R56 (10/2005 - 08/2010)
- MINI R56 LCI (03/2009 - 11/2013)
- MINI Clubman R55 (10/2006 - 07/2010)
- MINI Clubman R55 LCI (03/2009 - 06/2014)
- MINI Cabrio R57 (10/2007 - 07/2010)
- MINI Cabrio R57 LCI (04/2009 - 06/2015)
- MINI Coupé R58 (12/2010 - 05/2015)
- MINI Roadster R59 (01/2011 - 04/2015)
- MINI Countryman R60 (01/2010 - 10/2016)
- MINI Paceman R61 (03/2012 - 09/2016)
- Citroen - match references 1628924280, 1922V9, V758776080, 1922R7 and V76042928003 with the original valve.
Engine and Valve Selection
Listed BMW engine context: N13, N14, N16 and N18. Compare the complete original valve marking, including references 11367564734, 11367566652, 11367587760, 11367604292 and 11368610388. Citroen reference forms and additional 76042928003 are retained below.
VANOS Inspection
- Higher fuel consumption, reduced acceleration or poor throttle response.
- Difficult engine starting.
- Fluctuating idle, especially at cold start.
- VANOS faults, even without a Check Engine warning.
- Reduced pull at low or medium engine speed.
- Uneven engine running or timing faults.
- Metallic noise near the VANOS mechanism.
These signs require diagnosis of the timing system and valve; they do not prove a solenoid fault by themselves.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
Is this a seal repair kit?
This product is the VANOS solenoid valve.
Which engine codes are listed?
N13, N14, N16 and N18.
Can a VANOS fault occur without the warning lamp?
Yes. Diagnose the timing system even if the Check Engine lamp is not illuminated.
Part Number / PN
1922V9,V758776080,1922R7,V76042928003,1628924280,11367564734,11367566652,11367587760,11367604292,11368610388,76042928003
SKU: KL11367564734.
