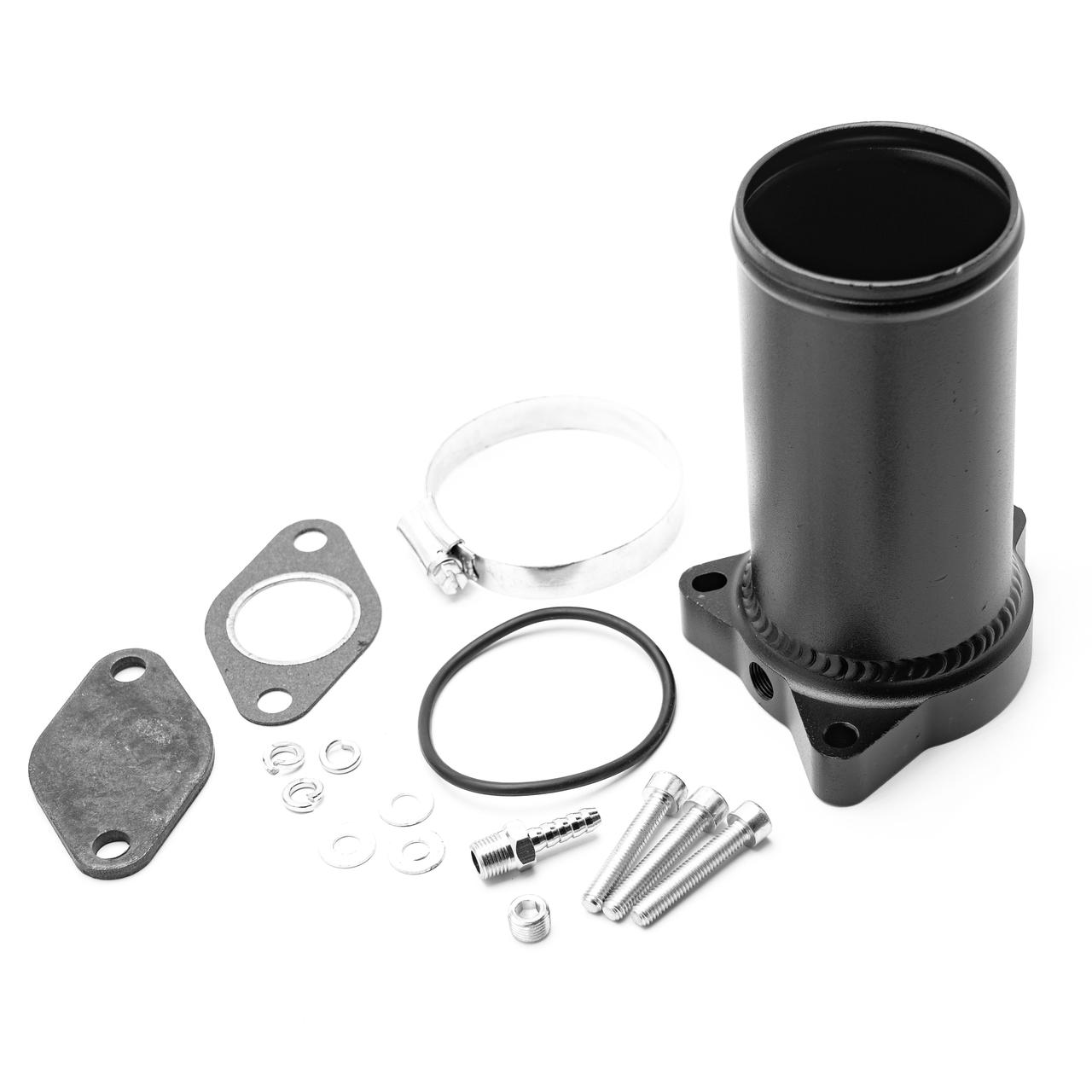

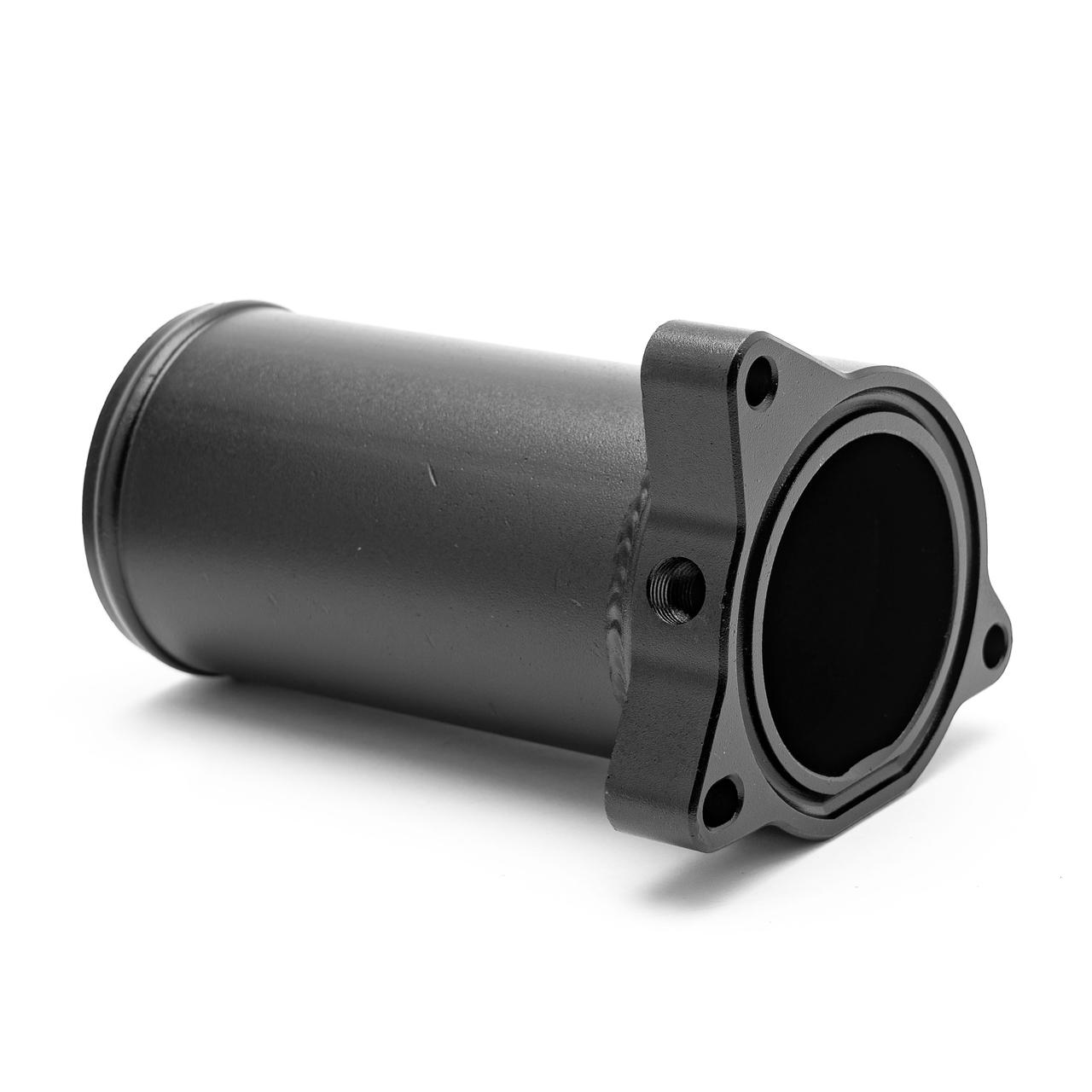

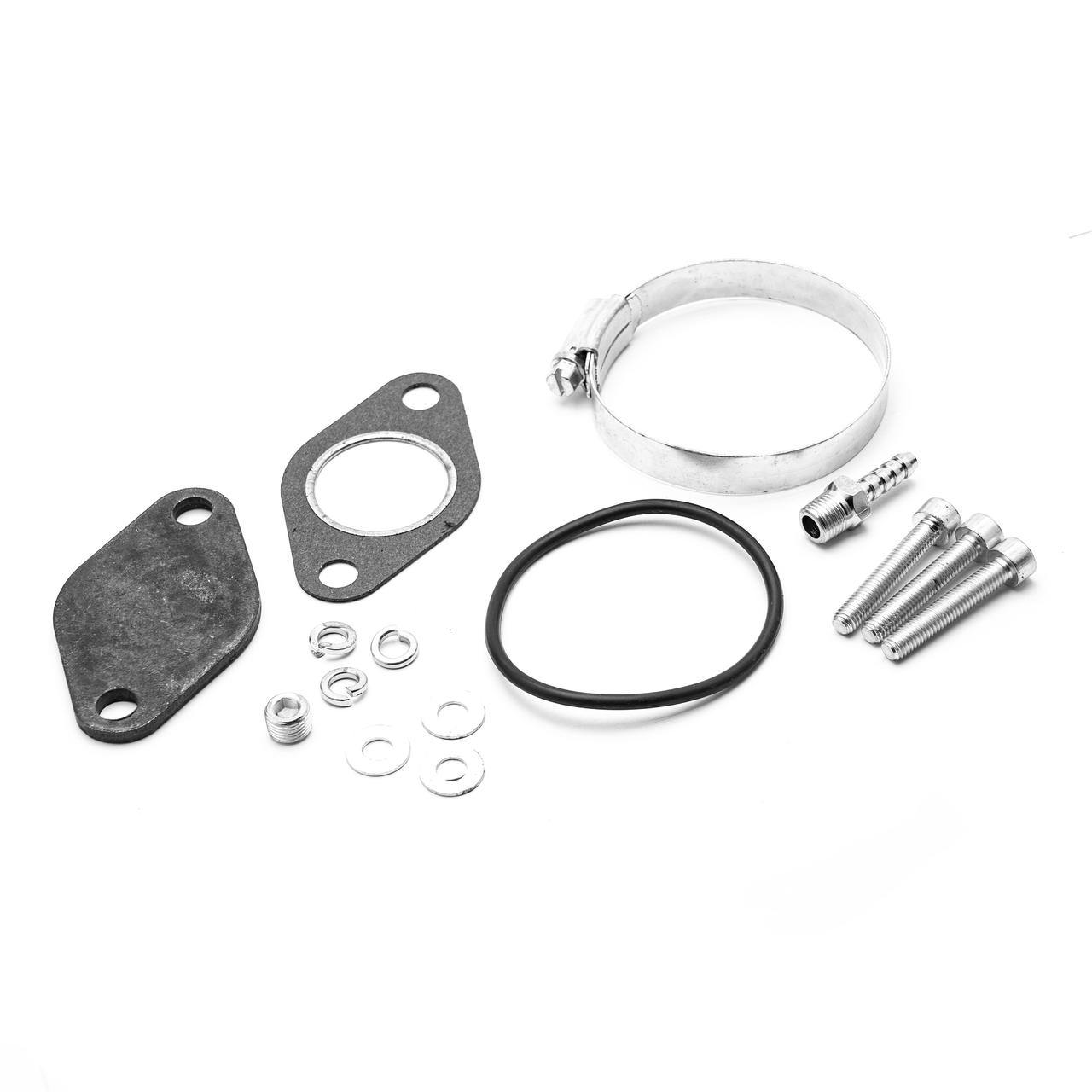

EGR Delete Kit 57mm - Audi / VW / Skoda / Seat 1.9 TDI - KLEGR02BK

This EGR removal kit is for the listed VAG 1.9 TDI applications, with size designation 57mm. Match the original flange dimensions and mounting bolt spacing before ordering.

Applications

• VW Golf Mk4 - ASZ 130, ARL 150.
• VW Golf Mk5 - BXF 90, BKC / BXE 105.
• VW Polo - ASZ / BLT 130.
• VW Bora - ASZ 130, ARL 150.
• VW Golf Mk5 Plus - BXF 90, BKC / BXE 105.
• VW Caddy - BJB 105.
• VW Passat - BKC / BXE 105.
• VW Jetta - BKC / BXE 105.
• VW Transporter T5 - AXC 85 & AXB 105.
• VW Sharan - AUY / BVK 115, ASZ 130 & BTB 150.
• Skoda Octavia - BKC / BXE / BJB 105, ASZ 130.
• Skoda Fabia - BSW / 105, ASZ / BLT 130.
• Skoda Roomster - BSW 105.
• Skoda Superb - AVF / AWX 130.
• Seat Ibiza - ASZ / BLT 130, BUK / BPX 160 (Cupra).
• Seat Leon - BXF 90, BKC / BXE 105, ASZ 130, ARL 150.
• Seat Toledo - BKC / BJB / BXE 105, ASZ 130, ARL 150.
• Seat Altea - BKC / BXE / BJB 105.
• Seat Alhambra - AUY / BVK 115, ASZ 130 & BTB 150.
• Audi A3 8L - ASZ 130.
• Audi A3 8P - BKC / BXE / 105.
• Audi A4 - AVF / AWX 130.
• Audi A6 - AVF / AWX 130.

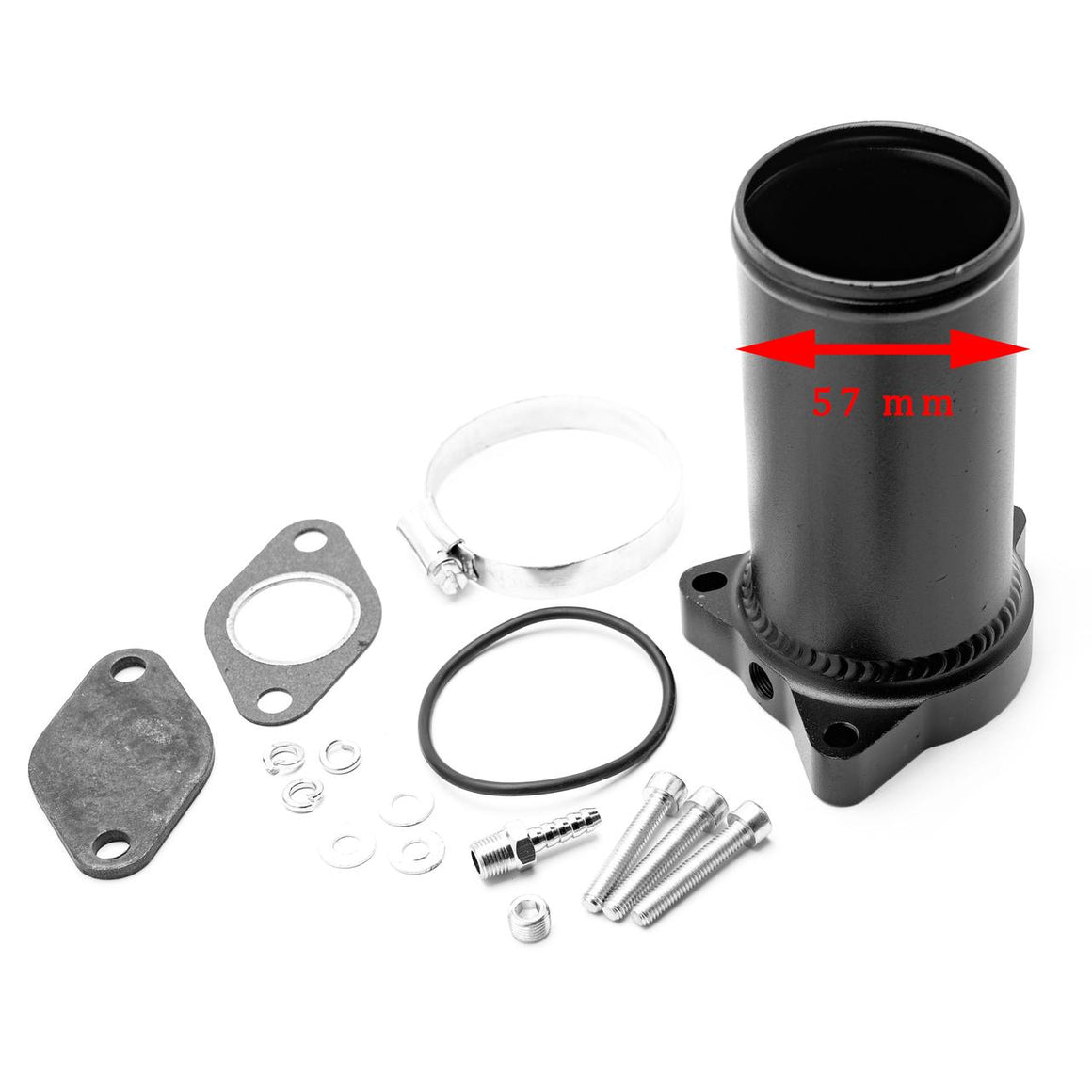

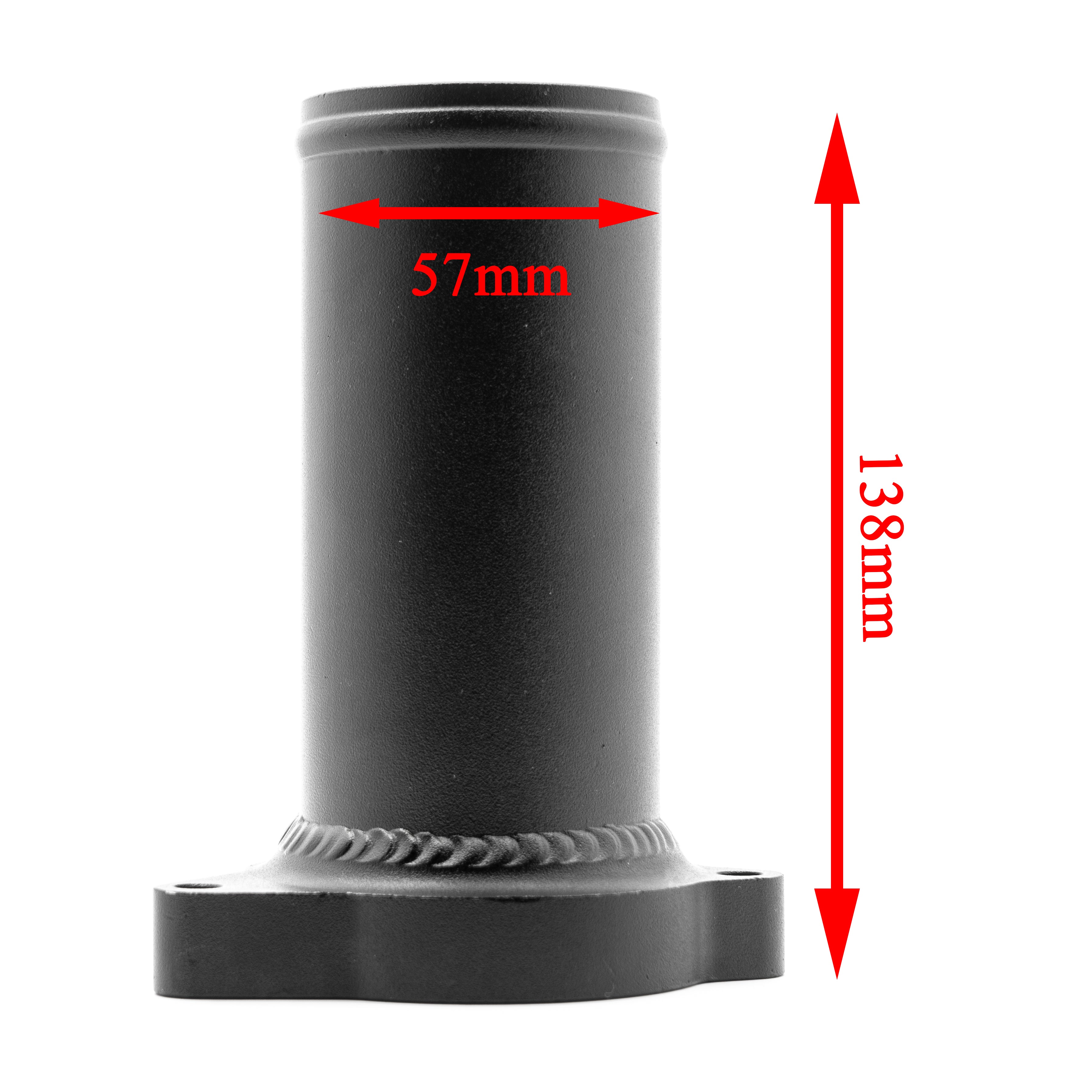

Size and Version Selection

Before ordering, compare the flange diameter and distance between the mounting bolts. Size designation: 57mm. Power contexts include 100/130/160 PS; retain the specific model and engine-code combinations listed above. Cross-reference: 038131501T.

When to Inspect the Intake and EGR

• Reduced power.
• EGR or intake manifold faults.
• Black exhaust smoke.
• Unstable idle.
• Intake air leaks.
• Carbon deposits or sticking flaps.

Diagnose the old system to establish the cause before choosing the required work.

Repair Scope

This is an EGR removal kit, rather than a replacement EGR valve or complete intake manifold. Match the original mounting design and reference.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

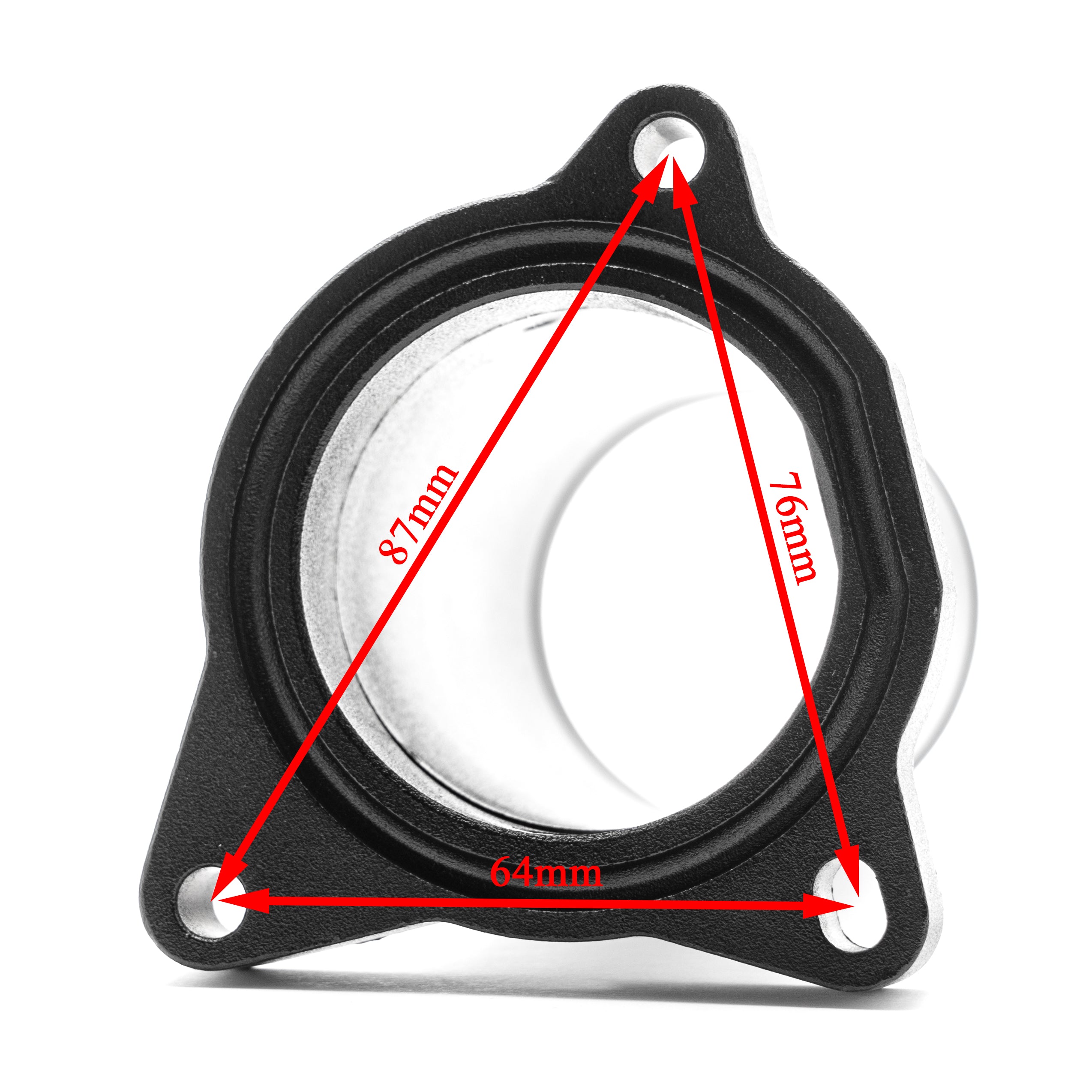

What dimensions should I compare?

The original flange diameter and mounting bolt spacing.

What size designation is listed?

57mm.

Can I select by the car model alone?

No. Match the listed engine application, reference and flange dimensions.

Part Number / PN

038131501T

SKU: KLEGR02BK.
