11658513575 EGR Radiator Vacuum Actuator for BMW B47
This replacement EGR radiator vacuum actuator is designed for BMW vehicles with the B47 diesel engine. The confirmed OEM reference is 11658513575.
This product is an individual direct replacement vacuum actuator that controls the EGR cooler bypass flap. It is not a complete EGR cooler or EGR radiator assembly. The package includes one actuator.
OEM / Reference Numbers
- 11658513575 — primary OEM and fitment reference
- 0892638 — additional part number
- 14SKV162 — additional part number
- V10-63-0066 — additional part number
Part Type
- EGR radiator vacuum actuator
- EGR cooler bypass flap actuator
- Direct replacement vacuum actuator
- Not a complete EGR cooler assembly
What This Part Does

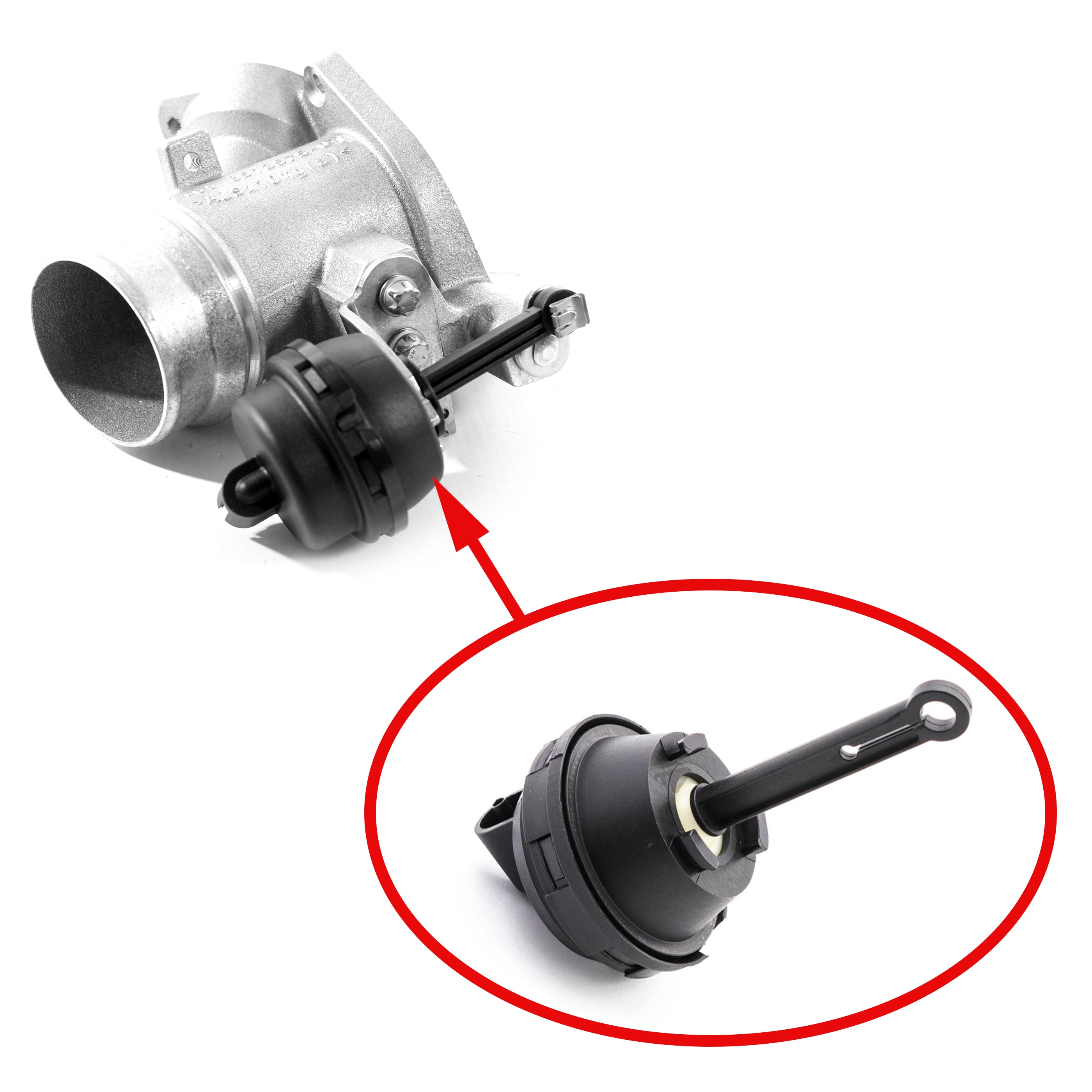

The vacuum actuator controls the bypass flap in the BMW B47 EGR cooler system. When the actuator fails, the bypass flap may stop operating correctly, which can cause EGR fault codes and incorrect exhaust gas temperatures. Replacing the failed actuator restores correct EGR radiator bypass control.
Compatible Vehicles
- BMW 1 Series F20 LCI — 05/2014 to 05/2019
- BMW 1 Series F21 LCI — 06/2014 to 05/2019
- BMW 2 Series F22 — 10/2014 to 06/2017
- BMW 2 Series F22 LCI — 10/2016 to 05/2019
- BMW 2 Series F23 — 10/2014 to 06/2017
- BMW 2 Series F23 LCI — 09/2016 to 05/2019
- BMW 3 Series F30 LCI — 04/2015 to 02/2018
- BMW 3 Series F31 LCI — 04/2015 to 02/2018
- BMW 3 Series F34 GT LCI — 09/2015 to 02/2018
- BMW 4 Series F32 — 04/2015 to 02/2017
- BMW 4 Series F32 LCI — 06/2016 to 10/2017
- BMW 4 Series F33 — 03/2015 to 02/2017
- BMW 4 Series F33 LCI — 05/2016 to 02/2018
- BMW 4 Series F36 Gran Coupé — 03/2015 to 02/2017
- BMW 4 Series F36 Gran Coupé LCI — 05/2016 to 02/2018
- BMW 5 Series G30 — 09/2016 to 05/2019
- BMW 5 Series G31 — 09/2016 to 05/2019
- BMW 7 Series G11 — 09/2015 to 02/2019
- BMW 7 Series G12 — 10/2015 to 12/2018
- BMW X3 G01 — 03/2017 to 05/2019
- BMW X4 G02 — 08/2017 to 05/2019
- BMW X5 F15 — 10/2014 to 06/2018
Engine / Technical Details
- Vehicle brand: BMW
- Engine family: B47 diesel
- Primary OEM reference: 11658513575
- Function: controls the EGR cooler bypass flap
- Package contents: 1 × EGR Radiator Vacuum Actuator
Common Symptoms of Actuator Failure
- Loss of power or hesitation
- Smoke after warm-up
- Rough or unstable idle
- Mixture faults or an intake air leak
- EGR fault codes
- Incorrect exhaust gas temperatures caused by failed bypass control
Why Choose This Replacement Actuator
- Direct replacement for OEM 11658513575
- Designed for BMW B47 diesel EGR cooler bypass applications
- Restores control of the EGR radiator bypass flap
- Allows replacement of the individual actuator without replacing the complete EGR cooler assembly
- Package includes one replacement actuator
Important Before Ordering
- Use OEM / P/N 11658513575 as the primary fitment check.

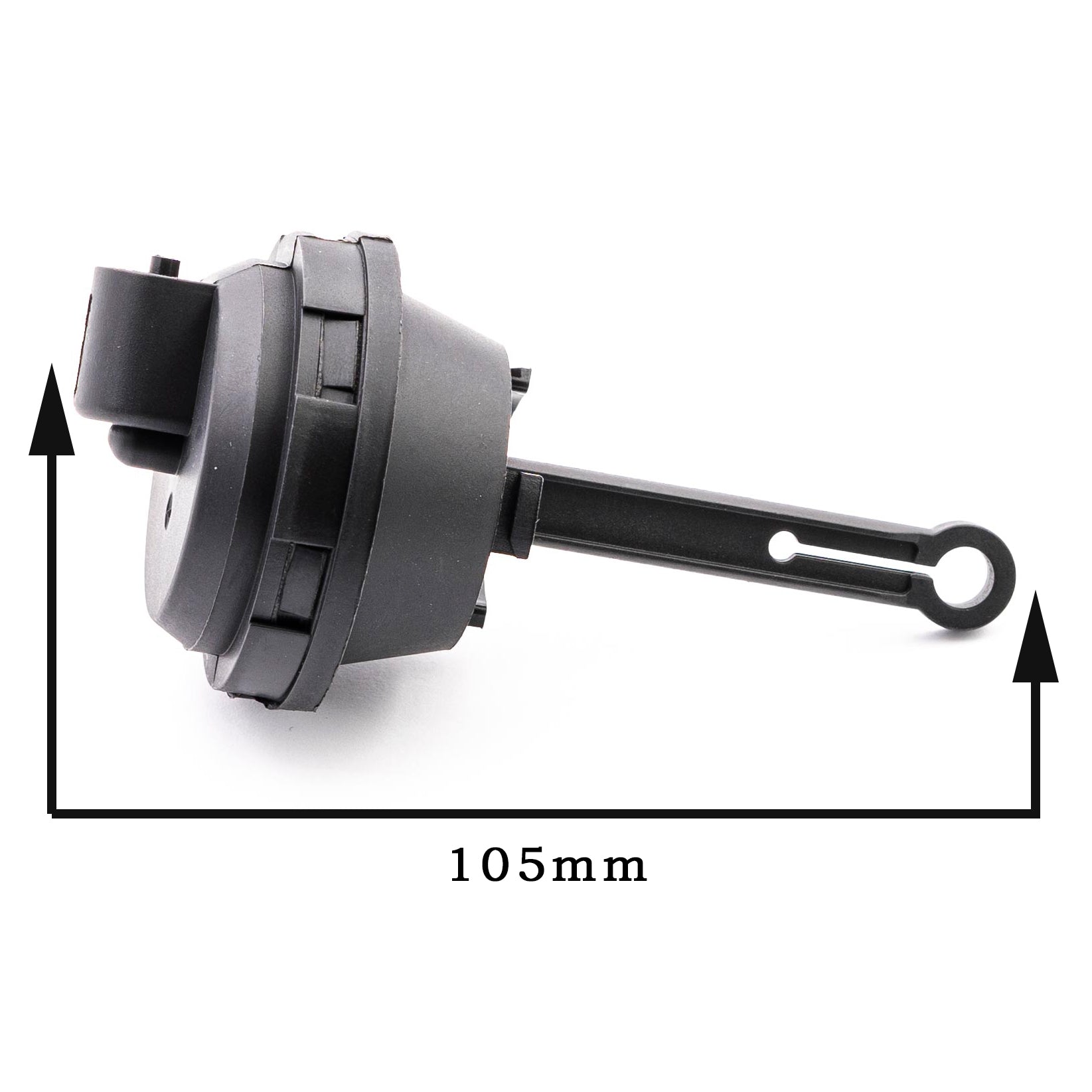

- Compare the physical design, dimensions and connectors with the installed actuator.
- Confirm your BMW chassis and production period against the compatibility list above.
- Do not select the part by vehicle model alone.
- This product includes one EGR radiator vacuum actuator and not the complete EGR cooler assembly.
What does OEM 11658513575 fit?
OEM 11658513575 fits the confirmed BMW B47 applications listed on the product page, including F20/F21, F22/F23, F30/F31/F34, F32/F33/F36, G30/G31, G11/G12, G01, G02 and F15 chassis within the listed production periods.
Are 0892638, 14SKV162 and V10-63-0066 related to 11658513575?
Yes. The product page lists these as additional part numbers together with primary OEM reference 11658513575.
What does the BMW B47 EGR radiator vacuum actuator do?
The actuator controls the EGR cooler bypass flap and helps regulate exhaust gas flow through the EGR cooling system.
What symptoms can indicate EGR actuator failure?
Confirmed symptoms include loss of power or hesitation, smoke after warm-up, rough or unstable idle, mixture or intake air leak faults, EGR fault codes and incorrect exhaust gas temperatures.
Is this a complete BMW EGR cooler?
No. The package contains one EGR radiator vacuum actuator only and does not include the complete EGR cooler assembly.
How do I confirm compatibility before ordering?
Match OEM / P/N 11658513575, compare the actuator design, dimensions and connectors, and verify the BMW chassis and production period. Do not confirm fitment by vehicle model alone.
