EGR Removal Kit

What is EGR and how does the exhaust gas recirculation system work?

The EGR (Exhaust Gas Recirculation) system is designed to reduce harmful emissions into the atmosphere, and its main task is to return part of the exhaust gases produced during fuel combustion back to the intake manifold. There, they mix with fresh air, reducing the combustion temperature in the chambers and thus reducing the amount of nitrogen oxides (NOx), which are one of the most harmful components of exhaust gases.

Although the EGR system is used in both diesel and gasoline engines, its design differs depending on the type of power unit. It has a greater impact in diesel engines, as these engines produce significantly more nitrogen oxides due to high combustion temperatures. In gasoline engines, EGR is mainly used to stabilize combustion and reduce detonation.

The EGR system works by opening a special valve that connects the exhaust tract to the intake tract. Under the action of electronic control or a vacuum actuator, the valve opens in certain engine operating modes, allowing some of the exhaust gases to enter the intake manifold. When the engine is idling or under full load, the valve closes - this is necessary for stable operation and to prevent power loss.

In cars equipped with these systems, EGR is controlled by an electronic control unit (ECU), which takes into account engine temperature, load, air volume, speed, and even exhaust gas temperature. The most common are electronic EGR valves with built-in stem position sensors, which allow for precise metering of the amount of recirculated gases.

Where the EGR system is used

The EGR system is installed on virtually all vehicles that meet Euro 3, Euro 4, Euro 5, and higher environmental standards. This includes both passenger cars and diesel trucks. The system is most commonly found in the following brands: BMW, Audi, Volkswagen, Mercedes-Benz, Ford, Peugeot, Citroën, Volvo, Toyota, Opel, Renault, Mazda, etc.

In turbocharged diesel models, EGR is often combined with a cooler that lowers the temperature of the recirculated gases, increasing the efficiency of the system (this type of system is called “cooled EGR”).

Problems associated with EGR malfunction

Despite its environmental benefits, the EGR system is one of the most common sources of malfunctions in diesel cars. Due to the constant circulation of exhaust gases with soot and carbon deposits inside the valve, deposits accumulate and eventually block its movement, and the valve stops closing or opening completely. This leads to incorrect gas metering, power loss, jerks during acceleration, black smoke from the exhaust pipe, and even emergency engine mode.

A dirty EGR can also cause uneven engine idling, increased fuel consumption, and control system errors (often codes P0400–P0409). In the worst cases, the constant ingress of soot into the intake manifold also contaminates the swirl flaps, further complicating the situation.

What happens if you drive with a faulty EGR

The EGR system acts as a combustion temperature regulator and an environmental filter—it reduces nitrogen oxide formation by returning part of the exhaust gases to the intake. When the EGR valve or cooler stops functioning properly, the mixture balance is disrupted. This immediately affects both performance and the condition of adjacent engine systems.

1 Air-fuel balance disruption

A faulty valve can get stuck in the open or closed position.

If it is constantly open, excess exhaust gases enter the cylinders. There is less air in the mixture, and there is not enough oxygen for complete fuel combustion. The result is black smoke, loss of power, unstable idle speed, and in diesel engines, strong vibration at low revs.
If the valve remains closed, the system stops recirculating gases and the combustion temperature rises. This results in more NOx being produced and increased stress on the pistons, valves, and cylinder head.

2. Loss of power and increased fuel consumption

When EGR does not regulate the volume of exhaust gases, the ECU (electronic control unit) begins to adjust the fuel supply based on incorrect sensor data. As a result:

the engine consumes more fuel to compensate for the lack of oxygen;
the combustion temperature increases — the engine heats up faster, the fans work more often;
under load, there is a noticeable “drop” in traction.

In diesel engines, even slight valve sticking often leads to a sharp increase in consumption of up to 10–15%.

3. Increased smoke and soot formation

Improper EGR operation causes some of the fuel to not burn completely. This forms soot, which settles in the intake manifold, on the throttle valves, valves, and pressure sensors. Over time, the intake channels narrow so much that the engine “suffocates.” In diesel cars, the DPF filter quickly becomes clogged due to excess soot, and the system goes into emergency mode.

4. Damage to the turbine and intercooler

When the EGR valve is open, hot exhaust gases are partially returned to the intake even when they should not be. Their temperature reaches 400–600 °C, which damages the aluminum intercooler and turbine blades. Prolonged operation in this mode causes microcracks in the housing, boost pressure leaks, and ultimately the need to repair the turbocharger.

5. Problems with the catalytic converter and DPF

Uneven fuel combustion increases the amount of soot particles and unburned hydrocarbons. The catalytic converter begins to overheat, and in diesel engines, the DPF filter clogs several times faster. Frequent filter regeneration only makes the situation worse — over time, it completely loses its throughput capacity.

6. ECU errors and emergency mode

The electronics of modern cars control the valve position and gas flow through intake pressure sensors. When the EGR does not respond or gives incorrect readings, the ECU records errors (typical codes — P0400 – P0409) and puts the engine into limited power mode. The driver sees the Check Engine light, and the traction drops significantly.

7. Overheating and risk of engine damage

Without proper EGR control, the combustion temperature increases by 100–150 °C. This exceeds the permissible values for many aluminum cylinder heads. In the long term, such operation can cause:

deformation or cracks in the cylinder head;
valve burnout;
destruction of piston rings.

In diesel engines, there is an additional risk of detonation combustion (“hard work”), especially under heavy loads.

8. Reduction in engine and turbine life

Even if the symptoms are insignificant at first, the accumulation of soot, overheating, and changes in the chemical composition of the oil due to combustion products gradually reduce the service life of the entire power unit. After 20–30 thousand km of operation with a faulty EGR, oil leaks, fogging of gaskets, and unstable compression often appear.

9. Automatic transmission malfunction

On cars with automatic transmission, a malfunction in the EGR system can cause delays in gear shifting. This is because the transmission control unit receives incorrect data about the engine load. As a result, the transmission may jerk or go into “protective” mode.

10. Consequences for the environment and diagnostics

The lack of EGR control sharply increases NOx levels—5–10 times above normal. Such cars often fail environmental tests or technical inspections. For a diagnostician, EGR is one of the first places to check when black smoke, unstable engine operation, or DPF errors are detected.

Ways to remove or disable the EGR system

There are two main methods for removing EGR: physical and software.

Physical removal of EGR involves installing a repair kit to remove EGR, which blocks the flow of gases between the exhaust manifold and the intake. In most cases, this method is combined with cleaning or removing the valve to prevent leaks. This approach completely eliminates the problem, but requires software adjustment, otherwise the control unit will record a system error.

Software EGR disconnection involves changing the parameters in the electronic control unit's firmware so that the system ignores signals from the EGR and does not open the valve. This method does not require physical intervention in the system, but it is often combined with mechanical blocking to avoid leaks.

Removing the EGR allows the engine to run more smoothly, increases the life of the turbine, and reduces soot accumulation in the intake tract. However, it is important to remember that after this, the car may not comply with environmental standards, so the decision must be carefully considered and carried out by qualified specialists.

What is an EGR removal kit?

This is an engineering kit for mechanical disconnection (blocking) of the exhaust gas recirculation circuit, the purpose of which is to completely block the exhaust path from the exhaust tract to the intake tract, eliminate chronic valve leaks/sticking, and stabilize engine operation. A typical kit contains plugs (plates) for exhaust/intake connections, gaskets or sealing rings made of heat-resistant materials, sometimes an EGR heat exchanger plug/bypass, fasteners with high-temperature coating, heat-resistant washers, and tightening torque instructions. For cooled systems, bypass elements or jumpers for the heat exchanger cooling circuit are added. A physical plug breaks the recirculation channel, preventing soot from entering the intake.

After mechanical blocking, the electronic control unit (ECU) usually requires software adaptation, otherwise DTC errors for “insufficient EGR flow” and transition to emergency mode will occur.

Types of EGR removal repair kits

Basic repair kit for EGR removal: steel/stainless steel plate with gaskets for covering flanges. Suitable for systems without a separate cooler.
Extended repair kit for EGR removal (with heat exchanger bypass): additional plugs/bridges for disconnecting and sealing the EGR cooler, sometimes brackets for securing the dismantled unit.
Modular repair kit for EGR removal (for various configurations): a set of plates and gaskets for several manifold/turbine options; convenient for services working with different engines.

Preparation for work before using the EGR removal repair kit

Perform a preliminary diagnosis of the car, read the error codes, check the EGR corrections, view the actual and target EGR flow in the “live data”. Make sure that the cause of the instability is the EGR itself, and not air suction or problems with the turbine/MAF.

Check access to the EGR flanges, the condition of the fasteners, and the presence and configuration of the heat exchanger. Prepare a penetrating lubricant - threads often “stick”.

Prepare a set of sockets/wrenches, a torque wrench (for precise tightening torque), a scraper/scotch-brite for cleaning the seats, a cleaner for sleeves/flanges, dielectric grease for connectors, and, if necessary, coolant for refilling after disconnecting the heat exchanger.

Step-by-step instructions on how to mechanically remove the EGR using a repair kit

Cool the engine, disconnect the negative battery terminal. If there is an EGR cooler, plan to partially drain the coolant from the upper pipe to avoid spills.
Remove the decorative covers, air ducts, and any elements that prevent access to the EGR/heat exchanger flanges. Carefully disconnect the electrical connectors of the EGR valve and, if present, the temperature/pressure sensors in the tract.
Unscrew the bolts on the exhaust flange (exhaust supply to EGR) and intake flange (return to manifold). If a cooler is installed, disconnect its fasteners and coolant pipes (place a container underneath). Cover open channels with clean rags to prevent dirt from entering.
Thoroughly clean the contact surfaces of carbon deposits/old gaskets. The mounting surfaces must be clean, flat, and free of burrs.
Install the plates with new gaskets. Follow the orientation and diagram in the instructions. Tighten the bolts crosswise with a torque wrench to the specified torque (too little torque will cause leakage, too much will cause flange deformation).
Place the complete plugs/bridges on the coolant circuit and secure them firmly. Make sure that the cooling circuit is sealed and that no “air pockets” have formed.
Replace the air ducts and covers, and connect the connectors. Top up the coolant if you removed the heat exchanger. Connect the battery.
Start the engine, check for whistling in the intake, suction, coolant/exhaust leaks at the plug locations. Use a scanner to check for new DTCs.

How to programmatically remove EGR using a repair kit

After mechanically blocking the ECU, the car's control unit will usually register “unsatisfactory EGR flow,” so correct firmware adaptation is required (calibration of EGR maps, deactivation of diagnostic monitors for flow/position), otherwise, constant DTC and MIL (Check Engine) errors in the car control system and a transition to emergency mode with power limitation are possible.

The adaptation is performed by a calibration specialist based on your ECU software. After flashing, be sure to perform adaptations and self-learning (if provided by the manufacturer), as well as a test run with logging of parameters: MAP, MAF, SOI, intake temperature, target/actual boost pressure.

You can disable EGR yourself, but you need to have the necessary equipment, which is quite expensive, and if the car owner does not intend to do this on a regular basis, it is more profitable to contact specialists.

What does EGR removal affect?

Removing the exhaust gas recirculation (EGR) system is an intervention that changes the physics of fuel combustion in the engine in order to improve stability and eliminate chronic problems with valve or manifold clogging.

Impact on the turbine and intake system

After mechanical or software removal of EGR, soot particles and unburned gases no longer pass through the intake. This has an immediate noticeable effect — the intake tract remains clean, the vortex dampers are not covered with carbon deposits, and the air flow into the cylinders becomes more uniform. The turbine begins to operate under more stable conditions, as pressure drops in the system are reduced.

The turbocharger blades are less exposed to thermal stress, and the soot that previously settled on them no longer enters the housing. This increases the service life of the bearings and eliminates geometry souring in turbines with the VNT (Variable Nozzle Turbine) system. The turbine's response to gas is also improved - boost is gained faster, without delays.

At the same time, the absence of EGR changes the temperature balance of the combustion chamber. The temperature of peak zones can increase by 80–150 °C, especially in diesel engines under heavy loads, which requires careful tuning of fuel maps and control of injection timing to avoid detonation (in gasoline engines) or increased NOx (in diesel engines).

If the calibration is left without corrections, there may be a slight increase in smoke when revving sharply, overheating of pistons and valves, and premature detonation in gasoline engines when shifting to high revs. That is why, after removing the EGR, it is recommended to perform software adaptation of the ECU with control of combustion temperature parameters, injection corrections, and boost.

Impact on the DPF and catalytic converter

The DPF (Diesel Particulate Filter) system and catalytic converter (CAT) are directly dependent on the composition of the exhaust. EGR reduces the combustion temperature and partially affects the amount of soot produced during diesel operation. If EGR is removed, the combustion process becomes hotter and more efficient, and the amount of unburned particles is reduced. This has a positive effect on the DPF, which regenerates faster, the frequency of forced regenerations decreases, and the filter becomes less clogged.

However, there is a nuance: if EGR is disabled by software without correcting the fuel maps, the fuel-air ratio will change. As a result, the ECU may incorrectly calculate the number of injections during DPF regeneration. This can cause premature or too frequent regenerations, fuel accumulation in the oil, and catalyst overheating.

To avoid such effects, the DPF and EGR systems must be synchronized during chip correction. Competent tuning takes into account the new combustion dynamics, and the ECU program is adjusted accordingly. Then the DPF and catalyst operate in normal mode, and the exhaust remains clean.

Effect on combustion temperature and detonation

The EGR system was developed primarily to reduce combustion temperature, and thus to reduce the formation of nitrogen oxides (NOx). When it is removed, the amount of “inert” gases in the combustion chamber decreases, and combustion occurs in an atmosphere with a higher oxygen concentration. This increases the explosion energy of the mixture and the flame temperature.

For diesel engines, this means improved combustion at low and medium speeds (less smoke), increased thermal load on pistons and valves at high loads, and the possibility of turbine overheating without boost pressure correction.
For gasoline engines, there is a risk of detonation, so when EGR is removed in such engines, the ignition advance angles are always adjusted to reduce the load on the cylinder-piston group components.

A properly calibrated engine after EGR disconnection runs more smoothly, without idle speed fluctuations, without MAP/MAF fluctuations, and without smoke under load.

Environmental standards and legal restrictions

EGR is part of the emission reduction system, and its absence automatically changes compliance with Euro or EPA environmental standards. In the US, this issue is regulated at the technical inspection level—a car without active EGR may not pass an emissions test, especially if the diagnostic port shows a disconnection or no signal from the valve.

Technically, disabling EGR is not harmful if done correctly, but from a legal standpoint, it may violate environmental regulations. Therefore, drivers planning such modifications should consider the requirements of their region. In some US states, this is only permitted for track cars or off-road use.

Removing EGR has a complex effect:

turbine stability improves, deposits in the intake disappear;
the engine runs cleaner and responds faster to the gas pedal;
thermal load increases, so fuel and ignition maps need to be adjusted;
the DPF/catalytic converter system requires synchronization for proper regeneration;
the environmental class of the car changes, and this must be taken into account legally.

When done correctly (using a repair kit to remove the EGR and professional software tuning), removing the EGR system does not harm the engine. On the contrary, it extends its service life by eliminating the main source of intake contamination and unstable operation.

Klifex repair kits for removing the EGR system in BMW

Klifex offers specialized kits for removing or blocking the EGR system on BMW cars. For example, the following items are available on the Klifex website:

These kits are designed for BMW car systems where exhaust gas recirculation causes problems such as soot accumulation, increased fuel consumption, reduced power, and the likelihood of entering emergency mode.

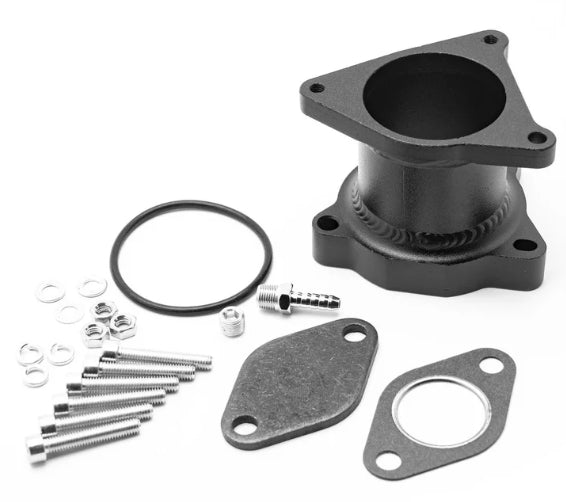

Klifex EGR removal repair kit for BMW

Plugs for exhaust manifold and intake flanges to block the EGR recirculation channel.
High-quality gaskets/seals (heat-resistant) that ensure tightness and prevent air or soot suction.
Brackets or mounting elements for securing the plugs and properly closing the channels.
For systems with a cooled EGR, the kit includes cooling jacket plugs or jumpers for the cooling circuit.

If you have a BMW with a typical EGR system that causes malfunctions or power loss, the Klifex EGR removal repair kit is a professional solution that allows you to eliminate the problem without expensive original parts, improve engine stability, and significantly reduce maintenance costs. This kit is the result of Klifex's manufacturing approach and includes full compatibility with BMW models, only certified materials, installation instructions, and after-sales support.

Klifex EGR removal repair kits on other car brands

Klifex offers specialized EGR removal repair kits on a wide range of cars, including Volkswagen, Audi, Skoda, Seat, and others. A wide range of products is available for purchase:

All components are ready for installation and provide a cheaper alternative to the expensive original EGR system, maintaining engine functionality, increasing performance, and reducing fuel consumption. When choosing a kit, consider the diameter of the EGR flange (e.g., 50 mm, 57 mm), engine model, engine code, and the presence of an EGR cooler.

If you have a VAG car or another model for which Klifex has a specific “EGR Removal Kit” this solution allows you to professionally and effectively eliminate the bottleneck in the gas recirculation system, unblock the EGR channel, remove soot accumulation, stabilize engine operation, and reduce costs.

FAQ: EGR Removal Kit

1. What is included in an EGR Removal Kit?
A complete kit usually contains stainless steel block-off plates for the exhaust and intake flanges, high-temperature gaskets or sealing rings, coated mounting bolts, coolant bypass fittings for EGR coolers (if equipped), and a detailed installation guide with torque specifications. Some kits also include vacuum line caps or decorative plugs for a clean finish.

2. Can the EGR system be removed without ECU programming?
You can mechanically block the EGR flow, but without ECU recalibration the engine control unit will often trigger fault codes such as P0400–P0409 and may enter limp mode. Therefore, after installing a removal kit, it’s strongly recommended to perform a software EGR delete — disabling all related EGR maps and diagnostics in the ECU.

3. How can I tell that my EGR system needs repair or removal?
Typical symptoms include loss of power, black exhaust smoke under acceleration, increased fuel consumption, rough idling, “Check Engine” light with EGR-related fault codes, and poor throttle response. In most diesel engines, the EGR valve tends to stick open due to soot buildup, which causes unstable combustion and low performance.

4. Will removing the EGR system improve engine performance?
Yes. The throttle response becomes quicker, turbo lag is reduced, and overall engine torque delivery feels smoother. However, optimal results require proper ECU tuning — otherwise, incorrect fueling strategies may still limit performance or cause excessive smoke.

5. How does EGR removal affect the turbocharger and engine?
Positively — soot deposits inside the intake manifold are eliminated, the turbocharger stays cleaner, and boost pressure becomes more stable. However, without proper calibration, peak combustion temperatures may rise, so injection timing and fuel corrections must be monitored to prevent overheating of valves and pistons.

6. Should the intake manifold and swirl flaps be cleaned after EGR removal?
Absolutely. If the manifold remains clogged with carbon, airflow will still be restricted. Cleaning the intake and swirl flaps after installing the removal kit ensures full airflow to the cylinders and more precise fuel-air mixing, restoring efficiency.

7. Does EGR removal affect the DPF or catalytic converter?
When the ECU is correctly tuned, the DPF and catalytic converter continue to operate normally. If the EGR is mechanically blocked but not disabled in software, regeneration cycles may shift — leading to premature DPF saturation or fuel dilution in the oil. Synchronizing DPF and EGR maps during tuning prevents these issues.

8. Is EGR removal legal in the US?
Technically possible, but not compliant with EPA or Euro emissions regulations for road vehicles. Such modifications are officially allowed only for off-road or motorsport applications. For on-road vehicles, it’s the owner’s responsibility to comply with local inspection and emissions laws.

9. What is the service life of an EGR Removal Kit?
When installed correctly, the kit is permanent. Plates are made from stainless or heat-resistant steel, and gaskets use reinforced composite materials designed for high temperatures and exhaust pressure. With proper installation torque and sealing, the kit lasts the entire engine lifespan.

10. Can I install the kit myself?
Yes, if you have basic mechanical skills and tools: socket set, torque wrench, gasket cleaner, and new seals. Ensure that all mating surfaces are clean and that the system is leak-free after installation. Most Klifex kits for BMW, VW, and Land Rover include detailed instructions, and the manufacturer provides technical support if needed.
