How to correctly install a turbo wastegate repair kit

How to correctly install a turbo wastegate repair kit

Wastegate — this is a valve that releases excess pressure in the turbine, which regulates the amount of exhaust gases entering the turbine wheel. Its main function is to control the boost pressure in the engine. Without a wastegate, the pressure in the system could exceed the permissible level, which would lead to overheating, detonation, or even destruction of the turbine. This valve keeps the turbine within the optimal operating range, ensuring a balance between power and reliability.

A wastegate can be of two types:

  • Internal — integrated directly into the turbine housing, controlled by a vacuum or electronic actuator.
  • External — a separate component installed on the exhaust manifold (usually in performance or high-power engines).

In most production vehicles, such as BMW, Audi, Volkswagen, Mercedes, Ford, Volvo, an internal wastegate with a vacuum actuator is used, and this particular type fails over time due to heat, vibration, and corrosion.

How does a Wastegate work?

The operating principle of the wastegate is simple – inside the actuator there is a membrane with a spring. When the boost pressure reaches the set level, this pressure is transmitted through a hose to the vacuum chamber, the membrane bends, overcoming the resistance of the spring, and pushes the rod.

The rod opens the flap (the dump valve) in the turbine housing. Part of the exhaust gases bypasses the turbine wheel, the pressure decreases, and the turbine operates stably. When the pressure drops, the spring returns the flap to its original position. Thus, the cycle repeats dozens of times per second, maintaining the required boost level.

If the membrane cracks or the rod gets stuck, the valve stops working and the turbine starts “overboosting”, which quickly leads to its failure.

Typical Turbine Westgate malfunctions

The wastegate operates in extreme conditions: temperatures above 900°C, vibrations, pressure drops, soot, and condensation. The most common turbine wastegate failures are:

  • A torn or burnt membrane leads to loss of pressure control, overboost, or complete lack of boost.
  • Sticking of the stem when, due to corrosion or carbon deposits, the valve “sticks” and does not respond to actuator signals.
  • A worn bushing or lever causes backlash, and the valve does not close tightly, preventing the turbine from generating the required pressure.
  • A damaged vacuum actuator seal leads to a loss of vacuum and the diaphragm does not work properly.
  • Breakage of the rod or ball joint.

All these problems can be solved without replacing the entire turbine by using a  Turbo Westgate repair kit, which restores the valve mechanics.

Turbine Wastegate repair kit

We specialize in developing repair kits for supercharger systems for virtually all cars in the US, and in particular for repairing vacuum actuators and wastegates.

The turbo wastegate kit allows you to completely restore the valve's performance by replacing the most vulnerable elements, and after restoring the wastegate, the turbine returns to its factory boost parameters without the need for expensive replacement of the entire mechanism.

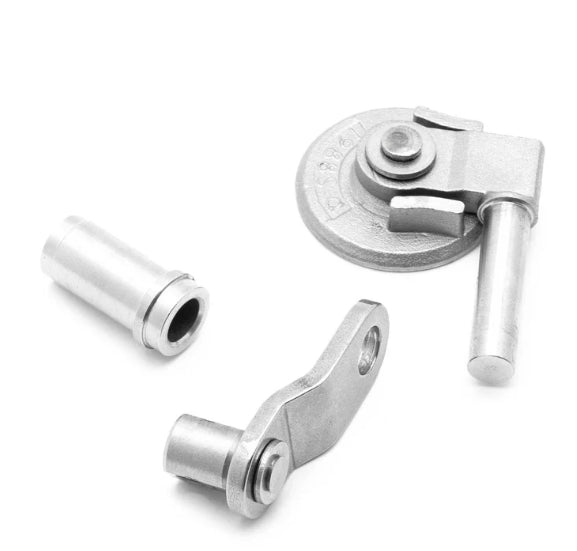

A typical Klifex turbine wastegate repair kit includes:

  • new stainless steel rod with precision threading;
  • heat-resistant bronze or steel alloy bushing;
  • ball joint (pin) with improved grip;
  • Viton sealing rings;
  • New spring or diaphragm;
  • Detailed instructions with photos.

You can buy high-quality original turbo wastegate repair kits with delivery throughout the United States, for example:

Our range also includes individual turbocharger system components such as turbine sensors, turbine valves, turbocharger connecting rods, turbine actuators, and many other spare parts for all types of cars in the US.

How to install a Turbo Westgate repair kit?

The work can be done at home if you have a minimum set of tools. It is important to be precise, as the stability of pressure throughout the system depends on it.

Step 1. Turbine removal

  1. Disconnect the battery and allow the engine to cool completely.
  2. Remove the plastic elements under the hood to access the turbine.
  3. Unscrew the oil supply and drain pipes, as well as the vacuum hose from the actuator.
  4. Remove the turbine heat shield.
  5. Disconnect the turbine from the manifold (usually 4 bolts) and carefully pull it out.

Step 2. Diagnosing the turbine wastegate

Check the wastegate - if the rod does not move and the damper does not close tightly, it needs to be repaired. Pay attention to the color of the metal—a bluish tint indicates overheating.

Step 3. Disassembling the actuator

  1. Remove the vacuum chamber housing by carefully disconnecting the diaphragm.
  2. Remove the old rod and lever.
  3. Check the bushing — in most cases, it is already worn or broken.
  4. Clean the mounting surfaces of soot and dirt, preferably with a spray for turbines or carburetors.

Step 4. Installing the turbo westgate repair kit

  1. Install the new bushing, pressing it in until it stops.
  2. Insert the rod into the socket, check the smoothness of movement — it should slide without jamming.
  3. Secure the ball joint to the lever.
  4. Replace the diaphragm seal.
  5. Assemble the vacuum actuator housing.
  6. Check that the rod moves easily when a vacuum is created — this is the main indicator of a successful repair.

Step 5. Installing the turbine

  1. Reinstall the turbine using new gaskets.
  2. Connect the vacuum line, lubrication pipes, and pressure sensor.
  3. Start the engine, warm it up, and check the boost pressure using diagnostics (Boost Pressure parameter).

When installed correctly, the turbine responds instantly, without delay, and the wastegate opens clearly when the set pressure is reached.

Advantages of a repair kit over a complete repair or replacement of the turbine

  1. The main advantage of installing a turbine repair kit over replacing it with a new one is the cost. A new actuator or turbine costs between €300 and €1,200, while a Klifex repair kit is dozens of times cheaper.
  2. The simplicity of repairing and replacing the turbine wastegate repair kit does not require special equipment, only basic tools are needed. This will not only restore your car's performance but also give you the satisfaction of having successfully repaired it yourself.
  3. The quality of the materials in the Klifex turbine wastegate repair kit is comparable to that of original spare parts, and often surpasses them. We use steel with an anti-corrosion coating, bronze bushings, and Viton seals, which last much longer than the original parts (the materials can withstand temperatures of over 1000°C). This has been proven by numerous tests and field trials on real turbines, as well as feedback from mechanics and drivers who have tested our repair kits in action and were satisfied with the results.
  4. The turbo westgate repair kits we manufacture are suitable for most Garrett, BorgWarner, Mitsubishi, KKK, IHI, and Holset turbines.
  5. After repair, the car regains speed without dips or delays and restores 100% of the engine's power.

FAQ

1. How to understand that the problem is in the wastegate, not in the turbine itself?

This can be determined by the behavior of the supercharger. If the pressure “jumps” or exceeds the norm (overboost), the engine may jerk or give errors P0234 (Overboost), P0245 (Wastegate solenoid low). When the wastegate is stuck in the open position, there is not enough pressure and the car “does not drive.” If it is stuck in the closed position, the turbine spins excessively, a whistling sound is heard, and the exhaust temperature may rise. The easiest way to check this is to create a vacuum manually with a pump: if the rod does not move or moves jerkily, the wastegate is to blame.

2. Why does the wastegate often jam after a long period of inactivity?

After parking or storing the car in a damp environment, condensation and metal oxides settle on the rod and valve shaft. This creates a light coating that “sticks” the rod when the engine is first started. Add to this the soot residue from the exhaust, and the mechanism completely loses its mobility. That is why experts advise cleaning the unit and lubricating the stem with high-temperature paste every 40-50 thousand km as a preventive measure. If it is already stuck, the only solution is to disassemble it and install a repair kit with new bushings and a hinge.

3. Is it possible to repair the wastegate without removing the turbine?

In most cases, no. On BMW, VW, Ford, and Volvo engines, the turbine is located deep behind the engine, and the wastegate lever is inaccessible. Partial repair is only possible if the turbine is located at the front and you can reach the actuator rod. However, a high-quality repair, with membrane testing and bushing replacement, can only be performed after removal. Otherwise, you may simply not notice the axial play, which causes uncontrolled pressure leakage.

4. How to check the operation of a vacuum actuator without special tools?

Connect a thin tube to the hose leading to the actuator and try to create a vacuum with your mouth. If the rod starts to move and remains in the retracted position, the membrane is working properly. If you hear a hissing sound or there is no movement, the membrane is damaged or torn. You can also press the rod with your finger: it should turn smoothly, without jamming or backlash. If the movement is jerky or “lost,” the actuator needs to be repaired.

5. Why does the car show a boost error after turbine repair?

The reason may be incorrect adjustment of the wastegate stem length. If it is too short, the valve will open later and the boost pressure will exceed the norm — the ECU will read this as overboost. If it is too long, the valve will open earlier and the pressure will be lower than normal. For most Garrett and BorgWarner turbines, the standard length of the threaded part of the stem from the ball to the lock nut is 18–20 mm. Klifex provides precise parameters for each model in its kits.

6. What materials best withstand the load in the westgate assembly?

Optimally, AISI 304 or 316 stainless steel for the stem, bronze or Inconel for the bushing, and Viton/FKM for the seals. These are the materials used by Klifex. They can withstand temperatures of over 1000°C, do not oxidize, and do not change shape from constant heating. Original factory assemblies often use ordinary carbon steel, which sticks and rusts over time.

7. How long does it take to install a Westgate repair kit?

For an experienced mechanic, about 2–3 hours if the turbine has already been removed. For an owner doing it themselves for the first time, 4–5 hours. The most time-consuming part is cleaning the old mounting seats and checking for leaks after assembly. After installation, be sure to check the valve opening pressure (usually 0.7–1.1 bar) using a hand vacuum pump.

8. Is it possible to simply replace the membrane without the entire turbine wastegate repair kit?

Theoretically, yes, but the effect will be short-lived. A worn bushing and broken hinge will quickly destroy the new membrane. In addition, the old rod often has axial play, which prevents the valve from closing tightly. Therefore, experts recommend replacing the entire assembly, i.e., with new bushings, rod, and seals. This is exactly how Klifex turbine wastegate kits are designed, allowing you to upgrade the entire mechanism at once, without returning to the problem after 10,000 kilometers.

9. How to avoid repeated failure of the westgate after repair?

First, monitor the turbine temperature. Do not turn off the engine immediately after an intense drive — allow the turbine to cool down for at least 30–60 seconds. Second, regularly check the vacuum hoses, as even a small crack can cause the membrane to malfunction. Third, do not use low-quality motor oil — combustion products and soot settle in the actuator housing. If you follow these rules, the repaired unit will serve 150–200 thousand km without any complaints.

10. Where to buy a high-quality repair kit for a turbine vestgate?

Klifex turbine vestgate repair kits are officially available on the  Klifex website. They undergo factory testing for size and tightness. Klifex has kits for Garrett, BorgWarner, KKK, Mitsubishi, IHI, and Holset turbines — that's over 200 car models. Each kit includes detailed instructions, as well as the option to purchase membranes, bushings, or hinges separately.

11. Can the pressure of the westgate opening be adjusted manually after repair?

Yes, but with caution. There is a thread with a lock nut at the end of the rod. Changing the length by 1 turn changes the pressure by approximately 0.05 bar. For most turbines, the factory setting is 0.8–1.0 bar. After repair, you need to set the length according to the parameters of your turbine and check the result with a diagnostic scanner or boost pressure gauge.

12. Will a repair kit help if the valve is completely burned out or welded shut?

In this case, no, the metal is already deformed and the valve will not be able to provide a seal. A turbine vestgate repair kit is effective if the turbine housing is intact but the moving parts (rod, bushing, diaphragm) are damaged. If the valve has been destroyed by temperature, the hot part of the turbine or the actuator housing needs to be replaced.

13. How to check the result of the westgate repair after installing the repair kit?

After assembly, start the engine and connect the diagnostics. In the live data parameters, check the boost pressure: it should increase smoothly, without peaks and drops. When accelerating sharply, the wastegate should open clearly when the set pressure is reached. If you feel uniform traction without “drops” during acceleration, the repair has been done correctly.

14. Why is there sometimes a slight whistling sound after repair with a repair kit?

This is normal for the first few hundred kilometers. New bushings and seals wear in, forming a working surface. If the whistling does not get louder and is not accompanied by a drop in power, there is no need to worry. After 300–500 km, the sound disappears completely.

15. Does the condition of the westgate affect the service life of the turbine itself?

Yes, directly. A faulty valve causes the turbine to operate outside the design pressure, the impeller rotates faster, and the bearings overheat. This reduces the service life of the turbine by almost half. After installing the repair kit and precise calibration, the turbine operates within a stable speed range, which preserves its service life.
