Front Wiper Motor Repair Gear - BMW E70 E71 E90 E91 E92 E93 - 61617200510

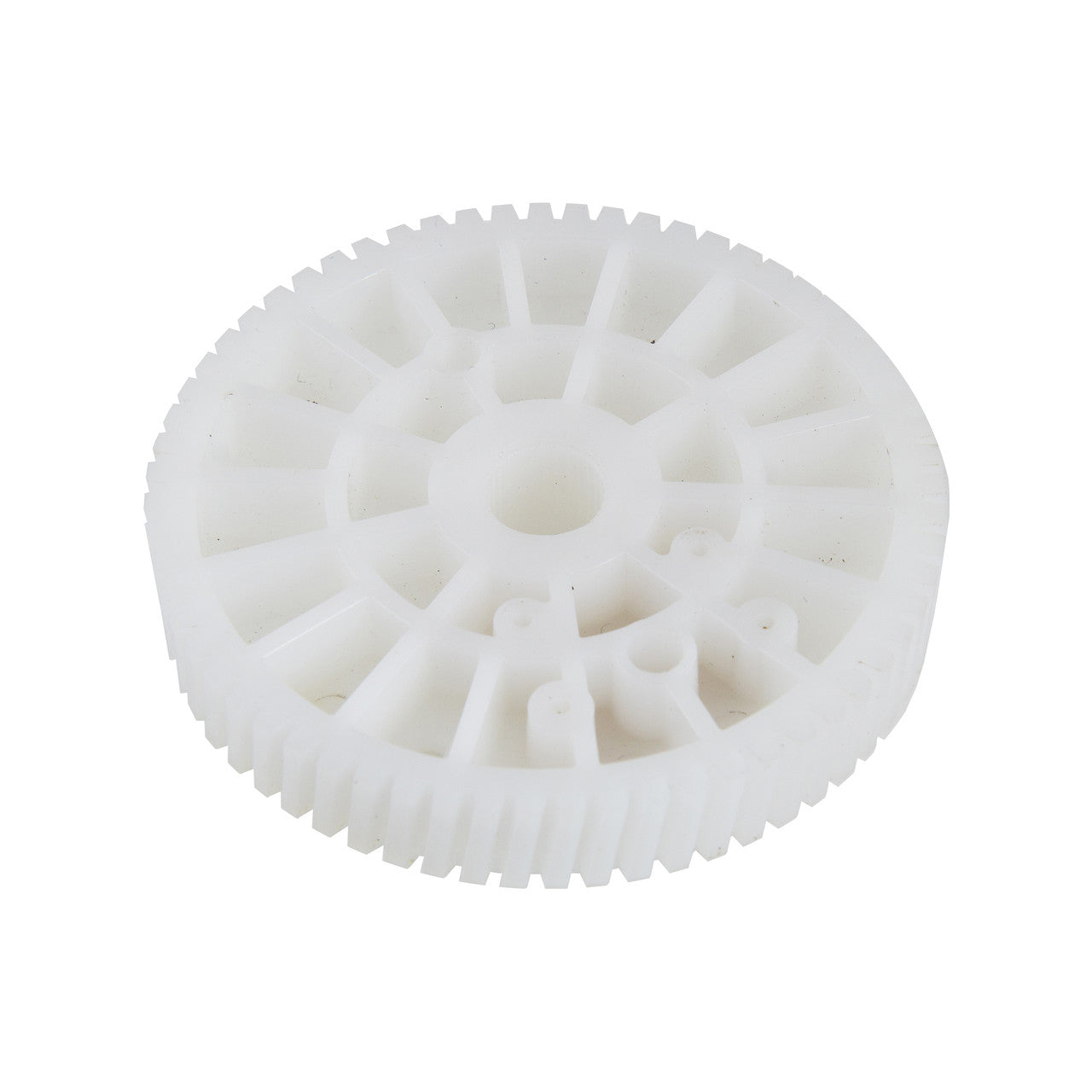

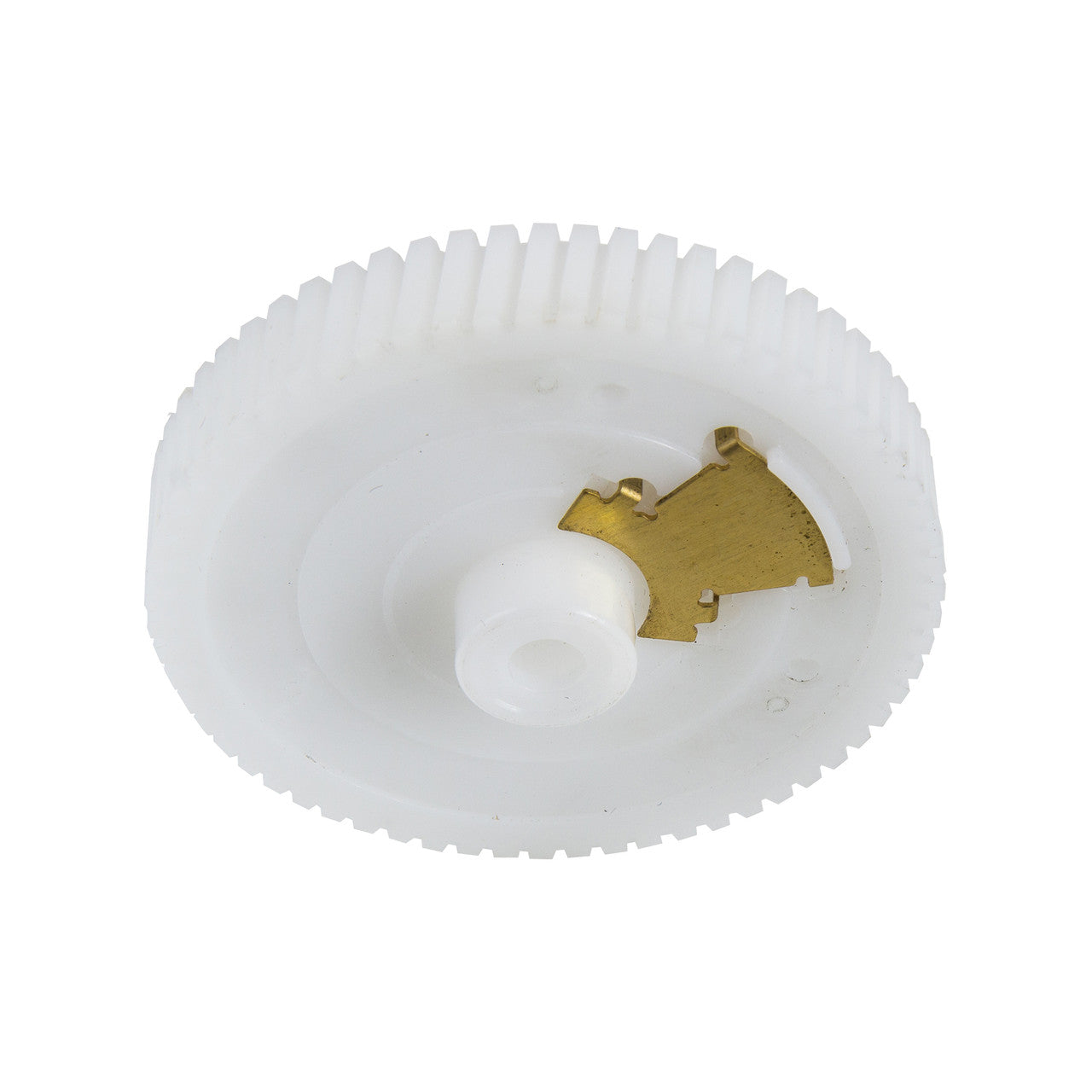

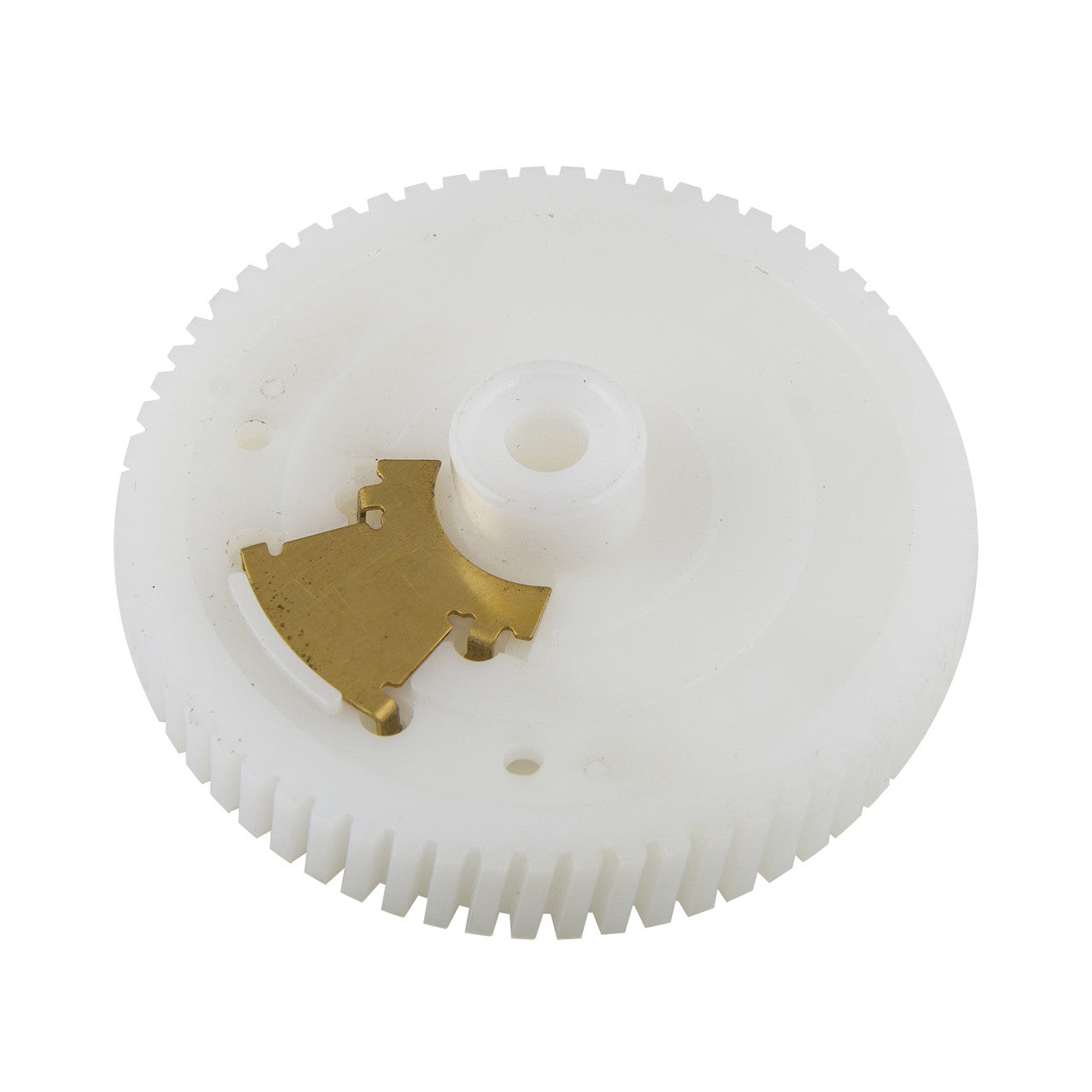

This gear is the replaceable mechanical component inside the front wiper motor drive on the listed BMW applications. Stripped teeth can leave the wipers stopped or moving in jerks; inspect the gear, steel worm and lubrication before replacing parts.

Applications

• BMW X5 E70 - motor 61617200510; Valeo 405.154.
• BMW X6 E71 - motor 61617200510; Valeo 405.154.
• BMW E90, E91, E92, E93 - motors 61617161711 and 61614848601; Valeo 404.959.

When to Inspect the Wiper Drive

• Wipers stop in one position or move in jerks.
• The wiper actuator fails to operate or operates intermittently.
• Control faults, overheating or worn contacts require an electrical check.
• The plastic drive gear has stripped teeth or the worm is damaged.

Frozen blades, heavy snow and dried-out lubricant can load or wear the drive. Confirm the mechanical and electrical condition before repair.

Repair Scope and References

This is the replacement gear, rather than a complete motor and wiper linkage assembly. The application table preserves the motor/Valeo pairings. Additional related motor references: 61614418698, 61617153733. Compare the installed gear design and inspect the steel worm before pressing in the new gear.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Is this a complete wiper motor assembly?

No. It is the internal repair gear.

Which Valeo number is paired with X5 E70 and X6 E71?

Valeo 405.154 is paired with motor 61617200510.

Which Valeo reference is listed for E90-E93?

Valeo 404.959 is paired with motors 61617161711 and 61614848601.

When are the blades refitted?

After the mechanism is installed and the motor has run without the blades to establish its zero position.

Part Number / PN

61617200510,61617161711,61614848601,61614418698,61617153733,404.959

SKU: KL61617200510.

Gear Replacement Procedure

1. Remove the wiper linkage with its electric motor.
2. Separate the motor from the linkage.
3. Mark the gear position relative to the arm. Reassembly should approximate this position; 1 mm precision is not required because zero position is set after assembly.
4. Press or drive the arm out of the old gear.
5. Inspect the steel worm for chips or other damage. Chips can increase wear on the new gear.
6. Smooth damaged sharp edges and remove rust from the worm if present.
7. Warm the replacement gear with a hair dryer before pressing; installation is performed at room temperature.
8. Support the gear on a soft surface, such as a magazine, while pressing in the arm shaft. The fit is tight; a vice can be used for pressing.
9. Do not hammer the arm shaft or force it deeper with the vice; this can damage the gear.
10. Fill the mechanism with lubricant. Loss or drying of the original grease can cause tooth wear.
11. Refit the linkage and connect the electrical plug. Without fitting the blades, switch on the wipers to establish the zero position.
12. After the wipers stop, refit the blades.
