Intake Manifold Vacuum Valve Membrane — VW / Audi 3.6L | OEM 03H133201AE
Fix the Torn Intake Manifold Membrane for $25 — Not $600 for a New Manifold.

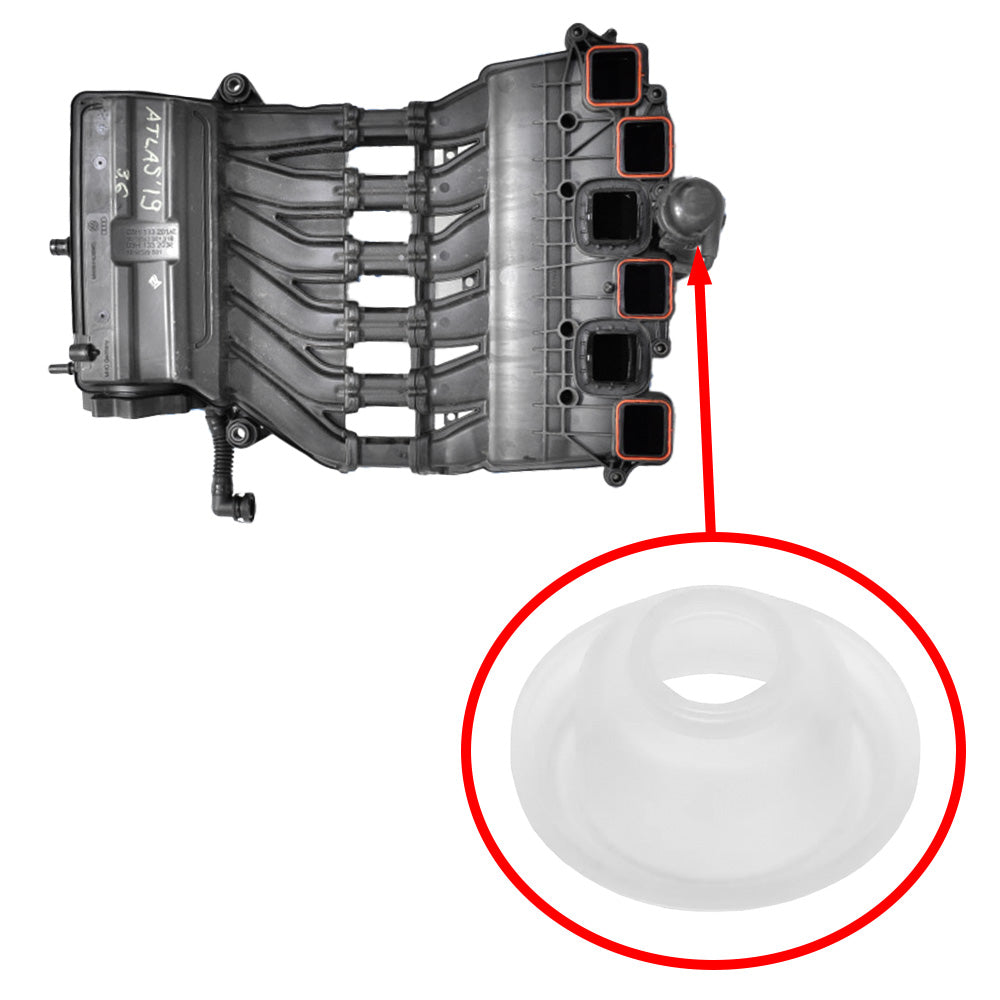

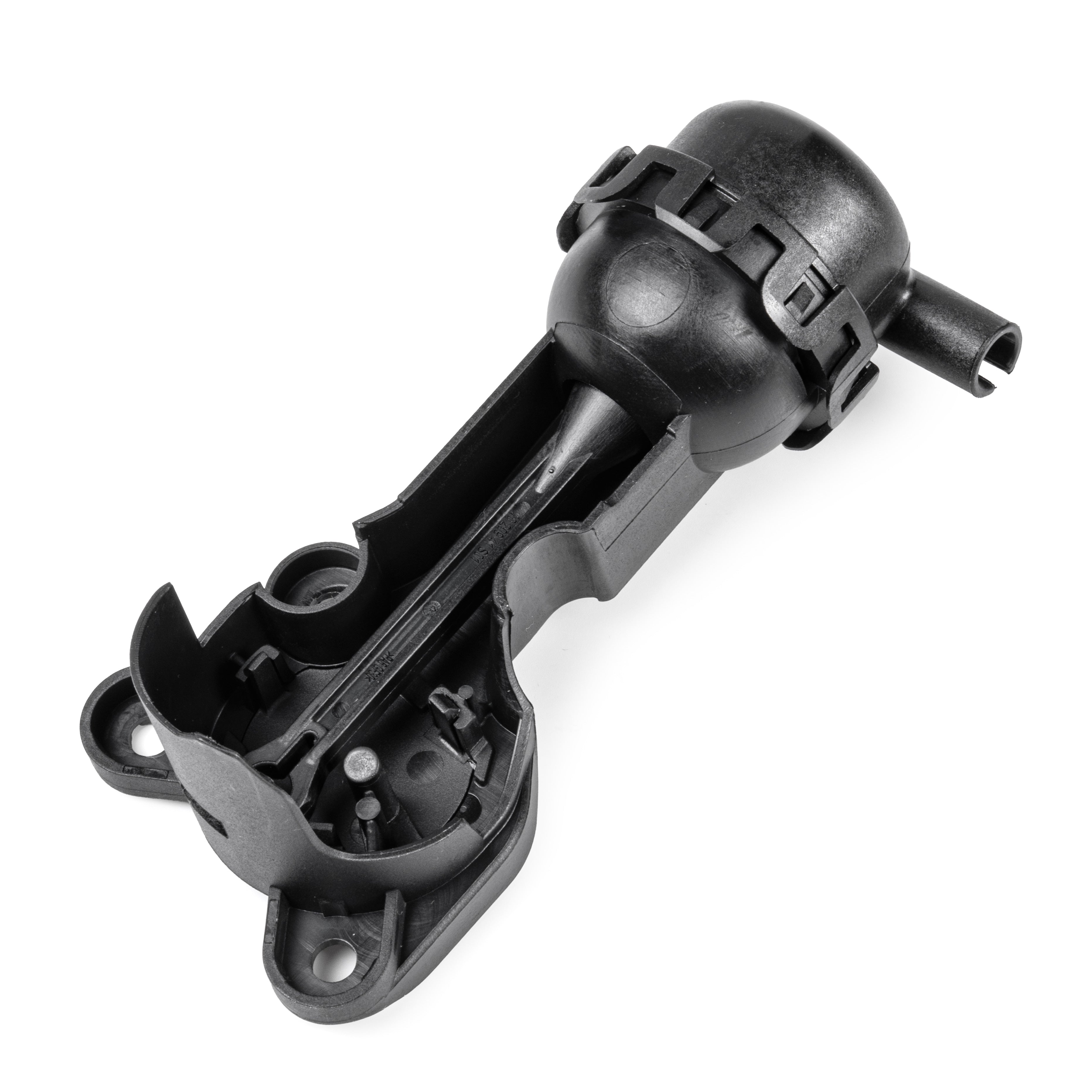

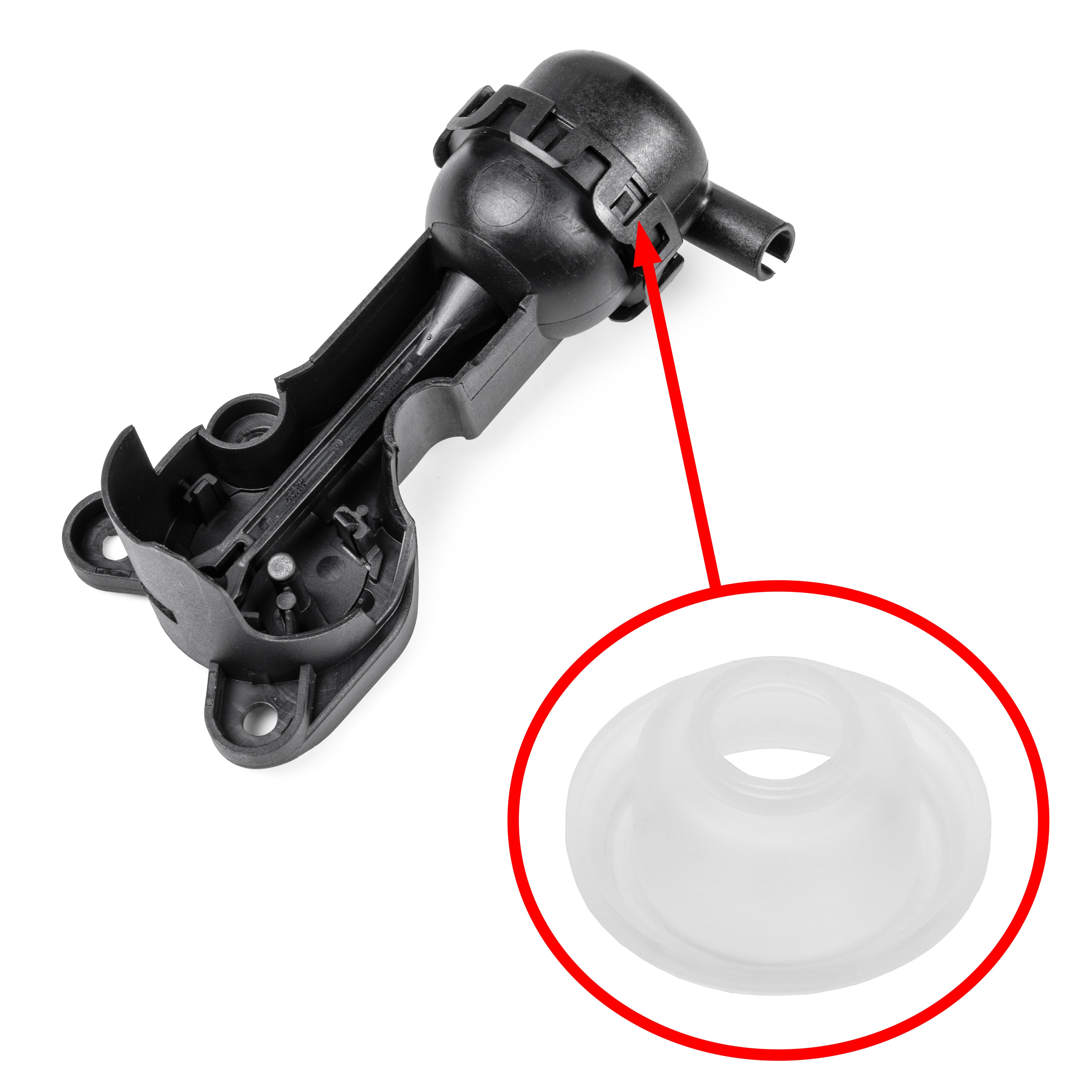

A common failure on VW and Audi 3.6L engines is a torn vacuum valve membrane inside the intake manifold geometry regulator. When it tears, the variable intake geometry stops functioning — causing rough idle, loss of low-end torque, and fault codes.
The VAG dealer's answer is to replace the entire intake manifold assembly for ~$600 plus labor. This silicone membrane replaces only the torn component — restoring full intake geometry function for a fraction of the cost.
What's Included
- 1x silicone vacuum valve membrane (1020947S01 / 10 209 47 S01)
Important: This is the membrane only — not a full repair kit. Verify your intake manifold OEM number is 03H133201AE before ordering. The membrane must match the manifold number as it is not sold separately by VAG.
Compatible Intake Manifold
- 03H133201AE
Vehicle Compatibility
| Model | Years |
|---|---|
| VW Atlas | 2018–2023 |
| VW Atlas Cross Sport | 2020–2023 |
| VW Phaeton | 2011–2016 |
| VW Teramont | 2018–2023 |
| VW Touareg | 2011–2018 |
| Audi Q7 | 2010 |
OEM Cross-Reference
- 1020947S01 (10 209 47 S01)
FAQ
Q: What happens when this membrane tears?
A: The intake manifold geometry regulator loses vacuum — causing fault codes, rough idle, and reduced low-end torque. The engine runs but performance suffers noticeably.
Q: Is this a full repair kit or membrane only?
A: Membrane only. If your manifold number is 03H133201AE, this membrane is all you need. No actuator or additional parts required for a standard membrane replacement.
