Wabco Compressor Repair Kit With Cylinder - VW Touareg Porsche Cayenne - 7l8616006a

This Wabco air suspension compressor repair kit is for the listed Volkswagen Touareg and Porsche Cayenne versions with tyre inflation. Match the original compressor reference and repair component design before ordering.

Applications

• Volkswagen Touareg 7LA, 7L6, 7L7, 7P5 - 2002-2011.
• Porsche Cayenne 955, 957, 9PA - 2002-2010.

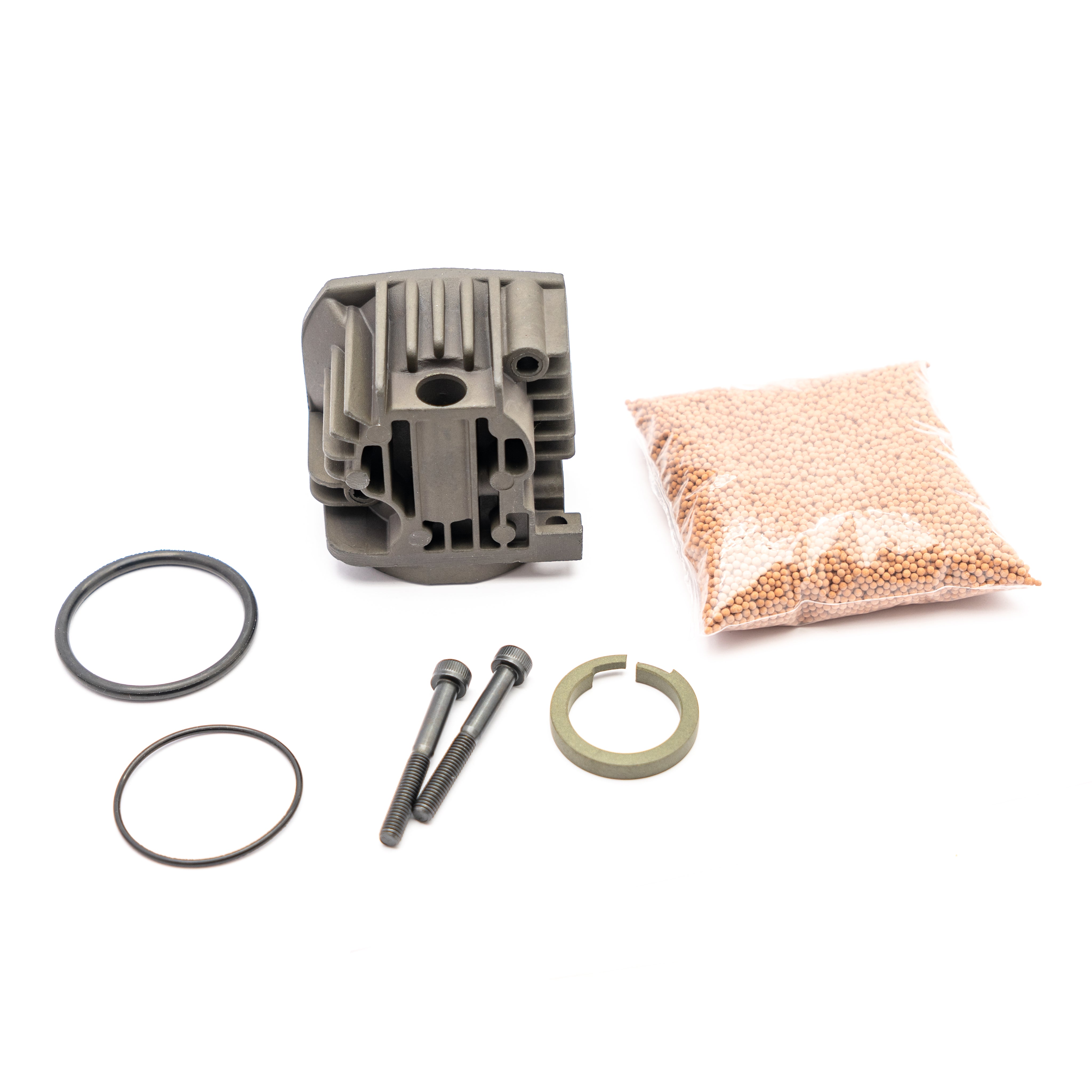

Kit Contents

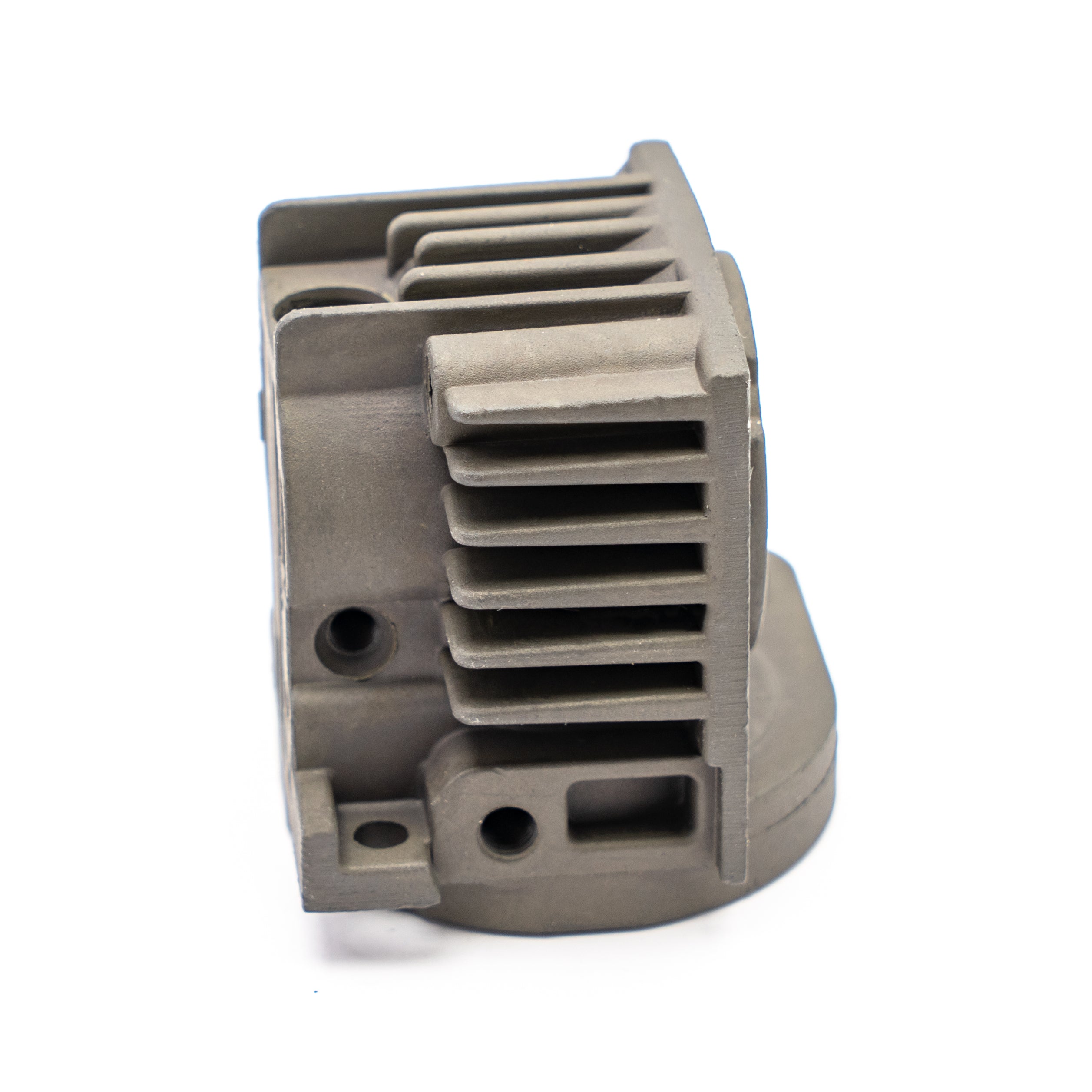

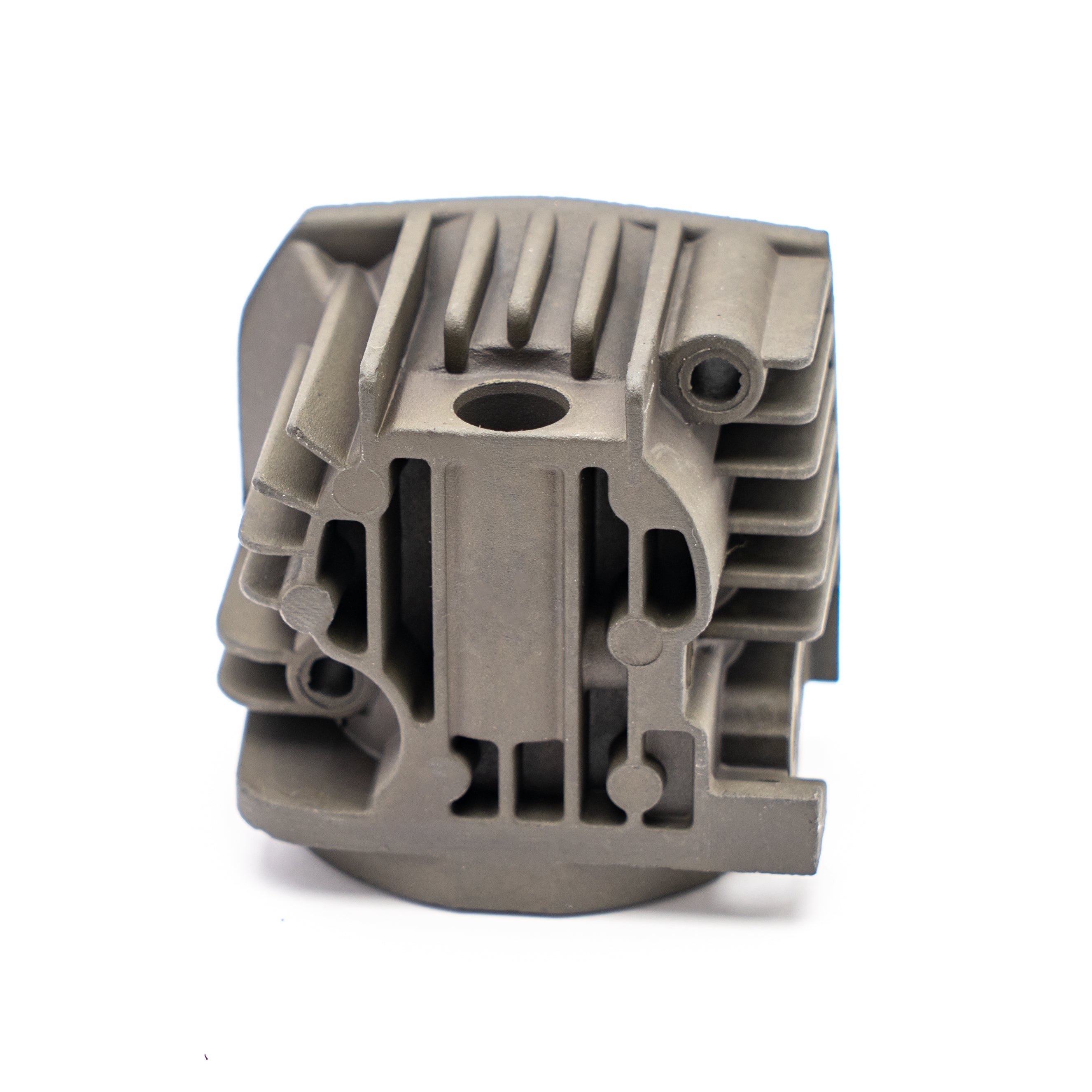

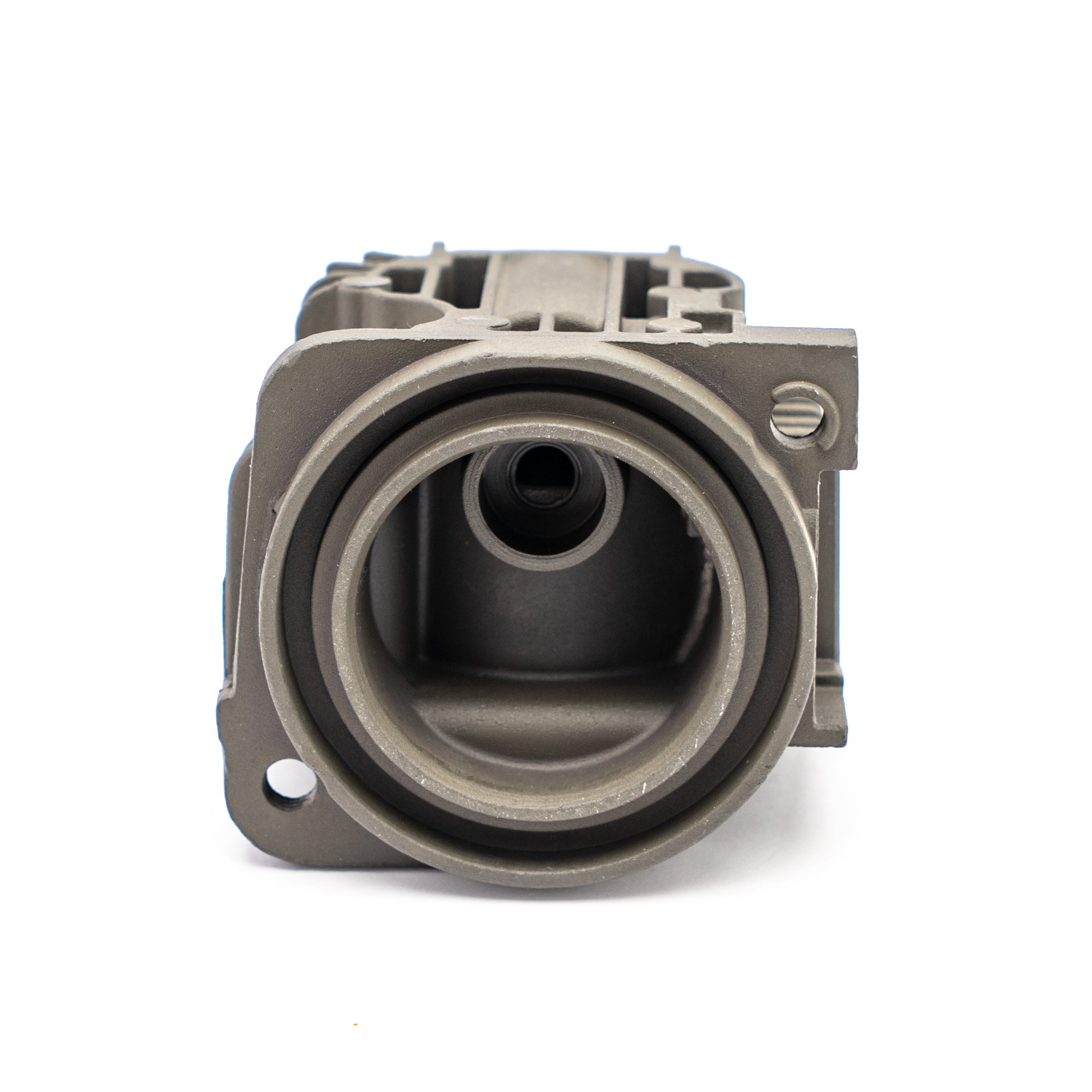

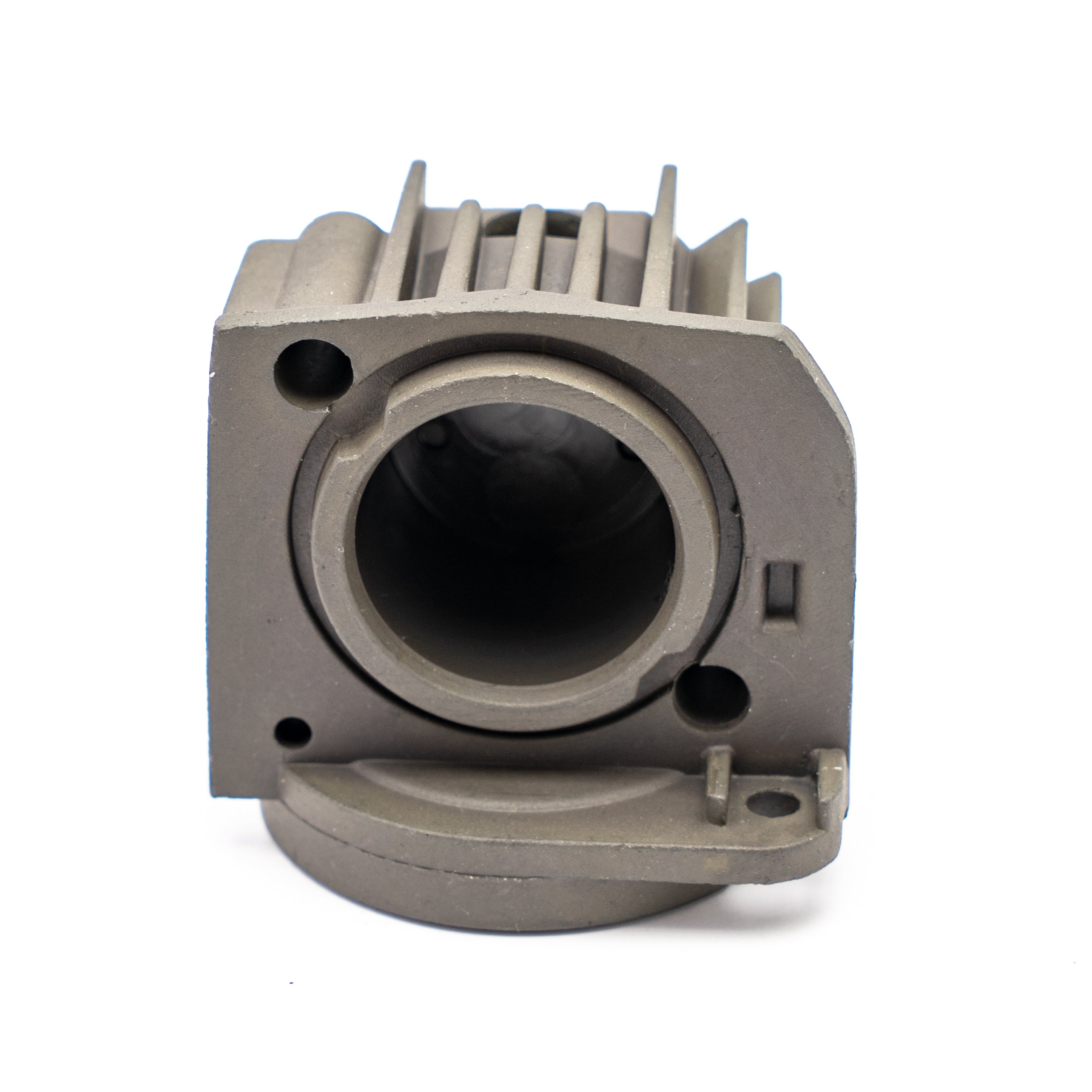

• 1 compressor cylinder.

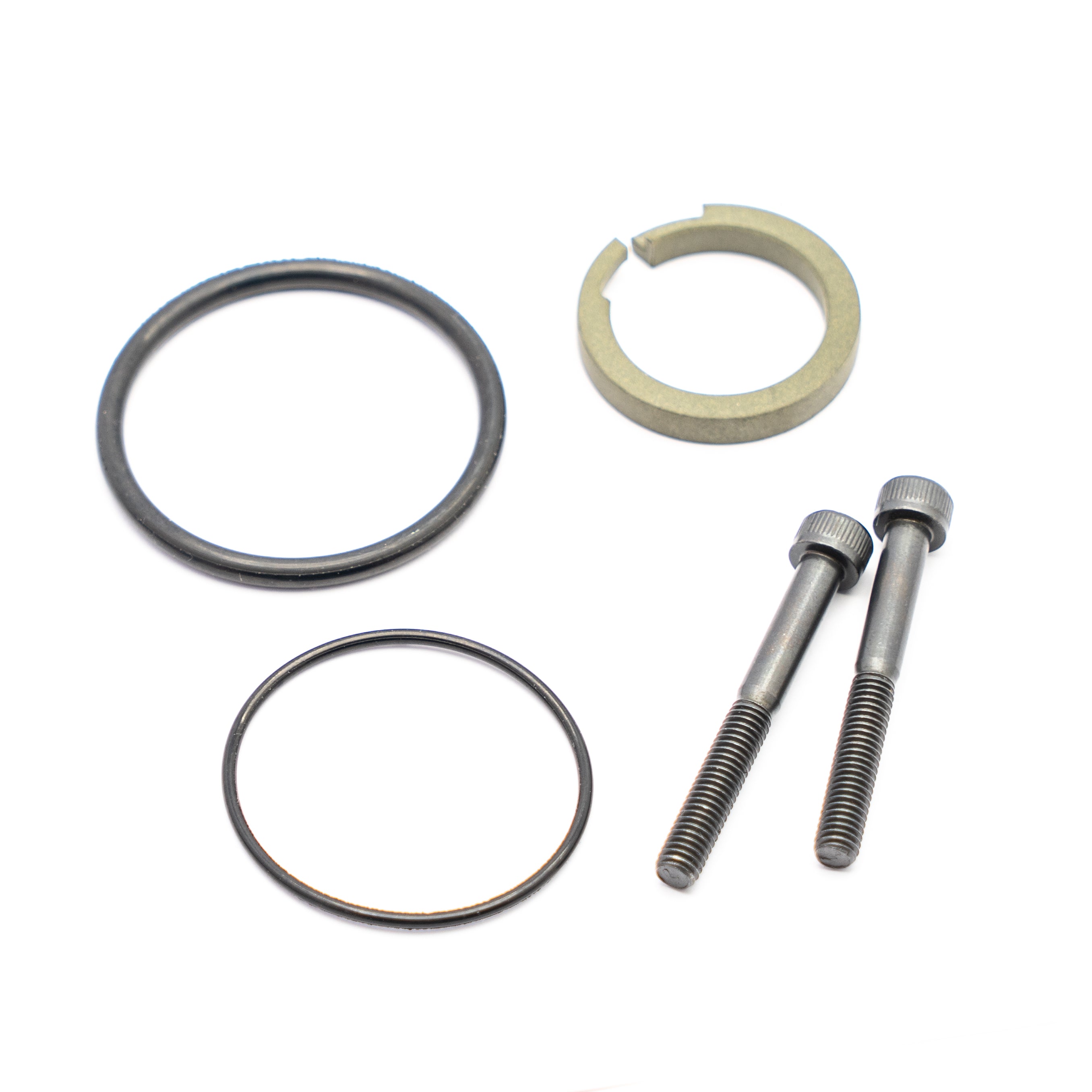

• 1 piston ring.
• 1 silica-gel desiccant portion.
• 2 bolts.
• 2 sealing rings.

Version Selection

For the listed compressor version with tyre inflation. Main compressor reference: 7l8616006a. Match the complete original marking, including exact suffixes, and the cylinder/repair design. Other reference forms are listed below.

Compressor Fault Checks

If ride height does not change despite prolonged compressor operation, or the compressor overheats, inspect the compressor and system before repair. These signs do not establish the failed component by themselves.

When to Inspect the Air Suspension

• The vehicle rises slowly after starting.
• The compressor runs too often.
• Air suspension faults appear.
• The vehicle sags after parking.
• The compressor overheats or is noisy.
• Pressure builds slowly.

Diagnose the affected compressor and complete air suspension system before repair.

Repair Limits and External Leaks

Check for leaks in the air springs, pipes, reservoir and valve block. Repairing the compressor component will not fix an external system leak that causes frequent compressor starts.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Is tyre inflation part of the specified version?

Yes. Match that compressor version before ordering.

How many cylinders are supplied?

One.

Are bolts and sealing rings included?

Yes. Two bolts and two sealing rings.

Part Number / PN

7l8616006a,7l0616006c,7l0616006d,7l0616006h,7l0616006e,7l0616006f,7l0616007a,7l0616007h,7l0616007f,7l0698007a,7l0698007b,4l0698007b,4l0698007c,4l0698007a,7l0698007d,7l0698007e,7l0616007b,7l0698030,4154033020,7L0616007,95535890100,7L8616006,95535890104,7L8616007,95535890105,95535890103,95535890102,95535890101,RQL000014,RQL000011,RQL000010,4154034040,37.22-6753864,4154031080,RQG500140,RQG500110,RQG000020,RQC000020,RQB000190,LR015089,LR010375,LR006201,415 403 300 0,4L0698007,4F0616005E,4154031090,4154031130,4154031230,4F0616005B,7l8616006f,7L8616006d,4154033040,7L0616007C,7l0616006,4L0698010A,100698010A,10069801,6753864

SKU: KL7L8616006.

• Volkswagen
• Porsche
