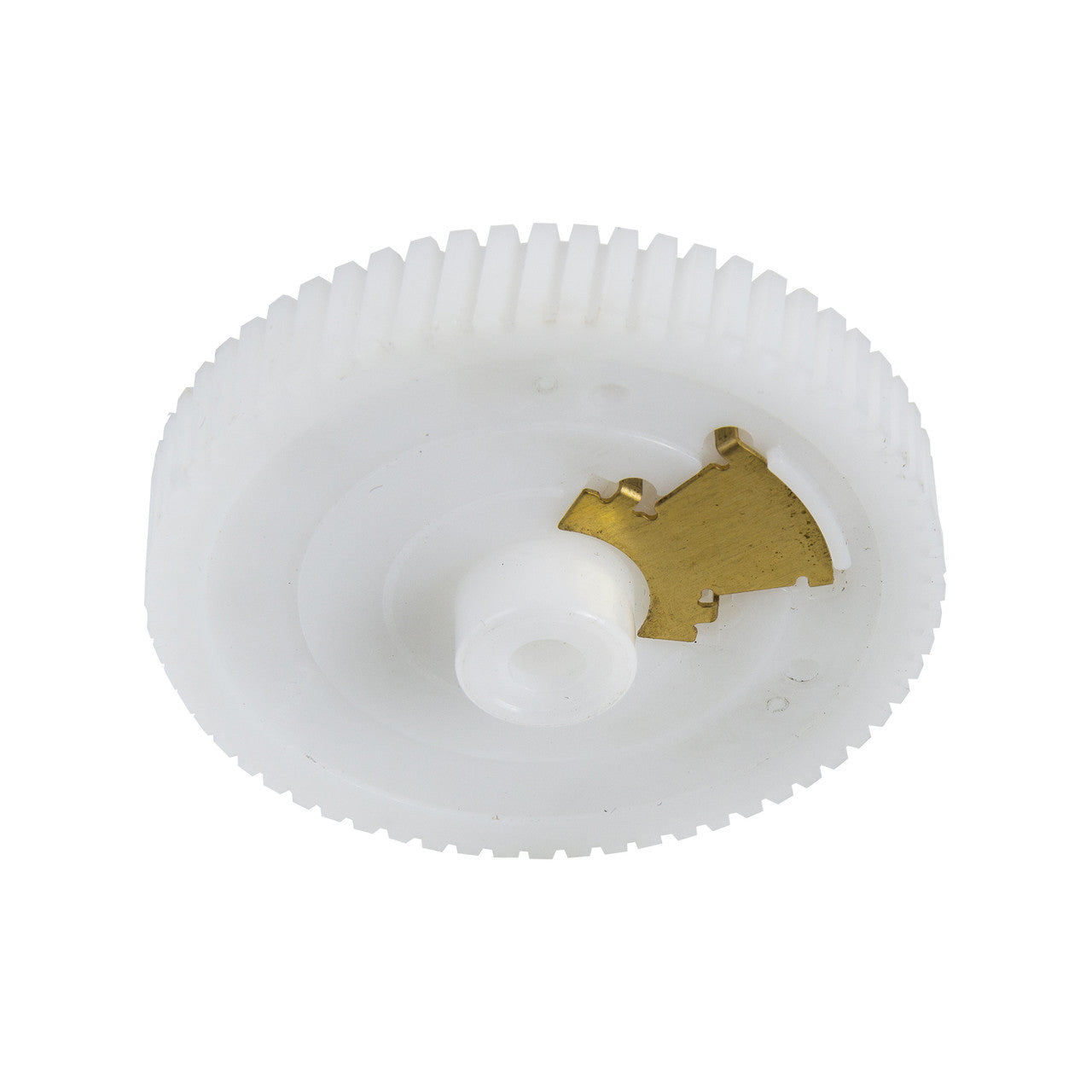

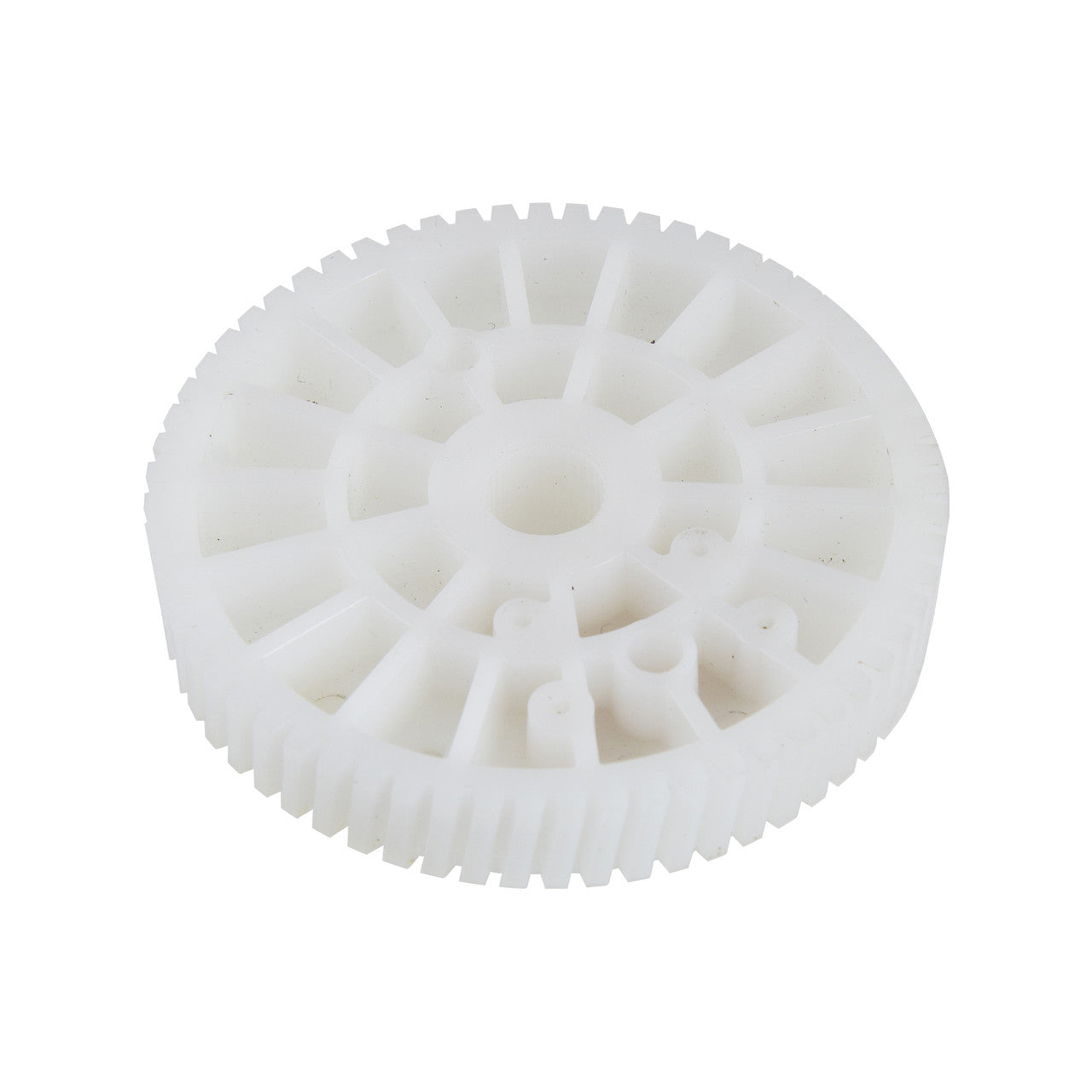

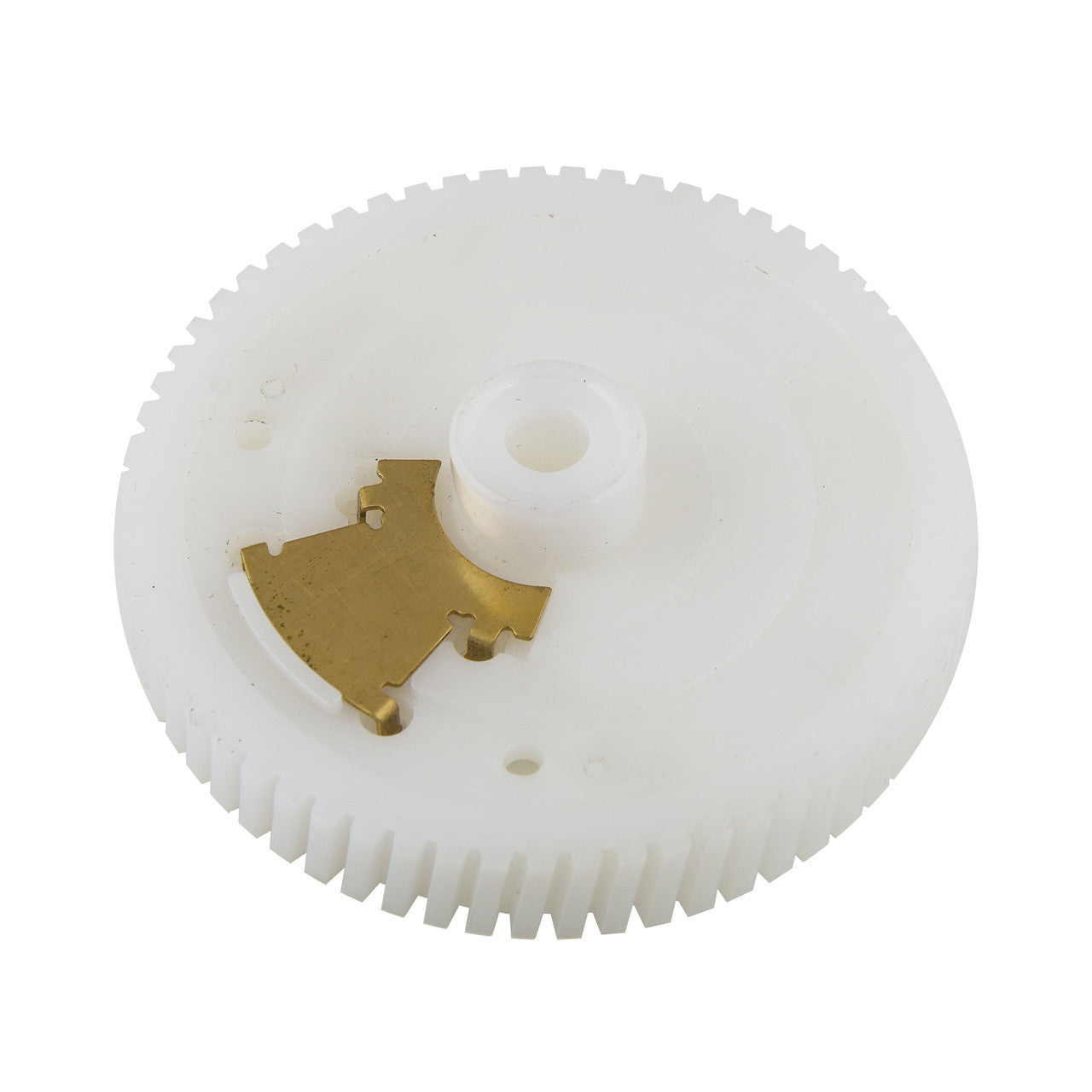

Wiper Motor Drive Gear - Land Rover Freelander 2 / LR2 - LR072416

This gear is a repair component for the wiper motor drive on the listed Land Rover Freelander 2 / LR2 applications. Match the original motor/linkage reference and gear mounting before ordering.

Applications

• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 2.0L 16V TIVCT T/C 240PS Petrol 6-speed manual
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 2.0L 16V TIVCT T/C 240PS Petrol 6-speed manual M66 2WD
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 2.0L 16V TIVCT T/C 240PS Petrol 6-speed automatic AWF21
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 2.2L CR DI 16V Diesel 6-speed manual
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 2.2L CR DI 16V Diesel 6-speed manual M66 2WD
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 2.2L CR DI 16V Diesel 6-speed automatic AWF21
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 2.2L DOHC EFI TC DW12 6-speed manual
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 2.2L DOHC EFI TC DW12 6-speed manual M66 2WD
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 2.2L DOHC EFI TC DW12 6-speed automatic AWF21
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 3.2L DOHC MPI Petrol I6 6-speed manual
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 3.2L DOHC MPI Petrol I6 6-speed manual M66 2WD
• Land Rover Freelander 2/LR2 (GCAT) from 2006 - 3.2L DOHC MPI Petrol I6 6-speed automatic AWF21

Drive Selection

References: LR072416, LR002253 and LR055421. Match the original drive gear and linkage marking.

When to Inspect the Drive

Inspect failure to activate, intermittent operation and control faults. Confirm gear damage before replacement. A chipped or corroded steel worm and loss or drying of grease can contribute to gear wear.

Repair Scope

This is the wiper motor drive gear, rather than a complete motor or linkage. Inspect the worm and gear seating before repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Is this the complete wiper motor?

No. It is the drive gear.

What should I check on the worm?

Chips, sharp damaged edges and corrosion.

When is the zero position established?

Run the connected motor after refitting the linkage and before fitting the wiper arms/blades.

Part Number / PN

LR002253,LR055421,LR072416

SKU: KLLR072416.

Replacement Instructions

1. Remove the wiper linkage with the electric motor.
2. Remove the motor from the linkage.
3. Mark the gear position relative to the arm. Restore approximately the same position on assembly; precise 1mm positioning is not required because the zero position is set after assembly.
4. Drive the arm out of the gear.
5. Inspect the steel worm for damage, such as chips.
6. Chips can cause increased wear of the gear during operation.
7. Smooth the damaged area of the worm to remove sharp edges.
8. Remove rust if the motor has been stored and the worm has corroded.
9. Press the new gear into position.
10. The gear uses a tight press fit.
11. Warm the gear with a hot-air dryer before pressing.
12. Support the plastic gear on something soft, such as a magazine, to protect it during pressing. Do not hammer the arm shaft into place or force it deeper with a vice; this can damage the gear. A vice can also be used for controlled pressing.
13. Perform installation at room temperature.
14. Fill the mechanism with grease. Loss or drying of grease can lead to tooth wear.
15. Reinstall the linkage and connect the electrical connector. Run the wiper without fitting the wiper arms/blades to establish the zero position.
16. Fit the wiper arms/blades after the motor stops.
17. The wiper motor repair is complete.
