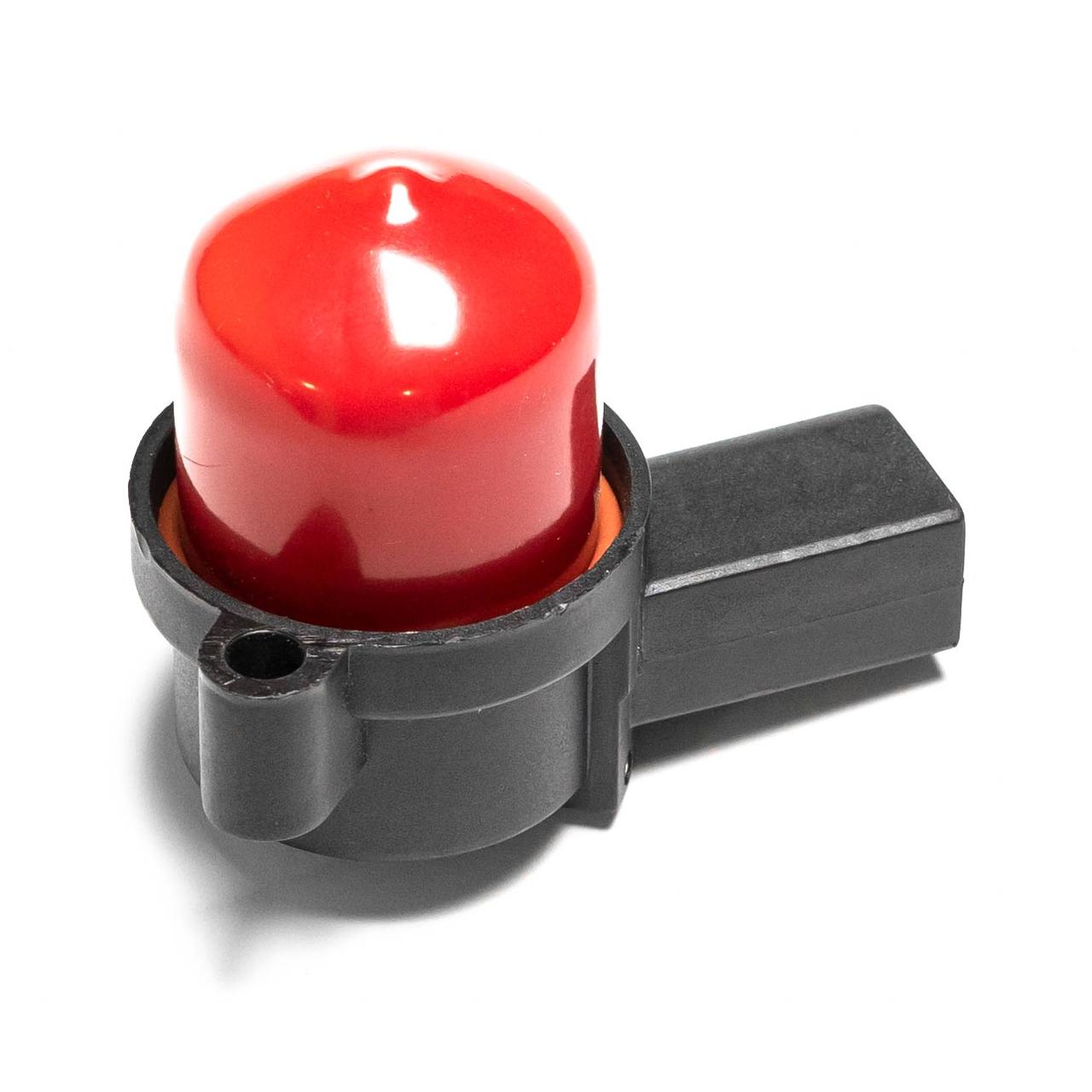

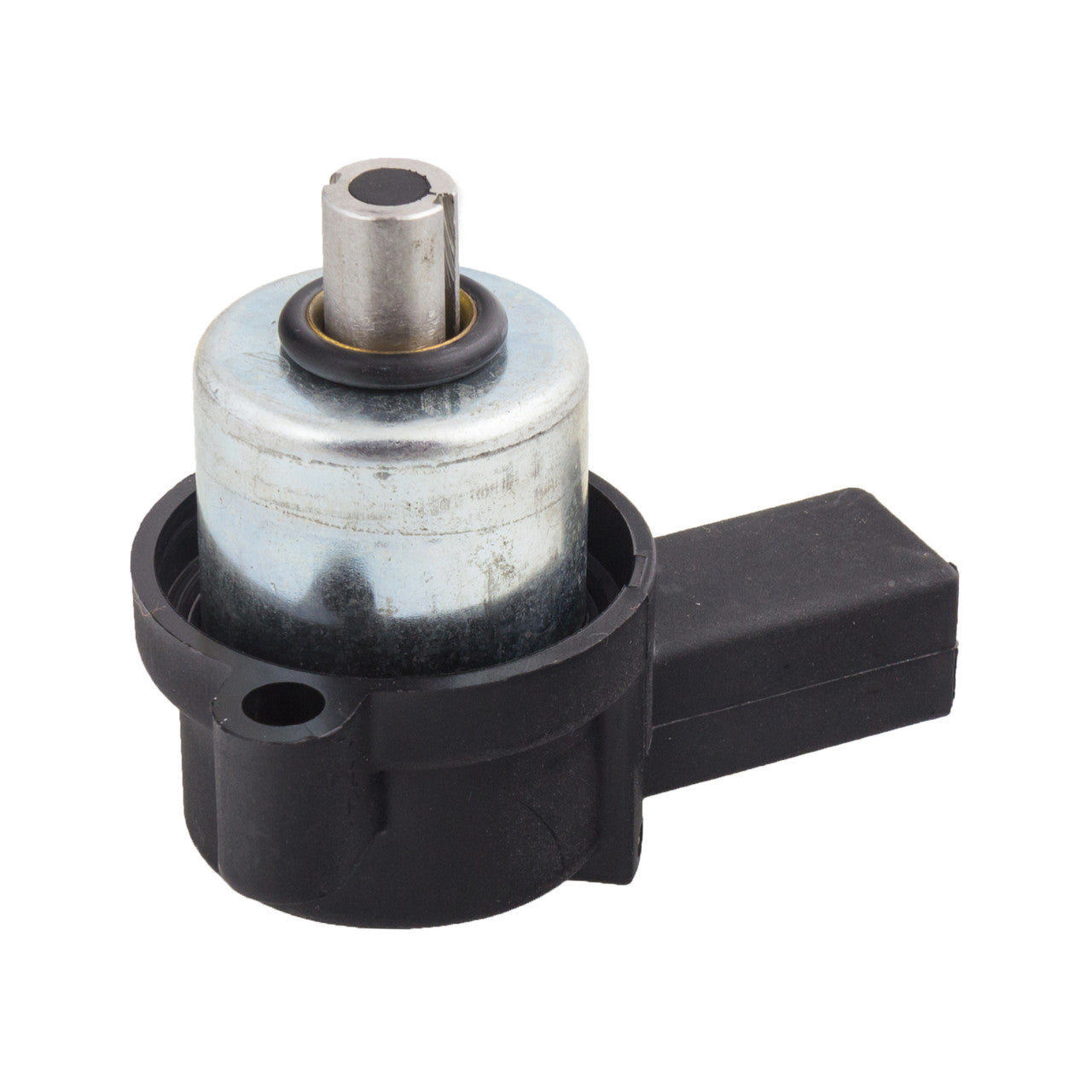

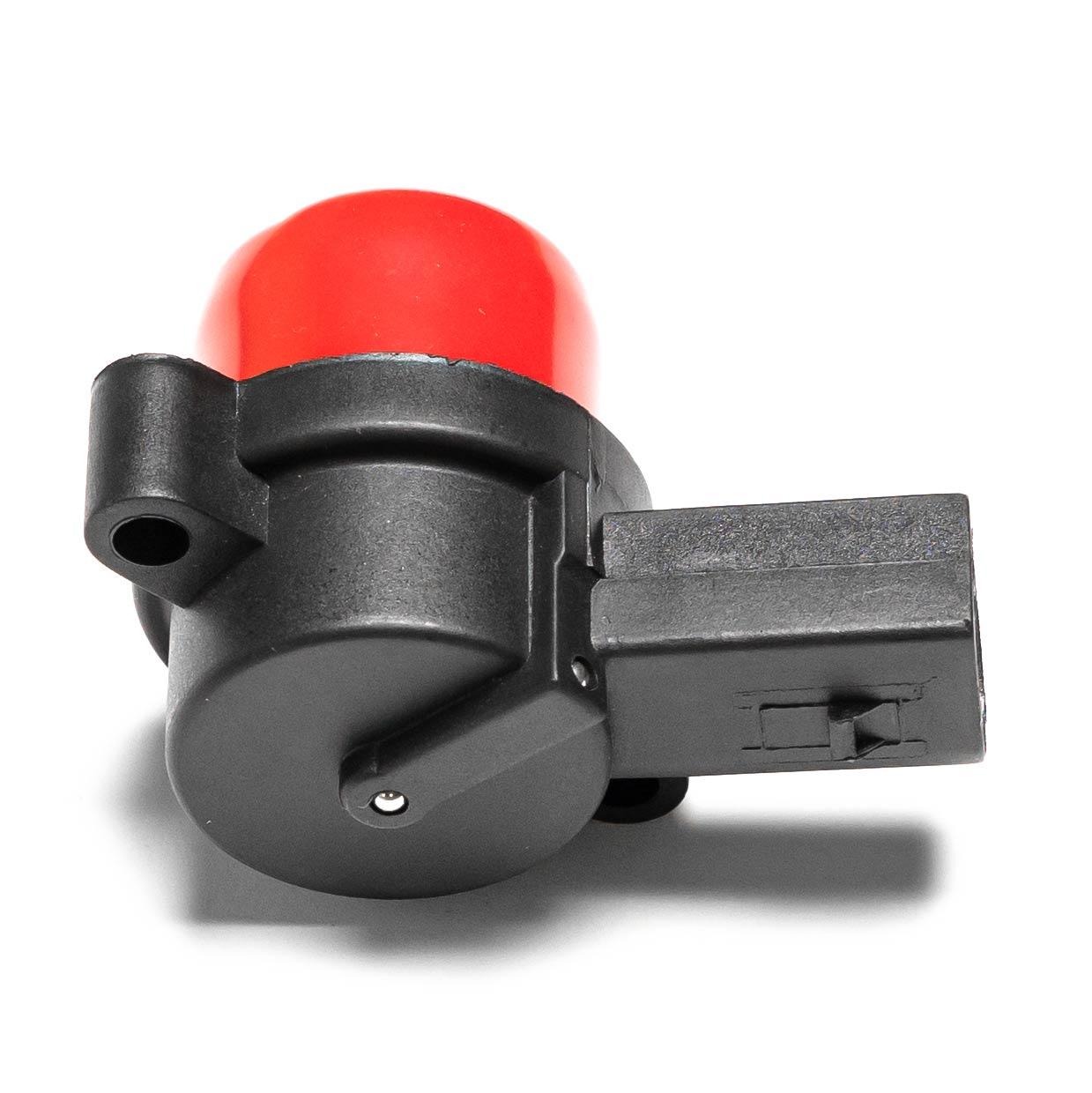

Air Suspension Compressor Pressure Release Valve - Wabco - 4F0698311

This valve controls pressure release inside the Wabco air suspension compressor on the listed Audi, Mercedes-Benz and Maybach applications. A faulty valve can disrupt pressure build-up or unloading; check the installed compressor reference and diagnose the valve before replacement.

Applications

• Audi A6 C6 (4F) - 2005-2008.
• Audi A6 Avant C6 (4F) - 2005-2008.
• Audi S6 C6 (4F) quattro - 2005-2008.
• Audi A6 Allroad quattro C5 (4Z) - 2000-2005.
• Audi A6 Allroad quattro C6 (4F) - 2007-2011.
• Mercedes-Benz S-Class W220.
• Mercedes-Benz E-Class W211.
• Mercedes-Benz E-Class S211.
• Mercedes-Benz CLS-Class C219.
• Maybach 57 W240.
• Maybach 62 W240.

When to Inspect the Release Valve

• Longer compressor run time than usual.
• Slow pressure build-up or release.
• Slow suspension height changes.
• Frequent compressor restarts.
• Pressure not unloading correctly after compressor operation.
• Compressor or air suspension faults.
• Diagnostic findings identifying the compressor unloading valve.

Repair Scope

The valve can be replaced separately when it is the diagnosed fault and the electric motor, cylinder, piston group and other compressor components remain serviceable. Different compressor versions can occur on the same model; match the installed unit to the references in Part Number / PN.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What does this valve do?

It participates in controlled pressure release and unloading within the Wabco air suspension compressor.

Must the complete compressor be replaced?

A separate valve replacement is possible if the valve is faulty and the remaining compressor components are serviceable.

Which Maybach models are listed?

Maybach 57 W240 and Maybach 62 W240 are listed.

What should I check before ordering?

Compare the installed compressor number and design with the complete reference list.

Part Number / PN

4F0698311, 2203200104, 4Z7616007, 4F0616005, 4F0616006, 2203200304, 2113200104, 2113200304, 2193200004, 4420512661, 4H0698311A

SKU: KL4F0698311.

• Audi
• Mercedes
• Maybach
