Intake Swirl Flap Blanking Plugs - Opel 1.6 - for 24431920

These blanking plugs are for the intake manifold swirl flaps on the listed Opel 1.6 applications. Match the original manifold number, engine designation and plug mounting design before ordering.

Applications

• Opel ASTRA G coupe (F07_) 1.6 16V Z 16 XEP 76Kw (103HP) 2000.03 - 2005.05
• Opel ASTRA G hatchback (F48_, F08_) 1.6 Z 16 XEP 76Kw (103HP) 2002.12 - 2009.12
• Opel ASTRA G Cabriolet (F67) 1.6 Z 16 XEP 76Kw (103HP) 2003.01 - 2005.10
• Opel ASTRA G Estate (F35_) 1.6 Z 16 XEP 76Kw (103HP) 2002.12 - 2009.07
• Opel ASTRA G Van (F70) 1.6 Z 16 XEP 76Kw (103HP) 2004.10 - 2005.04
• Opel ASTRA G sedan (F69_) 1.6 Z 16 XEP 76Kw (103HP) 2002.12 - 2009.12
• Opel ASTRA H (L48) 1.6 Z 16 XEP,Z 16 XE1 77Kw (105HP) 2004.03 -
• Opel ASTRA H GTC (L08) 1.6 Z 16 XEP,Z 16 XE1 77Kw (105HP) 2005.03 -.
• Opel ASTRA H Estate (L35) 1.6 Z 16 XEP,Z 16 XE1 77Kw (105HP) 2004.08 -.
• Opel ASTRA H Van (L70) 1.6 Z 16 XEP 76Kw (103HP) 2004.02 - 2004.11
• Opel ASTRA H TwinTop (L67) 1.6 Z 16 XEP,Z 16 XE1 77Kw (105HP) 2005.09 -.
• Opel MERIVA 1.6 Z 16 XEP 77Kw (105HP) 2006.01 - 2010.05
• Opel VECTRA C 1.6 Z 16 XEP 77Kw (105HP) 2006.01 -.
• Opel VECTRA C GTS 1.6 Z 16 XEP 77Kw (105HP) 2006.01 -.
• Opel VECTRA C Estate 1.6 Z 16 XEP 77Kw (105HP) 2006.01 -.
• Opel ZAFIRA B (A05) 1.6 Z 16 XEP,Z 16 XE1 77Kw (105HP) 2005.07 -

Manifold and Engine Selection

Listed manifold references: 24431920, 55568968, 0851066 and 95508836. Product engine contexts include Z16XE and Z16XEP; application rows retain the exact forms Z 16 XEP and Z 16 XE1. Additional references: 25331276, 55352859, 5555925 and 24435069. Match the installed manifold and plug design.

When to Inspect the Intake System

• Reduced engine response.
• EGR or intake manifold faults.
• Black exhaust smoke.
• Unstable idle.
• Intake air leaks.
• Carbon deposits or sticking flaps.

Diagnose the affected mechanism before choosing a modification. These signs do not establish that blanking plugs are the required solution.

Modification Scope

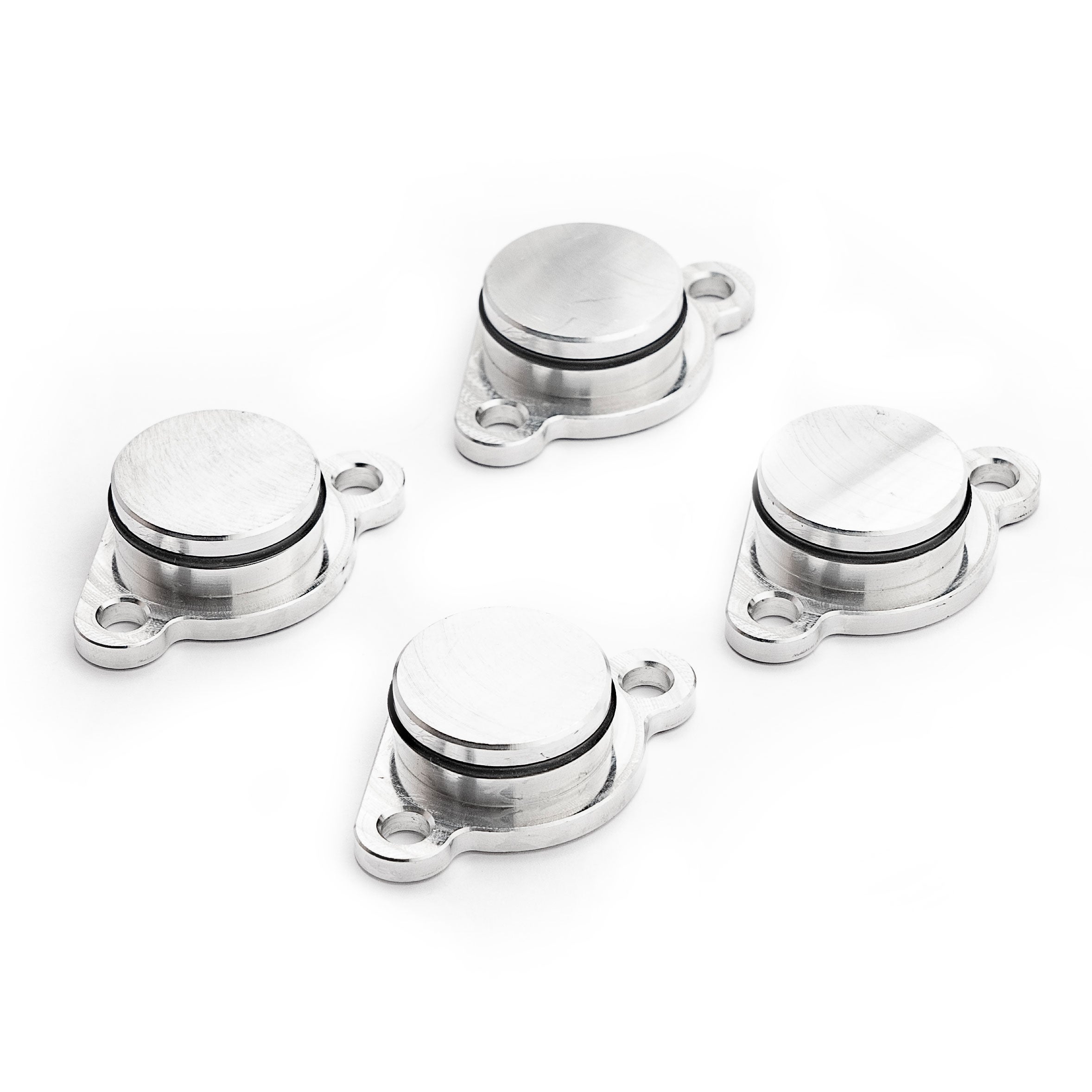

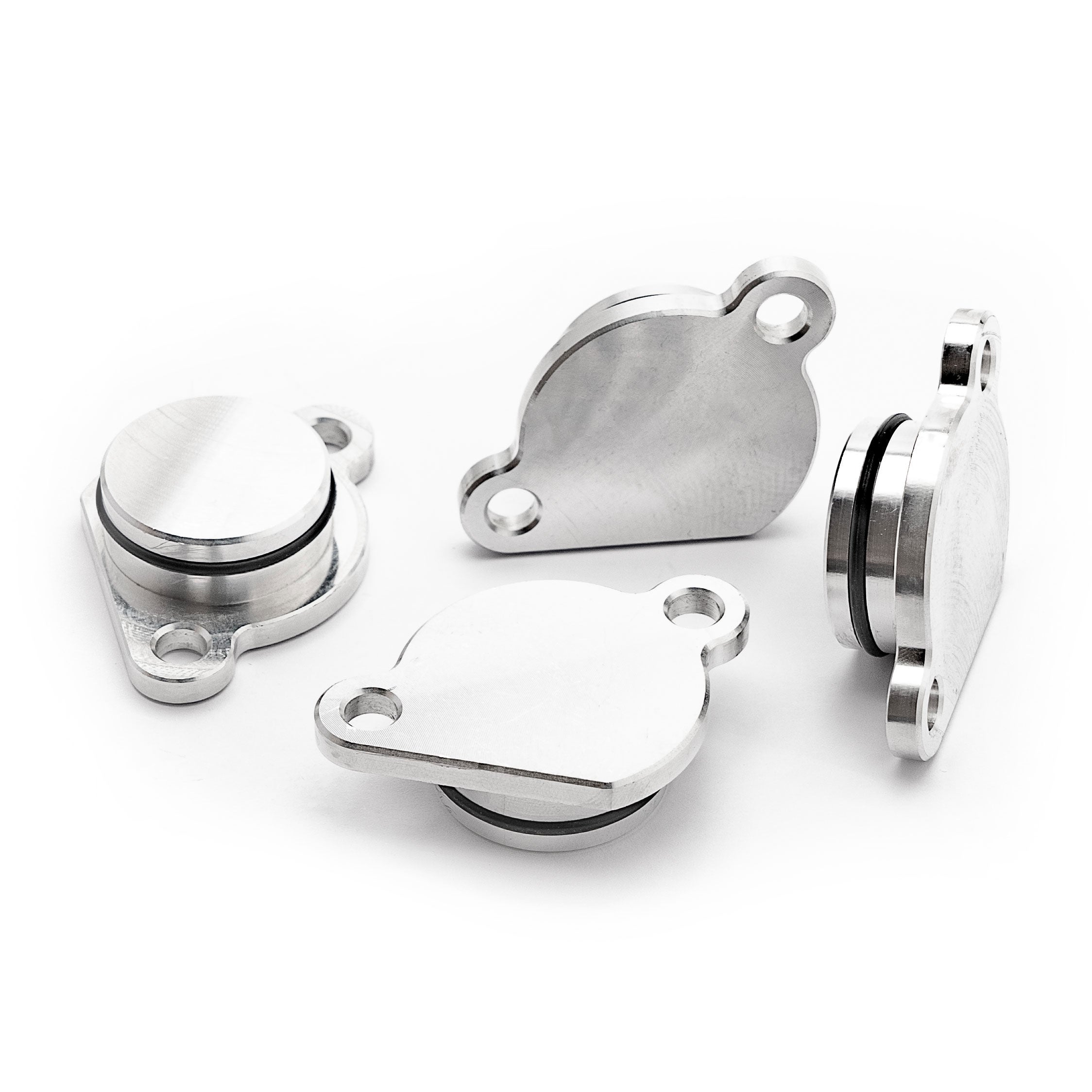

This product is the swirl flap blanking plug set, rather than a complete manifold or replacement flap mechanism. Compare original references, shape, dimensions and mounting.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Which Astra H L70 period is listed?

2004.02-2004.11.

Which manifold references are listed?

24431920, 55568968, 0851066 and 95508836.

Does this include the complete manifold?

No. This is the swirl flap blanking plug set.

Part Number / PN

55568968, 0851066, 24431920, 95508836, 25331276, 55352859, 5555925, 24435069

SKU: KL24431920.
