Oil Separator PCV Diaphragm - Volvo 2.4L / 3.2L - 30788481

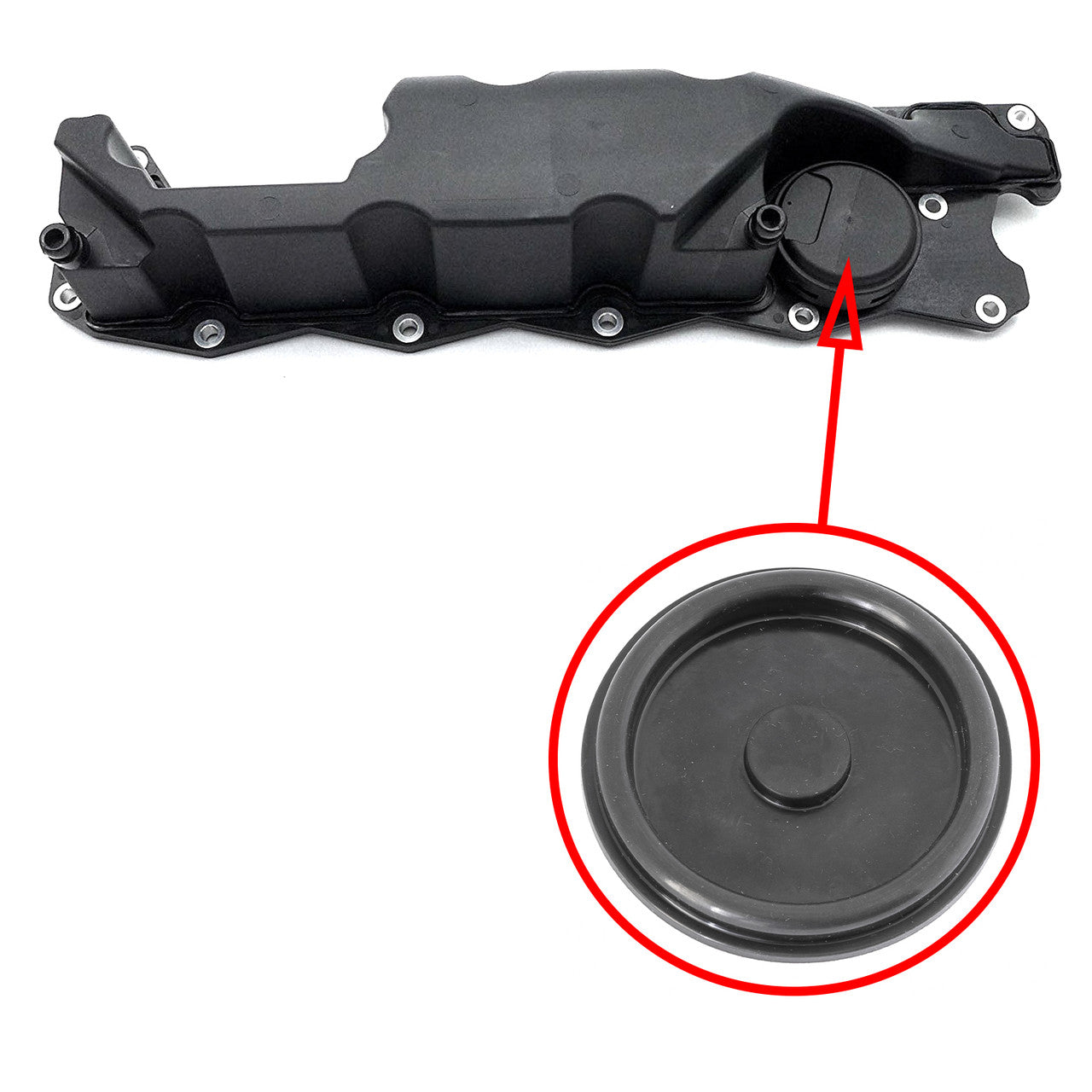

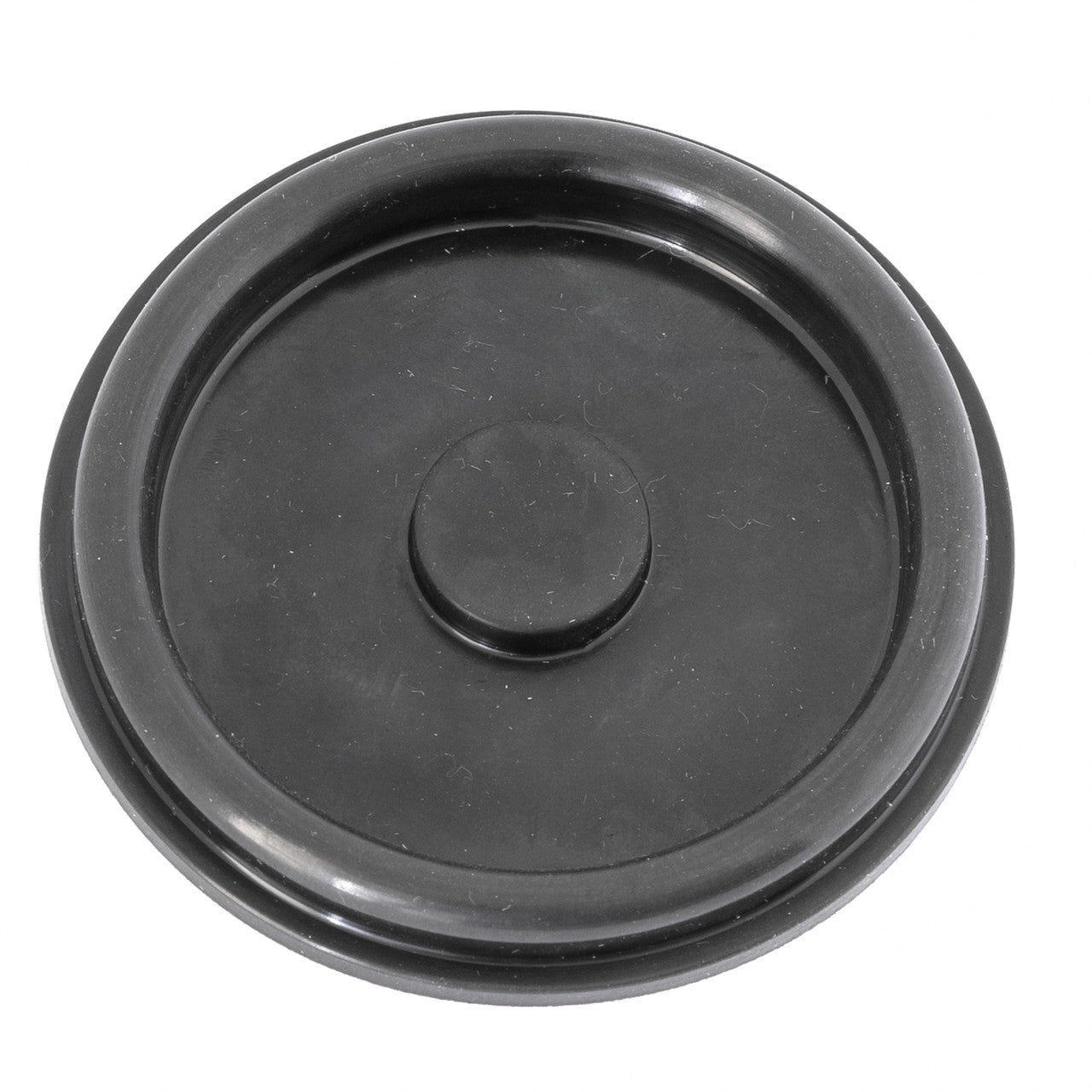

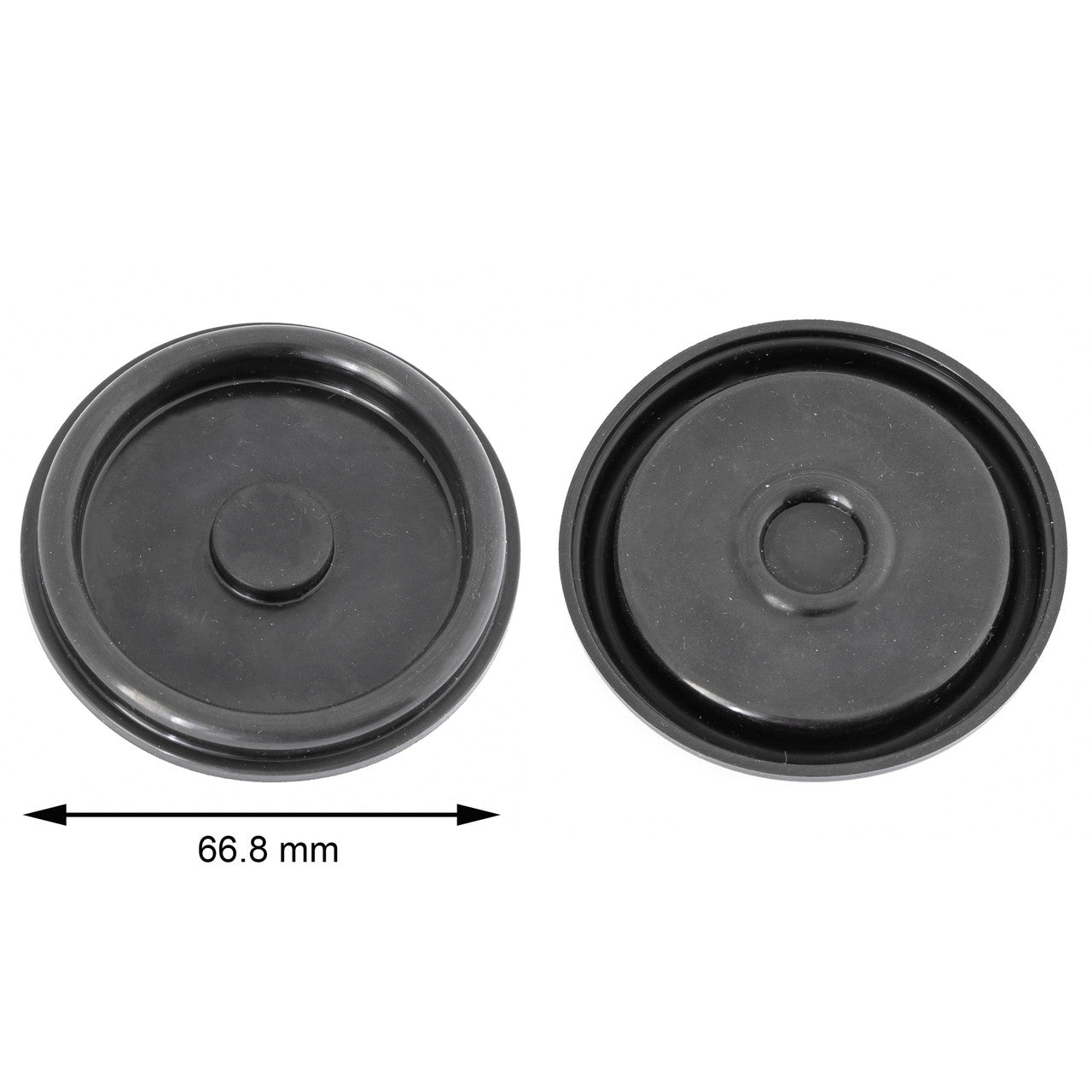

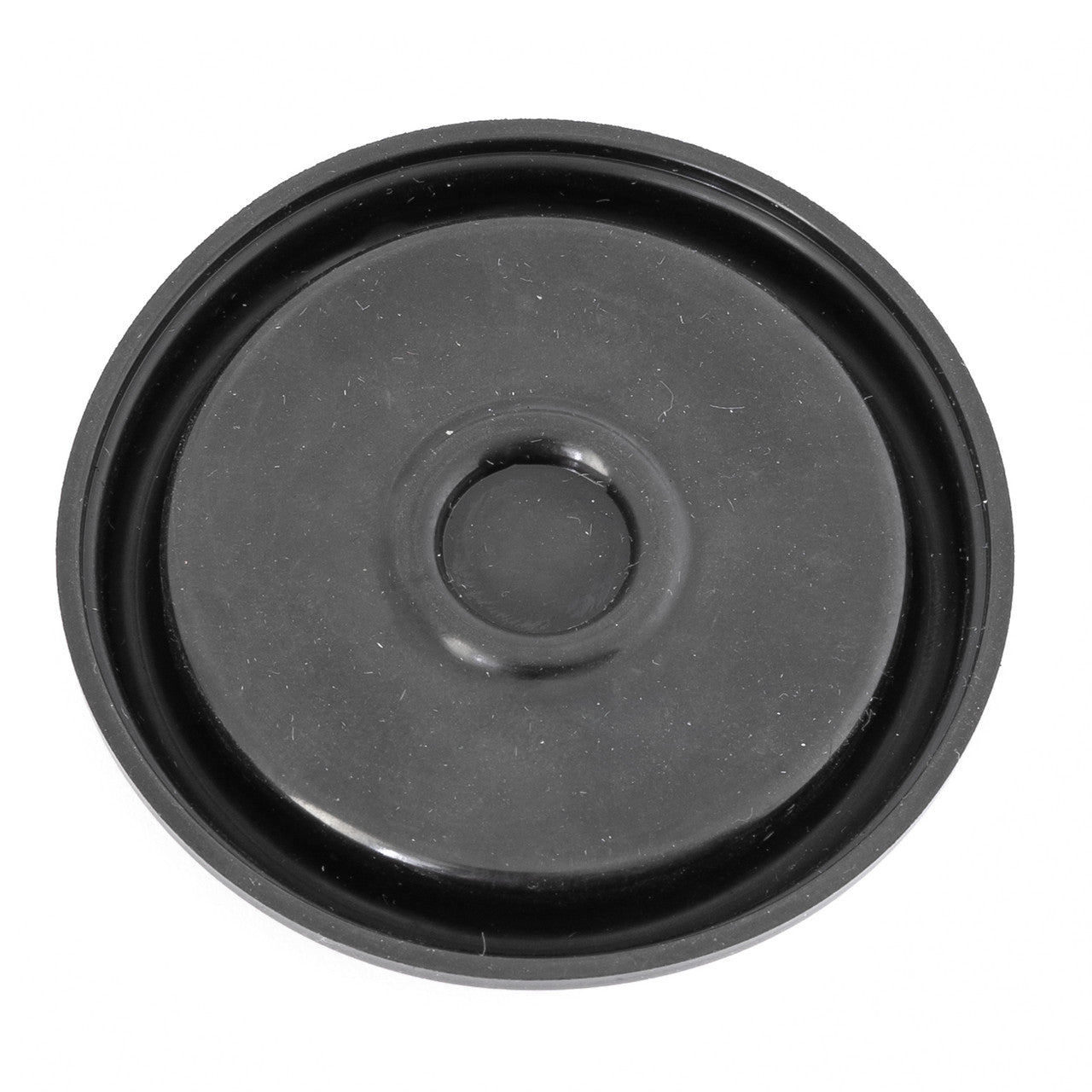

This separate diaphragm repairs the crankcase ventilation valve in the oil separator on the listed Volvo 2.4L and 3.2L applications. Loss of elasticity or a split diaphragm can disturb crankcase pressure and allow an intake air leak.

Applications

• Volvo S60 - 2000-2010.
• Volvo S60 II - 2010.
• Volvo S80 II (AS) - 2006.
• Volvo S80 I (TS XY) - 1998-2006.
• Volvo V60 (FW) - 2010.
• Volvo V70 III (BW) - 2007.
• Volvo V70 II (SW) - 2000-2007.
• Volvo V70 I (LV) - 1996-2000.
• Volvo XC60 (DZ) - 2008.
• Volvo XC70 CROSS COUNTRY (SZ LZ) - 1997-2007.
• Volvo XC70 II (BZ) - from 2007.
• Volvo XC90 (C) - 2002.

Separator Selection

Select by the original oil separator number, rather than by model alone. Additional exact separator designation: 7g9n-6m293-af. Compare the separator numbers in the full reference list below.

When to Inspect the PCV System

• Whistling or excessive crankcase vacuum.
• Unstable idle.
• Increased oil consumption.
• Oil deposits in the intake.
• Exhaust smoke after warm-up.
• Mixture faults associated with intake air leaks.

Confirm the cause by checking the diaphragm, housing and ventilation pipes. These symptoms do not prove diaphragm failure on their own.

Repair Scope

The diaphragm is supplied separately from the oil filter/separator housing. Check the housing and ventilation pipes for cracks and damage. If the housing is damaged, diaphragm replacement alone may be insufficient.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Should I select by the Volvo model alone?

No. Match the original oil separator number and diaphragm mounting design.

Is this a complete oil filter housing?

No. This is the separate PCV diaphragm.

What should I check if the diaphragm has split?

Check the housing and ventilation pipes as well as the diaphragm; damaged surrounding components may need repair.

Part Number / PN

30788481,30757662,31319642,31338023,8642185,31319643,30757664,30788484,30788442,8699157,7g9n6m293af

SKU: KL30788481.
