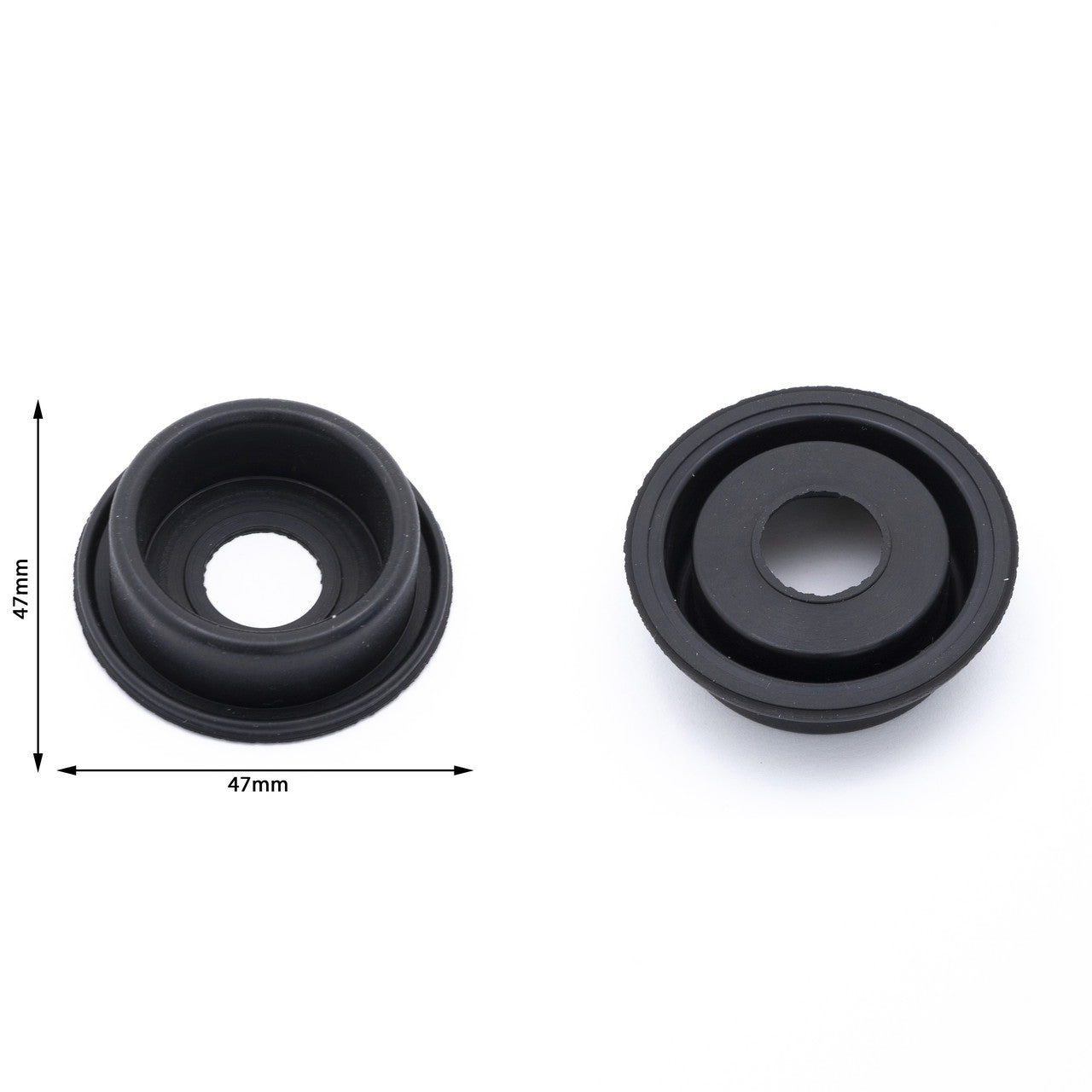

EGR Cooler Bypass Flap Diaphragm - Audi / VW / Skoda / Seat - 03G131512AD

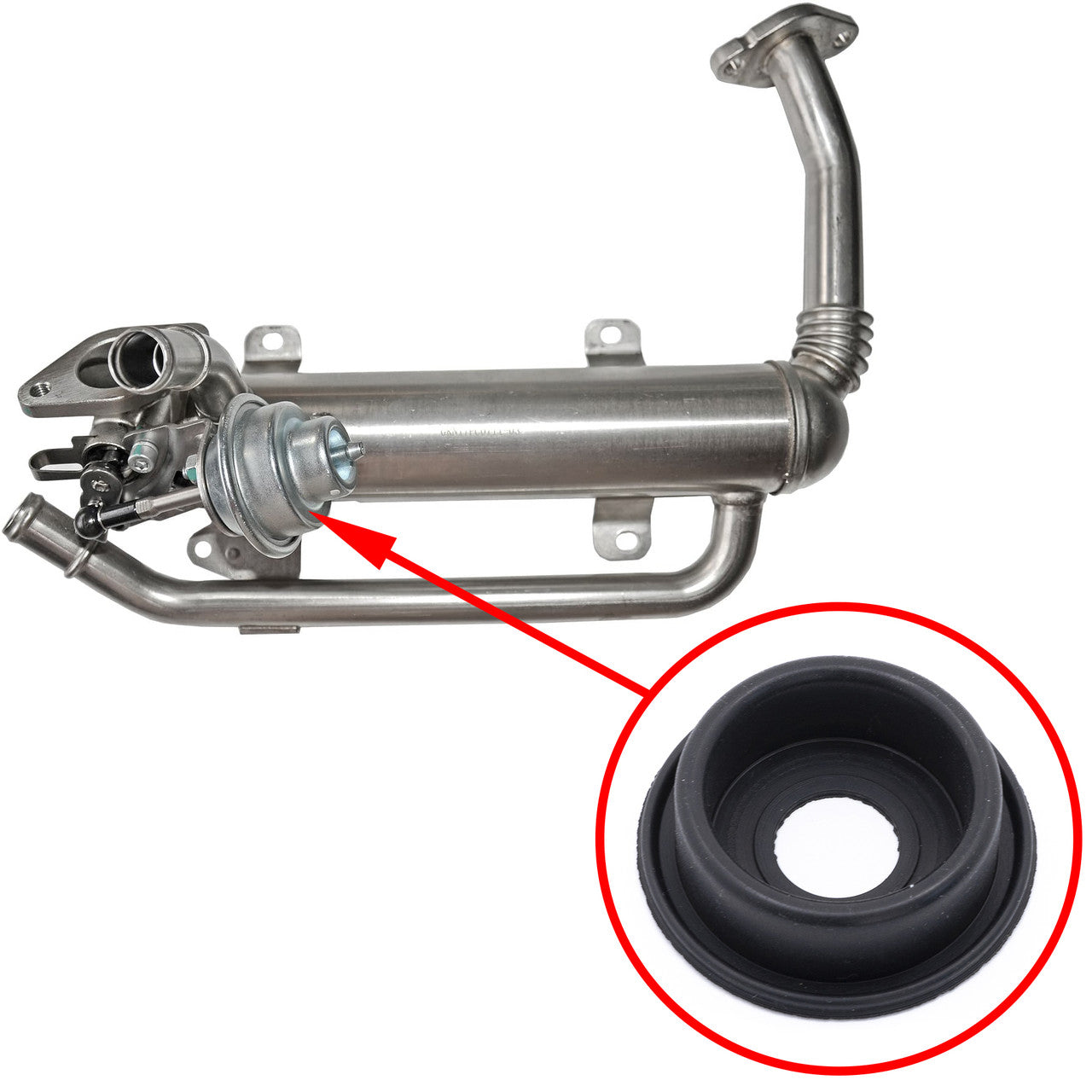

This diaphragm operates in the bypass flap valve of the EGR cooler on the listed VAG applications. Match the original EGR cooler/valve reference and diaphragm design before replacement; inspect the bypass mechanism to confirm the fault.

Applications

• Volkswagen Golf Hatchback (1K1) - 2004-2009.
• Volkswagen Golf Hatchback (5M1) - 2004-2009.
• Volkswagen Golf Estate (1K5) - 2007-2010.
• Volkswagen Golf Estate (AJ5) - 2009-2014.
• Volkswagen Touran MPV (1T1, 1T2) - 2003-2011.
• Volkswagen Passat Saloon (B6, 3C2) - 2005-2011.
• Volkswagen Passat Estate (B6, 3C5) - 2005-2011.
• Volkswagen Caddy Estate (2KB) - from 2004.
• Volkswagen Caddy Van (2KA) - from 2004.
• Volkswagen Jetta Saloon (1K2) - 2005-2011.
• Volkswagen Eos Cabriolet (1F7, 1F8) - from 2006.
• Additional brand designations: Skoda, Audi, Seat - select by the installed EGR cooler reference.

When to Inspect the Bypass Mechanism

• Starting requires a second or third attempt.
• Engine knocking during acceleration from 850 to 1700 rpm.
• Engine stalls when selecting neutral while driving.
• Loss of power, uneven running, poor response or no kickdown.

These symptoms require diagnosis of the EGR cooler bypass mechanism and engine systems; they do not prove that the diaphragm alone is faulty.

EGR Cooler and Valve References

VAG 03G131512AD, 070131512F, 070131512D, 070131512, 03G131512AA, 03G131512G. Additional reference formats: 03G131512, 103g131512ad.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Which system does this diaphragm service?

The EGR cooler bypass flap valve.

Which rpm range is mentioned for knocking?

850-1700 rpm during acceleration; diagnose the actual cause.

Is this a complete EGR cooler?

No. This product is the replacement diaphragm.

What should be matched before ordering?

The original cooler/valve reference and diaphragm design.

Part Number / PN

03G131512,070131512F,070131512D,070131512,03G131512AA,03G131512G,03G131512AD,103g131512ad

SKU: KL03G131512.

• Audi
• Seat
• SKODA
• Volkswagen
