Valve Cover Breather Repair Kit 55mm - Skoda Seat VW TDI - for 03G103475E

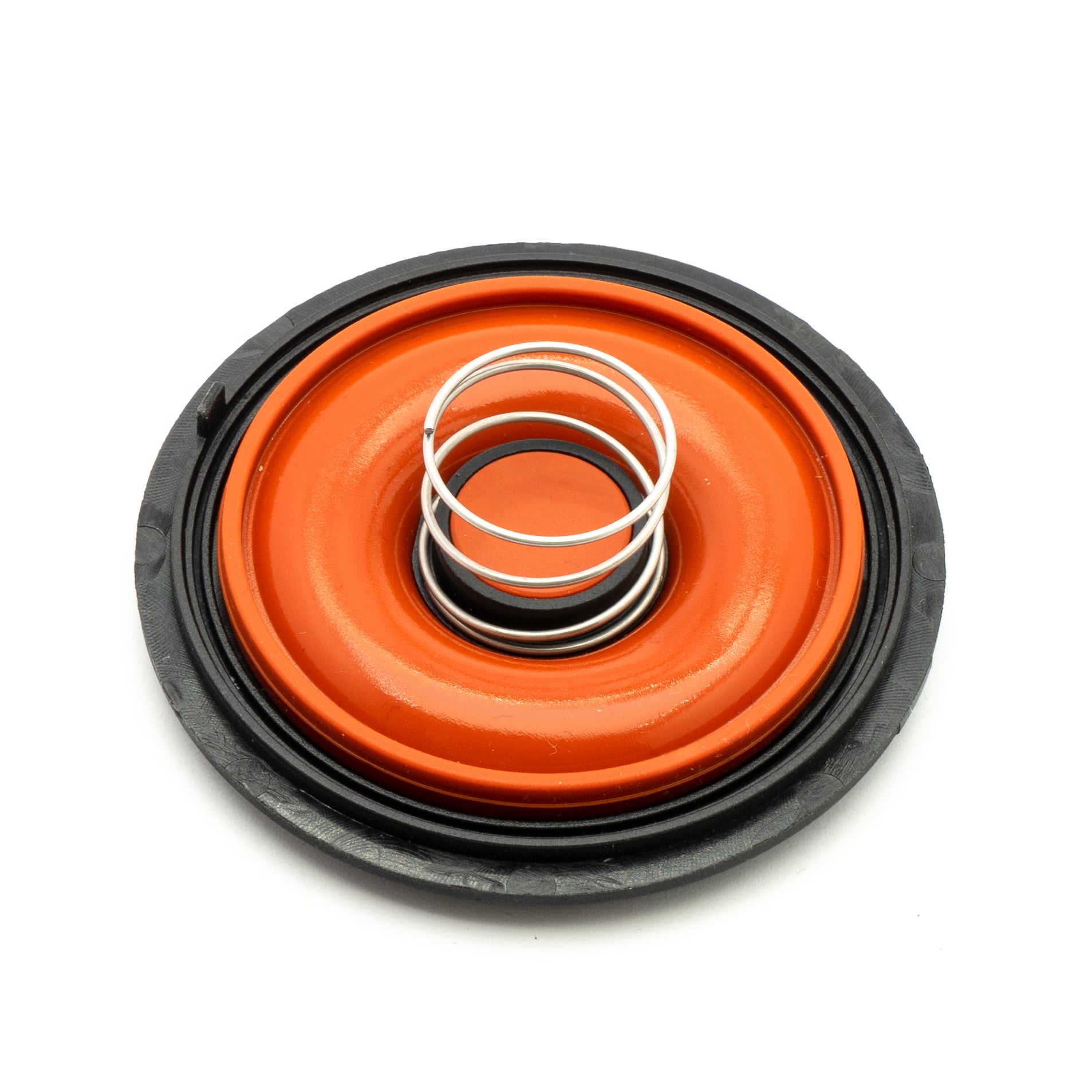

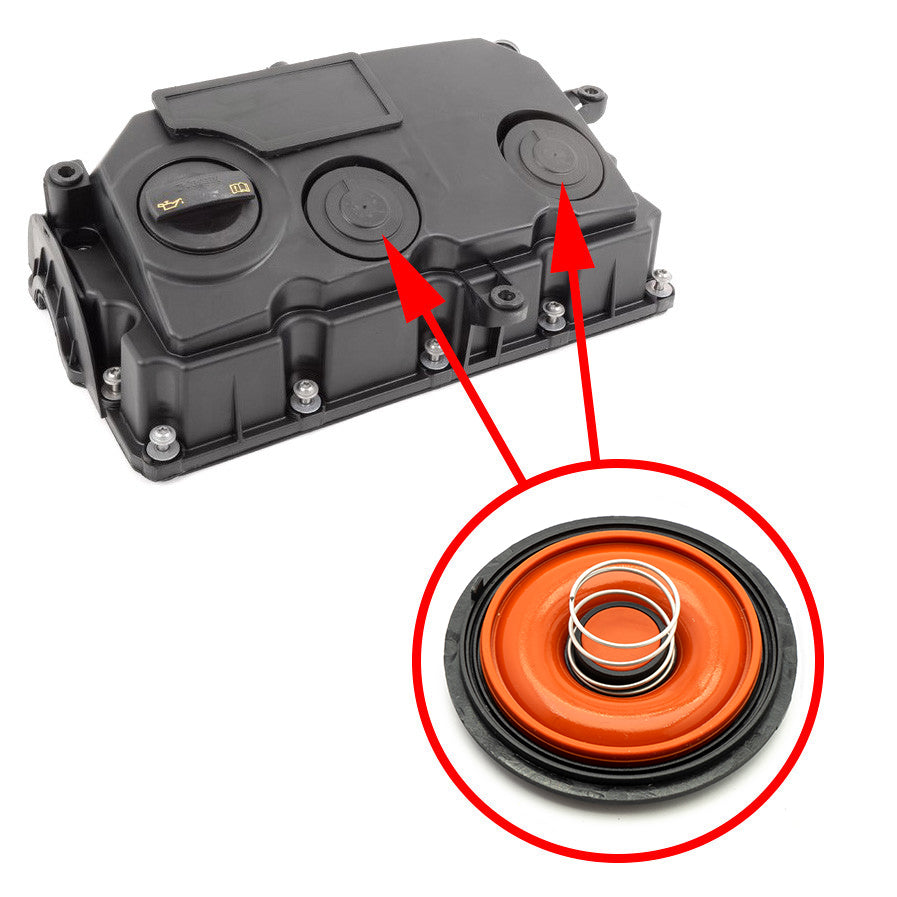

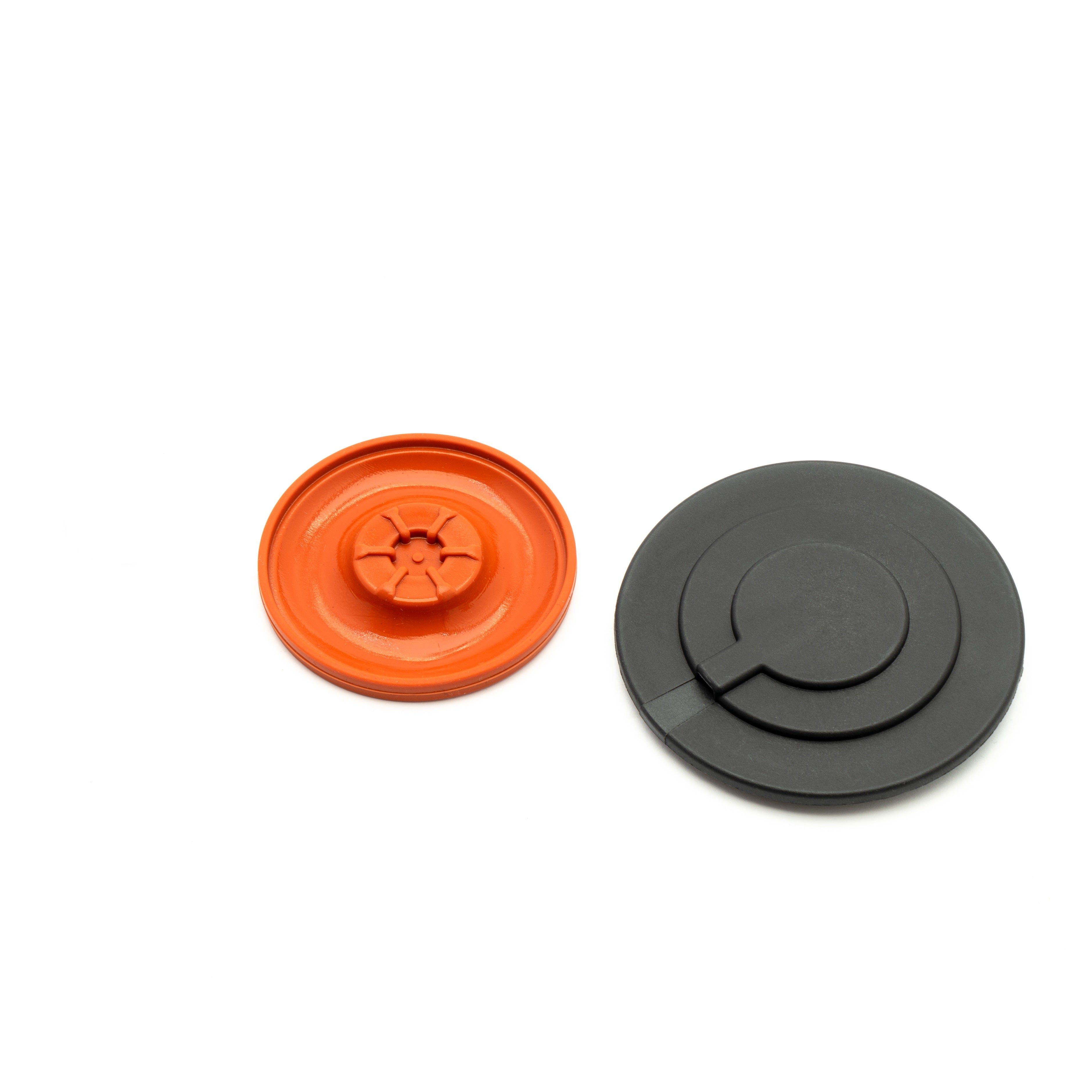

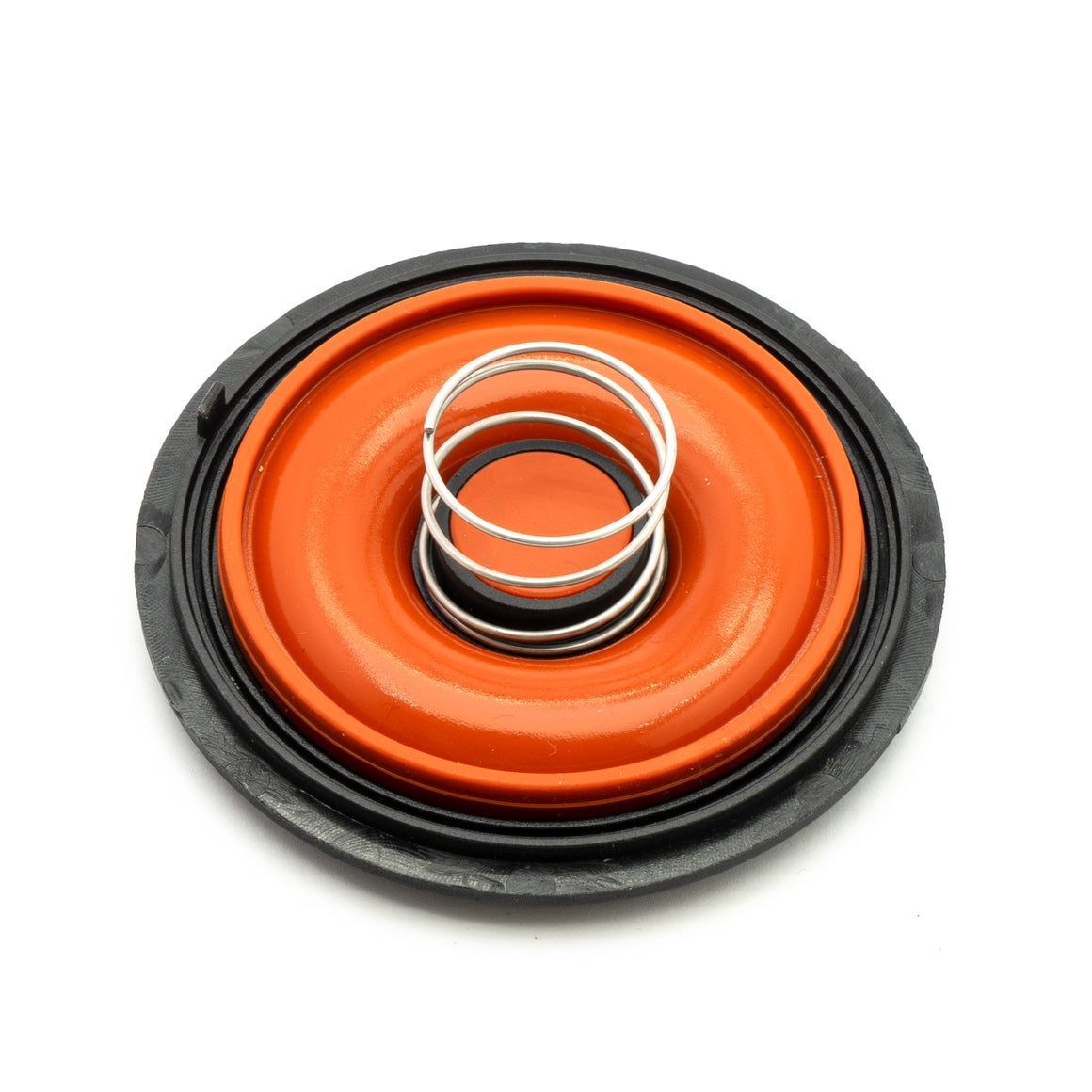

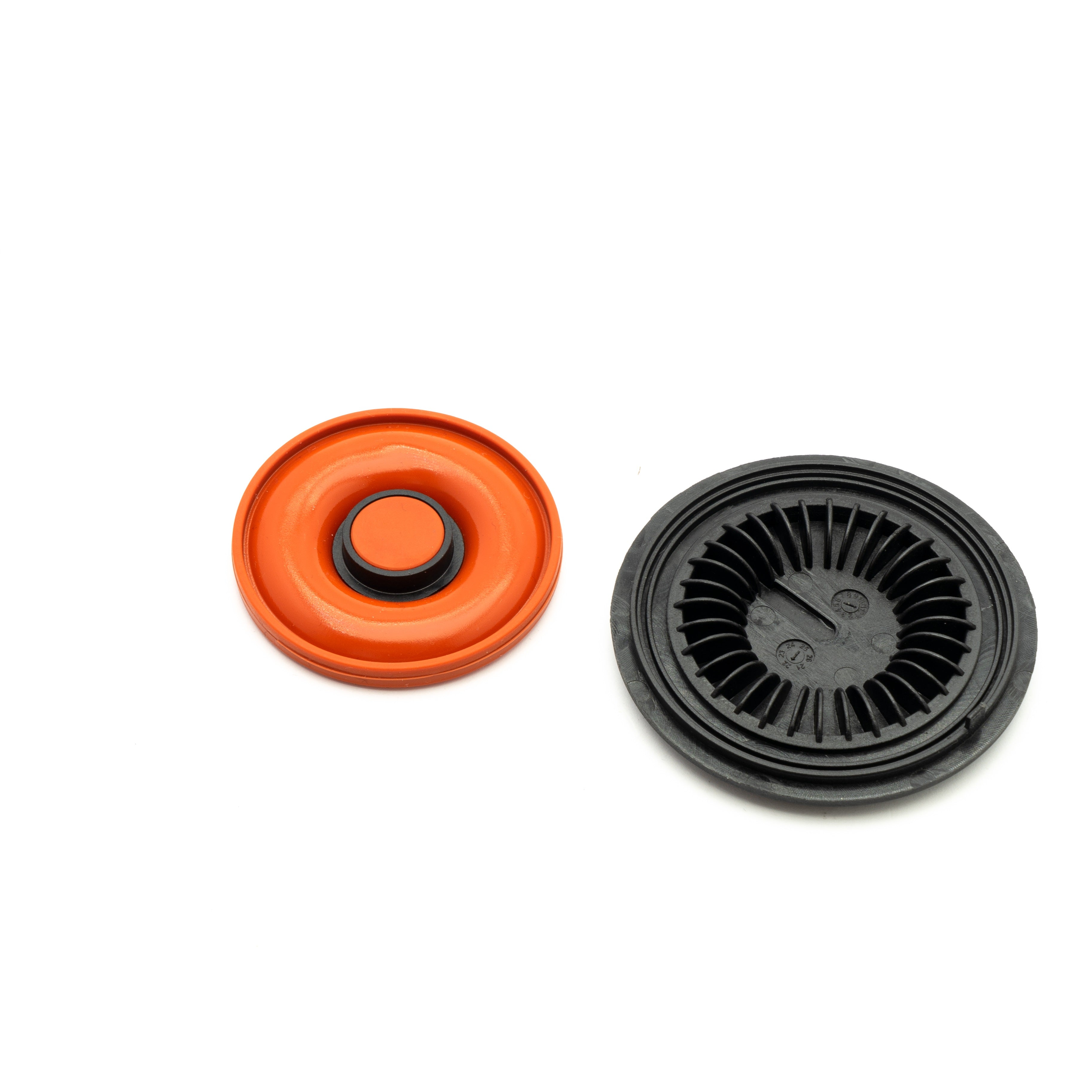

This 55mm diaphragm repair component fits the valve cover breather on the listed Skoda, Seat and Volkswagen 1.9 TDI / 2.0 TDI applications. It is sold individually; the valve cover contains two such breathers.

Applications

• Skoda Fabia 2007 - 2010
• Skoda Octavia 2009 - 2013
• Skoda Roomster 2006 - 2010
• Skoda Superb 2008 - 2013
• Seat Ibiza/ST 2009 - 2011
• Volkswagen Jetta 2009 - 2010
• Volkswagen Touran 2009 - 2010

Cover and Diaphragm Selection

Diameter: 55mm. Sold as one piece; two such breathers are fitted in this valve cover. Cover references: 03G103475E and 03G103469G. Listed engine codes: BMM, BSU, BLS, BXJ, BMP and BMT in the 1.9 TDI / 2.0 TDI context. Match the original cover and repair version.

When to Inspect the Cover and Ventilation

• Oil leakage or seepage around the valve cover.
• Burning oil smell after the engine warms up.
• Air leaks through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, excessive vacuum or mixture faults associated with leakage.

Diagnose the cover and crankcase ventilation system to establish the affected component before replacing the diaphragm.

Repair Scope

This is the diaphragm repair component, rather than a complete valve cover. Inspect the cover or oil separator housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable if the housing is intact; housing damage can require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Does one purchase cover both breathers?

The product is sold as one piece; the cover has two such breathers.

What is the diaphragm diameter?

55mm.

Which cover references are listed?

03G103475E and 03G103469G.

Part Number / PN

03G103475E,03G103469G

SKU: KL03G103475E.

• Seat
• Volkswagen
• SKODA
