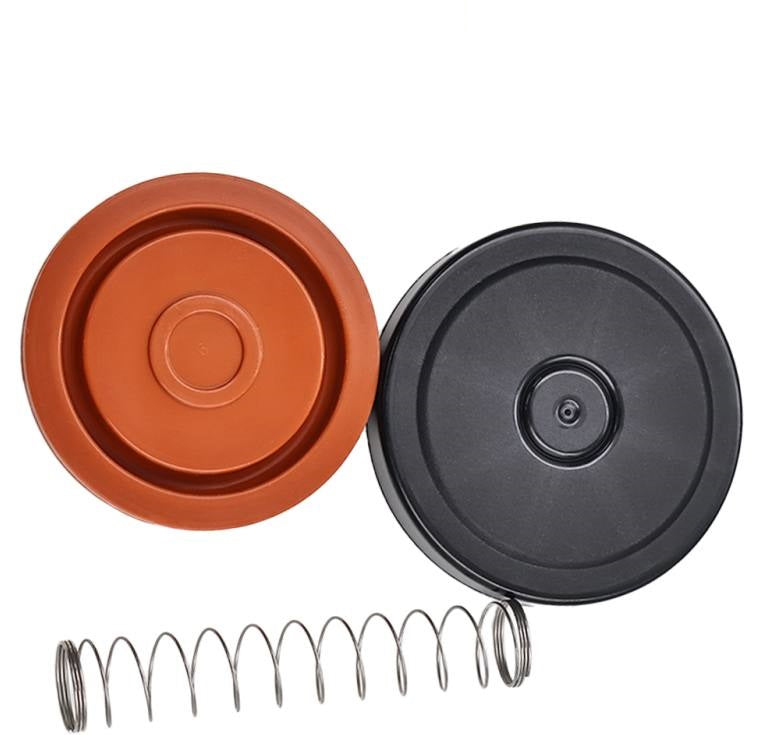

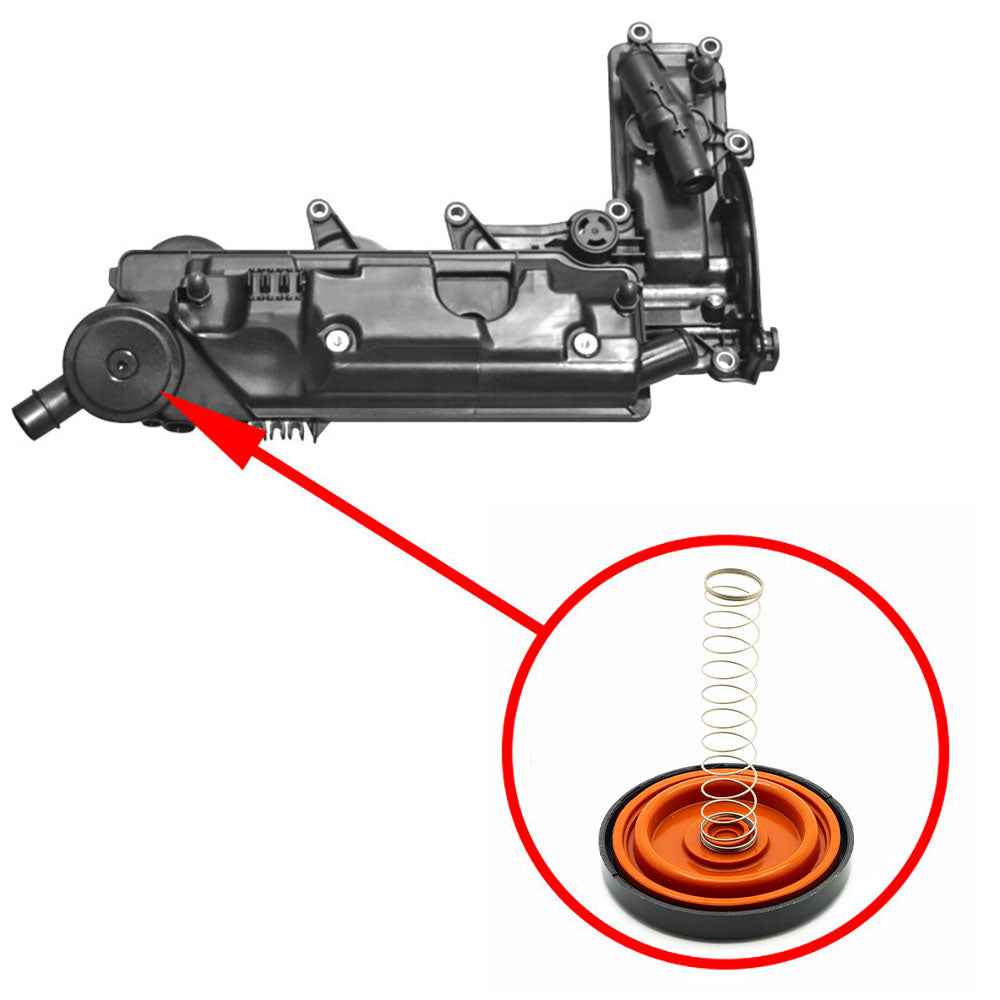

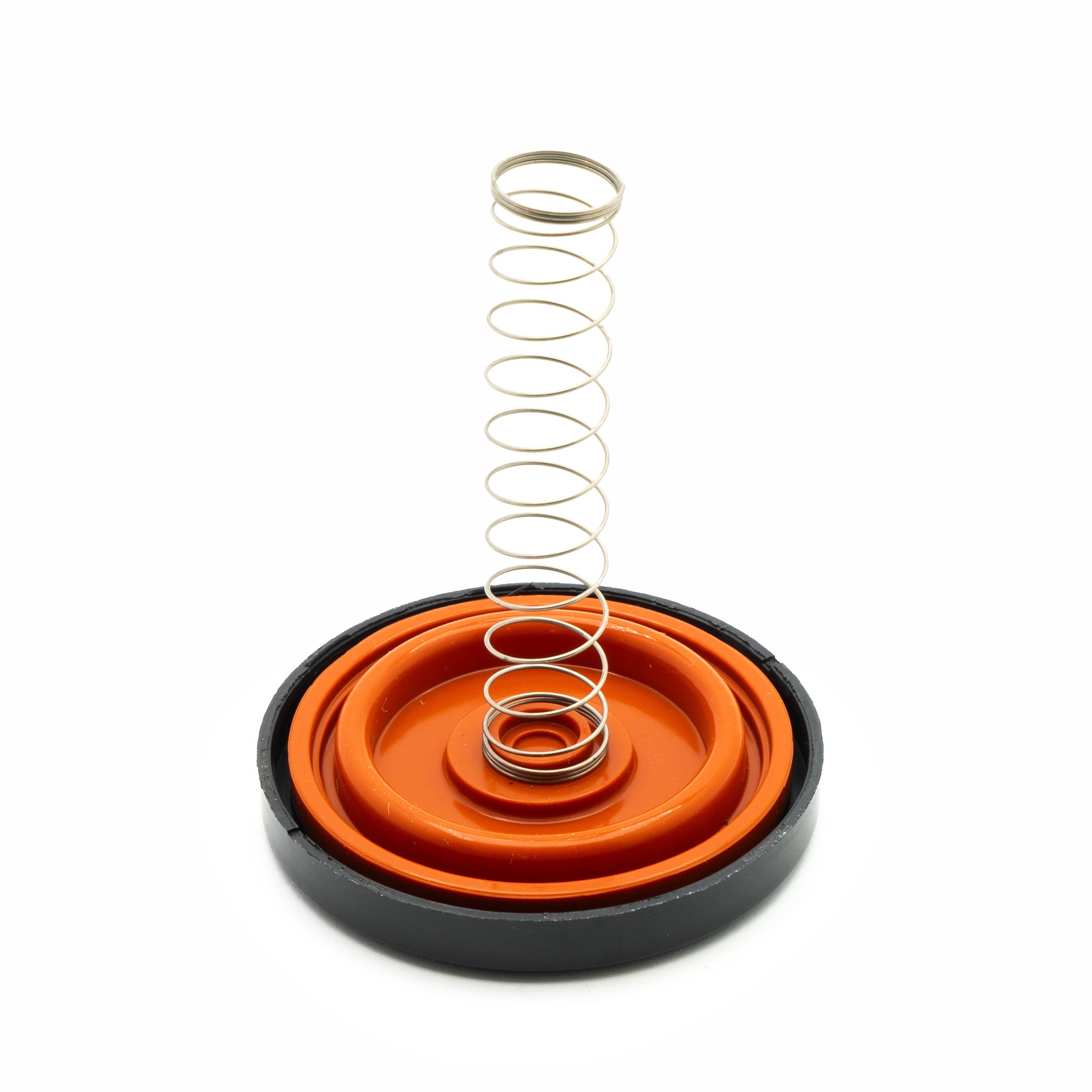

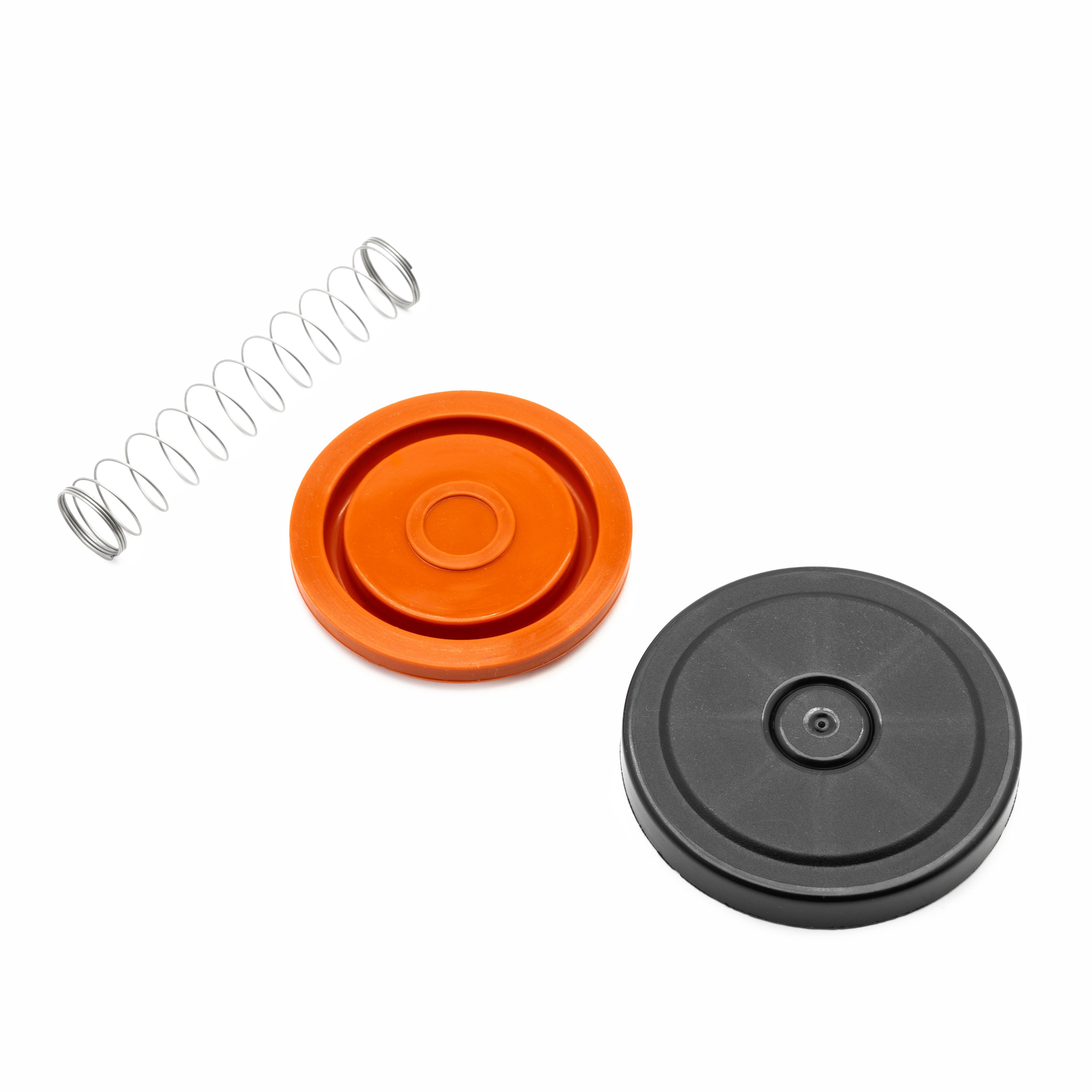

Valve Cover Diaphragm Repair Kit 58.4mm - Reference LR022304

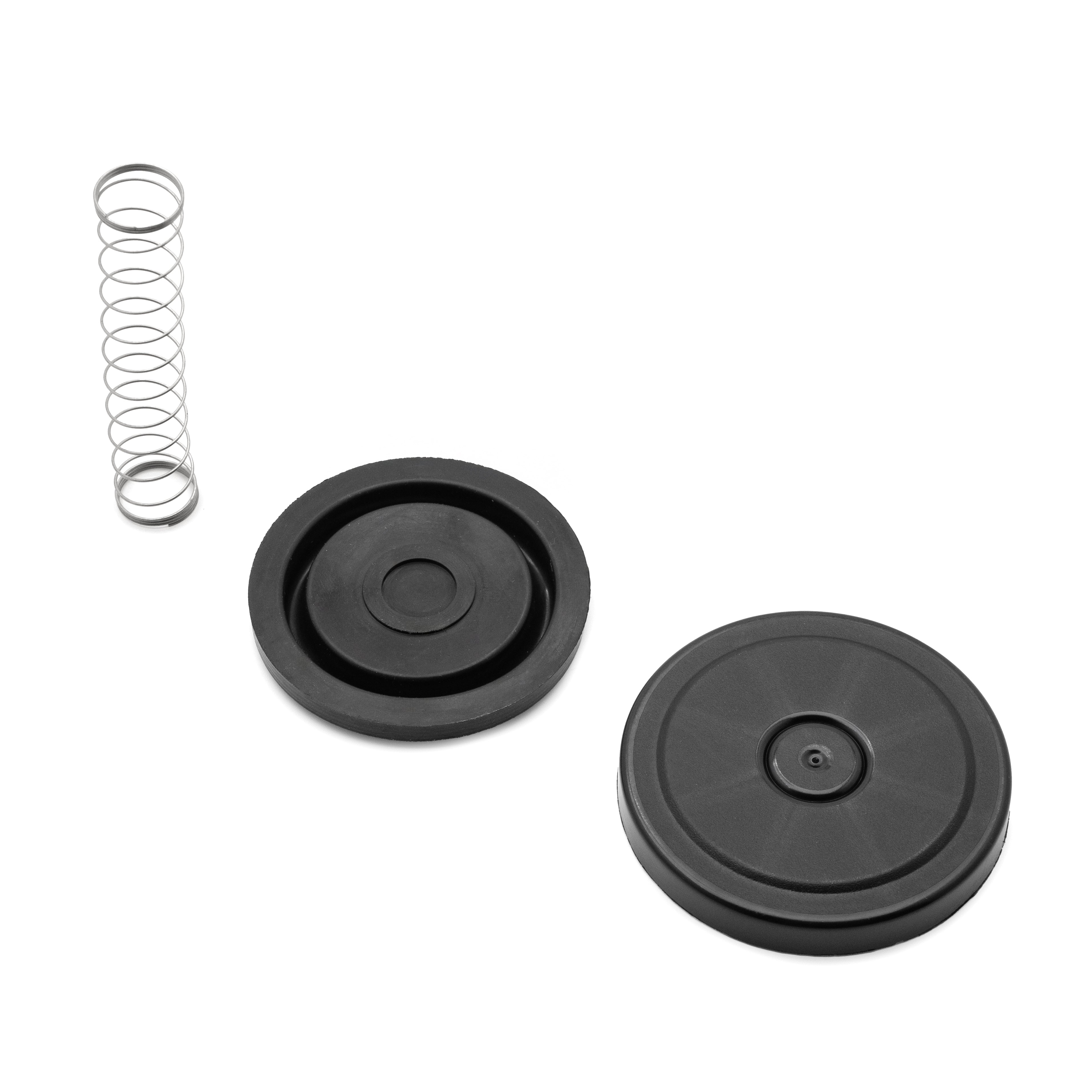

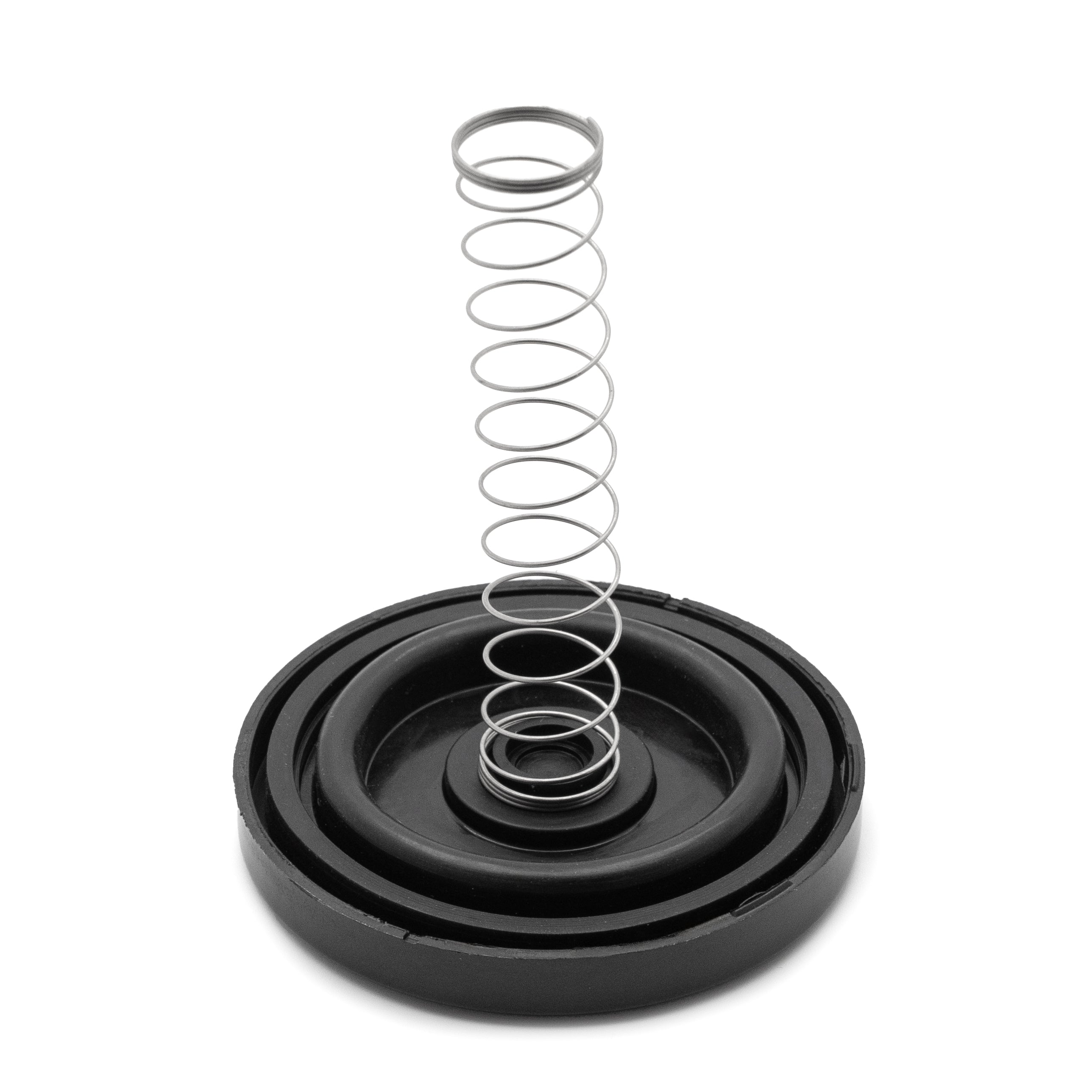

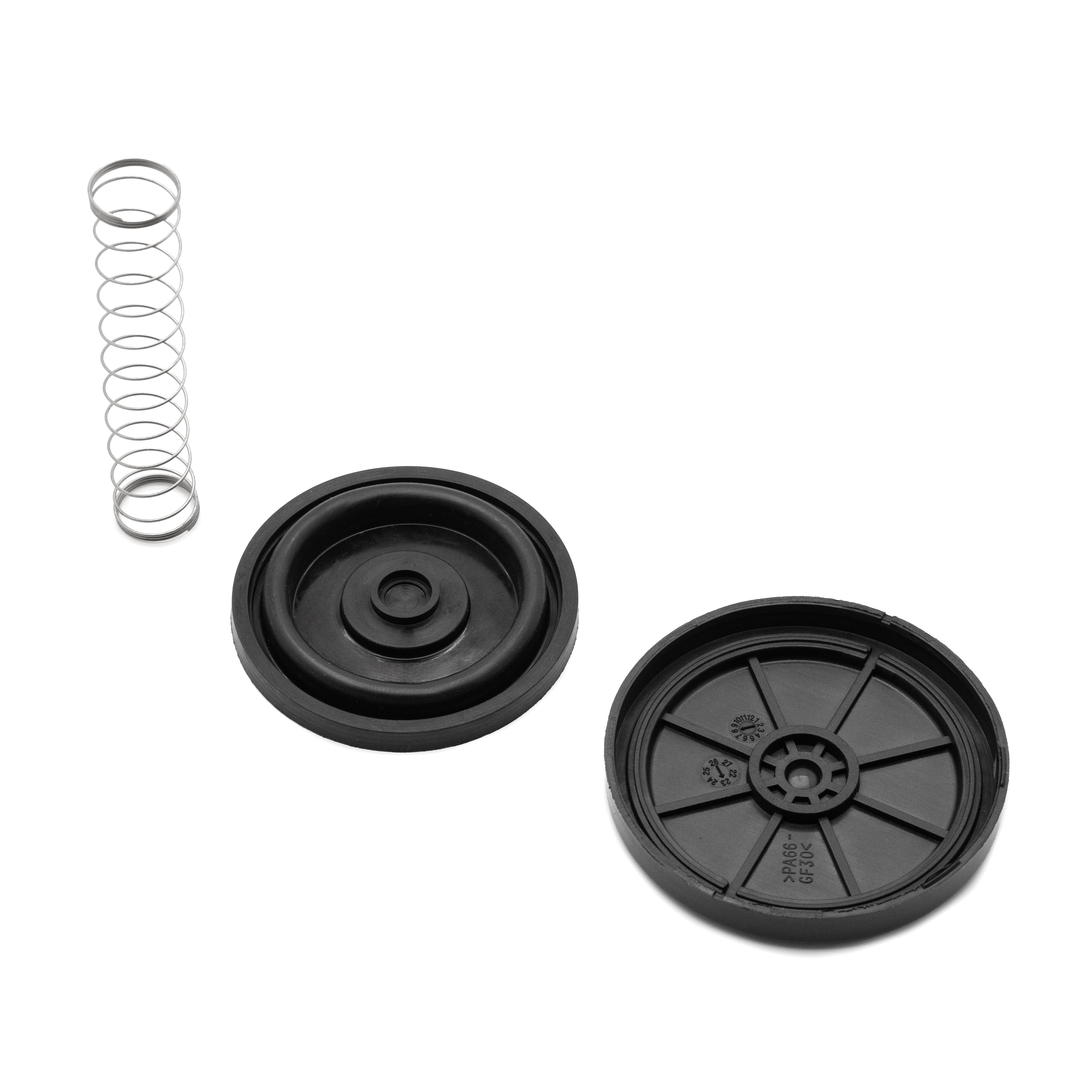

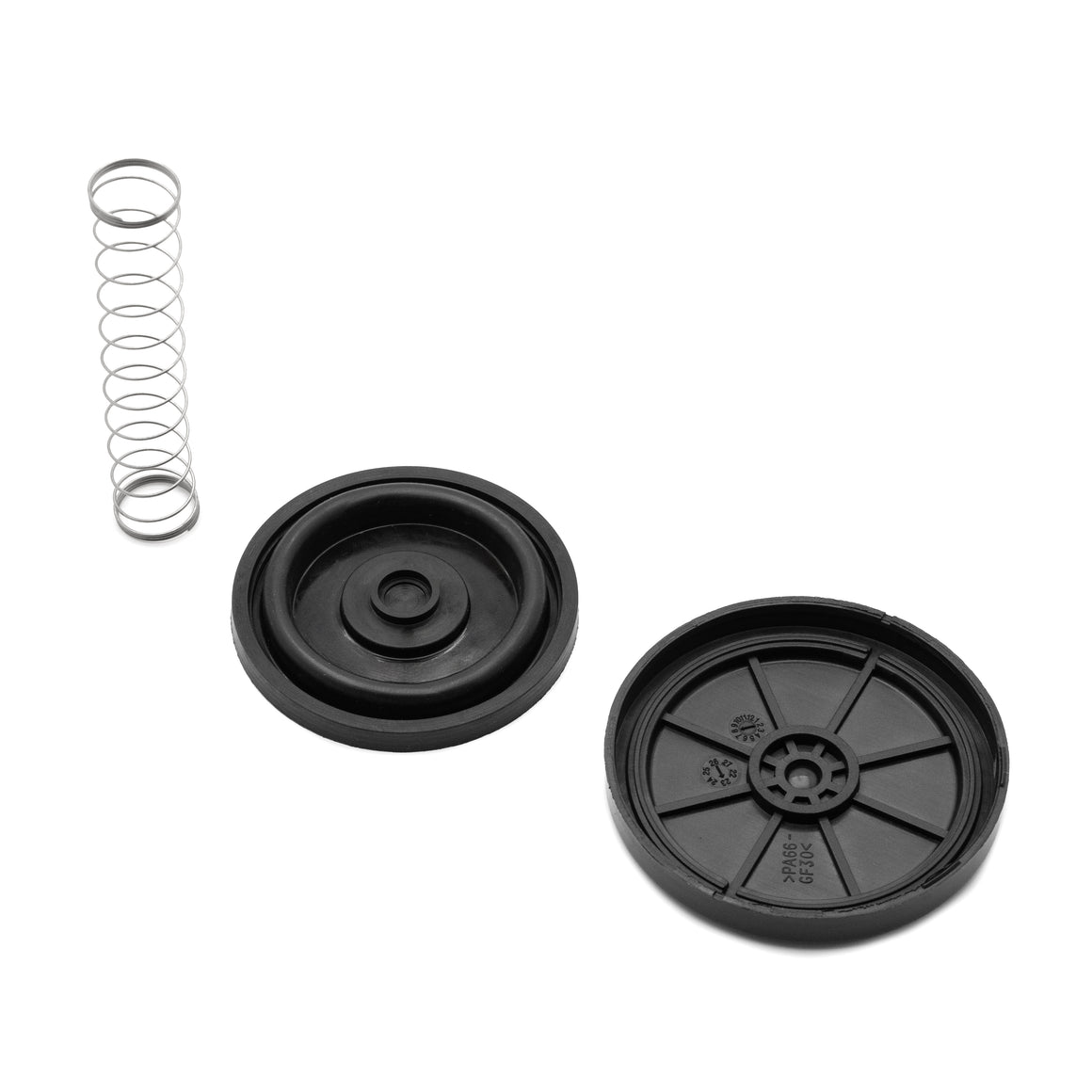

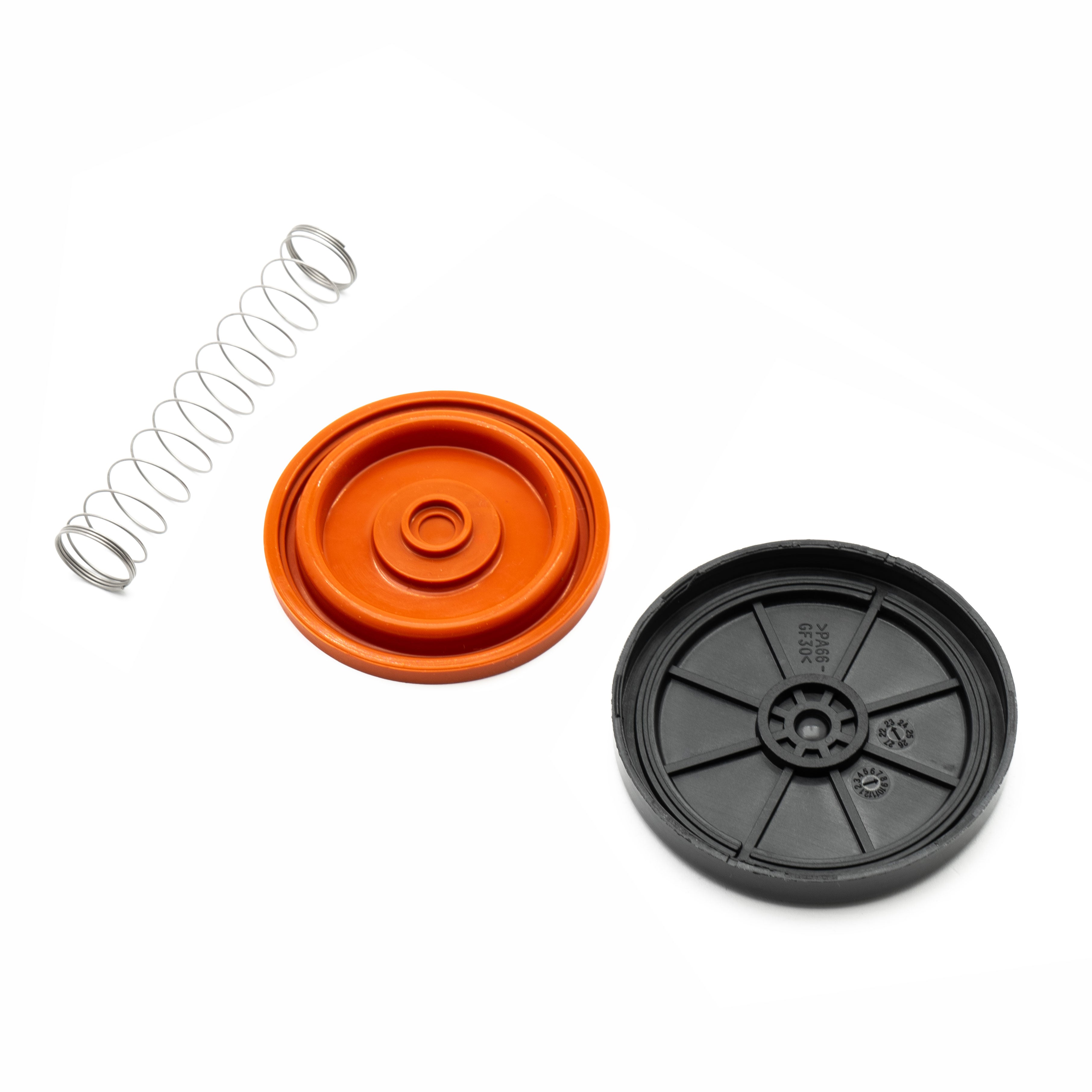

This valve cover repair kit includes the 58.4mm diaphragm for the vehicle applications below. Compare the original cover number and diaphragm shape, and inspect the housing before selecting the repair.

Applications

• Citroen C-Crosser 2008-2013
• Citroen C5 (X7)
• Citroen C8
• Citroen C5 II
• Citroen C6
• Fiat Ulysse 2002-2011
• Land Rover Freelander 2 2007-2014
• Range Rover Evoque from 2011
• Peugeot 4007 2008-2013
• Peugeot 407 2004-2010
• Peugeot 508
• Peugeot 607 2000-2010
• Peugeot 807 2002-2012
• Ford S-MAX/Galaxy CA1 2006-2015
• Ford Mondeo CA2 2007-2014
• Jaguar XF

When to Inspect the Cover and Ventilation

• Oil leakage or seepage around the valve cover.
• Burning oil smell after the engine warms up.
• Air leaks through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, excessive vacuum or mixture faults associated with leakage.

Diagnose the cover and crankcase ventilation system to establish the affected component before replacing the diaphragm.

Diameter and Repair Limits

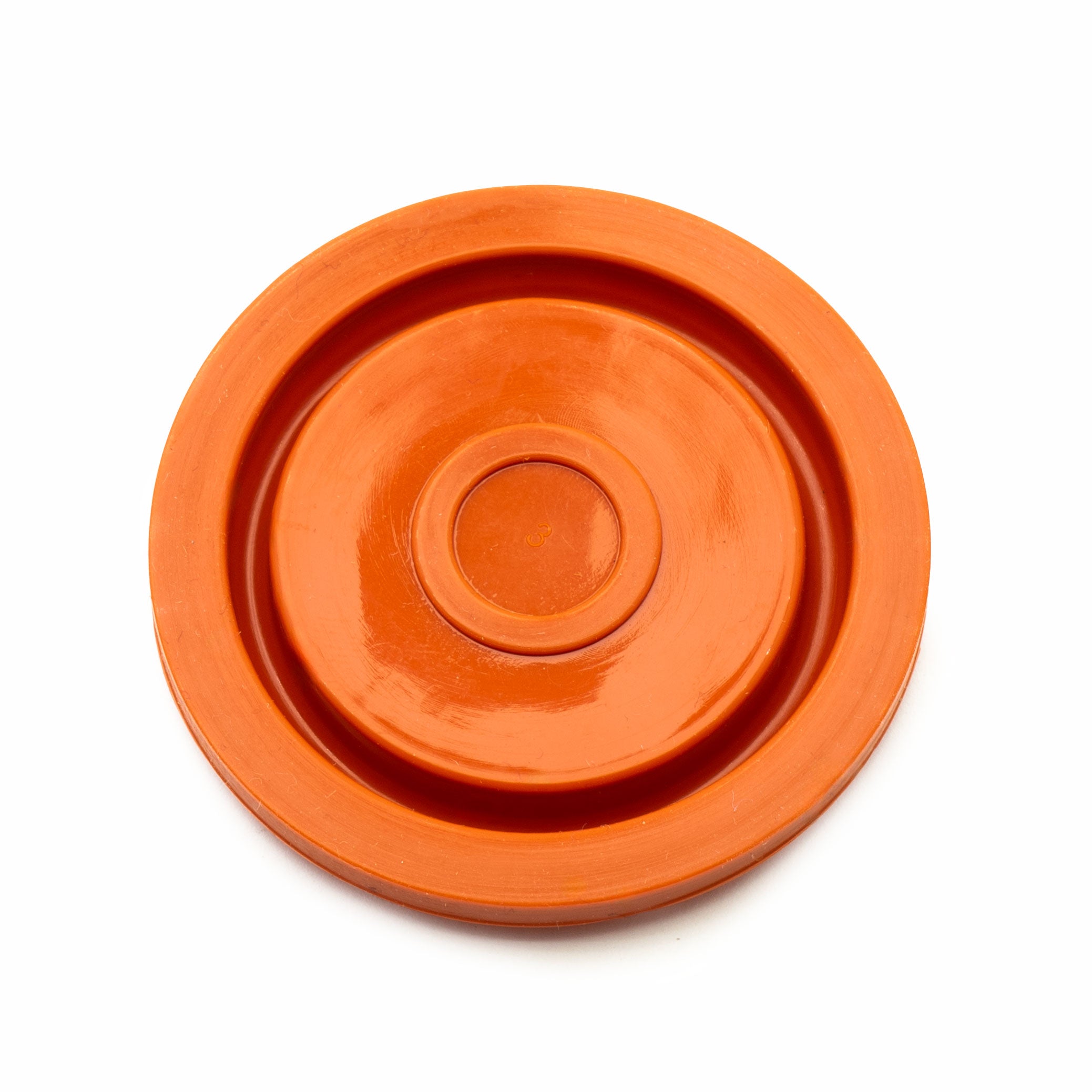

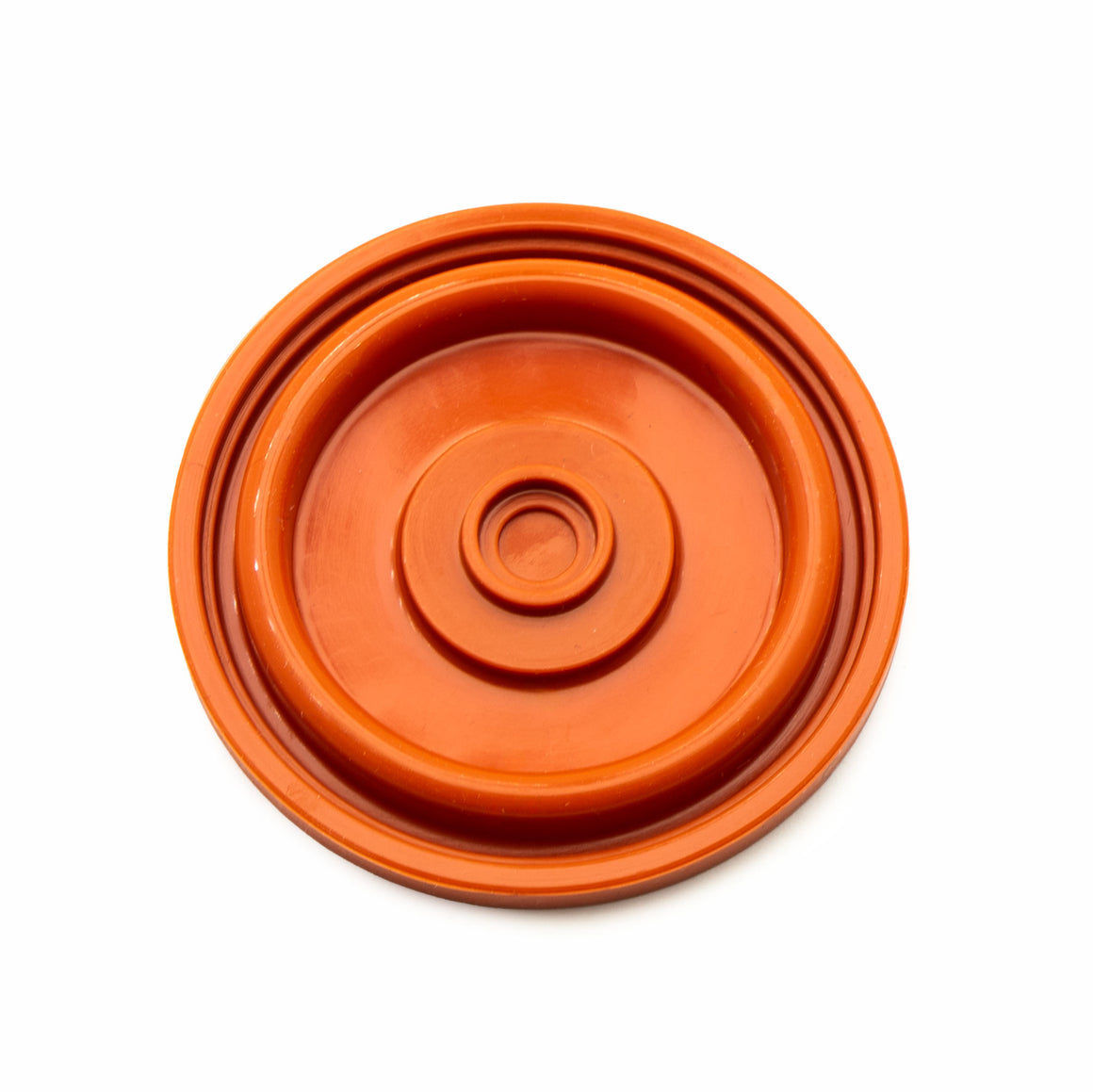

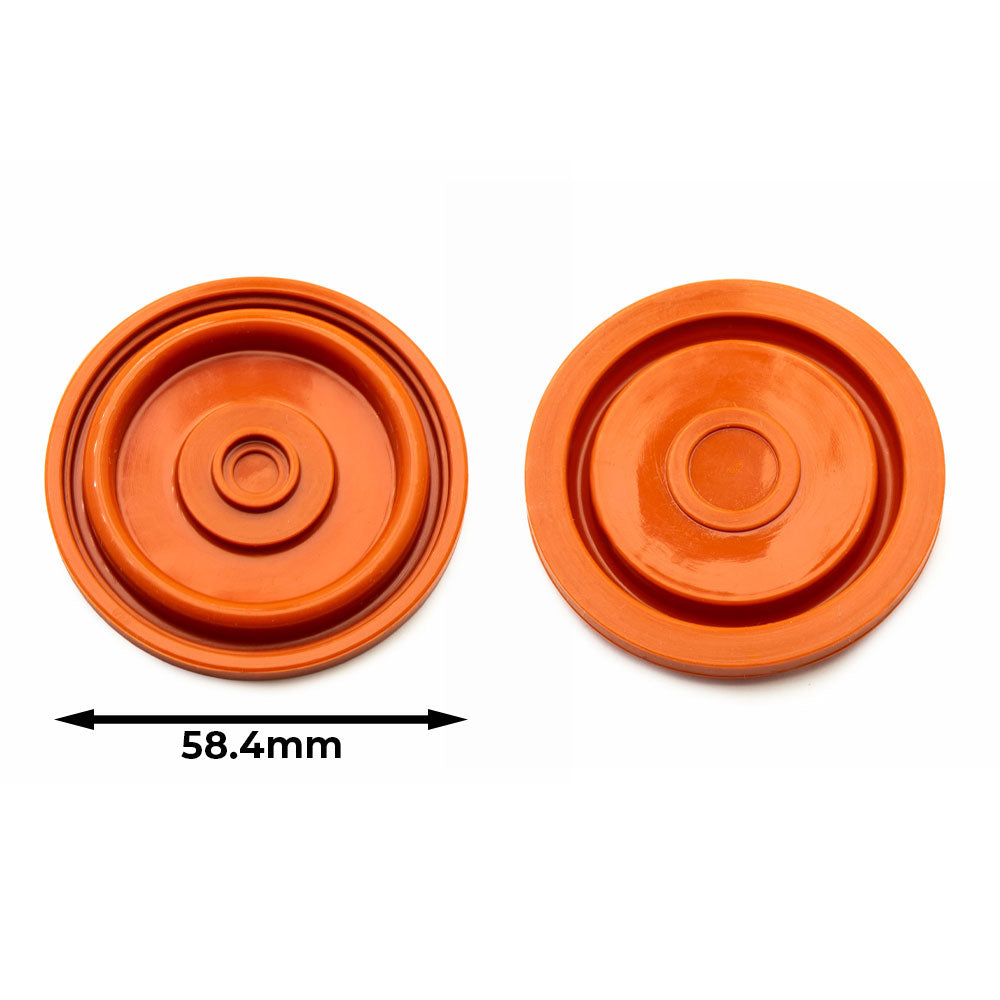

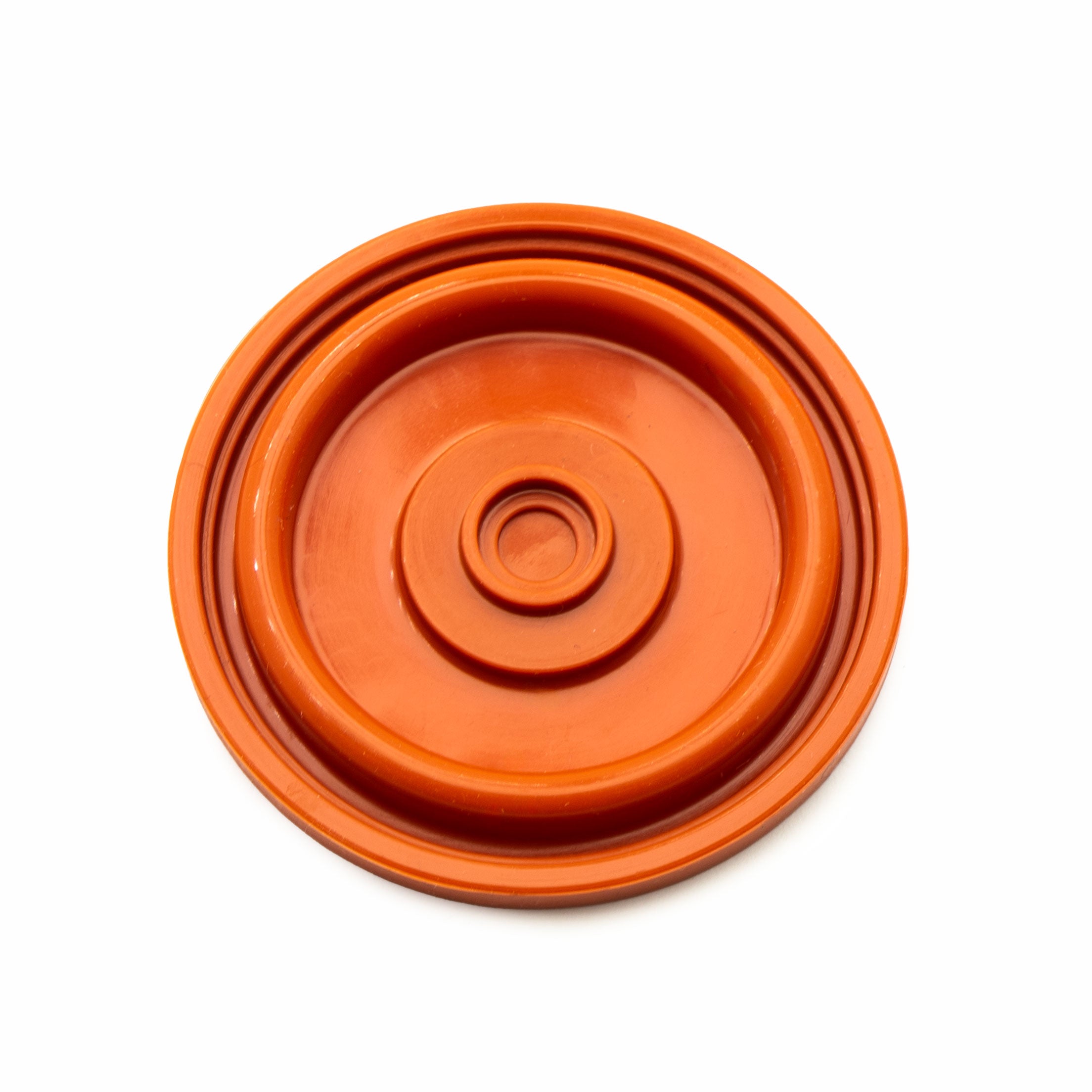

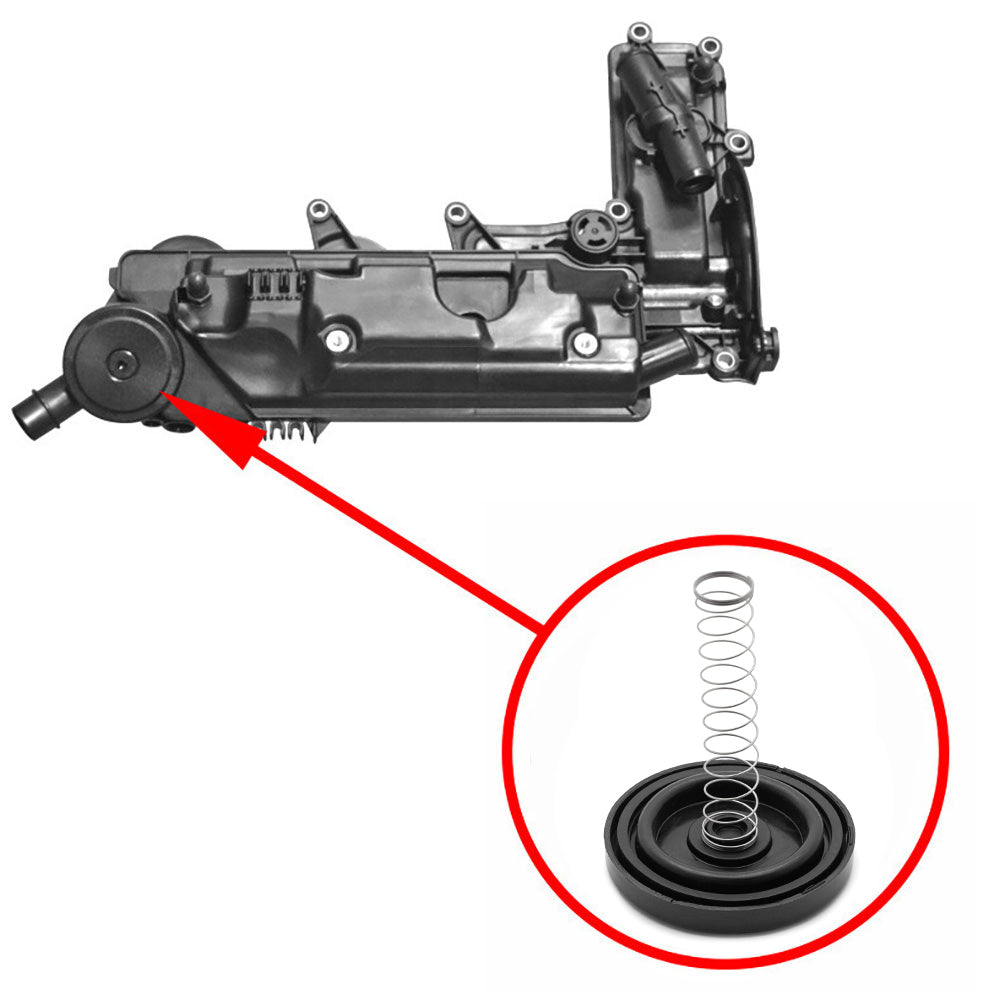

Diaphragm diameter: D=58.4mm. Match the original cover reference and housing design. Inspect the cover or separator housing, ventilation hoses and cracks; a damaged housing can require a different repair. This product is a repair kit rather than a complete valve cover.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What diaphragm diameter is specified?

58.4mm.

Is the complete valve cover supplied?

No. This is the valve cover repair kit.

What should I inspect before repair?

The cover or separator housing, ventilation hoses and possible cracks, along with the original reference.

Part Number / PN

LR004200,LR022304,1694973,9678420380,9678419980,0248T1,0248Q0,LR036595,LR084364,9662660480,1450976,HRLR022304,HRLR004200,XR858326

SKU: KLLR022304.
