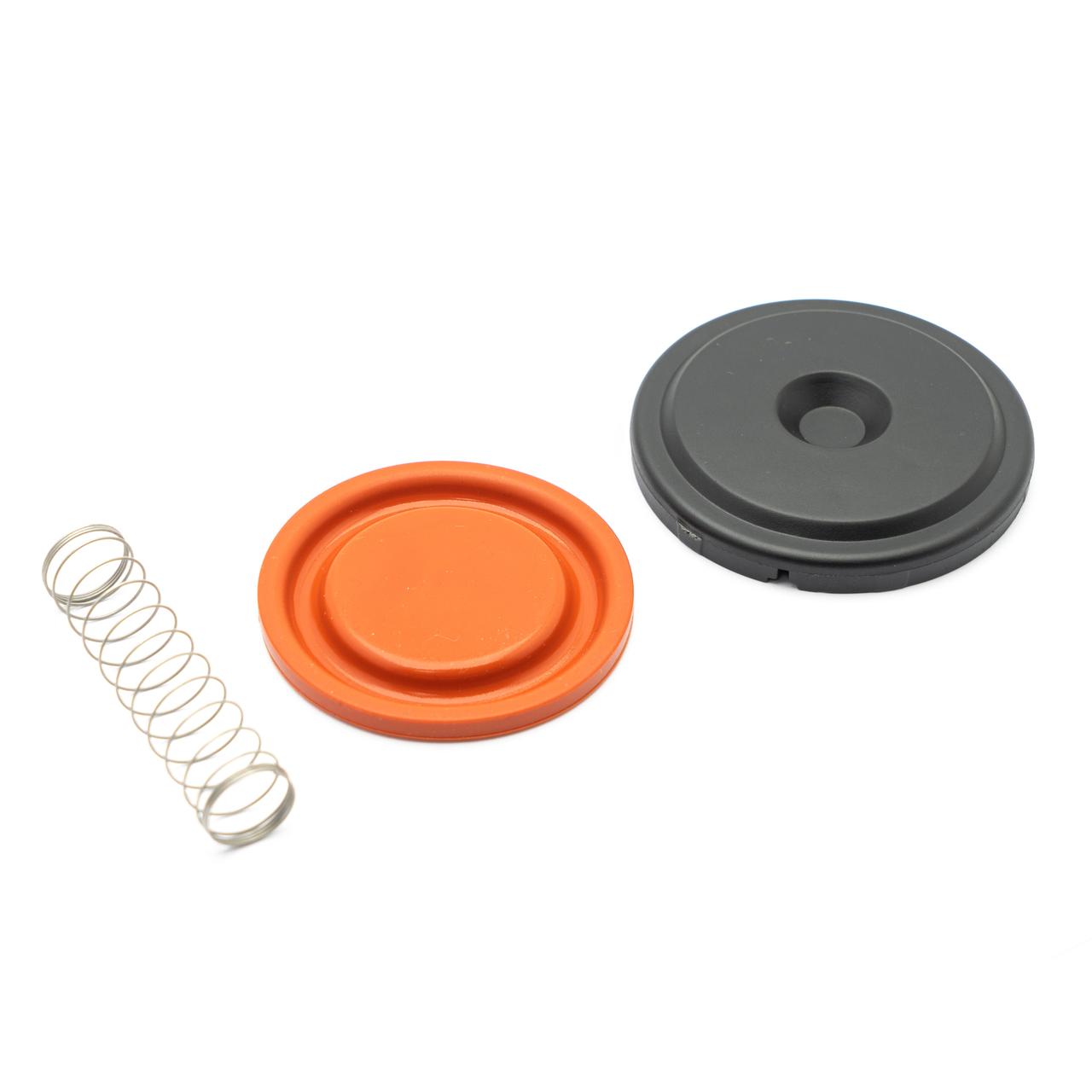

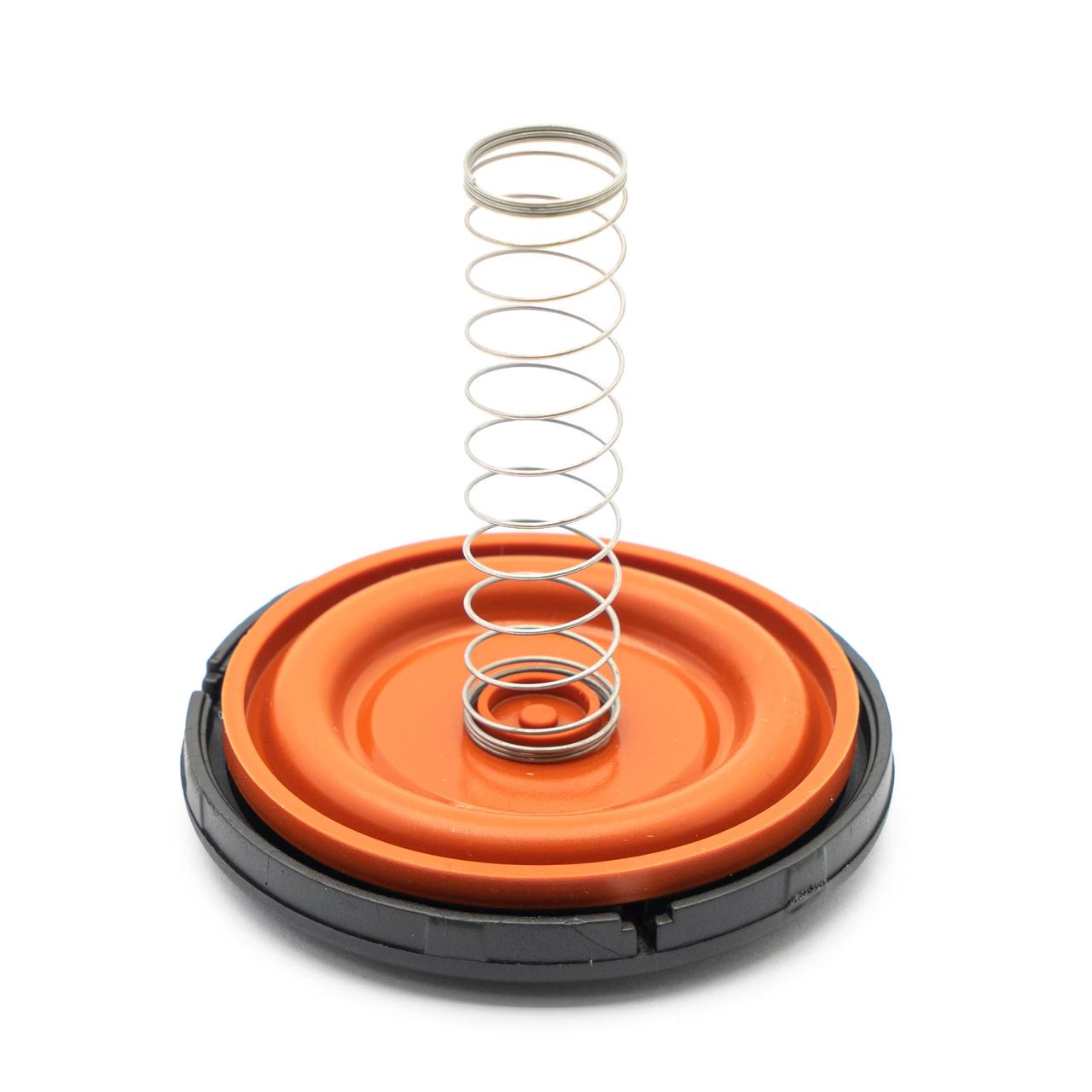

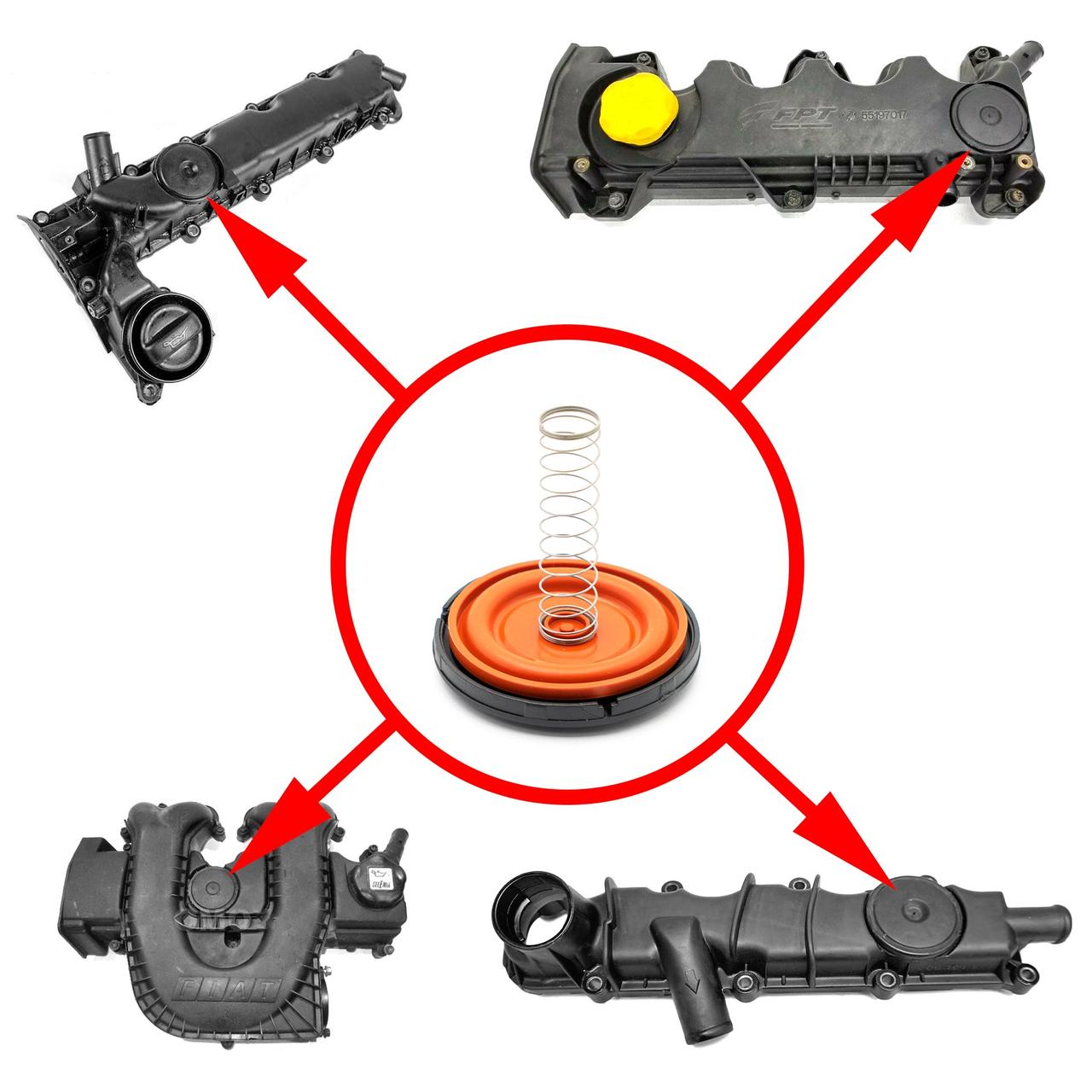

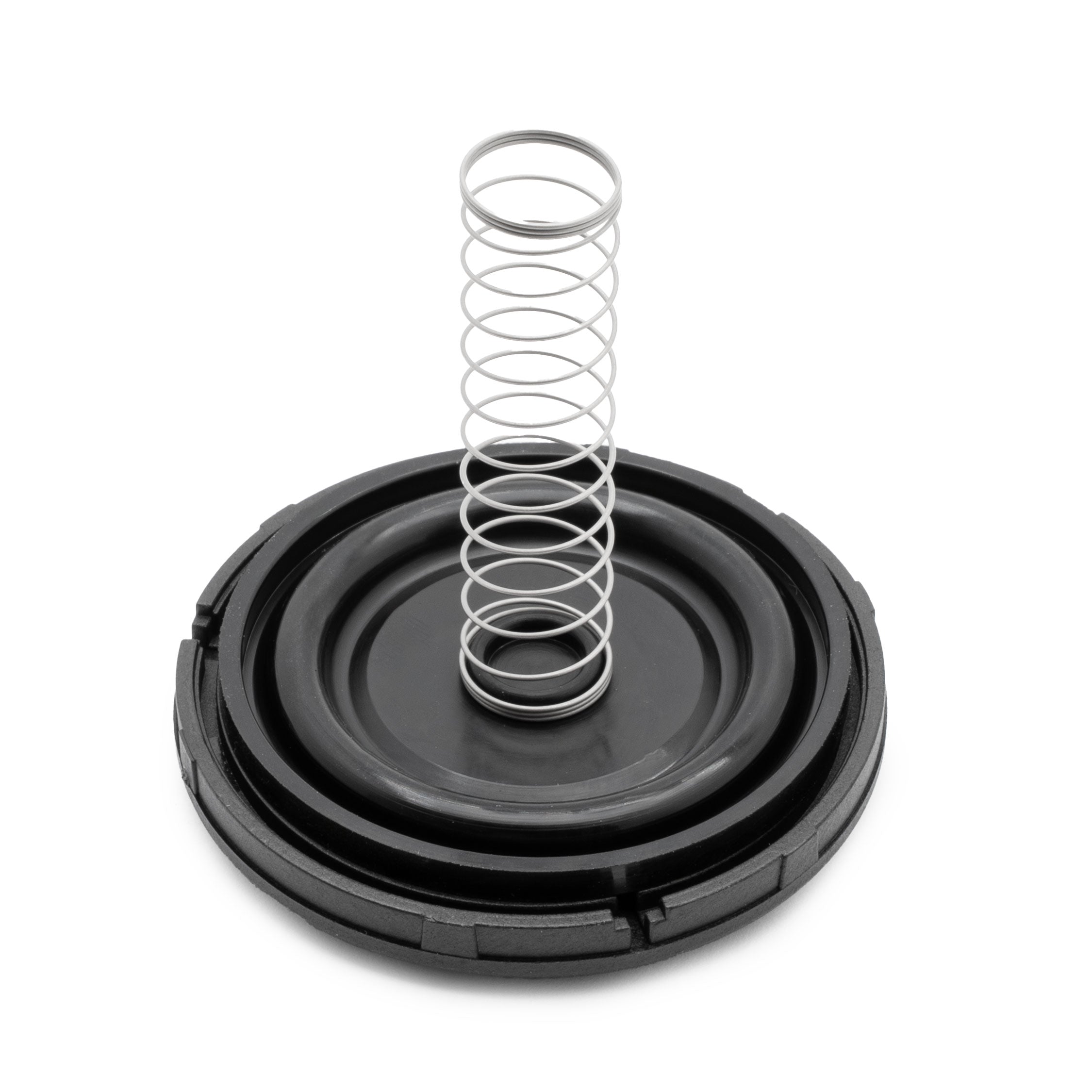

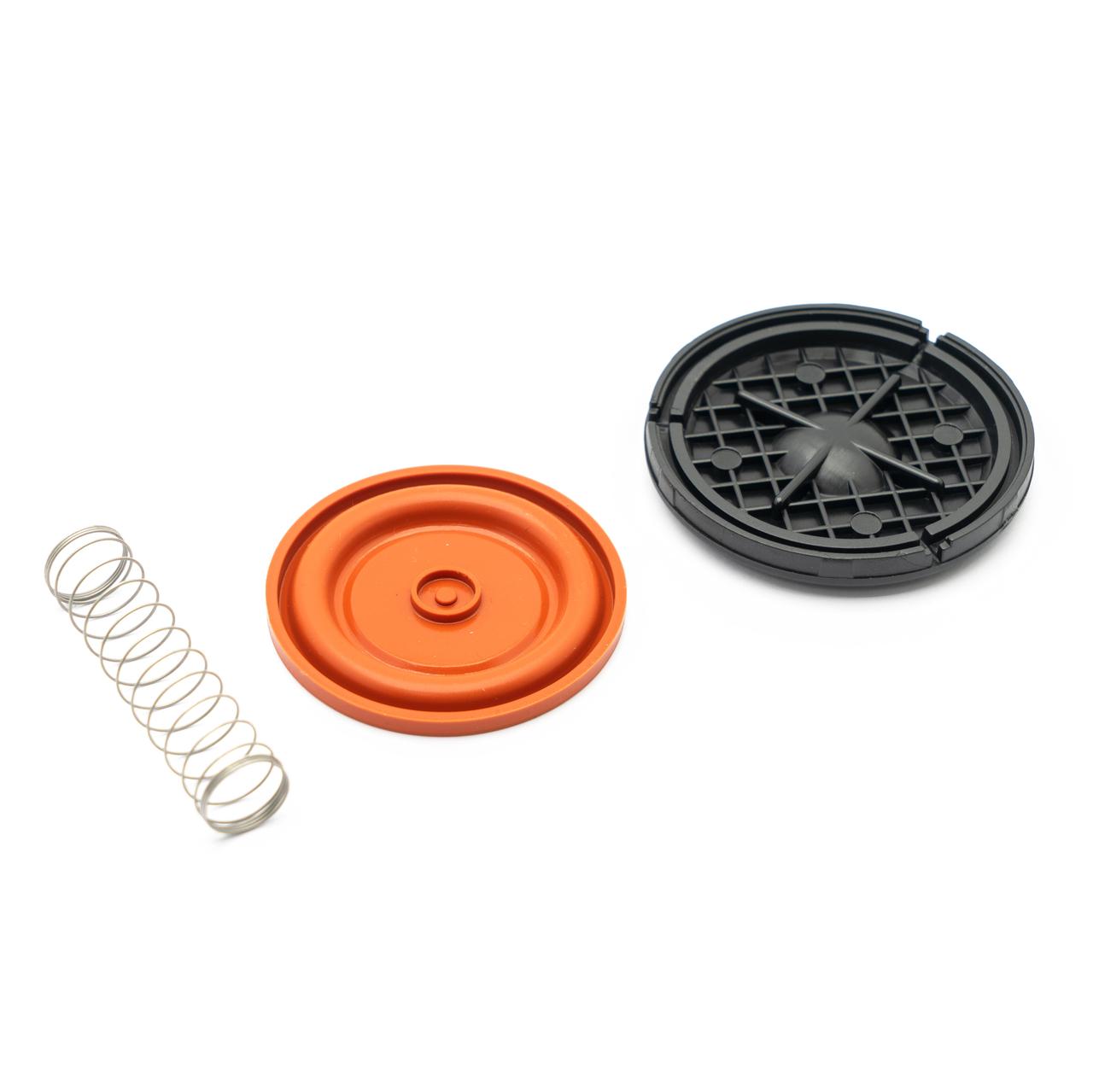

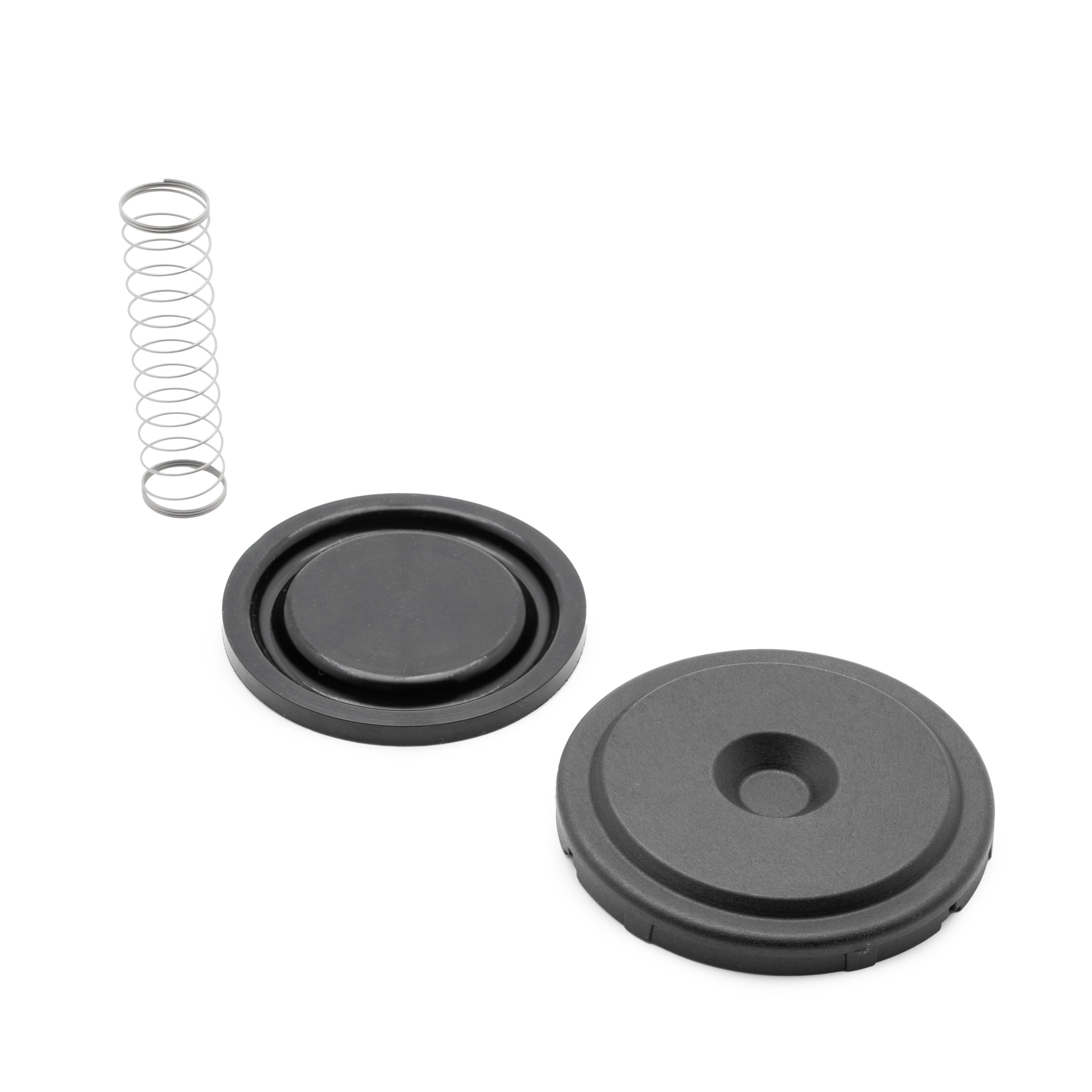

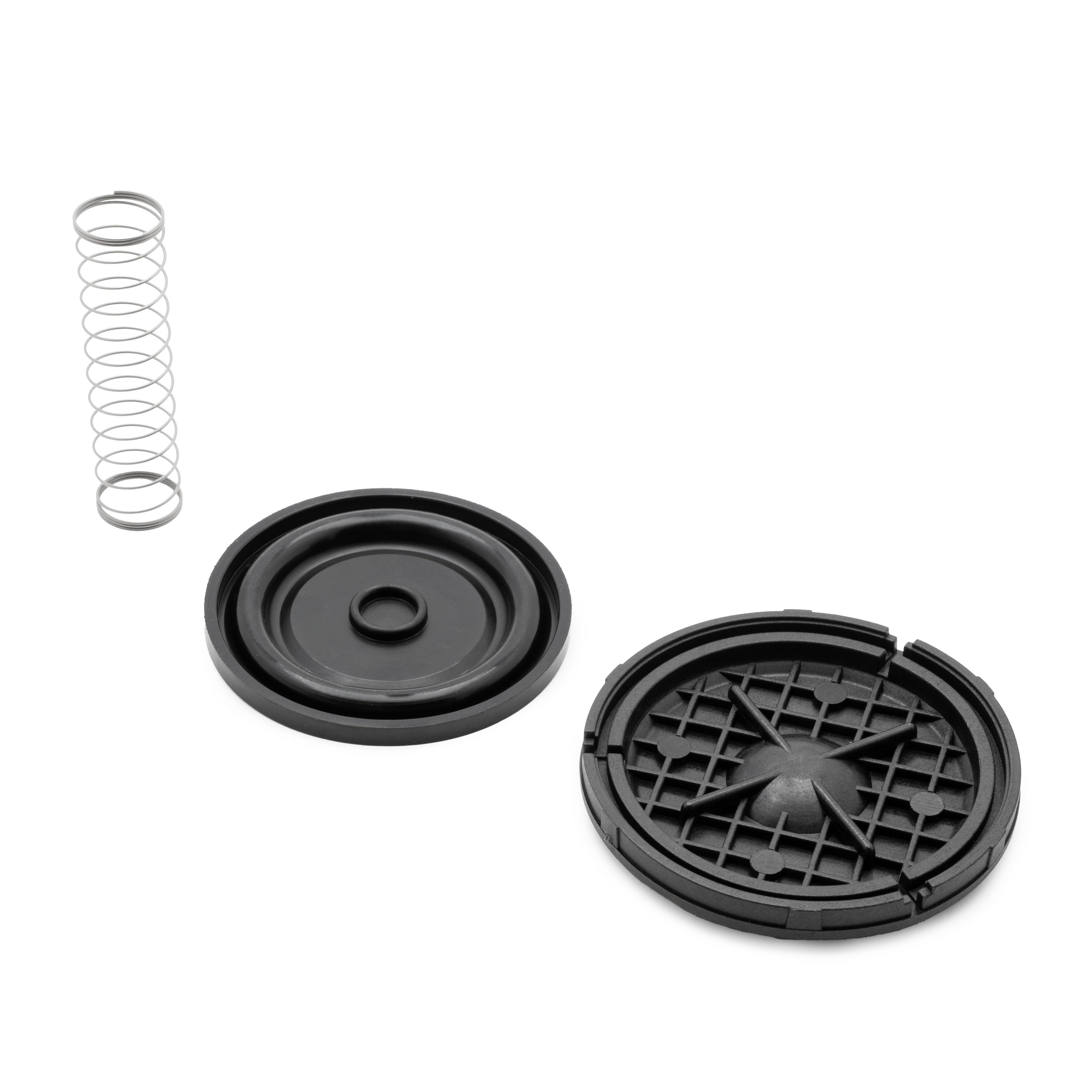

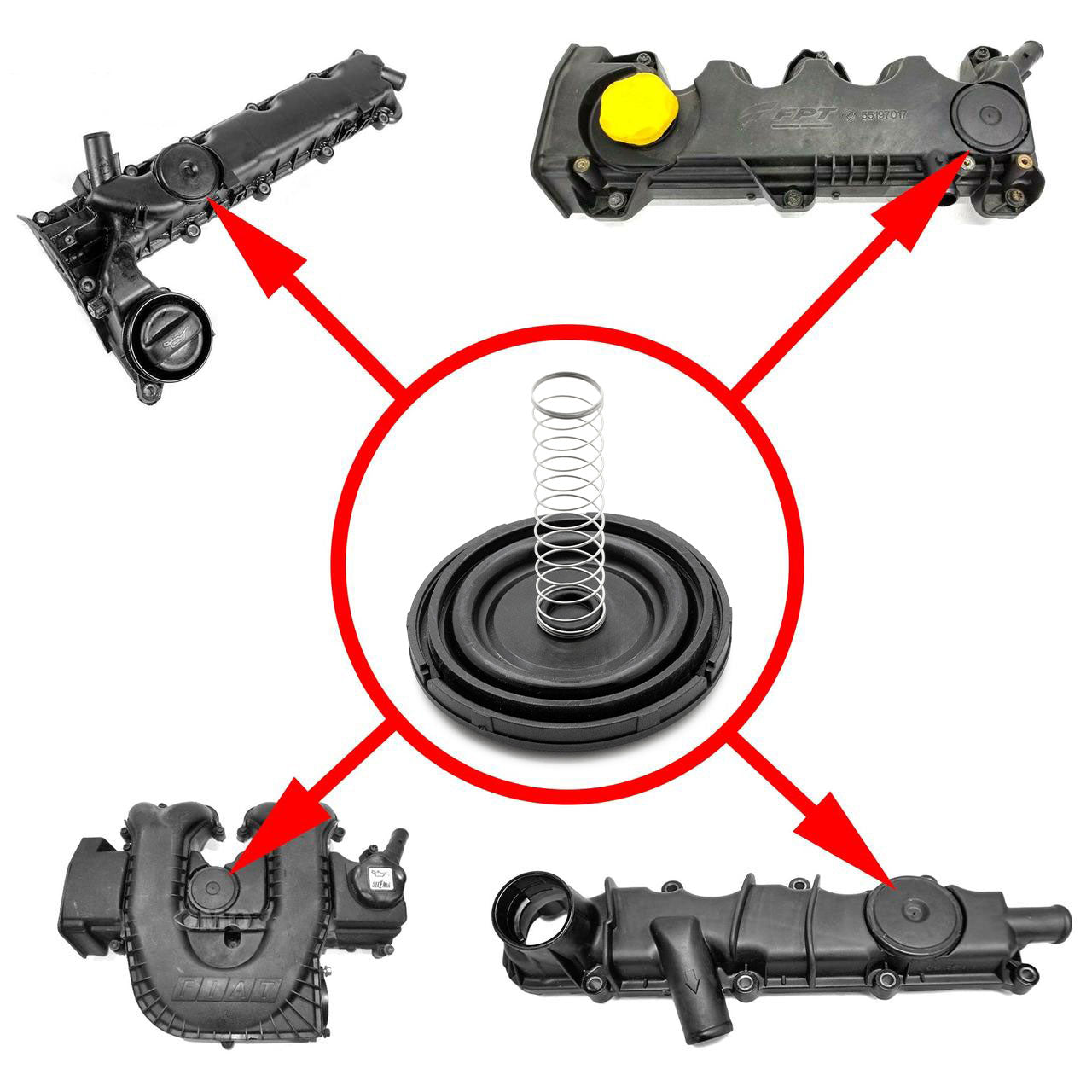

Valve Cover Repair Kit 57mm - Fiat Alfa Romeo Lancia Opel PSA - 0248G5

This valve cover repair kit is for the listed Fiat, Alfa Romeo, Lancia, Opel, Citroen and Peugeot applications. The diaphragm diameter is 57mm; match the original cover reference and repair design.

Applications

• Fiat DOBLO (2000-2004)
• Fiat DOBLO MY. 2004 (2004-2005)
• Fiat DOBLO REST. 2005 (2005-....)
• Fiat STRADA (1999-2005)
• Fiat BRAVA G.98 BZ/DS (1998-2001)
• Fiat BRAVO G.98 BZ/DS (1998-2001)
• Fiat CROMA (2005-2010)
• Fiat GRANDE PUNTO (2005-2008)
• Fiat GRANDE PUNTO (2008-2009)
• Fiat IDEA (2003-2008)
• Fiat IDEA (2008-2012)
• Fiat MAREA DS GAMMA"99 (1999-2002)
• Fiat MULTIPLA (1998-2010)
• Fiat NUOVA BRAVO (2007-2009)
• Fiat NUOVA BRAVO MY 2010 (2010-....)
• Fiat PALIO WE EUROPA REST. (2002-2004)
• Fiat PALIO WE EXTRA EUROPA REST. 2002 (2002-2008)
• Fiat PUNTO DS (1999-2003)
• Fiat PUNTO FL."03 (2003-2010)
• Fiat SEDICI (2006-2011)
• Fiat STILO BZ/DS (2001-2003)
• Fiat STILO F.L.L. 2003 (2003-2007)
• Alfa Romeo 147 BZ/DS (2000-2010)
• Alfa Romeo 156 M.Y.2002 BZ/DS (2001-2005)
• Alfa Romeo 156 TD.ID. (1997-2002)
• Alfa Romeo 159 MY11 (2010-2011)
• Alfa Romeo ALFA 159 (2005-2008)
• Alfa Romeo ALFA 159 (2008-2010)
• Lancia LYBRA DS (1999-2005)
• Lancia MUSA (2004-2007)
• Lancia MUSA (2007-2011)
• Opel ASTRA-H (A04)
• Opel SIGNUM (Z03)
• Opel VECTRA-C (Z02)
• Opel ZAFIRA-B (A05)
• Citroen BERLINGO II VP
• Citroen XSARA
• Citroen XSARA II
• Citroen C15
• Citroen BERLINGO
• Citroen BERLINGO II VU
• Citroen JUMPY
• Peugeot Passenger PARTNER facelift
• Peugeot 306 facelift
• Peugeot 206
• Peugeot T3
• Peugeot PARTNER
• Peugeot Commercial PARTNER facelift
• Peugeot EXPERT

Cover and Engine Reference Groups

• Fiat / Alfa Romeo / Lancia - 55197017, 0055197017, 73500695, 9653567980, 46557349, 46530606 - 1.9JTD-MTJ.
• Opel - 5607164, 93184455, 93178491 - 1.9 Z19DT.
• Citroen / Peugeot - 9628257080, 0248G3 - 1.9D.
• Citroen / Peugeot - 0248G5, 0248N3, 9630142180, 9630593480 - 2.0hdi.
• Fiat / Alfa Romeo / Lancia / Citroen / Peugeot - 9631367880, 0248H7, 11170-67J00.

Additional engine designations: 1.9MTJ; 2.2D application context. Match the original cover number and repair version.

When to Inspect the Cover and Ventilation

• Oil leakage or seepage around the valve cover.
• Burning oil smell after warm-up.
• Air leaks through the cover or crankcase ventilation.
• Unstable idle.
• Increased oil consumption.
• Whistling, excessive vacuum or mixture faults associated with leakage.

Diagnose the affected component before repair.

Repair Scope

This is the valve cover repair kit, rather than a complete cover. Inspect the cover or separator housing, ventilation hoses and cracks. A damaged housing may require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What diaphragm diameter is listed?

57mm.

Which Opel engine context is listed?

1.9 Z19DT.

Does this replace a damaged housing?

Inspect the housing and hoses; housing damage may require a different repair.

Part Number / PN

0248G5, 0055197017, 73500695, 9653567980, 46557349, 93184455, 0248N3, 9630142180, 0248H7, 46530606, 93178491, 0248G3, 9630593480, 11170-67J00, 55197017, 5607164, 9628257080, 9631367880

SKU: KL0248G5.
