VW / SEAT 1.9 TDI Valve Cover PCV Diaphragm, 77 mm - 03G103469H

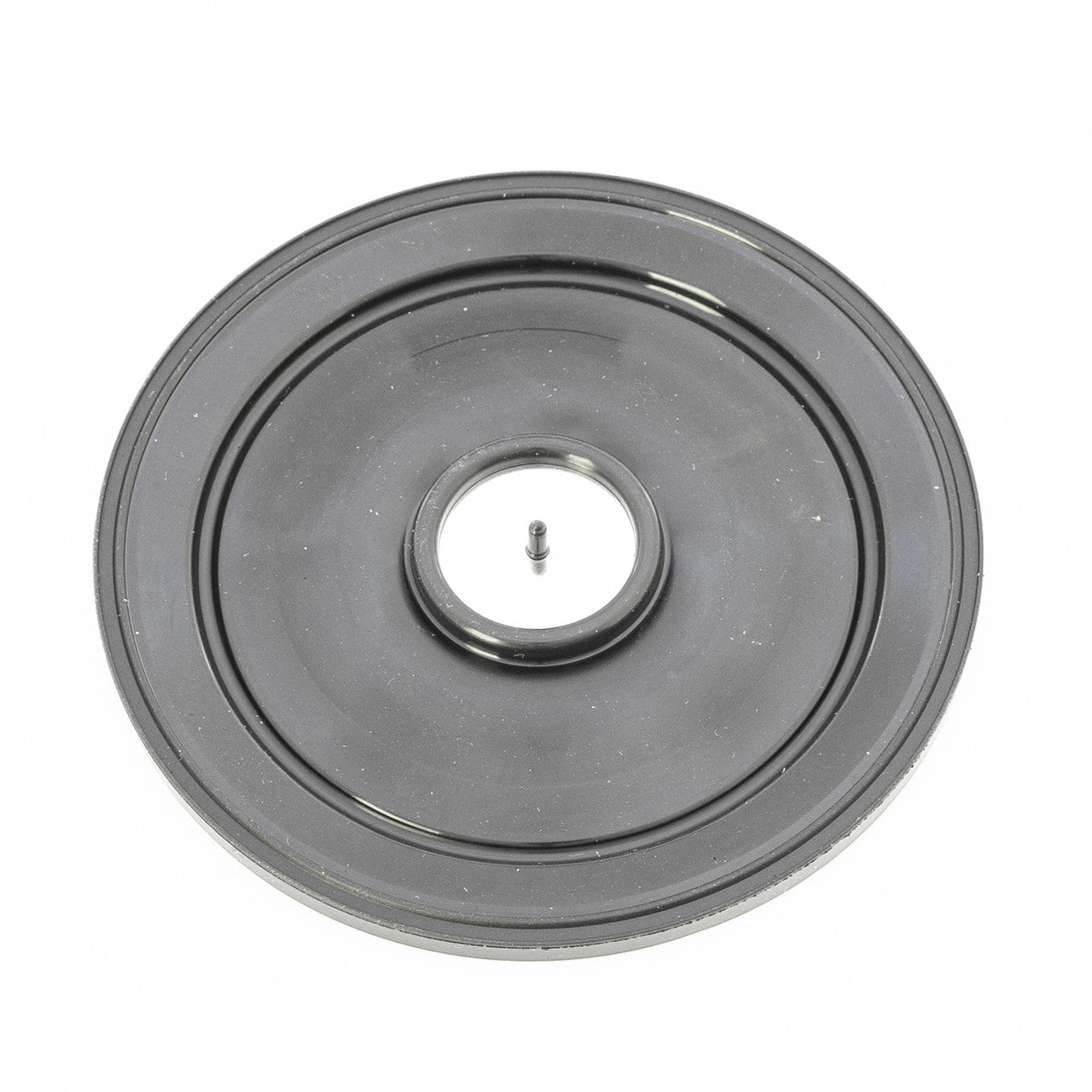

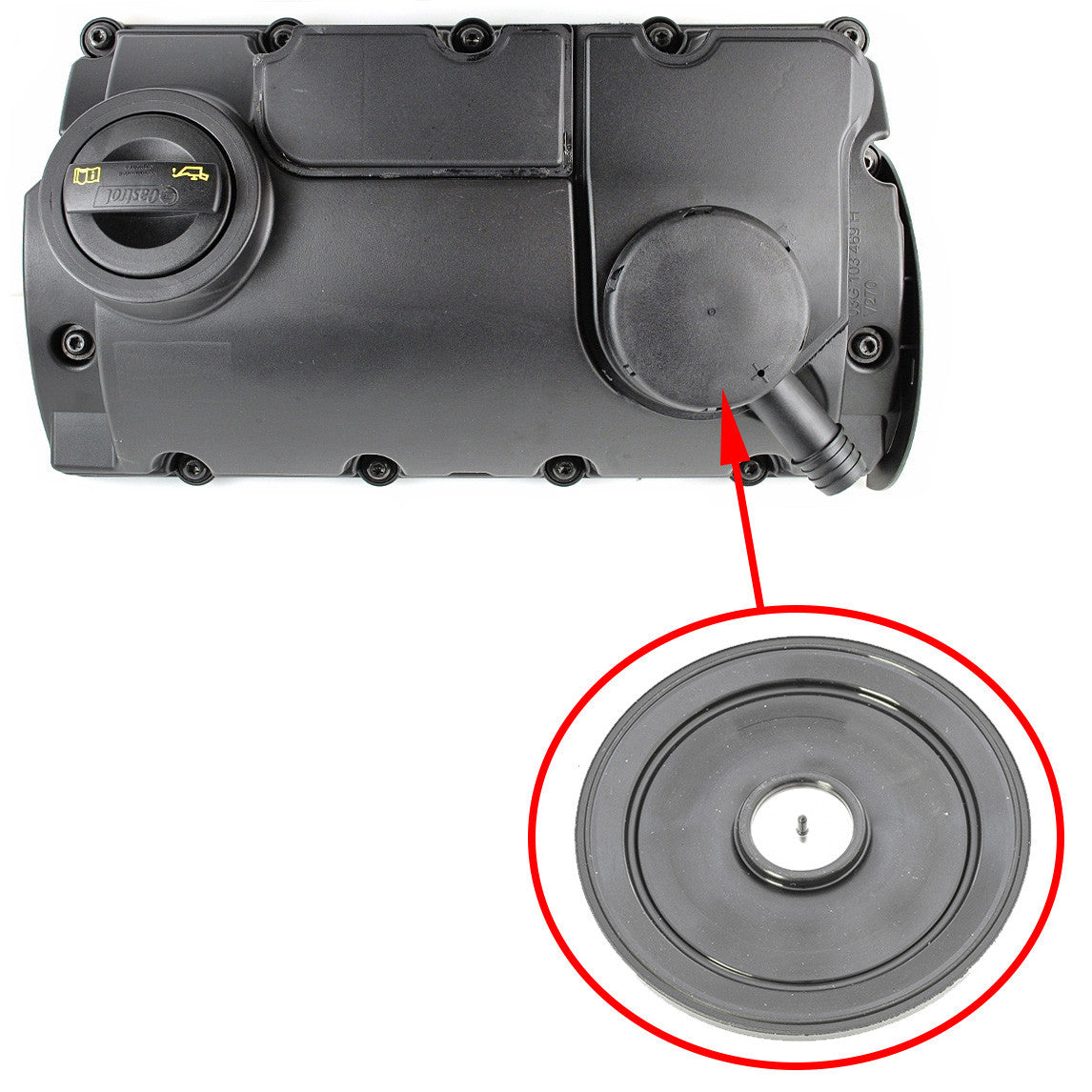

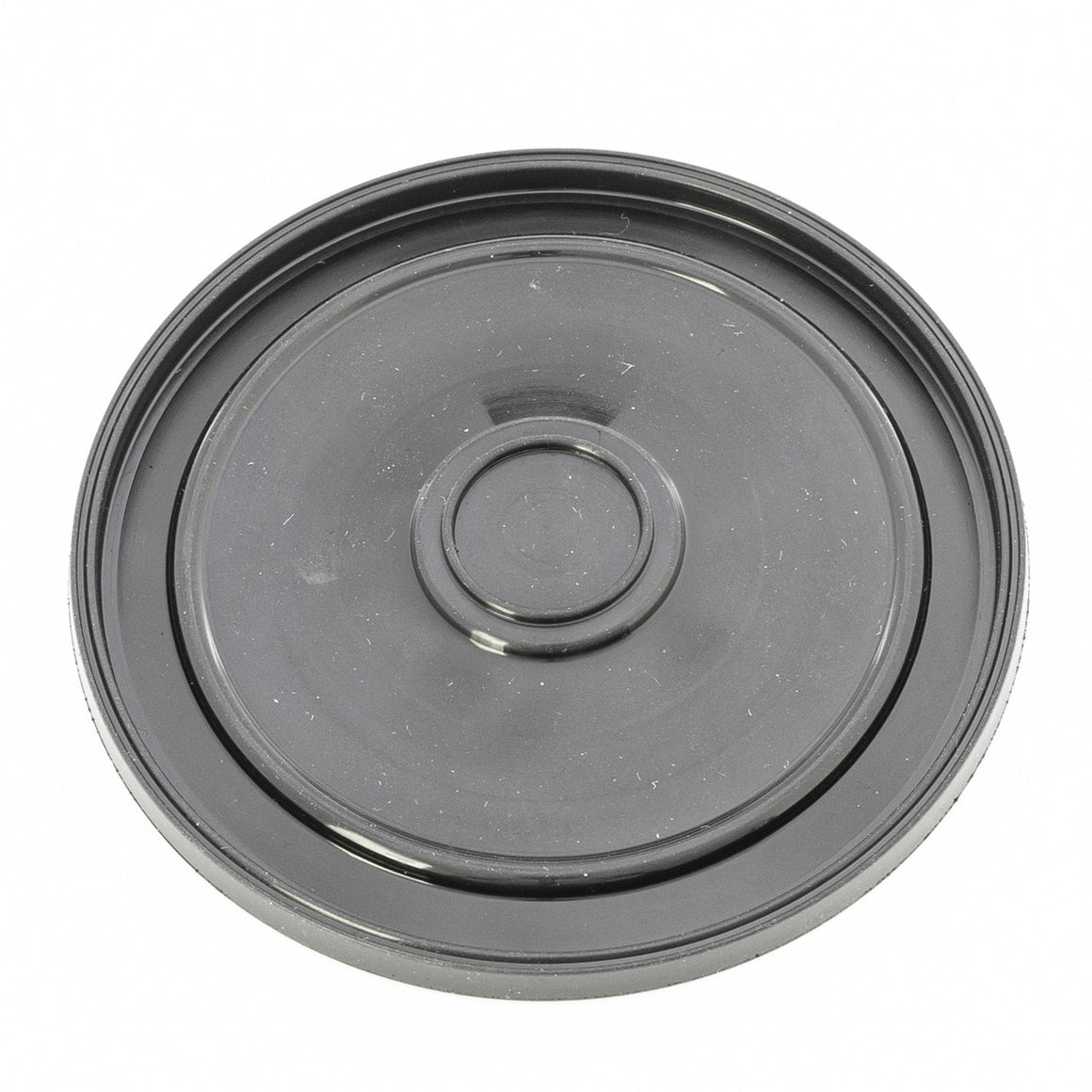

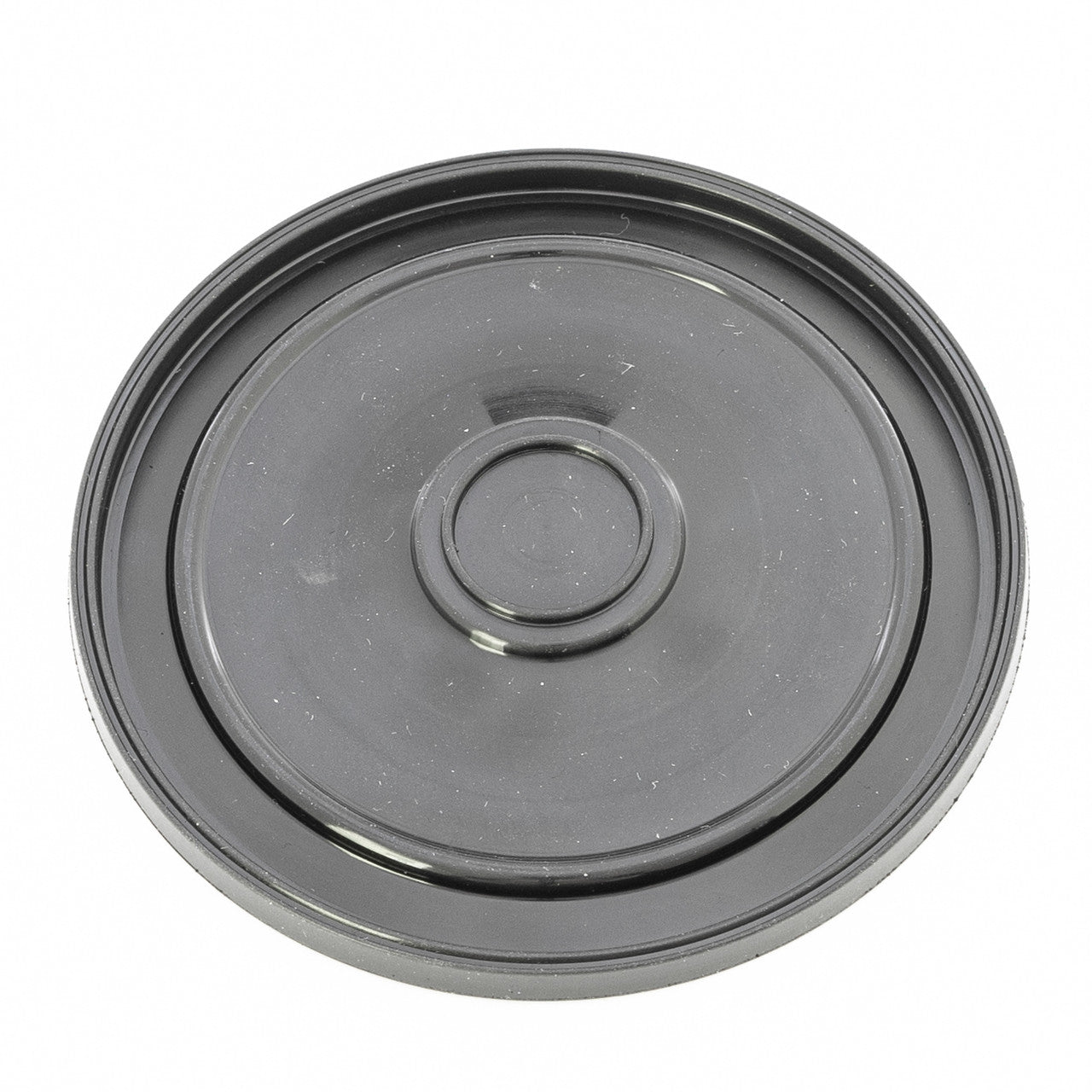

This 77 mm diaphragm is the valve cover ventilation component for the listed VW and SEAT 1.9 TDI applications. Match the installed cover references 03G103469H and 03G103475F before selecting the membrane.

Vehicle Applications

• VW Sharan/syncro/4Motion - 2006-2010.
• VW Transporter 5 - 2006-2010.
• SEAT Alhambra - 2006-2010.

When to Inspect the Membrane

• Oil leakage or misting around the valve cover.
• A burnt-oil smell after the engine warms up.
• Unmetered air through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, abnormal vacuum or mixture faults linked to an air leak.

Inspect the cover, membrane and ventilation system to identify the source of the fault. These symptoms do not confirm that the membrane alone needs replacement.

Assembly and Related References

03G103475F, 03G103469H.

Repair Scope

The diaphragm can be serviced separately when the surrounding cover and housing are sound. Inspect the other sealing components before choosing the repair; replacing a membrane does not correct damage elsewhere in the assembly.

Important Before Ordering

Compare the installed assembly reference, membrane design and dimensions before ordering. Check the housing and ventilation hoses for damage; a membrane alone may not resolve a cracked housing.

FAQ

Which brands and models are listed?

VW Sharan/syncro/4Motion, VW Transporter 5 and SEAT Alhambra are listed, each for 2006-2010.

Which membrane diameter is specified?

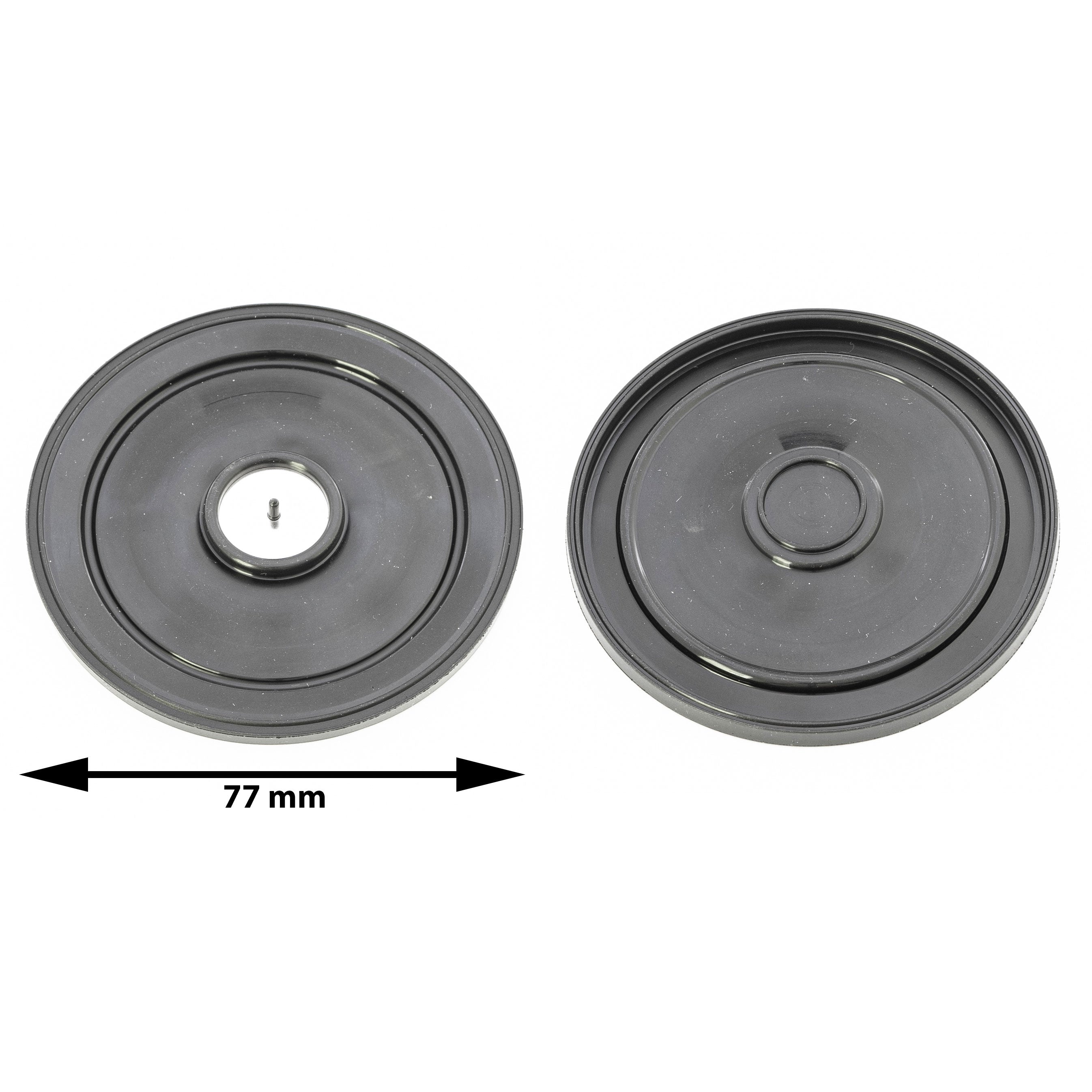

The specified diameter is 77 mm.

Which references should I compare with the cover?

Compare 03G103469H and 03G103475F and check the installed membrane design.

Part Number / PN

03G103475F, 03G103469H

SKU: KL03G103469H.

• Seat
• Volkswagen
