Valve Cover Diaphragm 57mm - Mercedes 1.5 DCI / 1.6 OM626 - 6070100300

This 57mm diaphragm is a valve cover repair component for the listed Mercedes 1.5 DCI and 1.6 OM626 applications. Match the original cover number and diaphragm design before ordering.

Applications

• Mercedes-Benz A-Class W176.
• Mercedes-Benz B-Class W246, W242.
• Mercedes-Benz CLA-Class C117, X117.
• Mercedes-Benz GLA-Class X156.

Cover and Diaphragm Selection

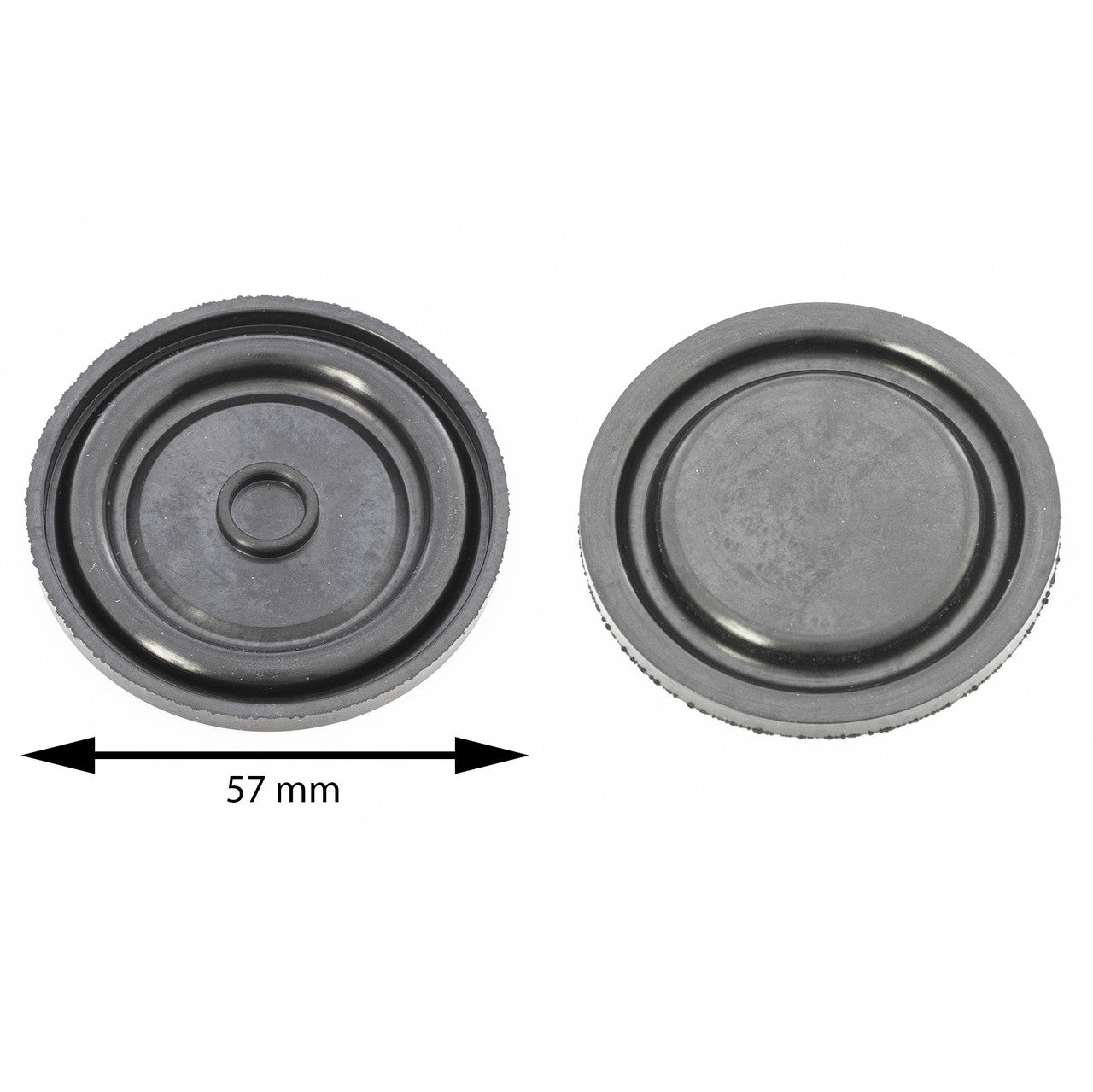

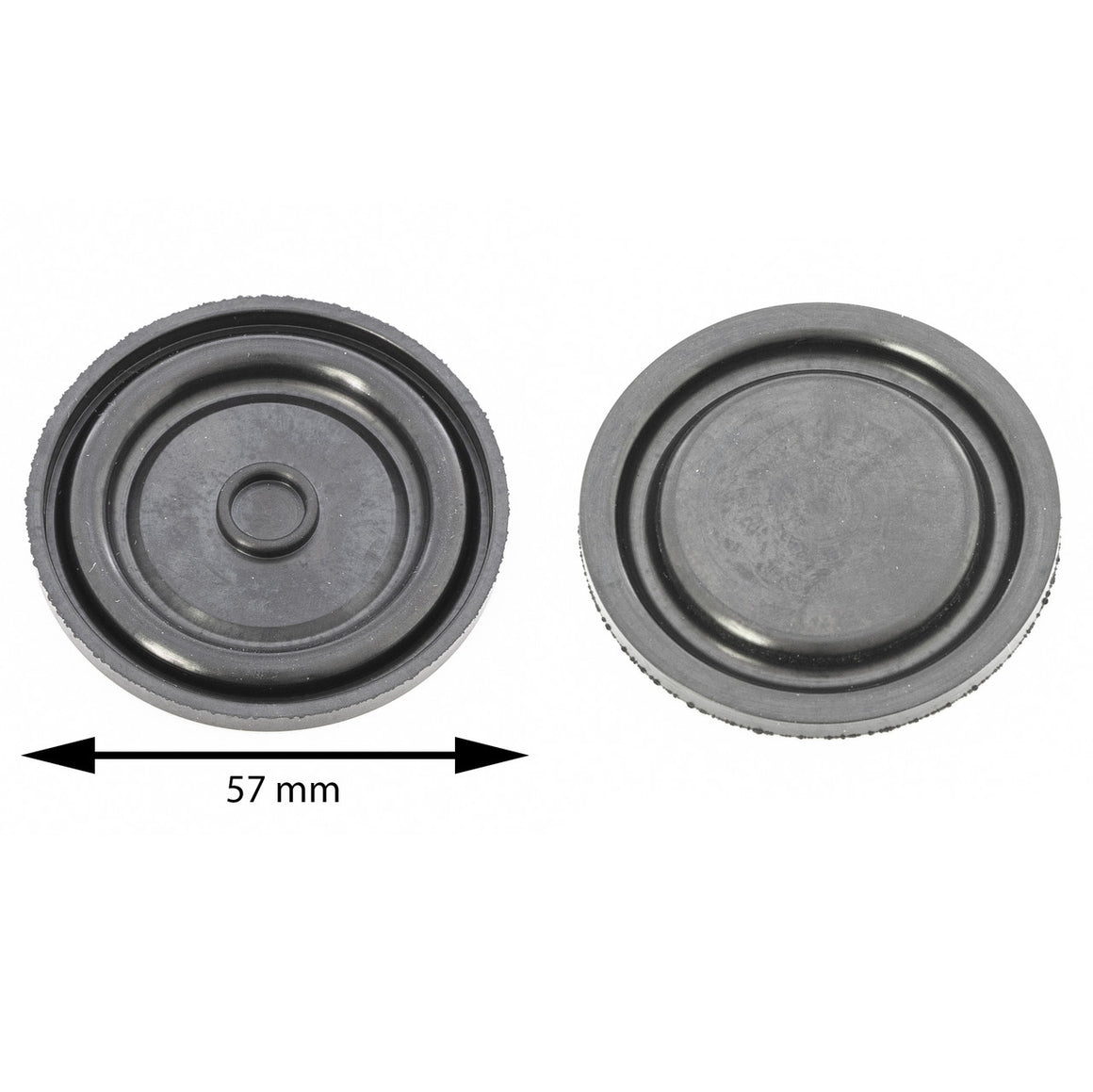

Diameter: 57mm. Mercedes 1.5 DCI cover reference: 6070100300. Mercedes 1.6 OM626 cover references: 6260101300 and 6260104300. Additional exact forms: A6070100300, A6260101300 and A6260104300.

When to Inspect the Cover and Ventilation

• Oil leakage or seepage around the valve cover.
• Burning oil smell after the engine warms up.
• Air leaks through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, excessive vacuum or mixture faults associated with leakage.

Diagnose the cover and crankcase ventilation system to establish the affected component before replacing the diaphragm.

Repair Scope

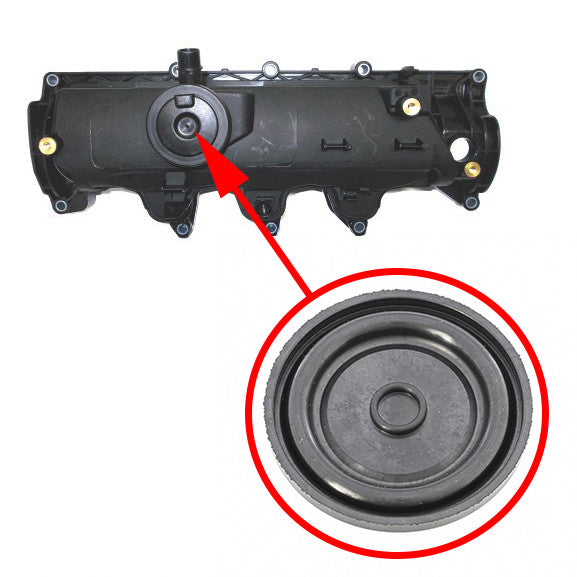

This is the diaphragm repair component, rather than a complete valve cover. Inspect the cover or oil separator housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable if the housing is intact; housing damage can require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What diameter is specified?

57mm.

Which cover reference is listed for 1.5 DCI?

6070100300 / A6070100300.

Does this include the complete valve cover?

No. It is the diaphragm repair component.

Part Number / PN

6260104300,6070100300,6260101300,A6260101300,A6070100300,A6260104300

SKU: KL6070100300.
