Valve Cover Diaphragm 54.5mm - Ford Transit 2.0 EcoBlue - 2320810

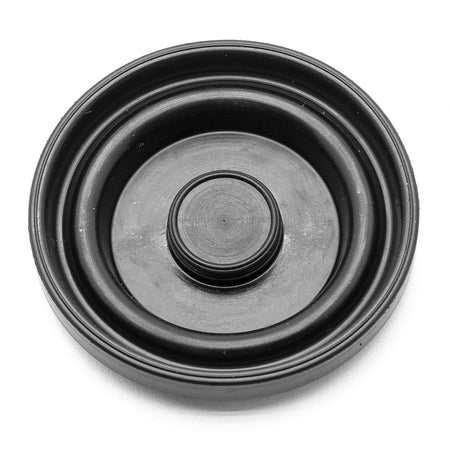

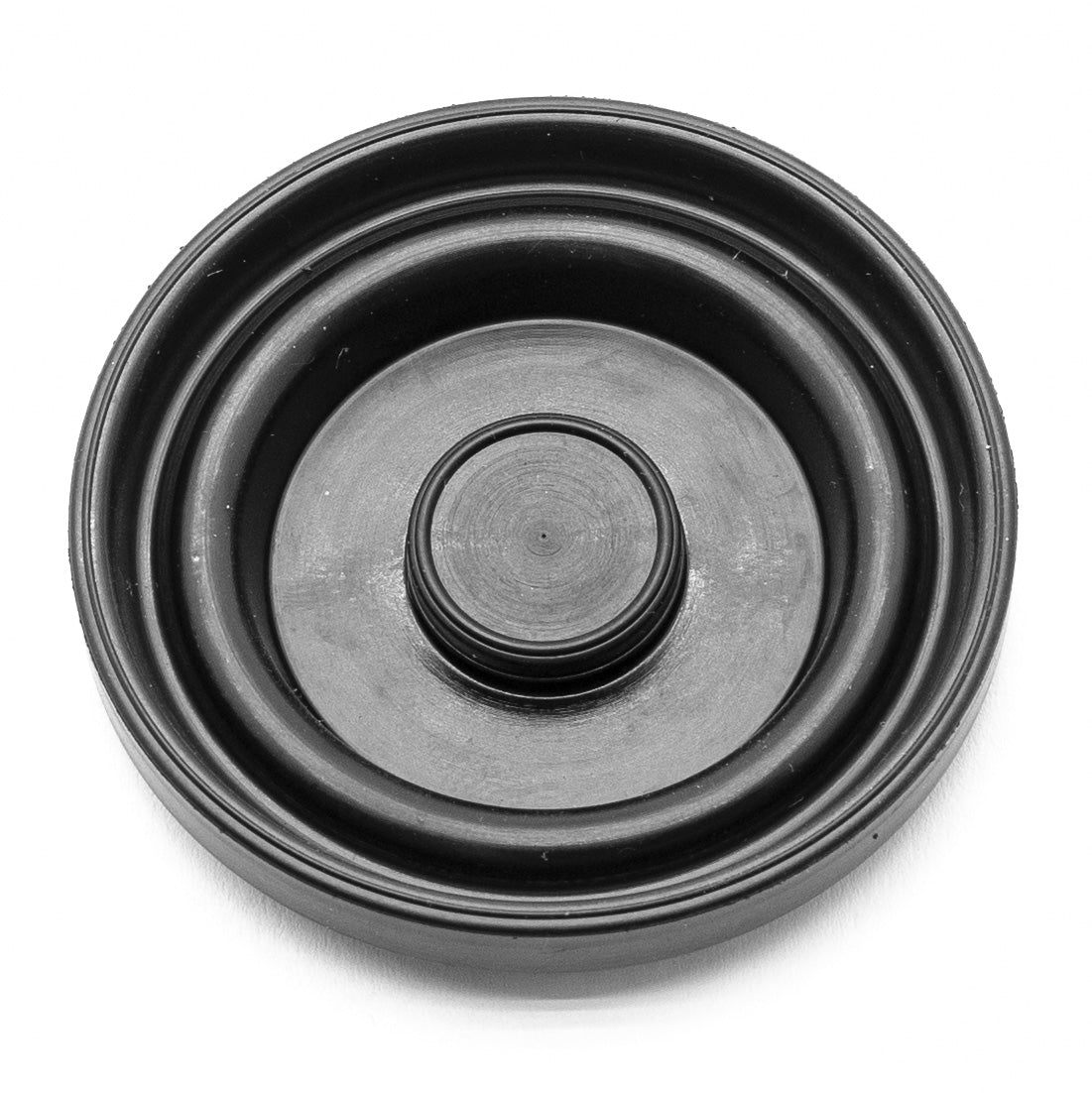

This 54.5mm diaphragm is a valve cover repair component for the listed Ford Transit 2.0 EcoBlue applications. Match the original cover reference and diaphragm design before ordering.

Applications

• Ford Transit / Tourneo Custom TTF - model context from 2012; match the installed 2.0 EcoBlue cover.
• Ford Transit TTG - model context from 2014; match the installed 2.0 EcoBlue cover.

Cover and Diaphragm Selection

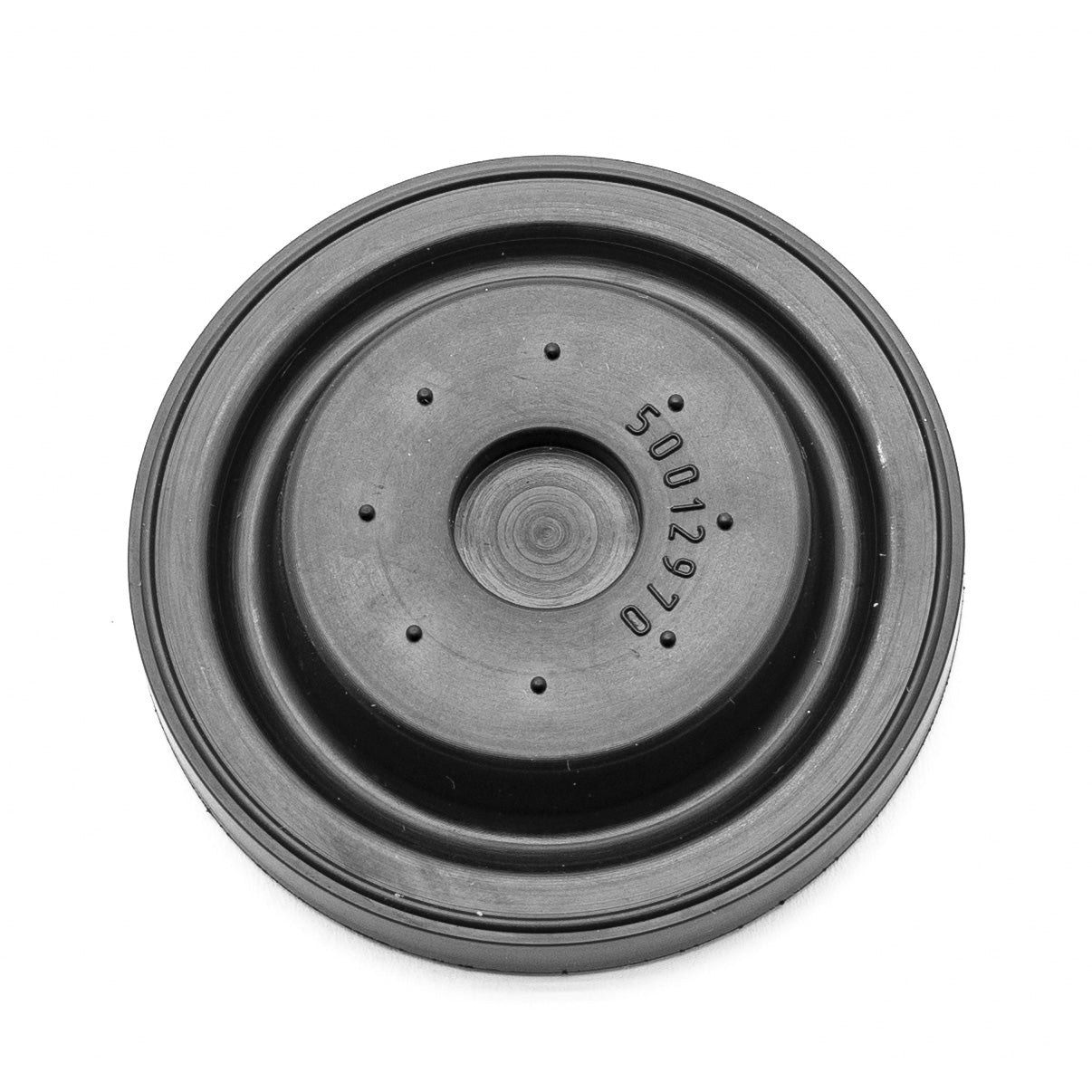

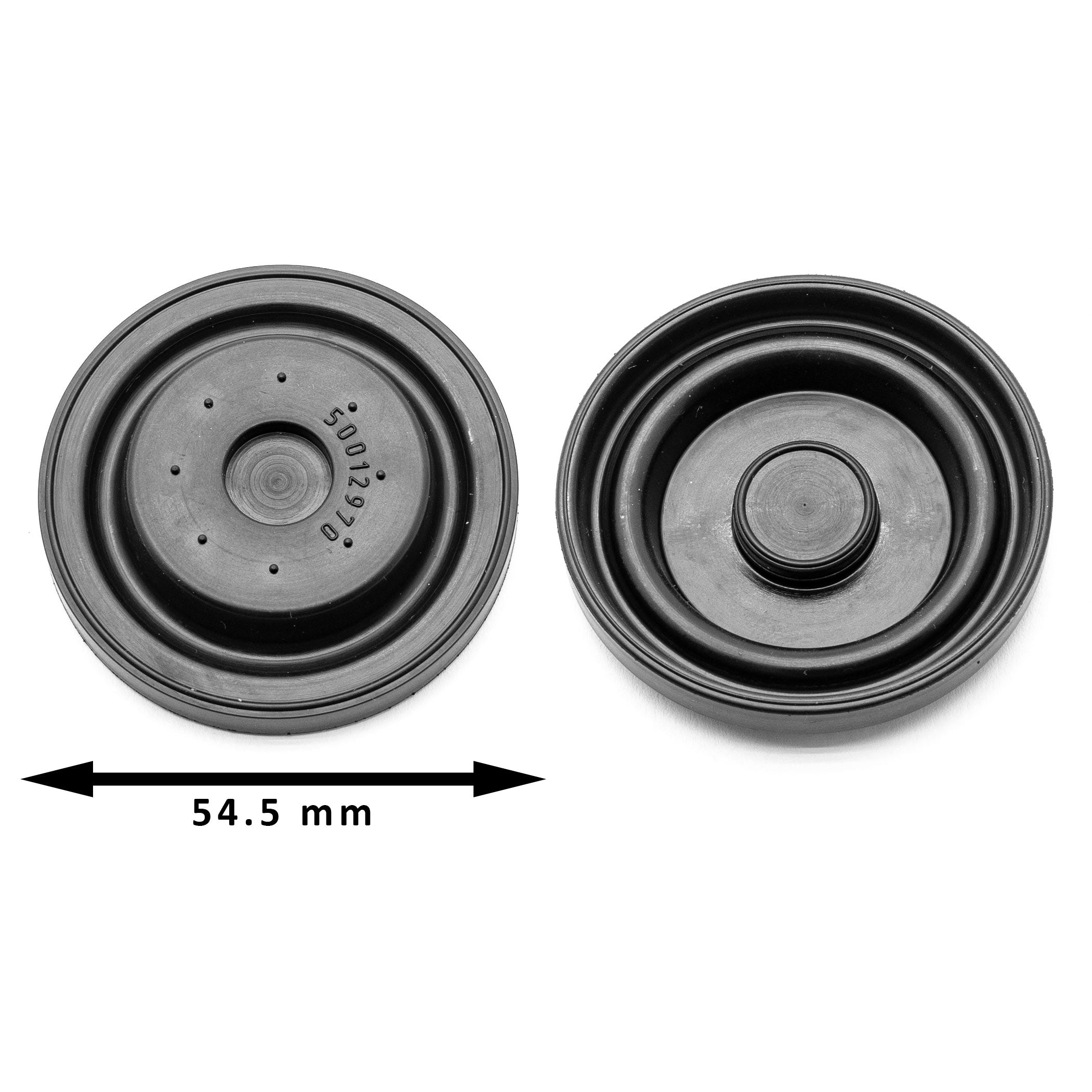

Diaphragm reference: 50012970. Diameter: 54.5mm. Listed cover application references: 2320810, GK2Q-6C757-AD, GK2Q-6C757-AB, GK2Q-6C757-AC and GK2Q-6C757-AA. Match the full reference and suffix.

When to Inspect the Cover and Ventilation

• Oil leakage or seepage around the valve cover.
• Burning oil smell after the engine warms up.
• Air leaks through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, excessive vacuum or mixture faults associated with leakage.

Diagnose the cover and crankcase ventilation system to establish the affected component before replacing the diaphragm.

Repair Scope

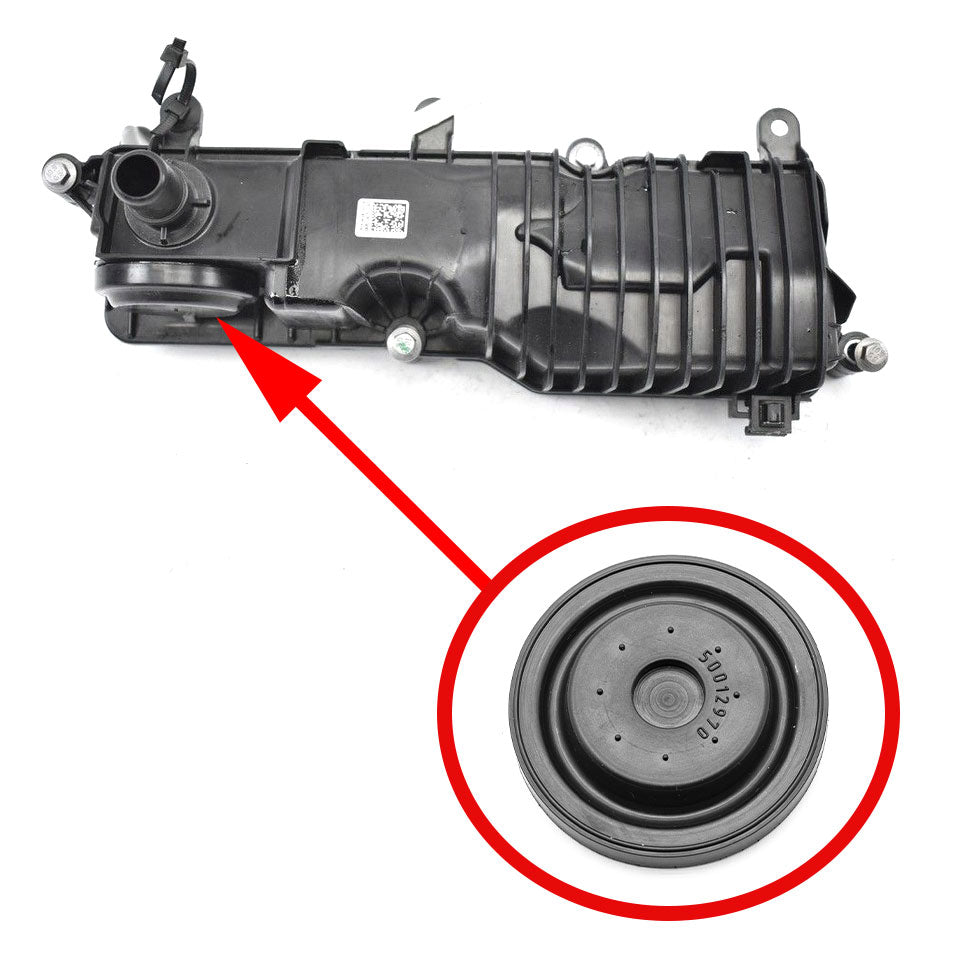

This is the diaphragm repair component, rather than a complete valve cover. Inspect the cover or oil separator housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable if the housing is intact; housing damage can require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What is the diaphragm diameter?

54.5mm.

Which diaphragm reference is listed?

50012970.

Can the diaphragm repair a damaged housing?

Inspect the housing and hoses; housing damage may require a different repair.

Part Number / PN

2320810,GK2Q-6C757-AD,GK2Q-6C757-AB,GK2Q-6C757-AC,50012970,GK2Q-6C757-AA

SKU: KL2320810.
