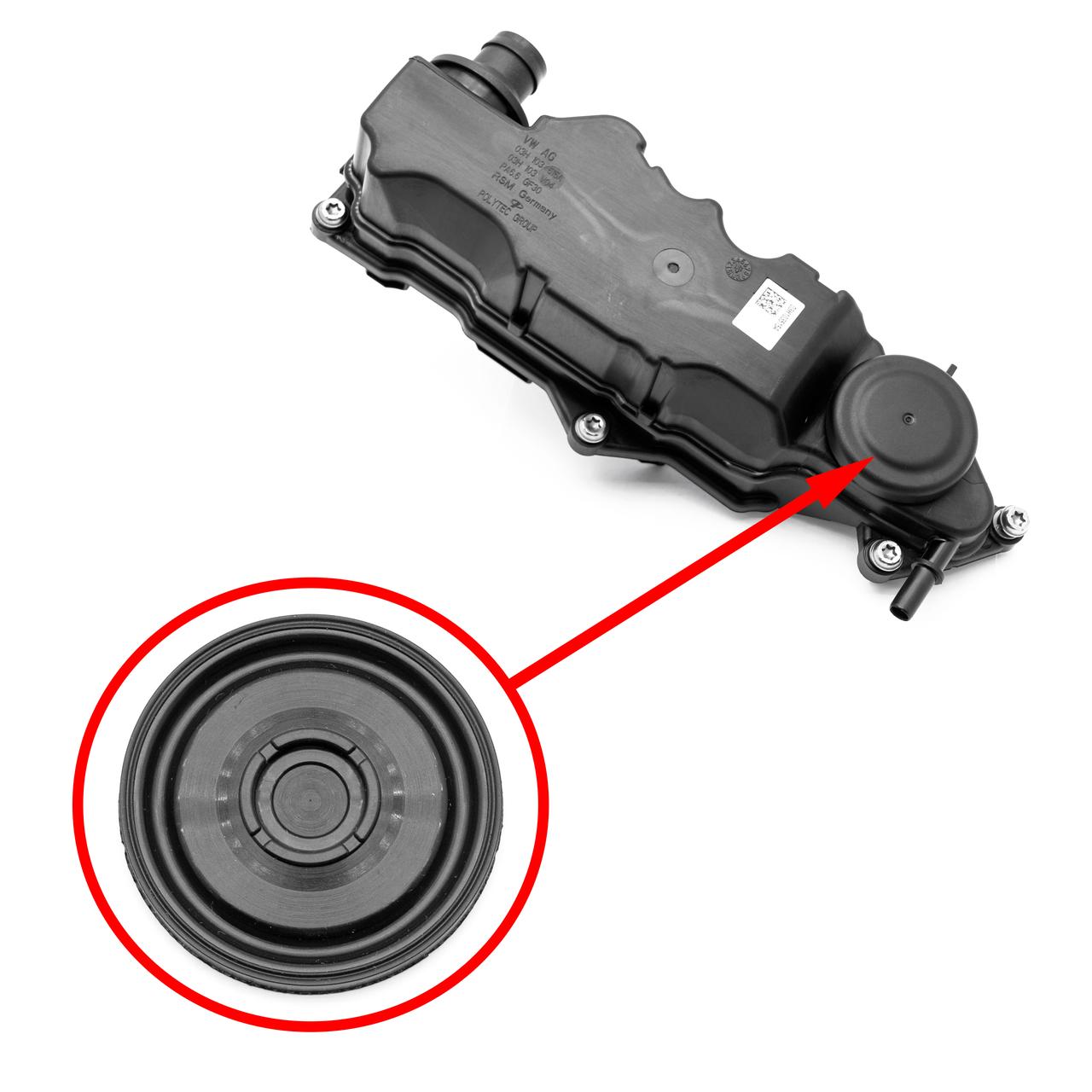

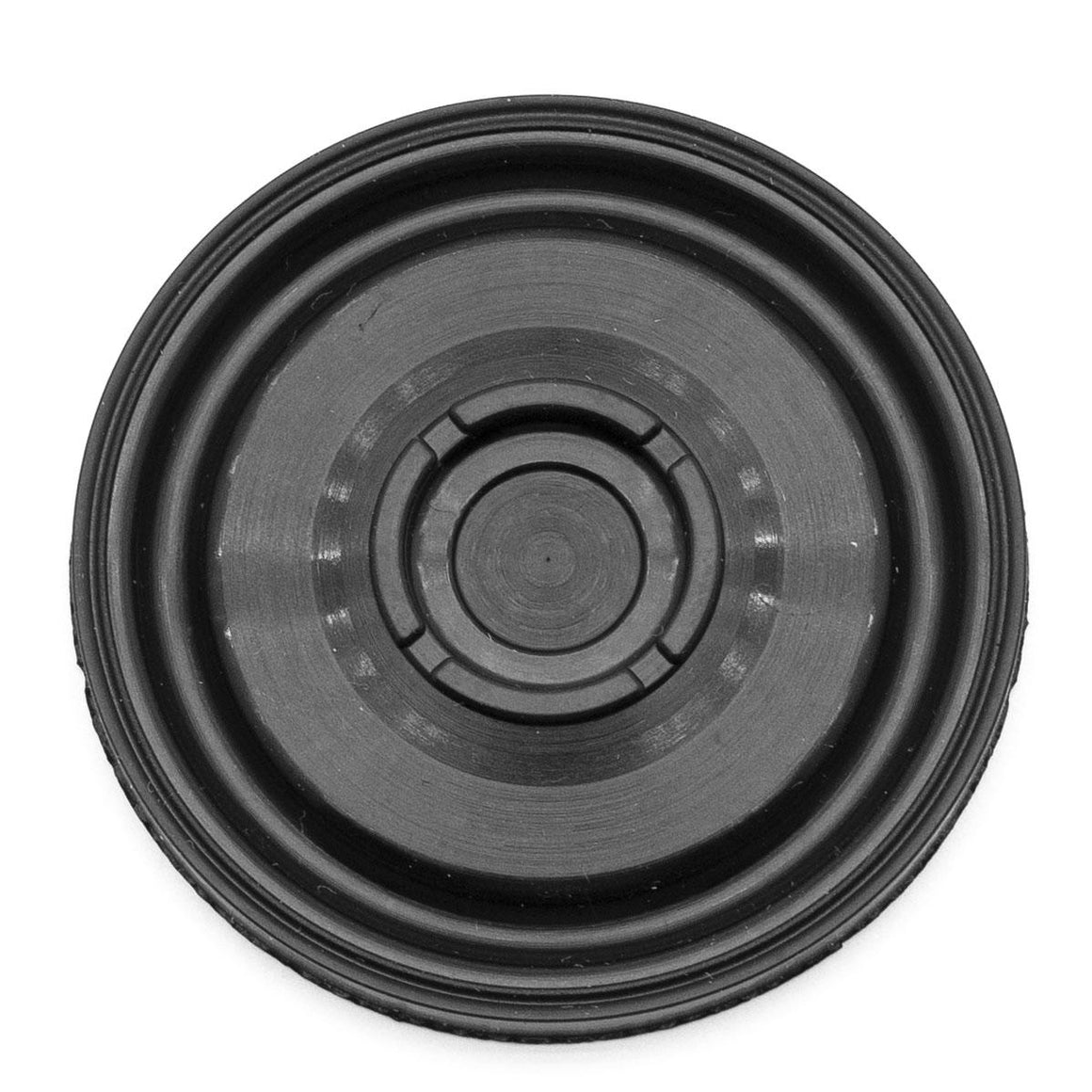

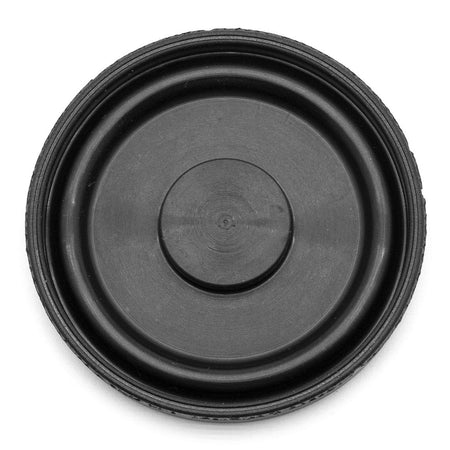

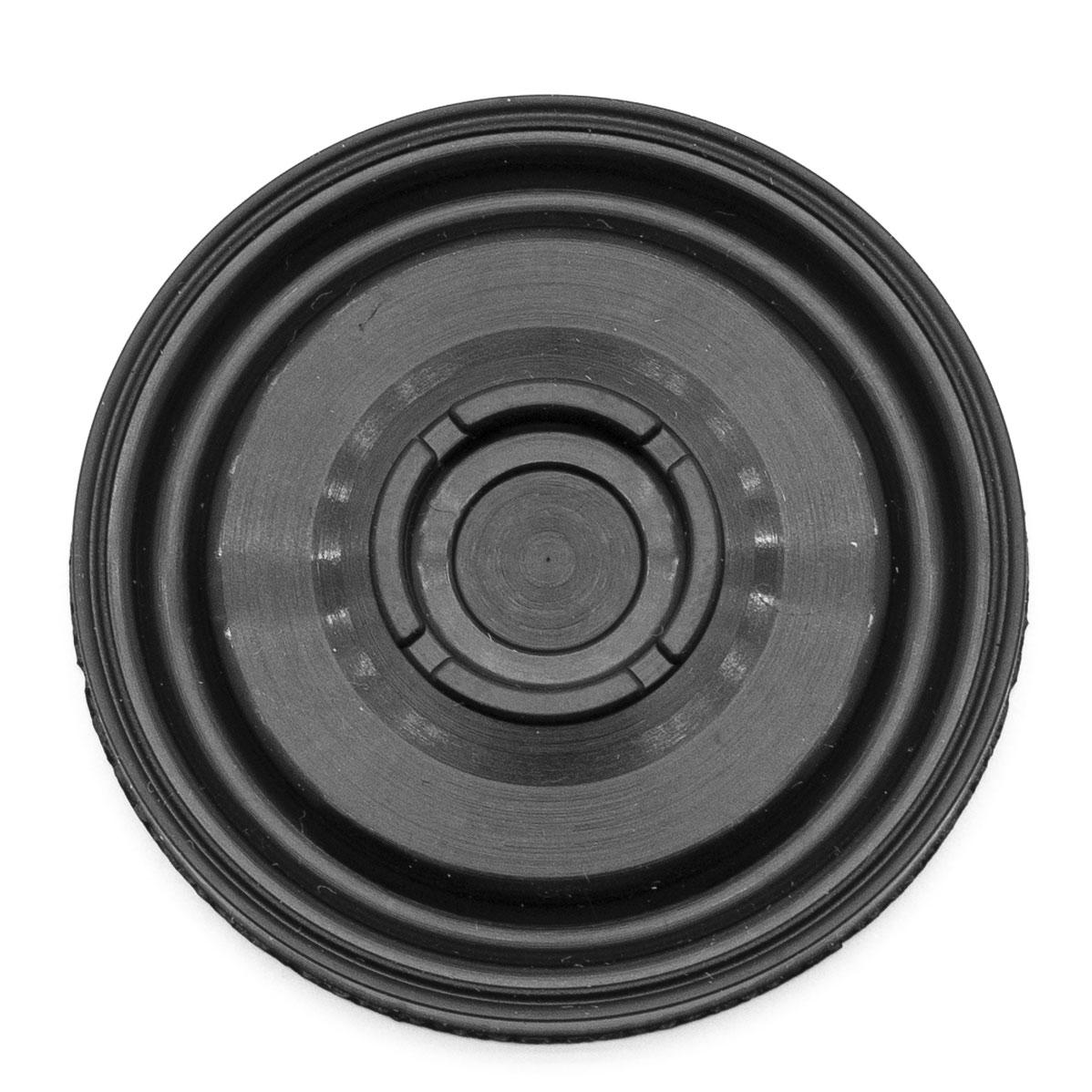

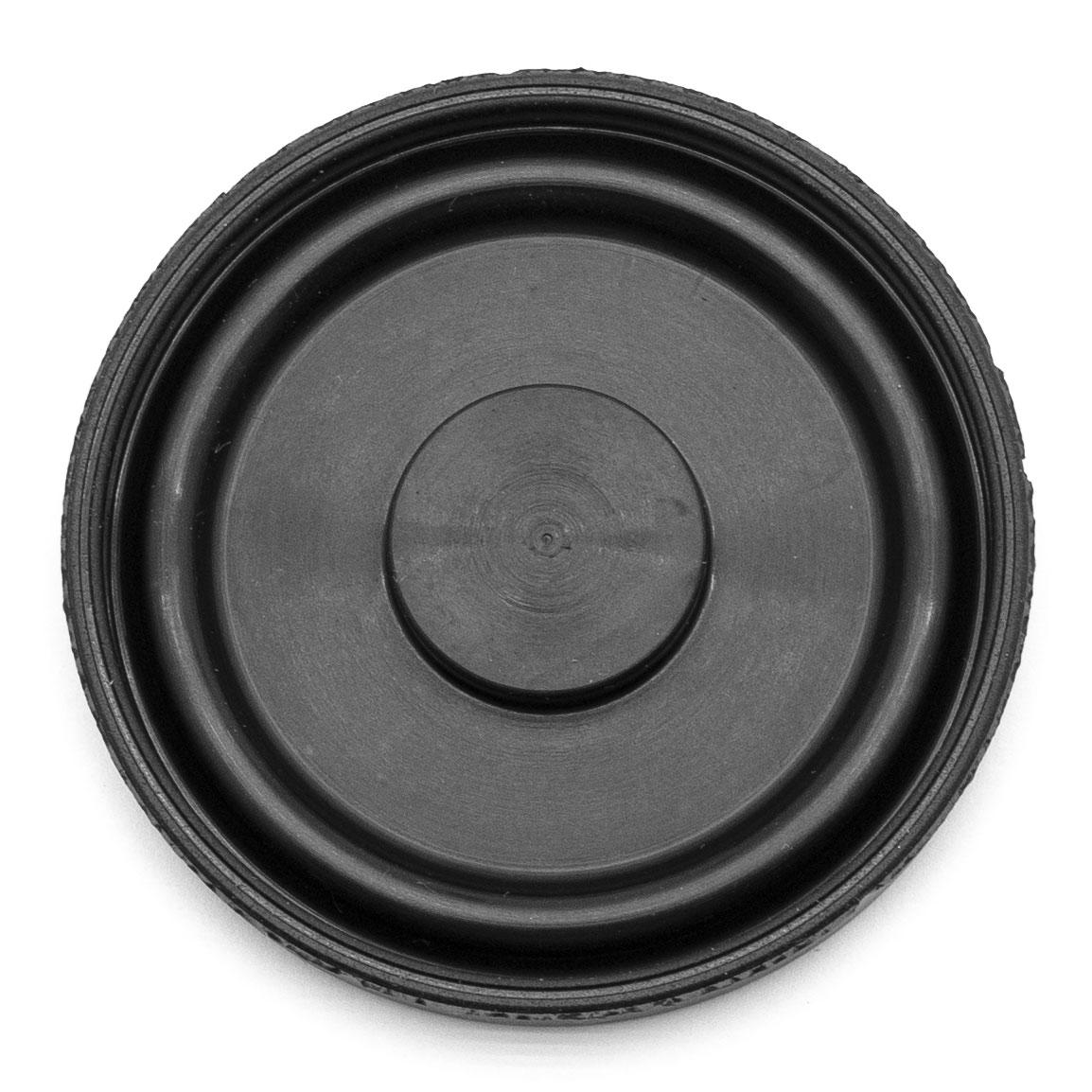

Valve Cover Diaphragm 51mm - VW Teramont 2.5 TSI VR6 - 03H103515A

This 51mm valve cover diaphragm is for the listed VW Teramont 2.5 TSI VR6 application. Match the original cover reference and diaphragm design before ordering.

Applications

• VW Teramont - 2017-2022, DDKA and DPKA engine context.

Cover and Diaphragm Selection

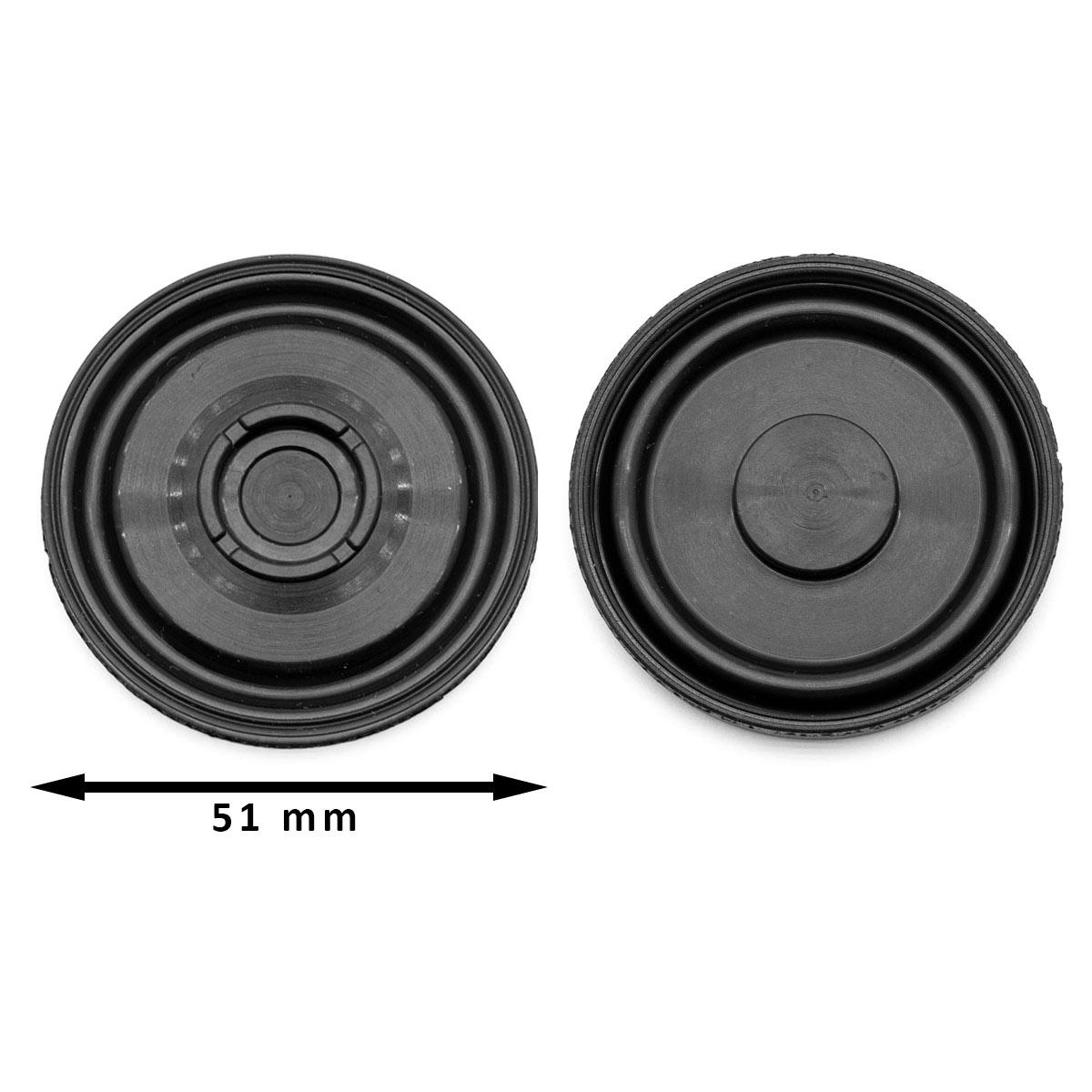

Diameter: 51mm. Listed references: 03H103515A and 03H103515. Match the installed cover, diaphragm and engine version.

When to Inspect the Cover and Ventilation

• Oil leakage or seepage around the valve cover.
• Burning oil smell after the engine warms up.
• Air leaks through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, excessive vacuum or mixture faults associated with leakage.

Diagnose the cover and crankcase ventilation system to establish the affected component before replacing the diaphragm.

Repair Scope

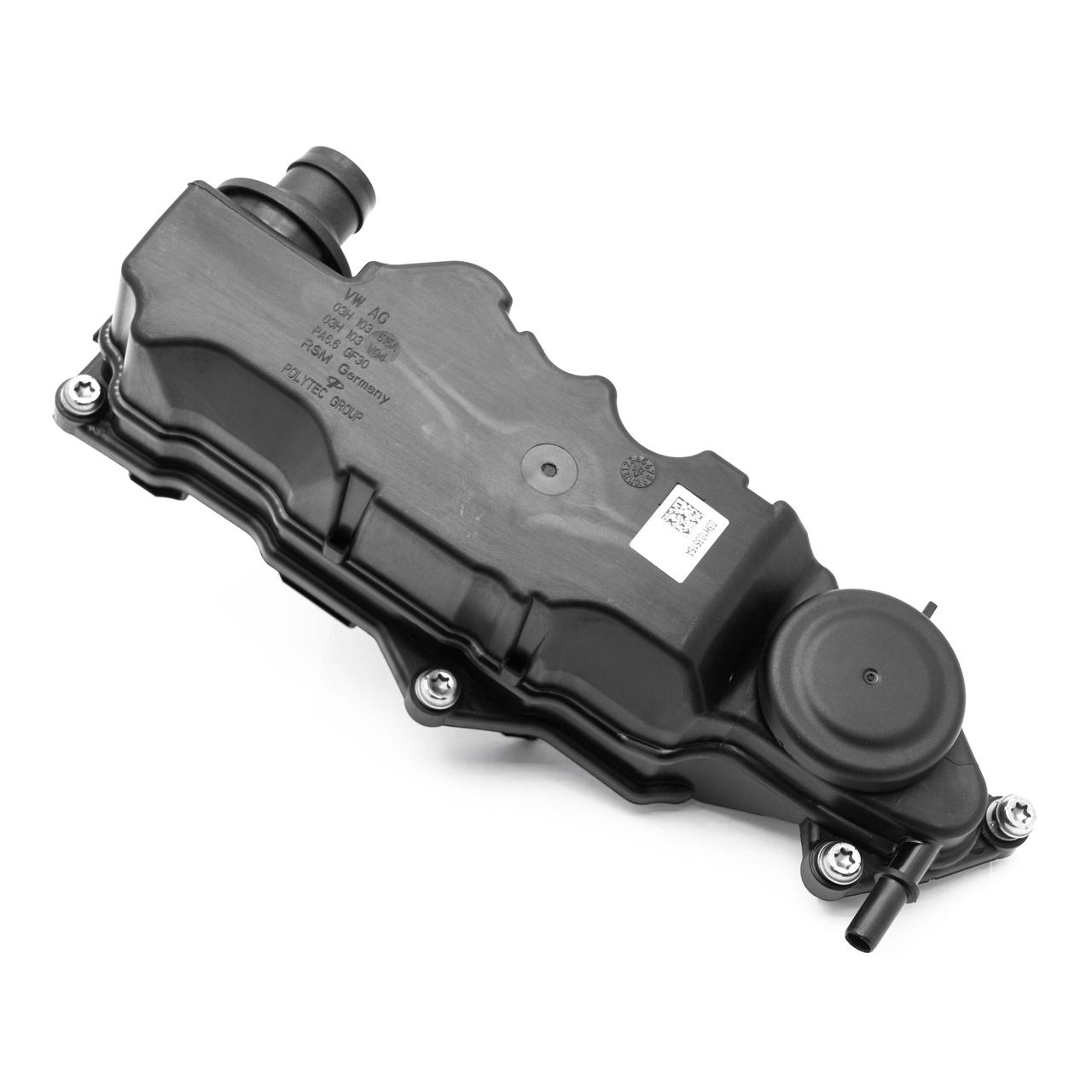

This is the diaphragm repair component, rather than a complete valve cover. Inspect the cover or oil separator housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable if the housing is intact; housing damage can require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What diameter is specified?

51mm.

Which engine codes are listed?

DDKA and DPKA.

Which production period is listed?

2017-2022 for the listed Teramont application.

Part Number / PN

03H103515,03H103515A

SKU: KL03H103515A.

• Volkswagen
