Valve Cover Diaphragm 47mm - 1.6hdi 8v - Peugeot / Citroen / Volvo / Ford / Fiat - 0248S0
Save 19%
In stock
Regular price
$13.00
Sale price
$13.00
Regular price
$16.00
Delivery within the USA
Ships from Miami, FL when the ordered quantity is available in our US warehouse.
USPS Ground Advantage / FedEx
US delivery: typically 2–5 business days after dispatch
Checking warehouse availability…
Couldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns

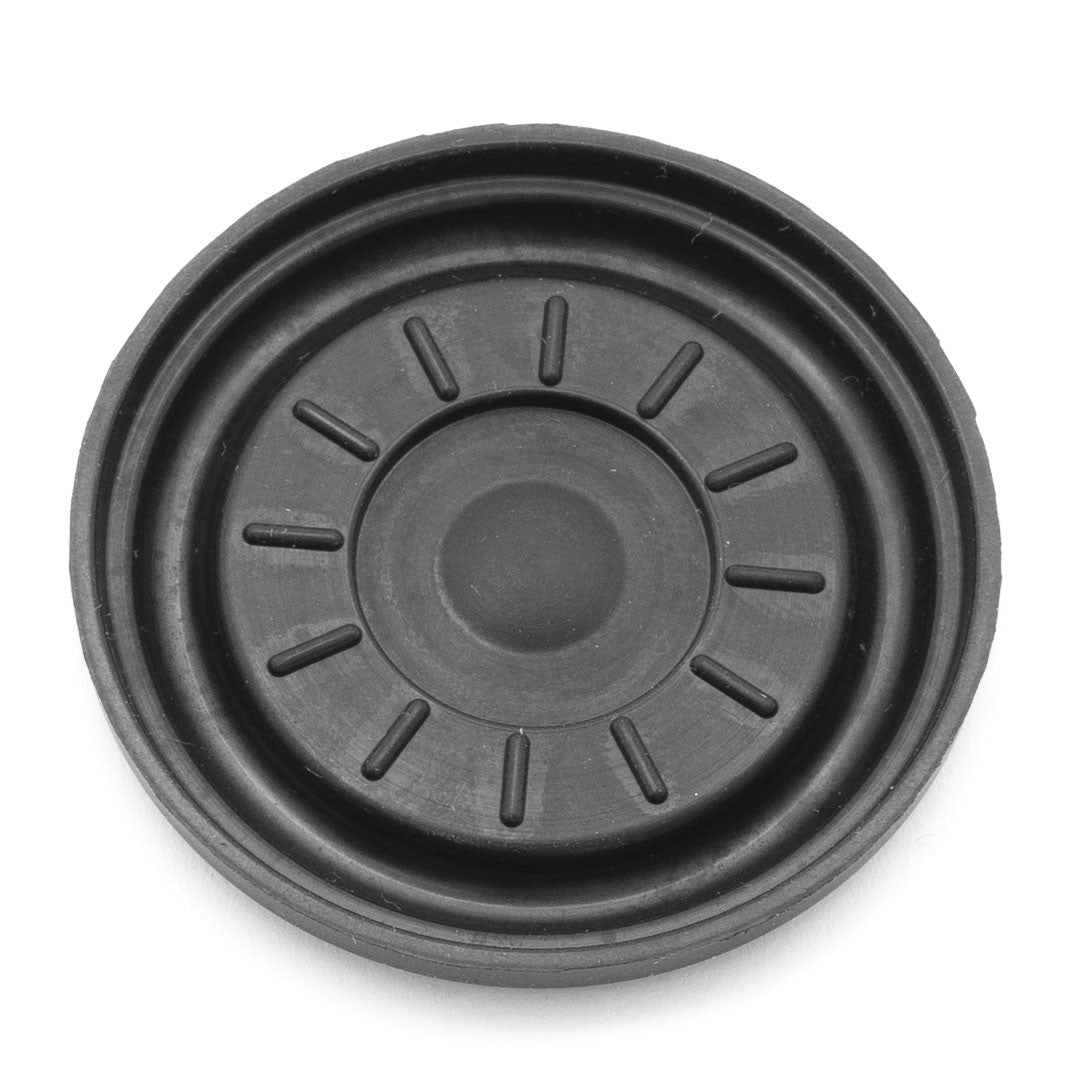

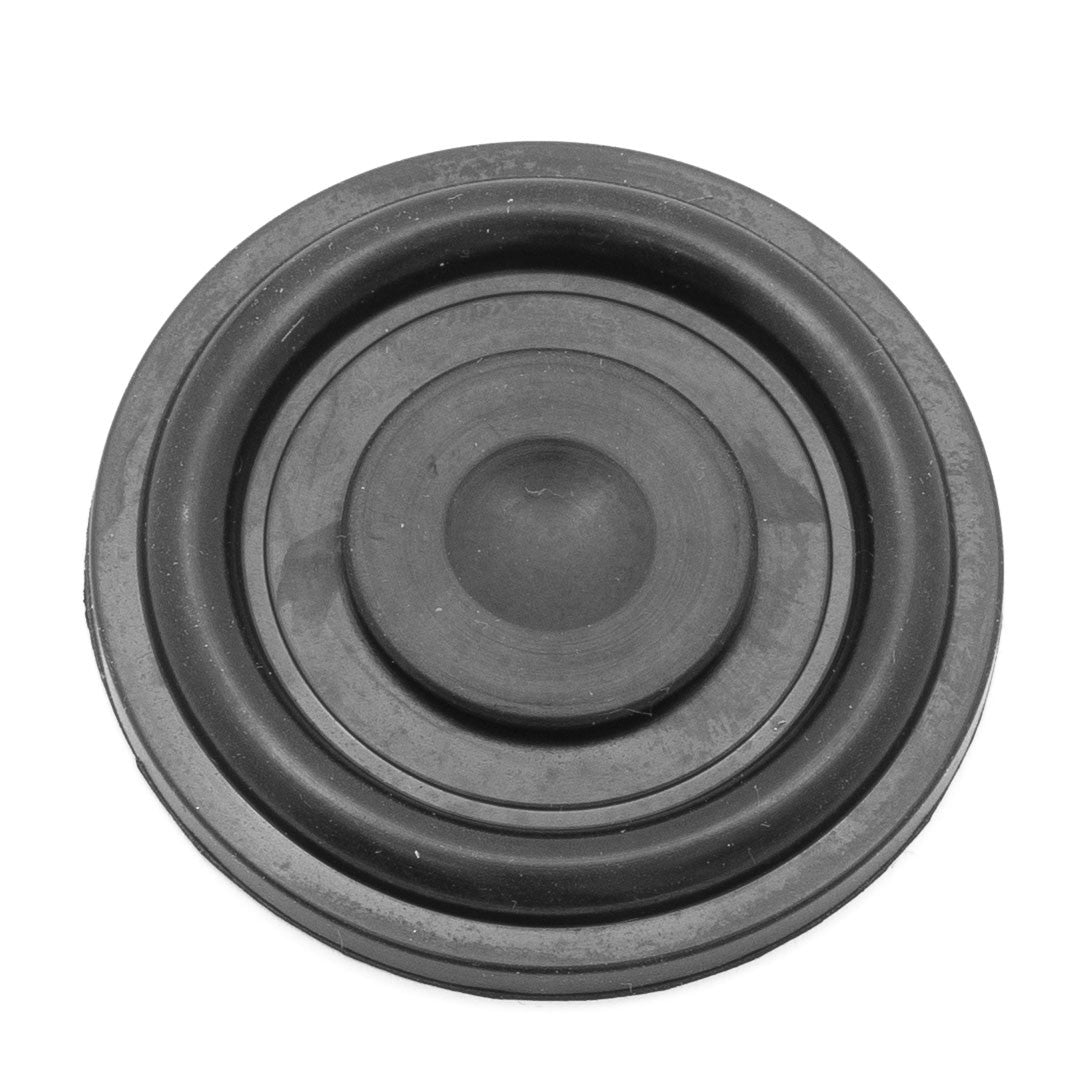

This 47mm diaphragm is for the valve cover ventilation system on the listed 1.6hdi 8v applications. It is a separate repair component; match the original cover number and diaphragm seat before ordering.
Applications
- Citroen C4 PICASSO.
- Citroen C4.
- Citroen C4 (B7) DS4.
- Citroen DS5.
- Citroen BERLINGO passenger version (B9).
- Citroen B78.
- Citroen M3/M4.
- Citroen BERLINGO II VP.
- Citroen B73 MERCOSUR.
- Citroen C4 AIRCROSS.
- Citroen C3 PICASSO.
- Citroen C5 (X7).
- Citroen C3 (A51).
- Citroen DS3.
- Citroen BERLINGO commercial version (B9).
- Citroen JUMPY III.
- Citroen BERLINGO II VU.
- Peugeot 207.
- Peugeot PARTNER TEPEE (B9).
- Peugeot A94.
- Peugeot 208.
- Peugeot M3/M4.
- Peugeot PARTNER passenger facelift.
- Peugeot 4008.
- Peugeot 308.
- Peugeot T9F.
- Peugeot 3008.
- Peugeot 5008.
- Peugeot 206+ (T3E).
- Peugeot 408 MERCOSUR.
- Peugeot 508.
- Peugeot PARTNER commercial version (B9).
- Peugeot EXPERT 3.
- Peugeot PARTNER commercial facelift.
- Fiat/Alfa/Lancia NUOVO SCUDO (from 2007).
- Volvo C30.
- Volvo V50.
- Volvo S40 (04-).
- Volvo S60 (11-).
- Volvo V60.
- Volvo S80 (07-).
- Volvo V70 (08-).
- Volvo V40 (13-).
- Volvo V40 Cross Country.
- Ford Transit/Tourneo Courier from 2014.
- Ford S-MAX/Galaxy CA1 2006-2015.
- Ford Mondeo CA2 2007-2014.
- Ford Fiesta CB1 from 2008.
- Ford B-Max CB2 from 2012.
- Ford Focus C-Max CB7 2011-2015.
- Ford Focus CB8 2011-2015.
- Ford Kuga CBS from 2013.
- Ford Ecosport CBW from 2013.
- Ford Fiesta CCN from 2013.
- Ford KA CDU from 2016.
- Ford Fiesta CE1 from 2017.
- Ford C-Max CEU from 2015.
- Ford Focus CEW from 2014.
- Ford Transit/Tourneo Connect CHC from 2013.
- Ford Mondeo CNG from 2014.
- Ford Ecosport CR6 from 2017.
Diaphragm and Housing Selection

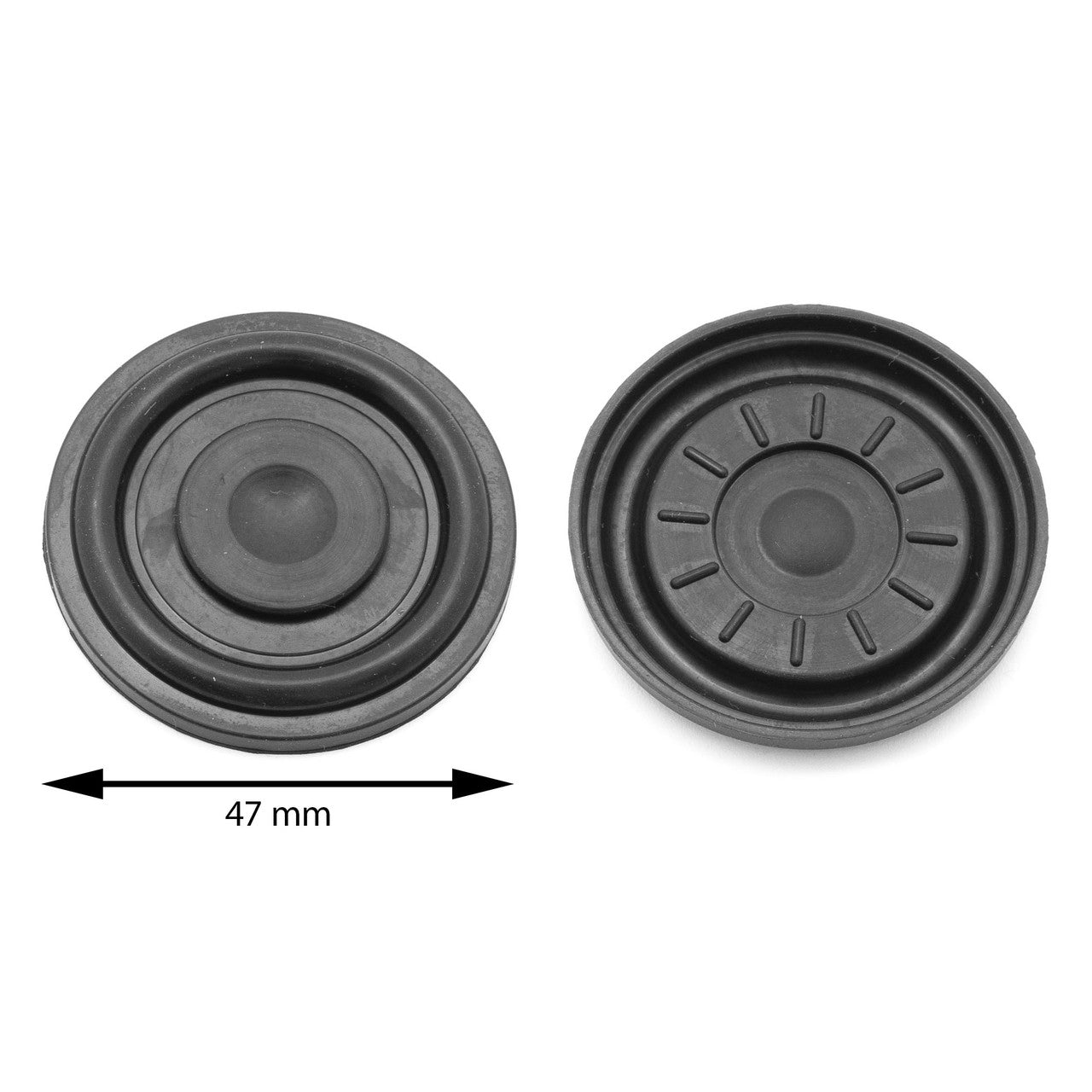

Diaphragm diameter: 47mm. Compare 0248S0, 9688939180, 9689112980, 1685815, 31330192, 118304798R, M06042A153, 118305170R and Y650-10-220.
When to Inspect the Cover and Ventilation
- Oil leakage or oil mist around the valve cover.
- Burnt-oil smell after warm-up.
- Intake air leaks through the cover or crankcase ventilation.
- Unstable idle.
- Increased oil consumption.
- Whistling, abnormal vacuum or mixture faults associated with leakage.
Check the cover, diaphragm and ventilation system to establish the cause. These symptoms do not confirm diaphragm failure on their own.
Repair Scope

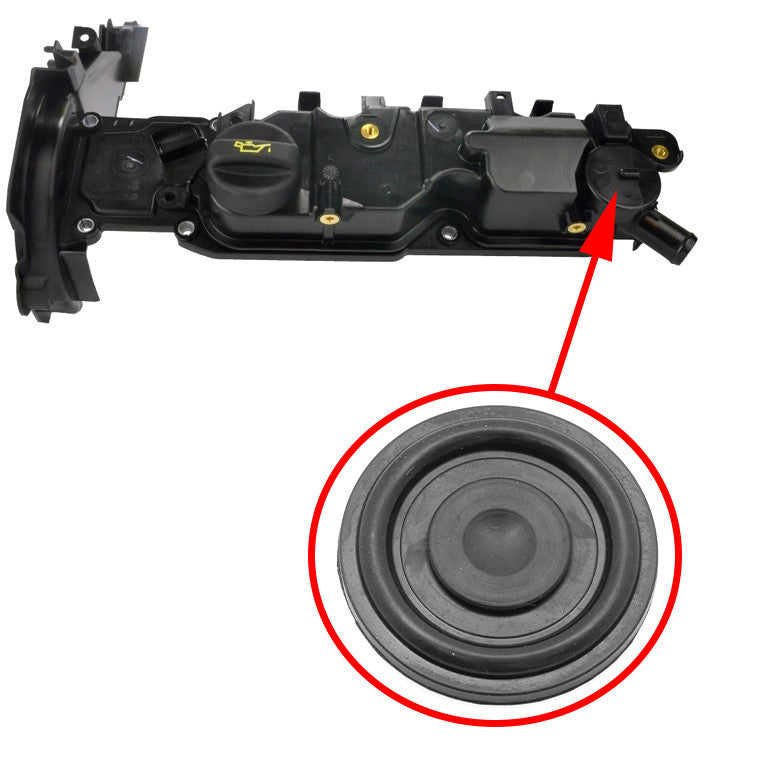

This is the separate valve cover diaphragm, rather than a complete cover. Check the housing, seating surfaces and ventilation pipes for cracks or damage. If the housing is damaged, replacing the diaphragm alone may be insufficient.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
What is the diaphragm diameter?
47mm.
Is the complete valve cover supplied?
No. The product is the replacement diaphragm.
What should I inspect before fitting?
Check the cover or separator housing, seating surfaces and ventilation pipes for cracks or damage; match the original reference.
Part Number / PN
0248S0,9688939180,9689112980,1685815,31330192,118304798R,118305170R,Y650-10-220
SKU: KL0248S0.
