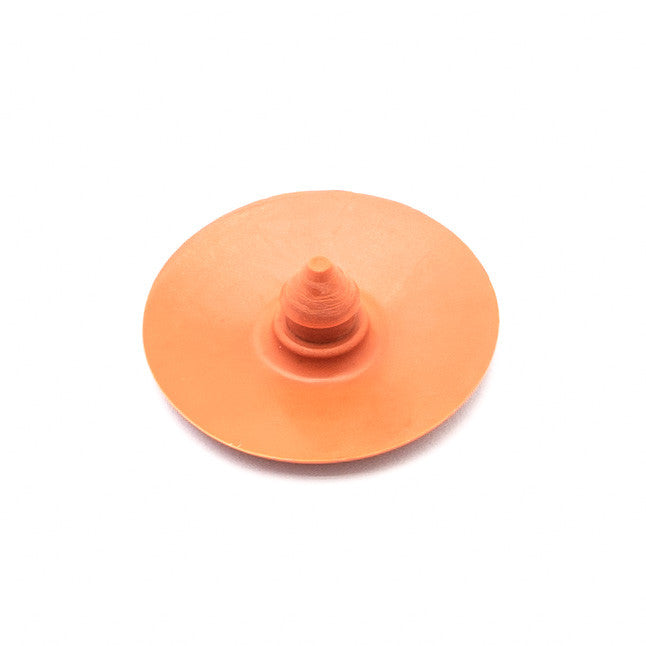

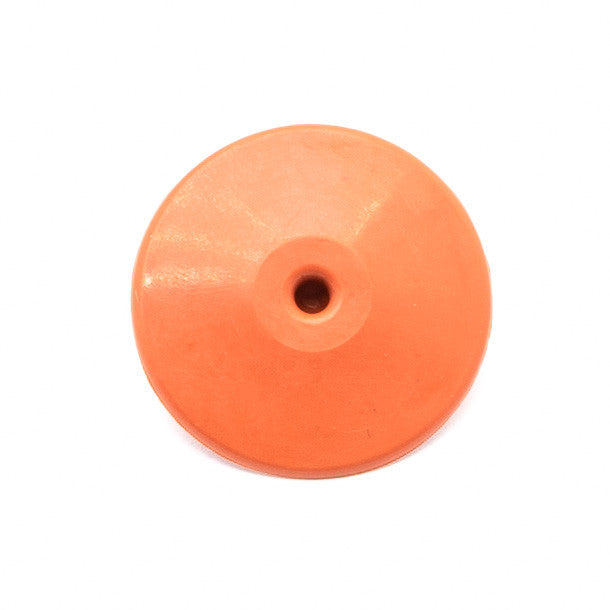

Valve Cover Diaphragm 26mm - Peugeot / Citroen / MINI - V759886280

This 26mm diaphragm is a valve cover repair component for the listed Peugeot/Citroen EP6DTS, EP6DT and EP6CDT applications and MINI N14 / N18 applications. Match the original cover number and diaphragm design.

Applications

• Citroen C4 II - from 2011; EP6DTS / EP6DT / EP6CDT.
• Citroen C5 - from 2008; EP6DTS / EP6DT / EP6CDT.
• Peugeot 207 A7 - 2006-2013; EP6DTS / EP6DT / EP6CDT.
• Peugeot 3008 - from 2010; EP6DTS / EP6DT / EP6CDT.
• Peugeot 308 - 2007-2015; EP6DTS / EP6DT / EP6CDT.
• Peugeot 408 - from 2012; EP6DTS / EP6DT / EP6CDT.
• Peugeot RCZ - 2010-2014; EP6DTS / EP6DT / EP6CDT.
• MINI R56 (11/2005 - 07/2010); N14 / N18.
• MINI R56 LCI (01/2010 - 06/2012); N14 / N18.
• MINI Clubman R55 (10/2006 - 07/2010); N14 / N18.
• MINI Clubman R55 LCI (01/2010 - 06/2012); N14 / N18.
• MINI Cabrio R57 (11/2007 - 07/2010); N14 / N18.
• MINI Cabrio R57 LCI (01/2010 - 07/2012); N14 / N18.
• MINI Coupé R58 (12/2010 - 07/2012); N14 / N18.
• MINI Roadster R59 (05/2011 - 06/2012); N14 / N18.

Cover and Diaphragm Selection

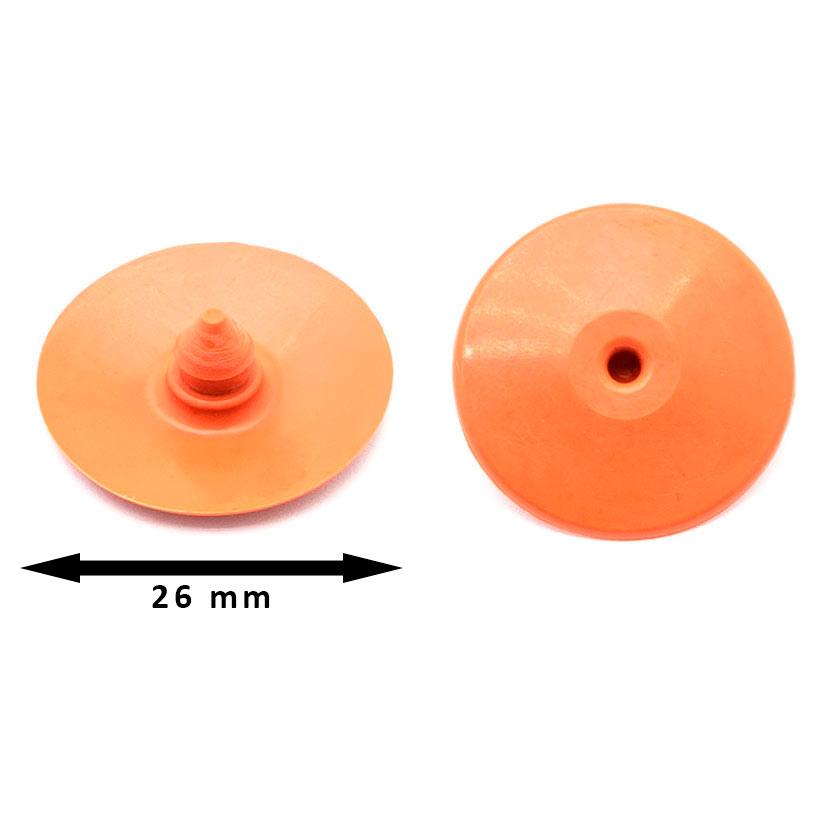

Diameter: 26mm. Listed cover references: 0248Q2, 0248G2, V759886280, V763174380, 11127646555, 11127585907, 11127572854, 11127561714, 11127534714, 11127603390 and 11127646552. Additional reference: 102602.

When to Inspect the Cover and Ventilation

• Oil leakage or seepage around the valve cover.
• Burning oil smell after the engine warms up.
• Air leaks through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, excessive vacuum or mixture faults associated with leakage.

Diagnose the cover and crankcase ventilation system to establish the affected component before replacing the diaphragm.

Repair Scope

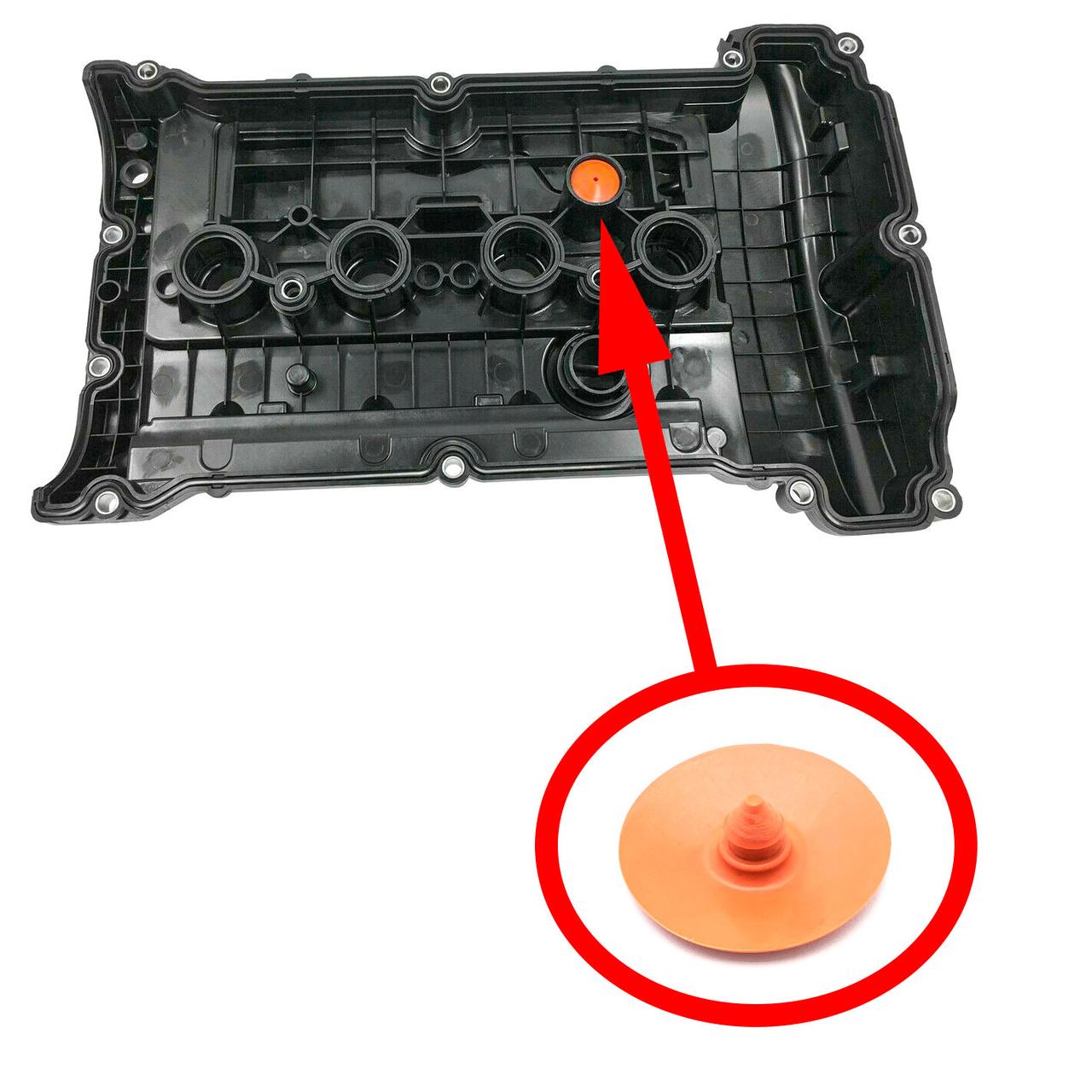

This is the diaphragm repair component, rather than a complete valve cover. Inspect the cover or oil separator housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable if the housing is intact; housing damage can require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What diameter is specified?

26mm.

Which MINI engines are listed?

N14 and N18.

Which Peugeot/Citroen engines are listed?

EP6DTS, EP6DT and EP6CDT.

Part Number / PN

0248G2,V759886280,V763174380,11127646555,11127585907,11127572854,11127561714,11127534714,11127603390,0248Q2,11127646552,102602

SKU: KLV759886280.

• MINI
• Peugeot
• Citroen
