Valve Cover PCV Diaphragm for Land Rover / Citroen / Peugeot / Fiat / Ford / Jaguar - LR004200

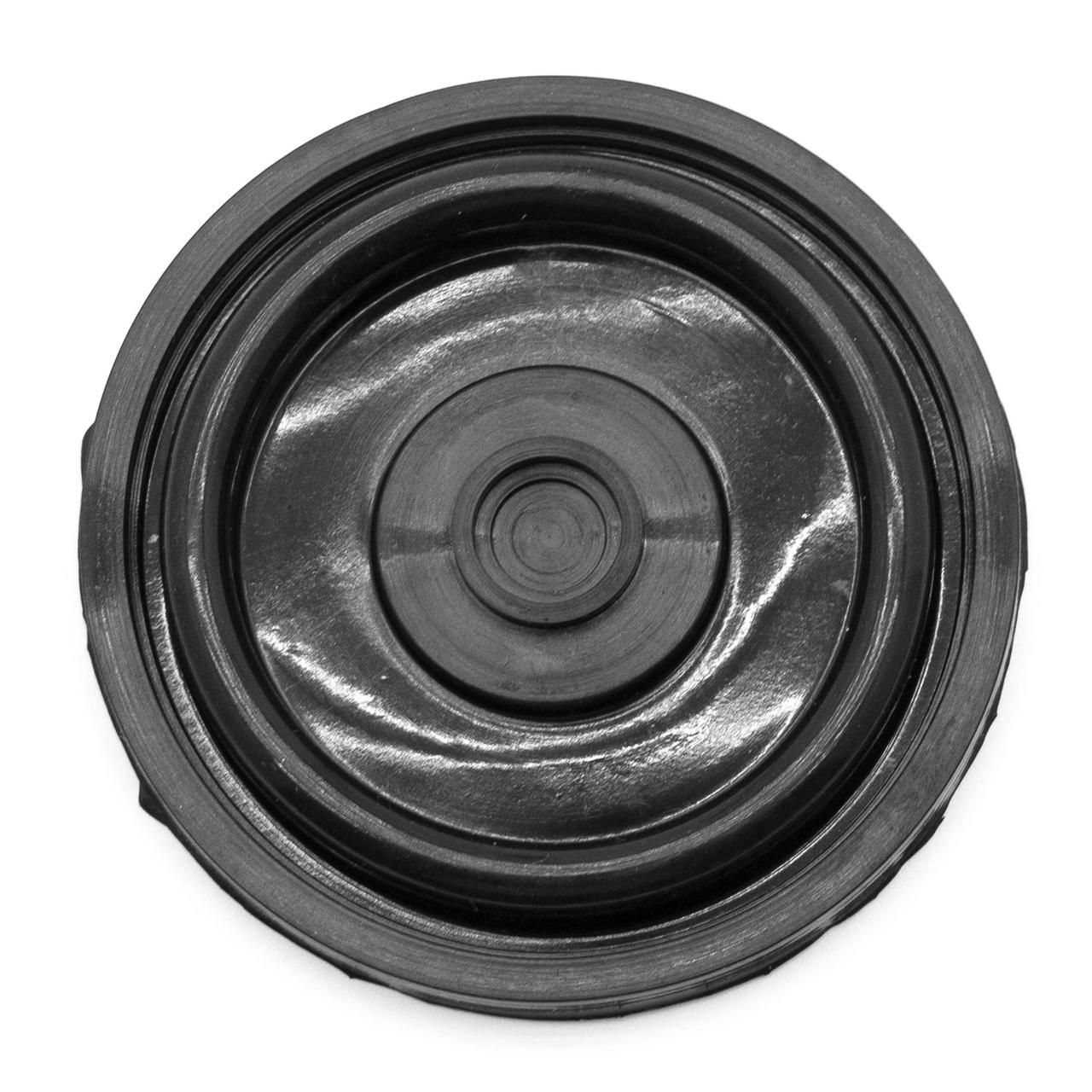

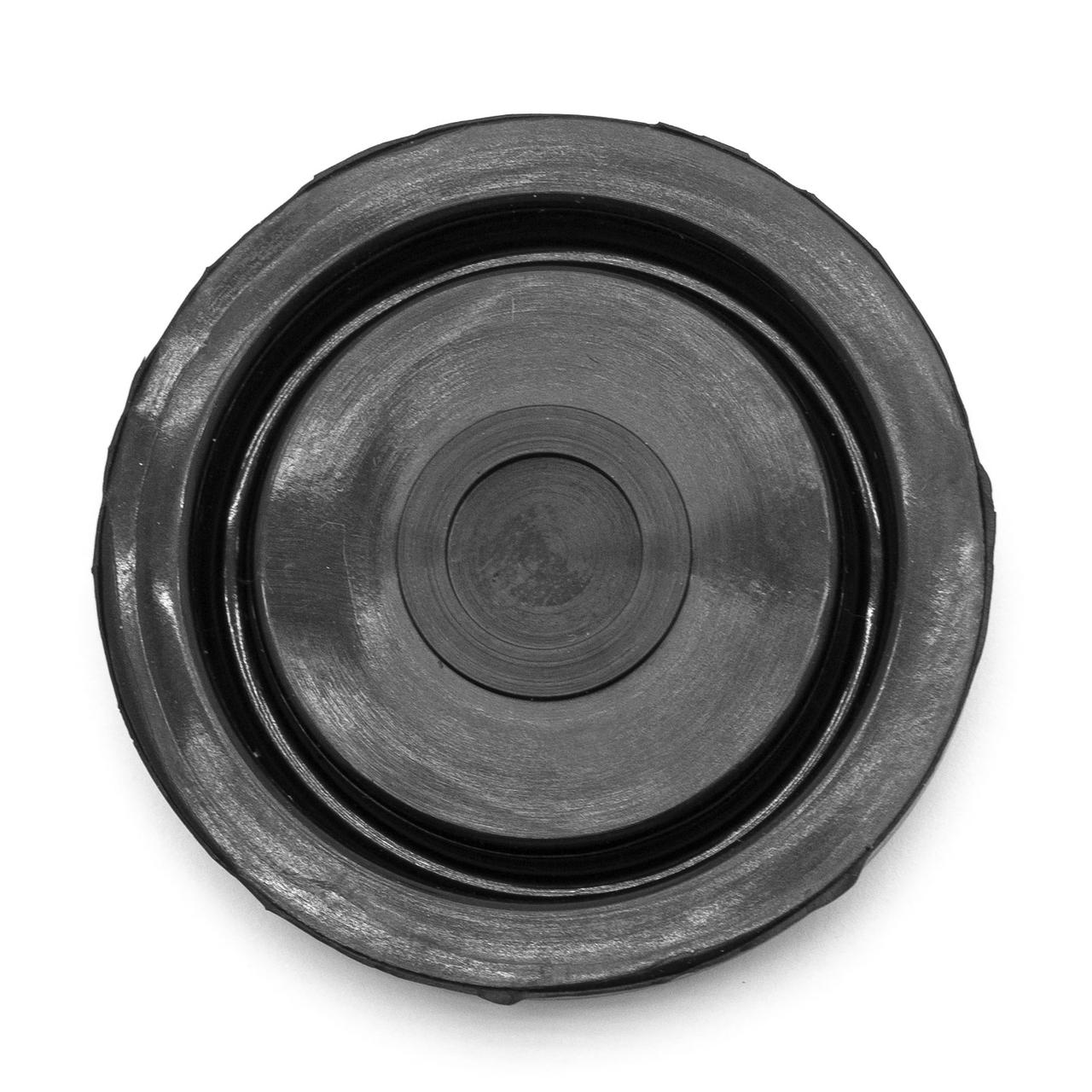

The 58.4 mm membrane is fitted in the valve cover crankcase ventilation system on the applications below. It is the diaphragm repair element for the specified covers, so selection depends on the installed cover reference and membrane design.

Vehicle Applications

• Citroen C-Crosser - 2008-2013.
• Citroen C5 (X7).
• Citroen C8.
• Citroen C5 II.
• Citroen C6.
• Fiat Ulysse - 2002-2011.
• Land Rover Freelander 2 - 2007-2014.
• Range Rover Evoque - from 2011.
• Peugeot 4007 - 2008-2013.
• Peugeot 407 - 2004-2010.
• Peugeot 508.
• Peugeot 607 - 2000-2010.
• Peugeot 807 - 2002-2012.
• Ford S-MAX/Galaxy CA1 - 2006-2015.
• Ford Mondeo CA2 - 2007-2014.
• Jaguar XF.

Diameter and Cover Reference

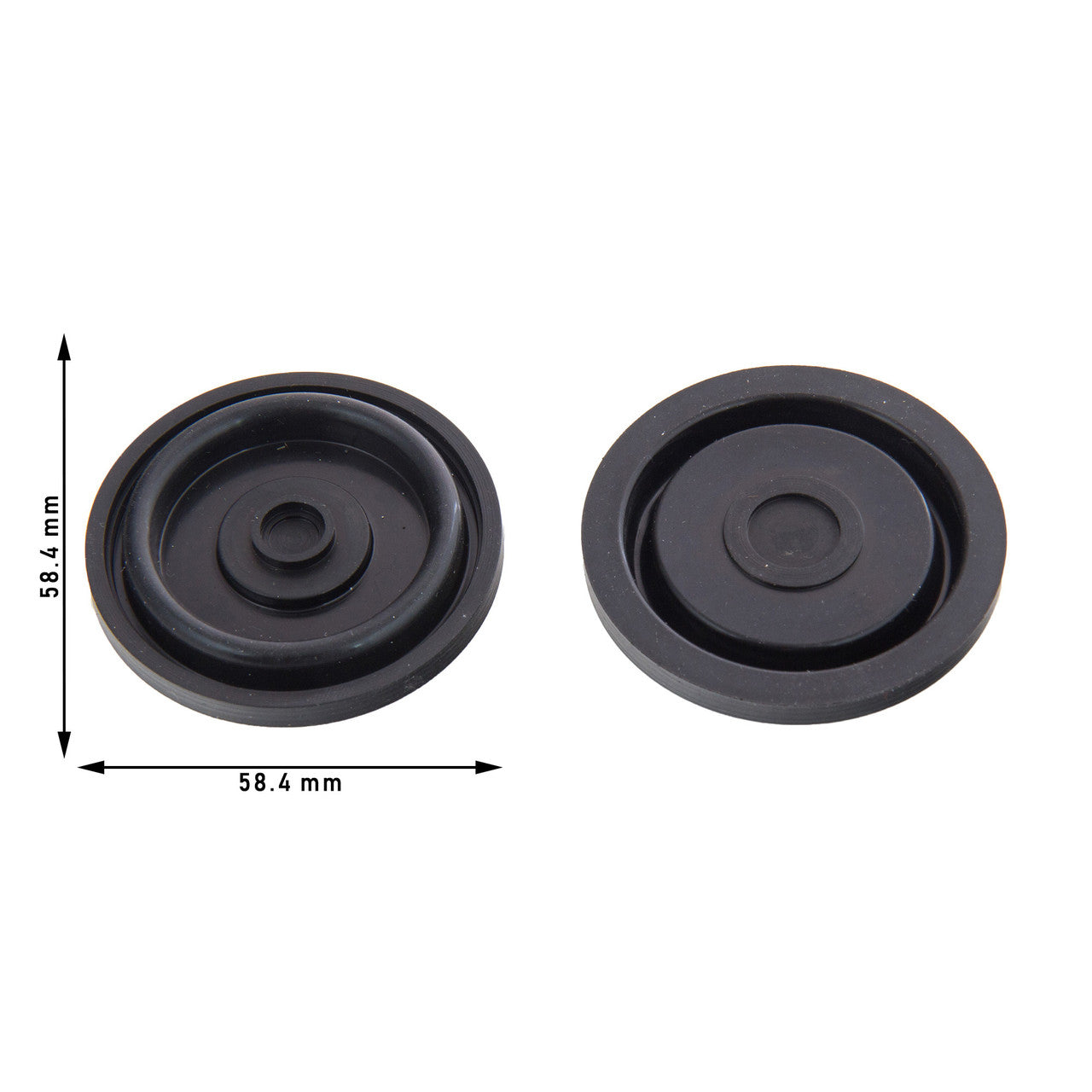

Diaphragm diameter: D=58.4mm. Compare the cover marking with LR004200 and the complete reference list below.

When to Inspect This Diaphragm

• Oil leakage or seepage around the valve cover.
• Burning oil smell after the engine has warmed up.
• Unmetered air entering through the cover or crankcase ventilation system.
• Unstable engine idle.
• Increased oil consumption.
• Whistling, abnormal vacuum or mixture faults associated with loss of sealing.

These symptoms call for inspection of the relevant system; they do not confirm this diaphragm as the cause on their own.

References

LR004200, LR022304, 1694973, 9678420380, 9678419980, 0248T1, 0248Q0, LR036595, LR084364, 9662660480, 1450976, MN982031, HRLR022304, HRLR004200, XR858326

SKU: KLLR004200.

Repair Scope

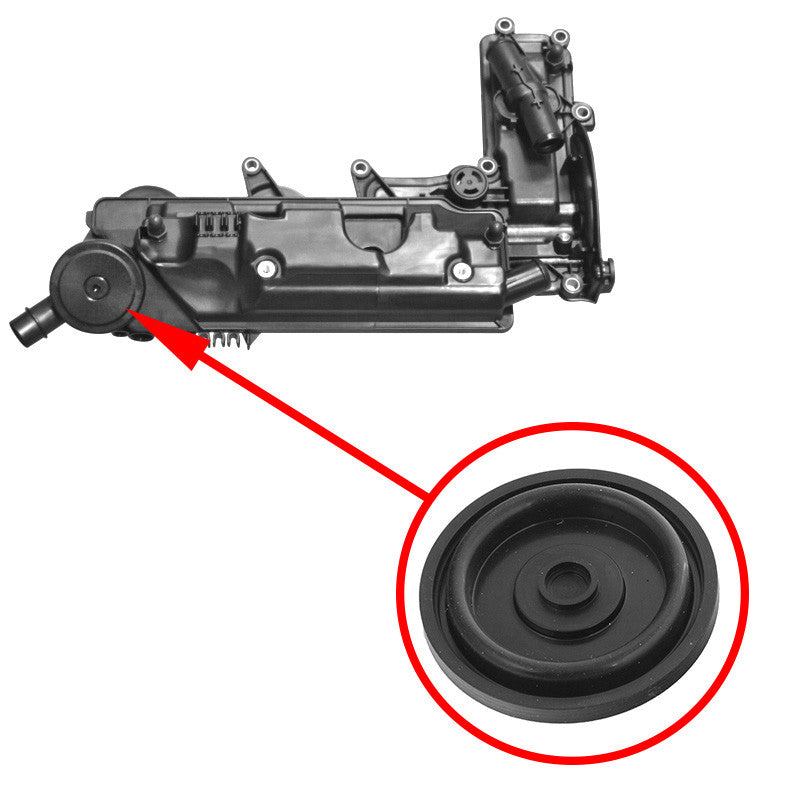

The worn diaphragm can be replaced while retaining a serviceable valve cover. The repair addresses the membrane and crankcase ventilation sealing fault. Check the cover or separator housing and the ventilation hoses before replacement; cracks or other housing damage may require additional repair.

Important Before Ordering

Compare the installed assembly reference, diaphragm design and any stated dimensions before ordering. Check the housing and ventilation hoses for damage.

FAQ

What diameter is specified for LR004200?

The diaphragm diameter is D=58.4mm.

Is Land Rover Freelander 2 included?

The listed application is Land Rover Freelander 2, 2007-2014. Compare the installed cover reference and 58.4 mm diaphragm design.

Which Ford versions are listed?

Ford S-MAX/Galaxy CA1, 2006-2015, and Ford Mondeo CA2, 2007-2014, are listed.

Can this be selected for any Jaguar model?

The application list names Jaguar XF. It does not establish compatibility with every Jaguar model; compare the installed cover reference.

Part Number / PN

LR004200, LR022304, 1694973, 9678420380, 9678419980, 0248T1, 0248Q0, LR036595, LR084364, 9662660480, 1450976, MN982031, HRLR022304, HRLR004200, XR858326
