Opel / Chevrolet / Fiat / Alfa Romeo PCV Diaphragm, 66.8 mm - 5607187

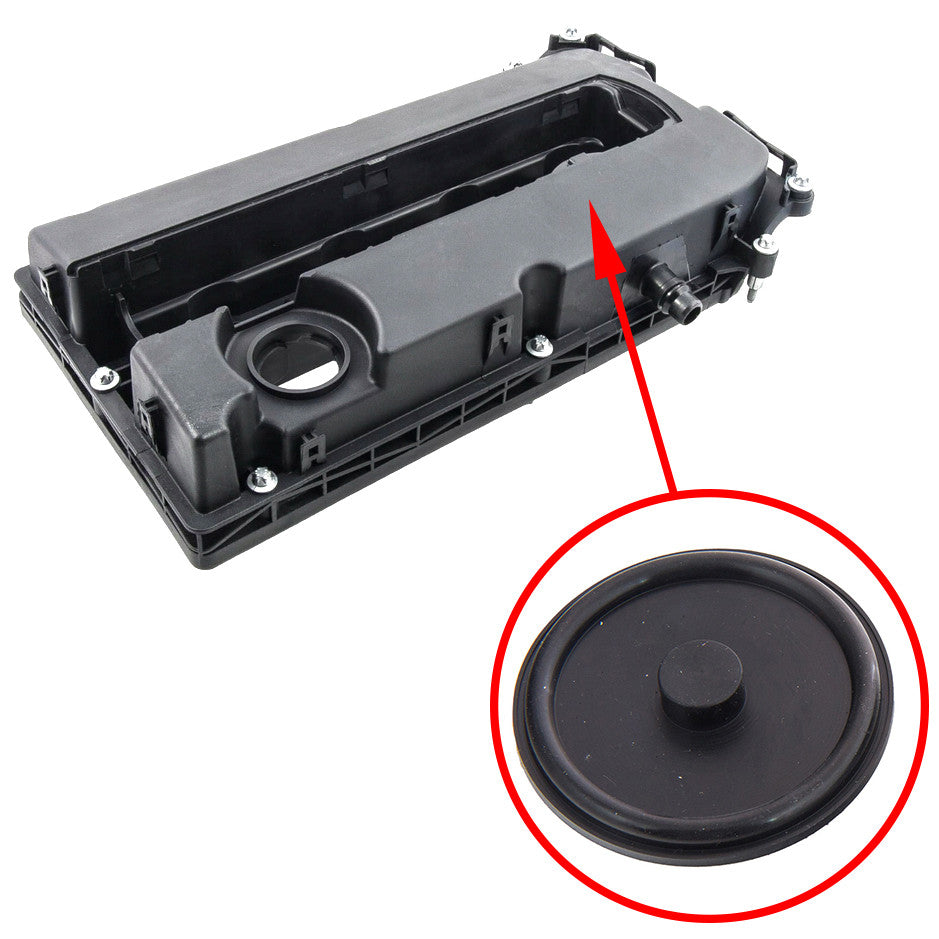

The 66.8 mm diaphragm is the crankcase ventilation component in the specified valve cover applications. Brand compatibility includes Opel, Chevrolet, Fiat and Alfa Romeo; use the installed cover reference and diaphragm design to select the correct version.

Vehicle Applications

• Opel Astra H / Family 2004-2015
• Opel Astra J 2010 onward
• Opel Corsa D 2006-2015
• Opel Insignia 2008 onward
• Opel Meriva 2003-2010
• Opel Signum 2003-2008
• Opel Vectra C 2002-2008
• Opel Zafira B 2005-2012
• Chevrolet Aveo saloon II (T250,T255) 1.4 [LDT; F14D4] 2008 onward
• Chevrolet Aveo saloon III (T300) 1.6 [F16D4; LDE] 2011 onward
• Chevrolet Aveo hatchback (T200) 1.4 [F14D3; L14(85CUL4)] 2003 - 2007
• Chevrolet Aveo hatchback III (T300) 1.6 [F16D4; LDE] 2011 onward
• Chevrolet Cruze saloon (J300) 1.6 [F16D3; LXT] 2009 onward
• Chevrolet Cruze saloon (J300) 1.8 [2H0; F18D4; Z18XER] 2009 onward
• Chevrolet Cruze saloon (J300) 1.6 16v [F16D4; LDE] 2009 onward
• Chevrolet Cruze estate (J308) 1.6 [F16D4; LDE] 2012 onward
• Chevrolet Cruze hatchback (J305) 1.6 [F16D4; LDE] 2011 onward
• Chevrolet Cruze hatchback (J305) 1.8 [2H0; F18D4; Z18XER] 2011 onward
• Chevrolet Cruze hatchback (J305) 1.6 [F16D3; LXT] 2012 onward
• Chevrolet Orlando (J309) 1.8 [2H0; F18D4] 2011 onward
• Chevrolet Trax/Tracker 1.6 [F16D4; LDE]
• Additional model designations: 159, Croma, Mokka. Match the installed cover reference.

When to Inspect the Membrane

• Oil leakage or misting around the valve cover.
• A burnt-oil smell after the engine warms up.
• Unmetered air through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, abnormal vacuum or mixture faults linked to an air leak.

Inspect the cover, membrane and ventilation system to identify the source of the fault. These symptoms do not confirm that the membrane alone needs replacement.

Assembly and Related References

5607187, 5607258, 5607159, 5607592, 55558673, 55556284, 55558118, 55564395, 49614, 24440090, OP56070159, 40946495, 24456232, 656175. Cross-reference associations: Chevrolet 55564395; Fiat 5607187; Opel 55558118.

Listed Engine Designations

• A14NEL
• A14NET
• A16LEL
• A16LER
• 16LES
• A16LET
• A16XER
• A16XHT
• A16XNT
• A18XEL
• A18XER
• A20DT
• A20DTH
• A20DTL
• A20DTR
• Z16LEL
• Z16LER
• Z16LET
• Z16XE1
• Z16XEP
• Z16XER
• Z16XNT
• Z18XER

Repair Scope

The diaphragm can be serviced separately when the surrounding cover and housing are sound. Inspect the other sealing components before choosing the repair; replacing a membrane does not correct damage elsewhere in the assembly.

Important Before Ordering

Compare the installed assembly reference, membrane design and dimensions before ordering. Check the housing and ventilation hoses for damage; a membrane alone may not resolve a cracked housing.

FAQ

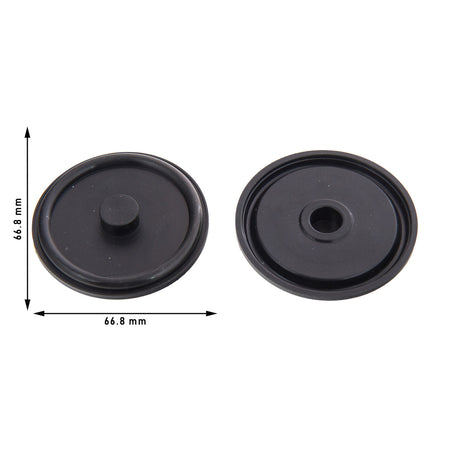

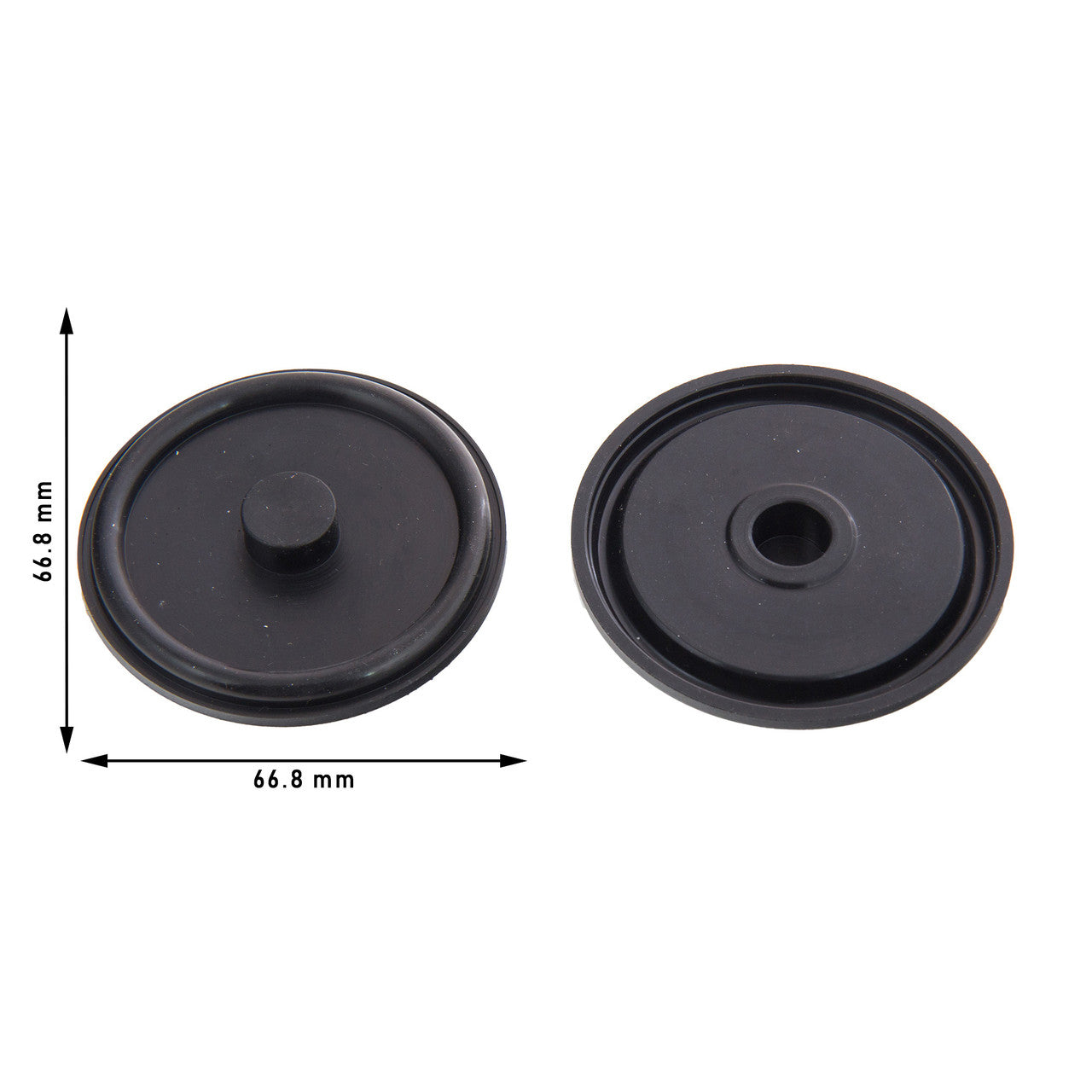

What diameter is specified for this PCV diaphragm?

The specified membrane diameter is 66.8 mm.

Which years apply to Opel Corsa D?

The confirmed Opel Corsa D application range is 2006-2015. Compare the installed cover reference.

Which Chevrolet Trax/Tracker application is listed?

Trax/Tracker is listed with 1.6 [F16D4; LDE].

Are the engine designations OEM part numbers?

No. A14NEL, A14NET and the other engine designations identify engine applications. Select the membrane by the cover reference and design.

Part Number / PN

5607187, 5607258, 5607159, 5607592, 55558673, 55556284, 55558118, 55564395, 49614, 24440090, OP56070159, 40946495, 24456232, 656175

SKU: KL5607187.
