MINI Cooper R56 Valve Cover Diaphragm, 51 mm - 11127804877

The 51 mm diaphragm is a cylinder head cover ventilation component for MINI COOPER R56 with the listed 1.6 DI TURBO engine designation. Check the installed cover and membrane before choosing the replacement.

Vehicle Applications

• MINI COOPER R56 - 1.6 DI TURBO.

When to Inspect the Membrane

• Oil leakage or misting around the valve cover.
• A burnt-oil smell after the engine warms up.
• Unmetered air through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, abnormal vacuum or mixture faults linked to an air leak.

Inspect the cover, membrane and ventilation system to identify the source of the fault. These symptoms do not confirm that the membrane alone needs replacement.

Assembly and Related References

11127804877, 9660281080.

Repair Scope

The diaphragm can be serviced separately when the surrounding cover and housing are sound. Inspect the other sealing components before choosing the repair; replacing a membrane does not correct damage elsewhere in the assembly.

Important Before Ordering

Compare the installed assembly reference, membrane design and dimensions before ordering. Check the housing and ventilation hoses for damage; a membrane alone may not resolve a cracked housing.

FAQ

Which MINI application is specified?

MINI COOPER R56 with the engine designation 1.6 DI TURBO is specified.

What diameter should I compare?

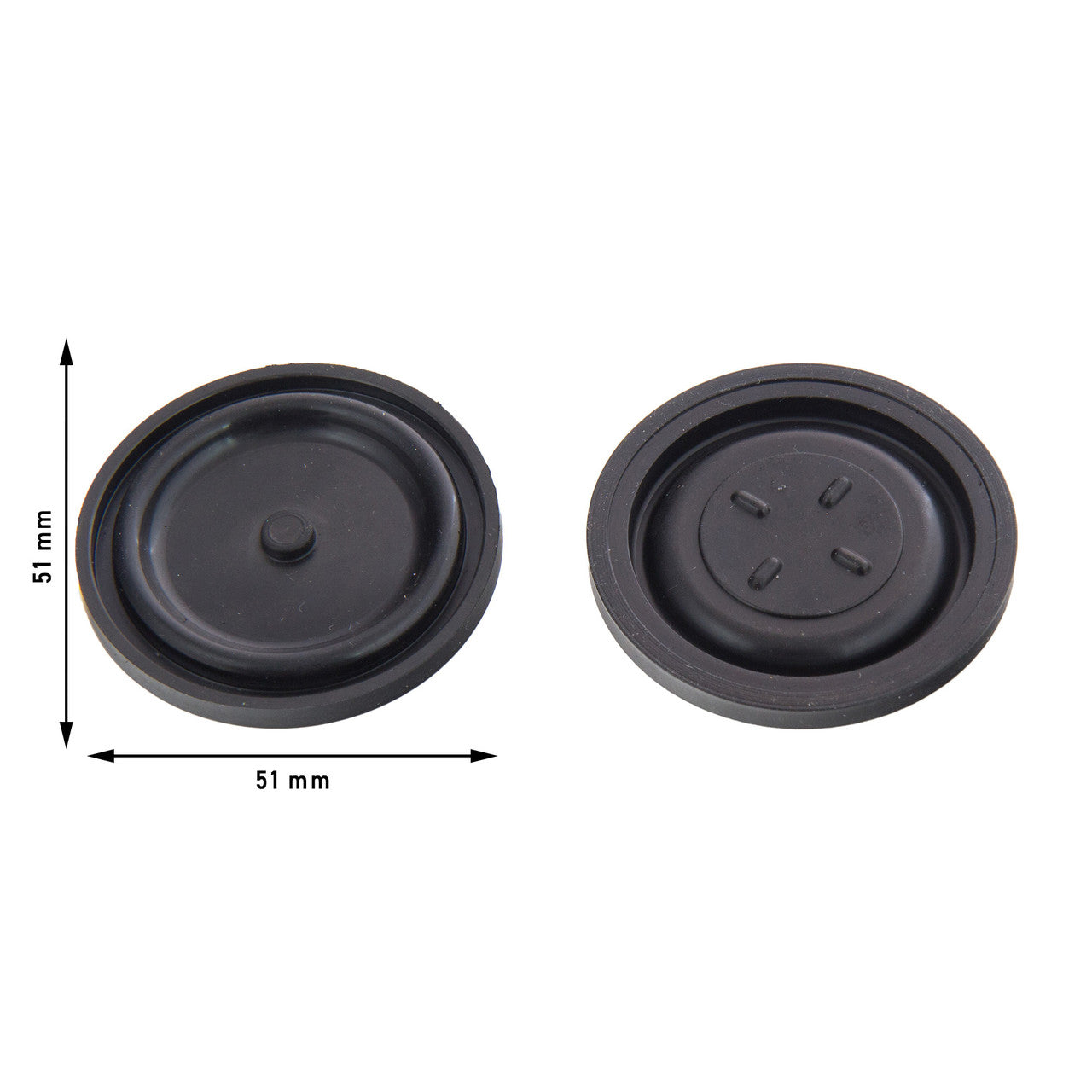

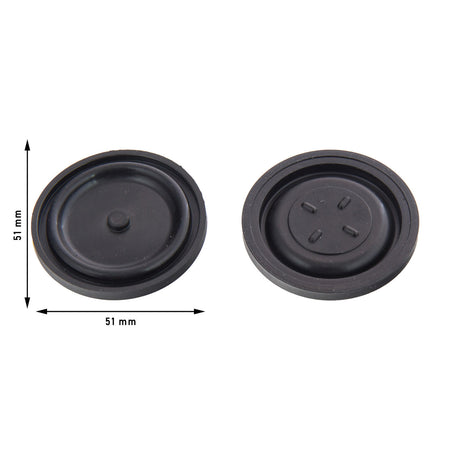

The diaphragm diameter is 51 mm. Compare this and the installed cover reference.

Which references are listed for this membrane?

11127804877 and related reference 9660281080 are listed.

Part Number / PN

11127804877, 9660281080

SKU: KL11127804877.
