224102F000 Valve Cover PCV Diaphragm for Hyundai / Kia 2.0 / 2.2 CRDi
This replacement valve cover PCV diaphragm is designed for Hyundai and Kia 2.0 CRDi and 2.2 CRDi diesel applications using compatible valve covers referenced by OEM 224102F000. The product page also lists 224102F001, 224102F002, 224102F701, 224102F711, 224102F601, 224102F301, 224102F302 and 224102F900 as cross-references.

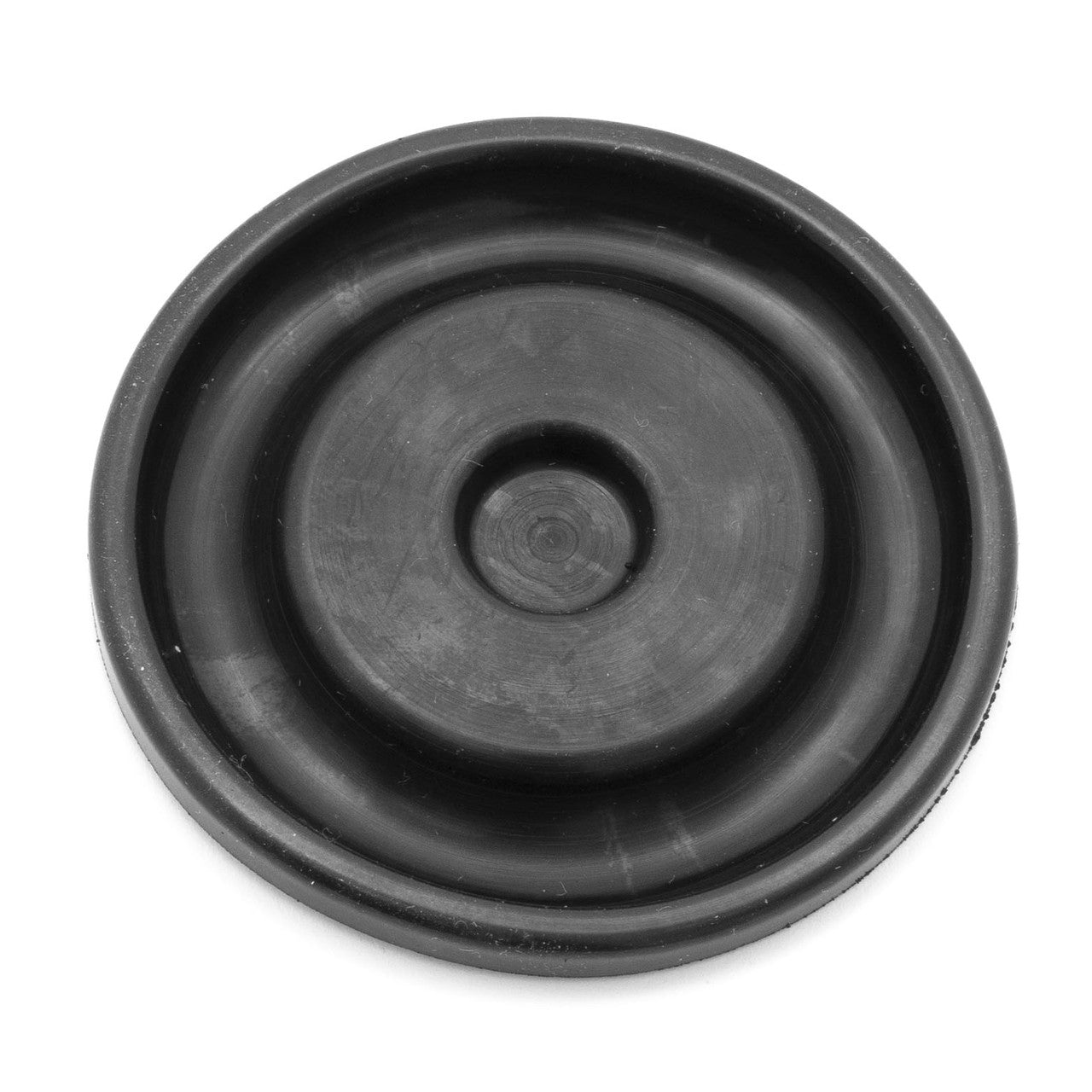

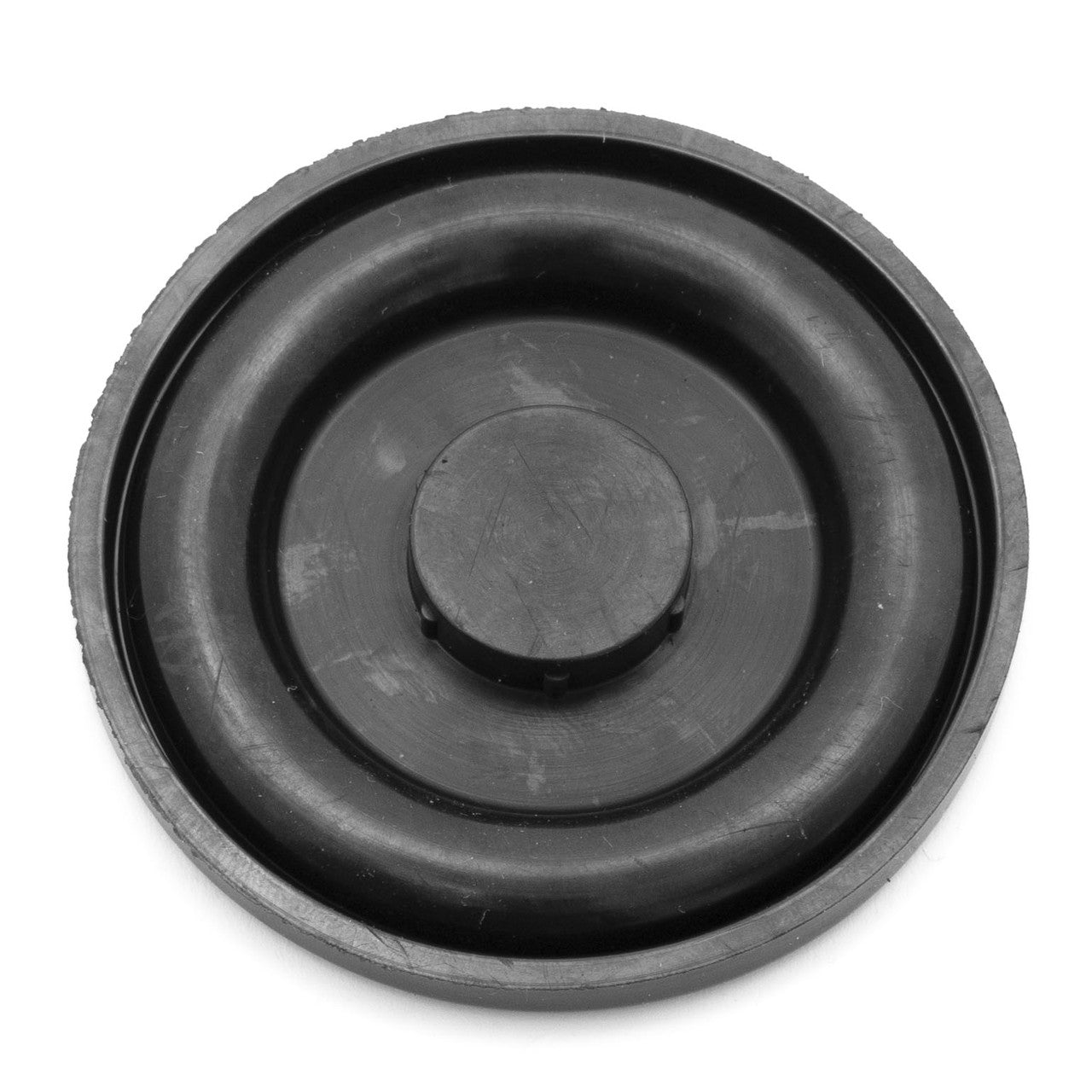

This product is an individual replacement PCV diaphragm for the valve cover crankcase ventilation system. It is not a complete valve cover assembly.
OEM / Reference Numbers
- 224102F000 — primary target reference for the compatible valve cover application
- 224102F001 — related cross-reference
- 224102F002 — related cross-reference
- 224102F701 — related cross-reference
- 224102F711 — related cross-reference
- 224102F601 — related cross-reference
- 224102F301 — related cross-reference
- 224102F302 — related cross-reference
- 224102F900 — related cross-reference
Part Type
- Valve cover PCV diaphragm
- Crankcase ventilation diaphragm
- Individual replacement membrane
- Not a complete valve cover assembly
What This Part Does
The PCV diaphragm is part of the valve cover crankcase ventilation system. According to the product listing, failure of the diaphragm on Hyundai and Kia 2.0 / 2.2 CRDi diesel engines can cause oil leaks and crankcase fault codes.
Compatible Vehicles
- Hyundai Santa Fe — 2.0 CRDi / 2.2 CRDi diesel applications
- Hyundai Sonata — 2.0 CRDi / 2.2 CRDi diesel applications
- Hyundai Tucson — 2.0 CRDi / 2.2 CRDi diesel applications
- Kia Sportage — 2.0 CRDi / 2.2 CRDi diesel applications
- Kia Sorento — 2.0 CRDi / 2.2 CRDi diesel applications
- Kia Optima — 2.0 CRDi / 2.2 CRDi diesel applications
- Kia Carnival — 2.0 CRDi / 2.2 CRDi diesel applications
Engine / Application Details
- Vehicle brands: Hyundai / Kia
- Engine context: 2.0 CRDi and 2.2 CRDi diesel
- Primary compatible valve cover reference: 224102F000
- Multiple related valve cover cross-references listed on the product page
Common Symptoms of PCV Diaphragm Failure
- Oil leaks
- Crankcase fault codes
Why Choose This Replacement Diaphragm

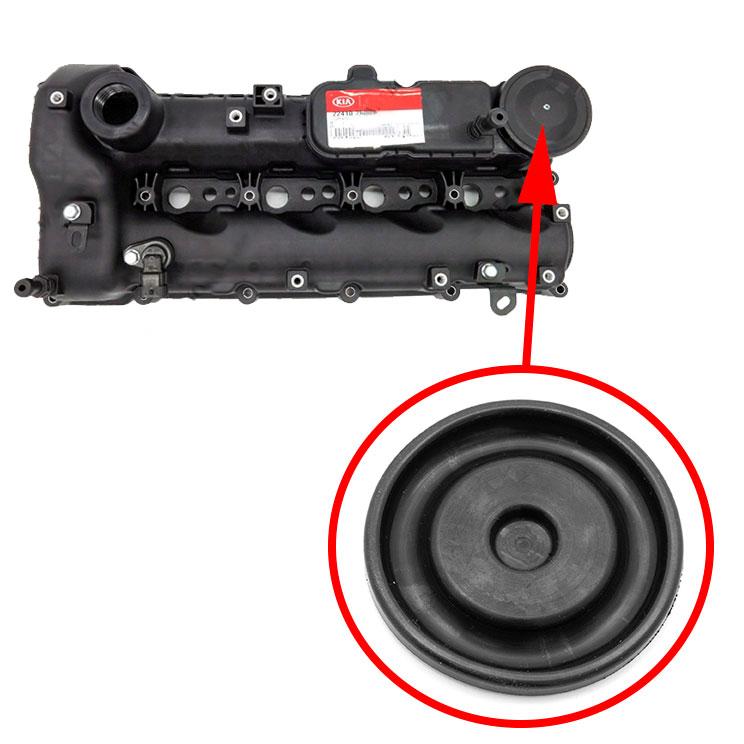

- Allows replacement of the individual failed PCV diaphragm without replacing the complete valve cover assembly
- Designed for compatible Hyundai and Kia valve covers using reference 224102F000
- Supports multiple related cross-references listed on the product page
- Intended for the confirmed 2.0 CRDi and 2.2 CRDi diesel applications
Important Before Ordering
- Verify that your valve cover corresponds to reference 224102F000 or one of the listed cross-references.
- Confirm that your Hyundai or Kia application uses a 2.0 CRDi or 2.2 CRDi diesel engine.
- Do not confirm compatibility by vehicle model alone; verify the valve cover reference before ordering.
- This product is an individual PCV diaphragm and not a complete valve cover assembly.

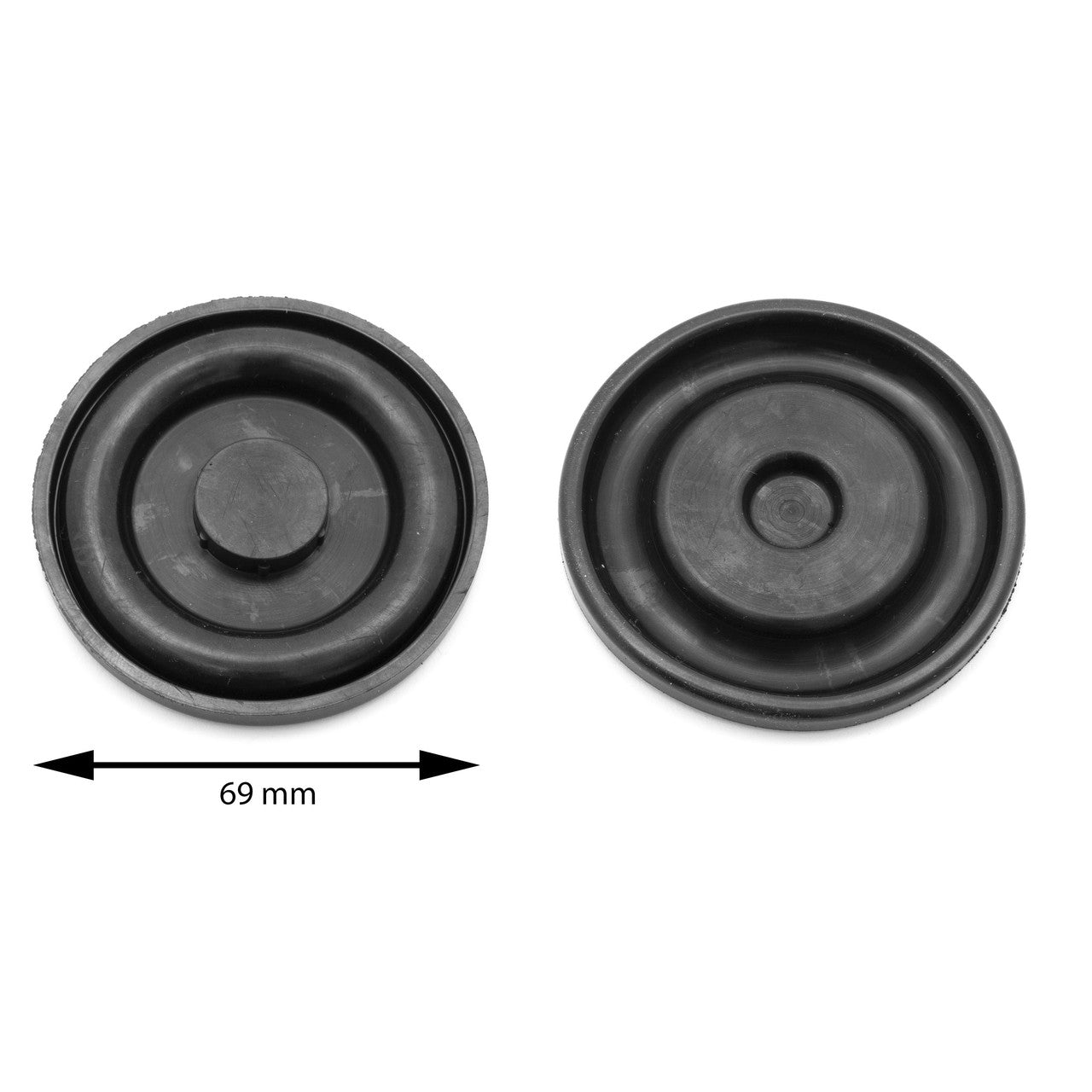

- The product page does not specify exact model years, engine codes, diaphragm dimensions or material.
What does OEM 224102F000 fit?
According to the product listing, this replacement PCV diaphragm is intended for compatible Hyundai and Kia valve covers using OEM 224102F000 on listed 2.0 CRDi and 2.2 CRDi diesel applications.
Is 224102F001 related to 224102F000?
Yes. The product page lists 224102F001 as a cross-reference related to the 224102F000 valve cover application. Several additional cross-references are also listed.
Which Hyundai and Kia models are listed as compatible?
The product page lists Hyundai Santa Fe, Sonata and Tucson, plus Kia Sportage, Sorento, Optima and Carnival with 2.0 CRDi or 2.2 CRDi diesel engines.
What symptoms can indicate PCV diaphragm failure?
The product listing identifies oil leaks and crankcase fault codes as symptoms associated with a failed valve cover PCV diaphragm.
Is this a complete Hyundai or Kia valve cover?
No. This product is an individual replacement PCV diaphragm for the valve cover crankcase ventilation system. It is not a complete valve cover assembly.
How do I confirm compatibility before ordering?
Verify that your valve cover matches 224102F000 or one of the listed cross-references and confirm that your Hyundai or Kia uses a 2.0 CRDi or 2.2 CRDi diesel engine.
