Valve Cover Diaphragm Kit, 3 Pieces - Ford Transit 2.2 Euro 5 - 1790011

This three-piece valve cover diaphragm kit is for the listed Ford 2.2 diesel applications, including Transit TT9 / TTG RWD Euro 5. Match the installed cover reference and diaphragm design before ordering.

Applications

• Ford Transit TT9 / TTG RWD 2.2 Euro 5 - from 2011.
• Ford Custom 2.2 - from 2012.
• Ford Ranger 2.2 - from 2012.

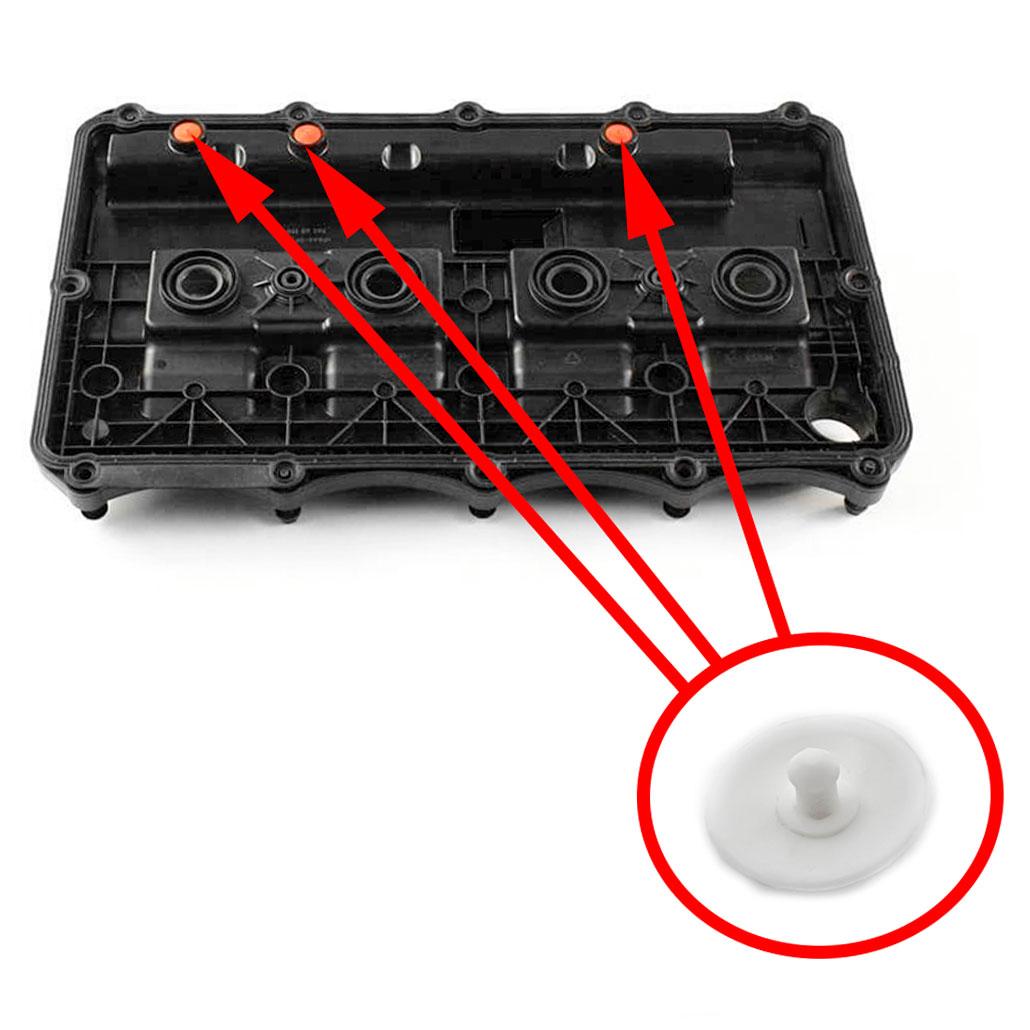

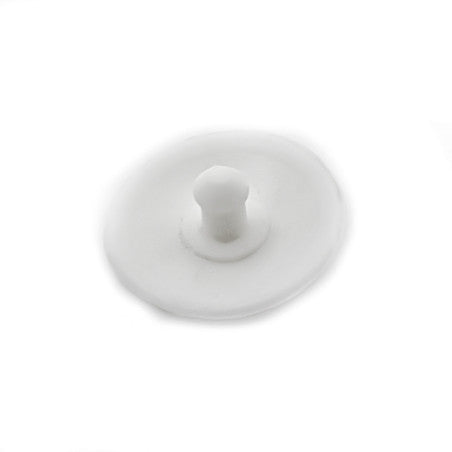

Cover and Diaphragm Selection

Quantity: three pieces. Original part references listed for selection: 1858445, 1790011, 1780384, 1762388, 1750047, 1738747, 1717679, BK2Q 6K271-AK, LR043158, LR058093 and 70260190. Compare the original cover and diaphragm design.

When to Inspect the Cover and Ventilation

• Oil leakage or seepage around the valve cover.
• Burning oil smell after the engine warms up.
• Air leaks through the cover or crankcase ventilation system.
• Unstable idle.
• Increased oil consumption.
• Whistling, excessive vacuum or mixture faults associated with leakage.

Diagnose the cover and crankcase ventilation system to establish the affected component before replacing the diaphragm.

Repair Scope

This is the diaphragm repair component, rather than a complete valve cover. Inspect the cover or oil separator housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable if the housing is intact; housing damage can require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

How many pieces are listed?

Three.

Which Transit application is specified?

TT9 / TTG RWD 2.2 Euro 5, from 2011.

Which Custom and Ranger applications are listed?

2.2 versions from 2012; match the original cover and diaphragm.

Part Number / PN

1790011,1780384,1762388,1750047,1738747,1717679,LR043158,LR058093,1858445,70260190,6K271,11127526665,11127568579,11127565742,11127777347,06H103495,06H103495AC,06H103495AD,06H103495AE,06H103495AG,06H103495A,06H103495B,06H103495C,06H103495D,06H103495E,06H103495H,06H103495J,06H103495K,06H103495N,06K103495Q,06K103495AH,06H103495AK,06K103495AC,06K103495AP,06K103495C,06K103495R,06K103495AS,06K103495T,06K103495J,06K103495AF,06K103495BL,9811067580,9676193780,9806820880

SKU: KL1790011.
