Valve Cover Diaphragm FORD 1.6D / 1.6TDCI / 1.6 DI TURBO 1479837

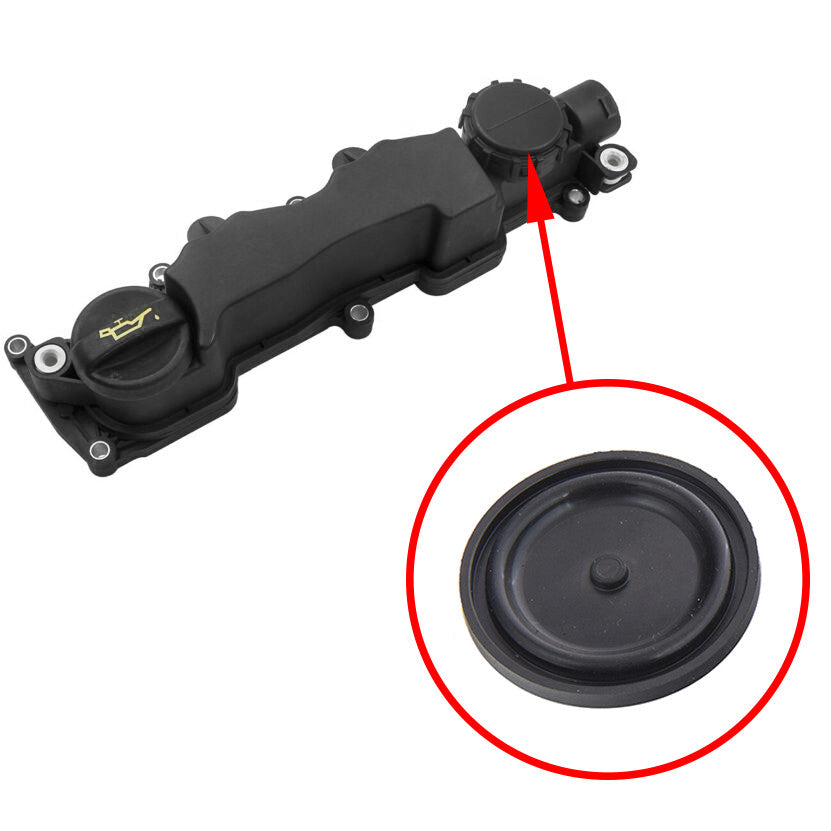

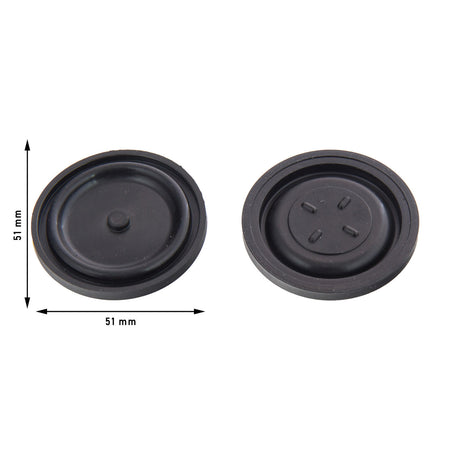

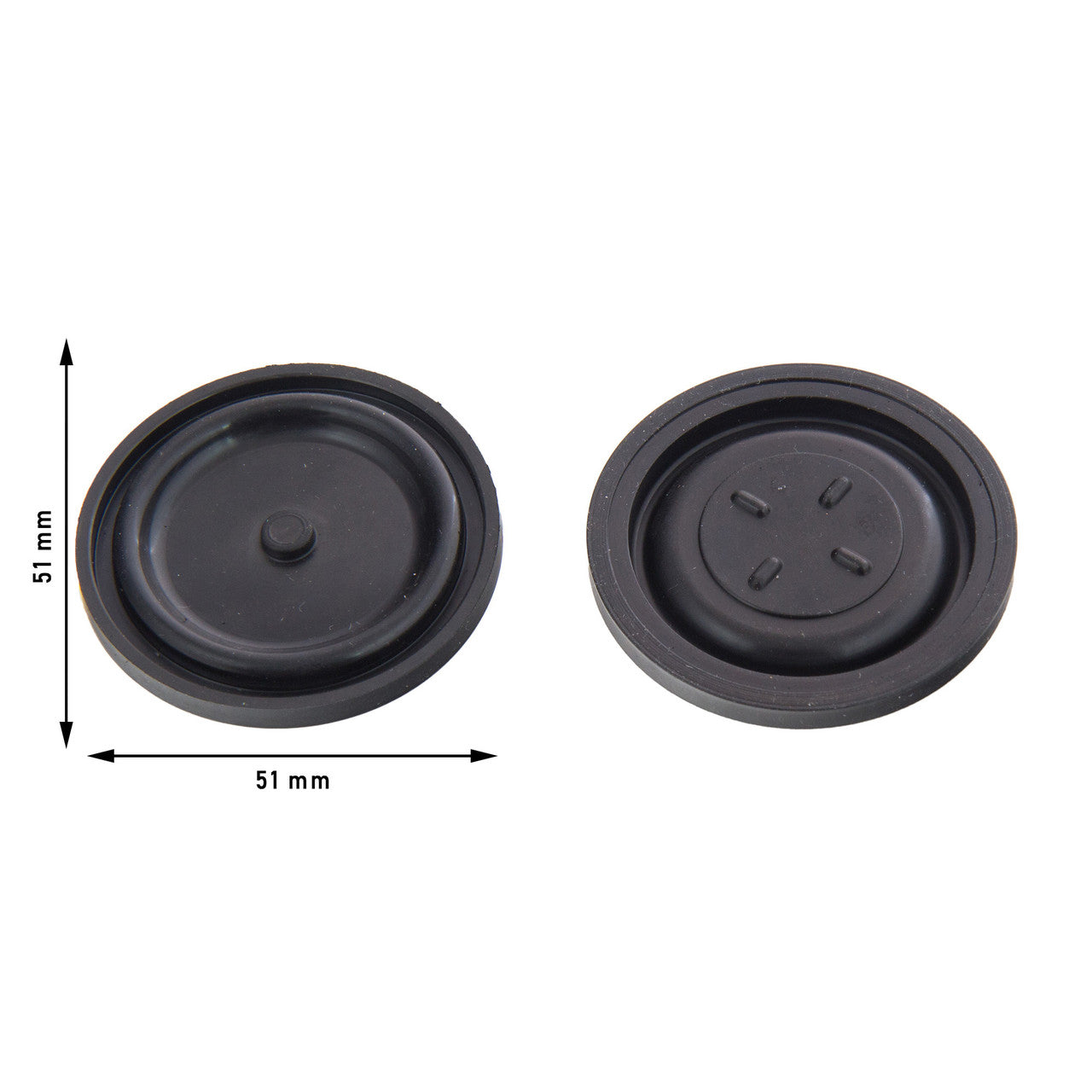

The diaphragm of the crankcase ventilation valve ( cylinder head covers) FORD 1.6D / 1.6TDCI / 1.6 DI TURBO. Membrane diameter: D=51mm

OEM : 1479837, 1690275, 3M5Q-6K271-AC
Application:

• C-MAX   2003-2010
• Fiesta VI  2008>
• Focus II   2005-2008
• Focus II   2008-2011
• Fusion

The crankcase gas ventilation valve (PCV) is an important part of any car that has a unipolar orientation. This spare part is responsible for the movement of gases from the crankcase into the intake tract and does not allow their reverse movement. And one of the central parts of such repair kits is the membrane. It is necessary for valve covers. The quality of the whole mechanism depends on the integrity of the PCV membrane.

The crankcase gas ventilation valve works as follows:

•   when the motor is at rest, the diaphragm closes the valve;
•   at idle, against the background of a discharged gas medium, the PCV opens slightly and crankcase gases in small volumes enter the intake manifold;
•   when the speed increases, the membrane completely departs, and the gases go through it in full.

As you can see for yourself, the principle of operation of the valve cover membrane is almost elementary, but very effective. And you can buy this spare part from us at the lowest prices, and the quality will not be inferior to the original parts. Which, by the way, are not produced separately, but only as part of a whole repair kit. This element is installed very simply, you do not need to contact an auto repair shop for this.
