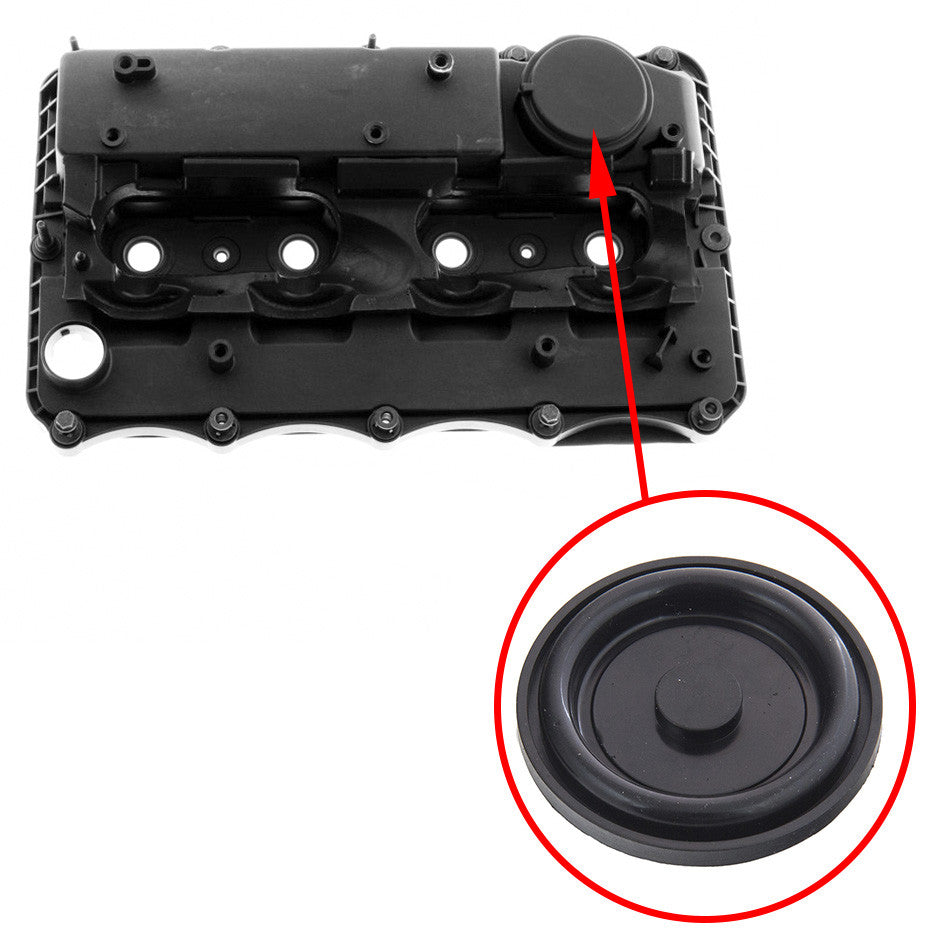

Valve Cover Diaphragm 78mm - Ford / Citroen / Peugeot / Land Rover - 1858445

This 78mm valve cover diaphragm is a separate replacement component for the listed Ford, Citroen, Peugeot and Land Rover cover assemblies. Check the original cover marking, diaphragm diameter and mounting before ordering.

Applications

• Ford Ranger TKE - from 2012.
• Ford Transit TT9 - 2006-2014.
• Ford Transit / Tourneo Custom TTF - from 2012.
• Ford Transit TTG - from 2014.
• Citroen Jumper III.
• Peugeot Boxer III.
• Land Rover Defender - from 2007, 2.2L.

Diaphragm and Housing Selection

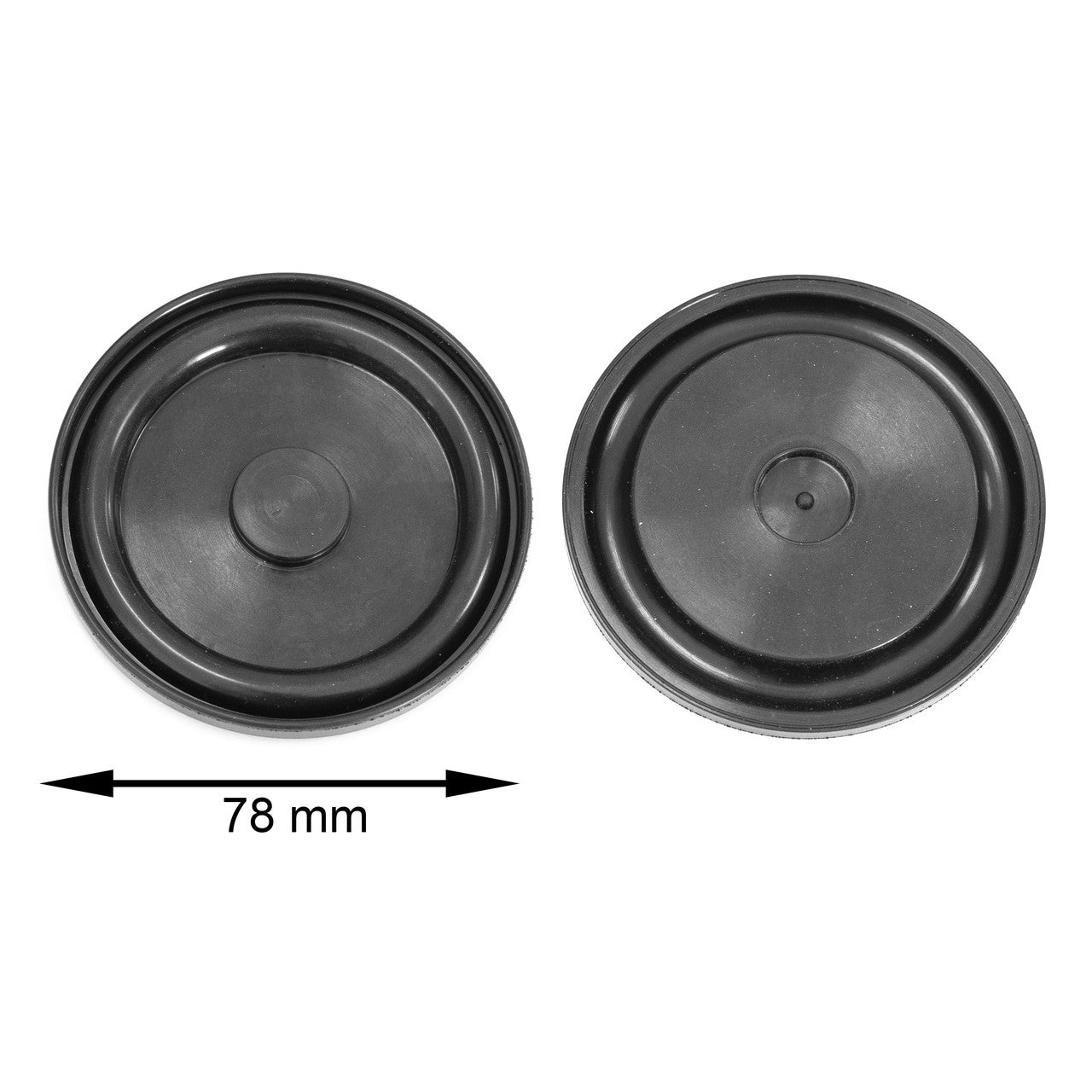

Diaphragm diameter: 78mm. Diaphragm designation: 50005080. Ford cover context: 1858445, 1790011, 1717679, 1738747, 1750047, 1762388, 1780384, BK2Q6K271AK. Citroen/Peugeot: 9675691480. Land Rover: LR043158 and LR058093.

When to Inspect the Cover and Ventilation

• Oil leakage or oil mist around the valve cover.
• Burnt-oil smell after warm-up.
• Intake air leaks through the cover or crankcase ventilation.
• Unstable idle.
• Increased oil consumption.
• Whistling, abnormal vacuum or mixture faults associated with leakage.

Check the cover, diaphragm and ventilation system to establish the cause. These symptoms do not confirm diaphragm failure on their own.

Repair Scope

This is the separate valve cover diaphragm, rather than a complete cover. Check the housing, seating surfaces and ventilation pipes for cracks or damage. If the housing is damaged, replacing the diaphragm alone may be insufficient.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What is the diaphragm diameter?

78mm.

Is the complete valve cover supplied?

No. The product is the replacement diaphragm.

What should I inspect before fitting?

Check the cover or separator housing, seating surfaces and ventilation pipes for cracks or damage; match the original reference.

Part Number / PN

1858445,9675691480,1790011,1717679,1738747,1750047,1762388,1780384,50005080,BK2Q6K271AK,LR058093,LR043158,bk2q6k271ad,bk2q6k271ae,bk2q6k271af,bk2q6k271ag,bk2q6k271ah,bk2q6k271aj,6k271ak,6k271ad,6k271ae,6k271af,6k271ag,6k271ah,6k271aj

SKU: KL1858445.
