Valve Cover Diaphragm 57mm - Fiat / Alfa / Lancia / Opel / Citroen / Peugeot - 5607164
Reviews for this product
No reviews for this product yet
Save 17%
In stock
Regular price
$19.00
Sale price
$19.00
Regular price
$23.00
Delivery within the USA
Ships from Miami, FL when the ordered quantity is available in our US warehouse.
USPS Ground Advantage / FedEx
US delivery: typically 2–5 business days after dispatch
US warehouse: USPS/FedEx shipping is calculated at checkout based on your delivery address.
Checking warehouse availability…
KLIFEX customer reviews
4.8 / 5
146 reviews
Reviews across all products in our store
Read customer reviewsCouldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns
This 57mm diaphragm is a separate valve cover repair component for the listed applications. Match the original cover reference, engine context and diaphragm seat before selecting the replacement.
Applications
- Fiat DOBLO (2000-2004).
- Fiat DOBLO MY. 2004 (2004-2005).
- Fiat DOBLO REST. 2005 (from 2005).
- Fiat STRADA (1999-2005).
- Fiat BRAVA G.98 BZ/DS (1998-2001).
- Fiat BRAVO G.98 BZ/DS (1998-2001).
- Fiat CROMA (2005-2010).
- Fiat GRANDE PUNTO (2005-2008).
- Fiat GRANDE PUNTO (2008-2009).
- Fiat IDEA (2003-2008).
- Fiat IDEA (2008-2012).
- Fiat MAREA DS GAMMA"99 (1999-2002).
- Fiat MULTIPLA (1998-2010).
- Fiat NUOVA BRAVO (2007-2009).
- Fiat NUOVA BRAVO MY 2010 (from 2010).
- Fiat PALIO WE EUROPA REST. (2002-2004).
- Fiat PALIO WE EXTRA EUROPA REST. 2002 (2002-2008).
- Fiat PUNTO DS (1999-2003).
- Fiat PUNTO FL."03 (2003-2010).
- Fiat SEDICI (2006-2011).
- Fiat STILO BZ/DS (2001-2003).
- Fiat STILO F.L.L. 2003 (2003-2007).
- Alfa Romeo 147 BZ/DS (2000-2010).
- Alfa Romeo 156 M.Y.2002 BZ/DS (2001-2005).
- Alfa Romeo 156 TD.ID. (1997-2002).
- Alfa Romeo 159 MY11 (2010-2011).
- Alfa Romeo ALFA 159 (2005-2008).
- Alfa Romeo ALFA 159 (2008-2010).
- Lancia LYBRA DS (1999-2005).
- Lancia MUSA (2004-2007).
- Lancia MUSA (2007-2011).
- Opel ASTRA-H (A04).
- Opel SIGNUM (Z03).
- Opel VECTRA-C (Z02).
- Opel ZAFIRA-B (A05).
- Citroen BERLINGO II VP.
- Citroen XSARA.
- Citroen XSARA II.
- Citroen C15.
- Citroen BERLINGO.
- Citroen BERLINGO II VU.
- Citroen JUMPY.
- Peugeot PARTNER passenger facelift.
- Peugeot 306 facelift.
- Peugeot 206.
- Peugeot T3.
- Peugeot PARTNER.
- Peugeot PARTNER commercial facelift.
- Peugeot EXPERT.
Diaphragm and Housing Selection

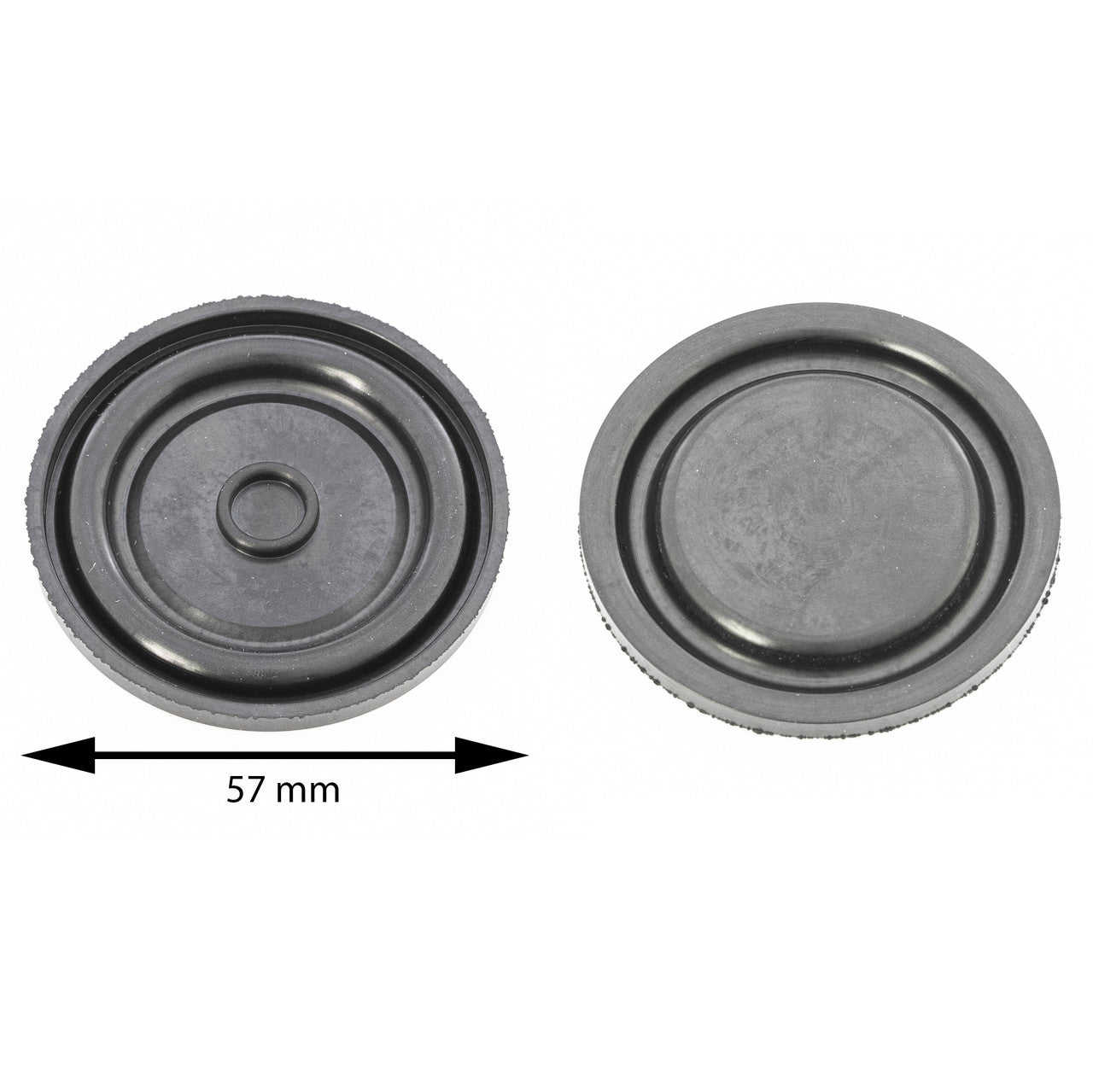

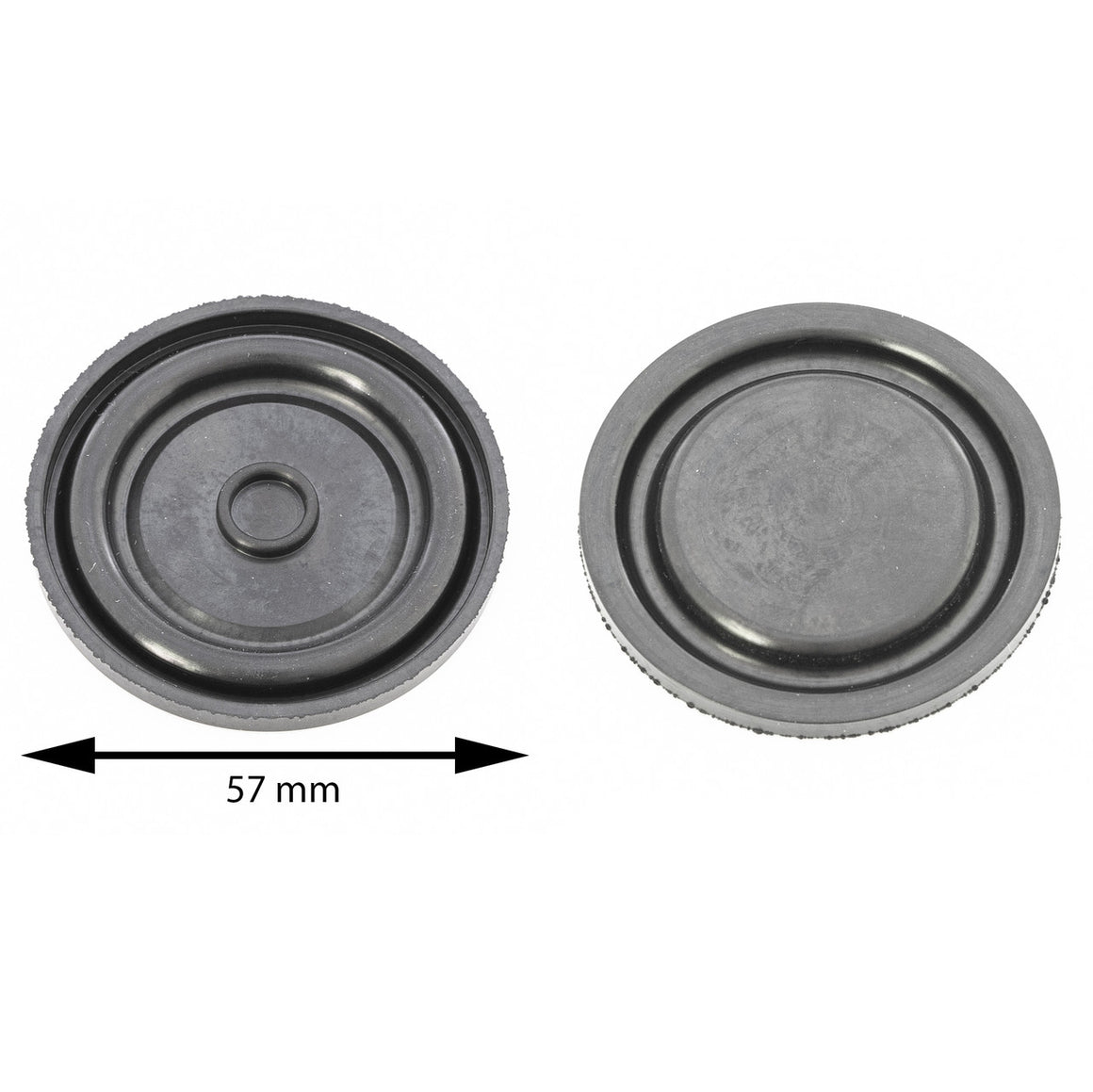

Diaphragm diameter: 57mm. Fiat/Alfa Romeo/Lancia 1.9JTD-MTJ: 55197017, 0055197017, 73500695, 9653567980, 46557349, 46530606. Opel 1.9 Z19DT: 5607164, 93184455, 93178491. Citroen/Peugeot 1.9D: 9628257080, 0248G3. Citroen/Peugeot 2.0hdi: 0248G5, 0248N3, 9630142180, 9630593480.
When to Inspect the Cover and Ventilation
- Oil leakage or oil mist around the valve cover.
- Burnt-oil smell after warm-up.
- Intake air leaks through the cover or crankcase ventilation.
- Unstable idle.
- Increased oil consumption.
- Whistling, abnormal vacuum or mixture faults associated with leakage.
Check the cover, diaphragm and ventilation system to establish the cause. These symptoms do not confirm diaphragm failure on their own.
Repair Scope
This is the separate valve cover diaphragm, rather than a complete cover. Check the housing, seating surfaces and ventilation pipes for cracks or damage. If the housing is damaged, replacing the diaphragm alone may be insufficient.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
What is the diaphragm diameter?
57mm.
Is the complete valve cover supplied?
No. The product is the replacement diaphragm.
What should I inspect before fitting?
Check the cover or separator housing, seating surfaces and ventilation pipes for cracks or damage; match the original reference.
Part Number / PN
5607164,0055197017,73500695,9653567980,46557349,93184455,0248N3,9630142180,46530606,93178491,0248G3,9630593480,55197017,9628257080,0248G5
SKU: KL5607164.
