Valve Cover Diaphragm 57mm - Fiat / Lancia / Citroen / Peugeot / Suzuki - 9631367880

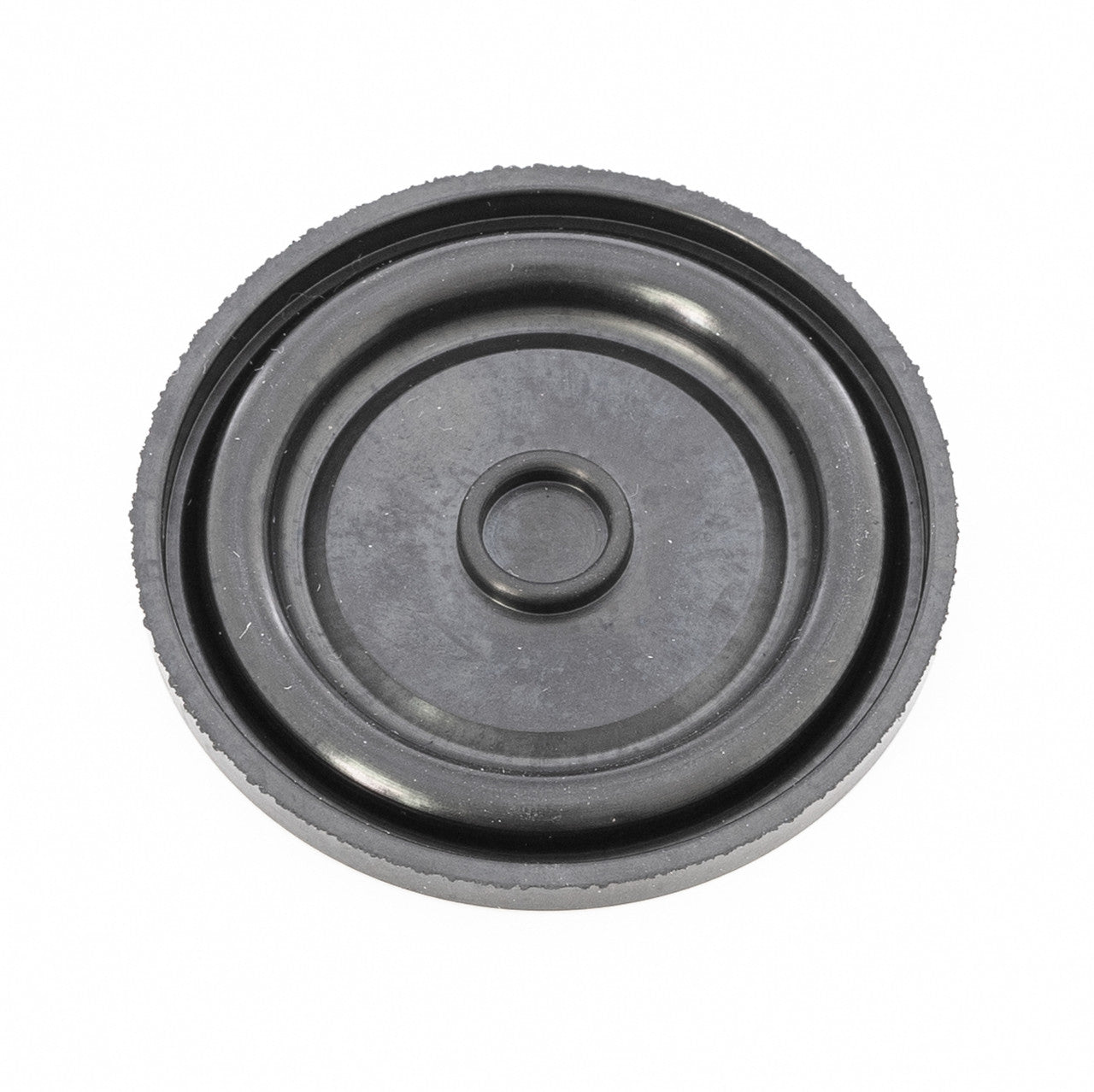

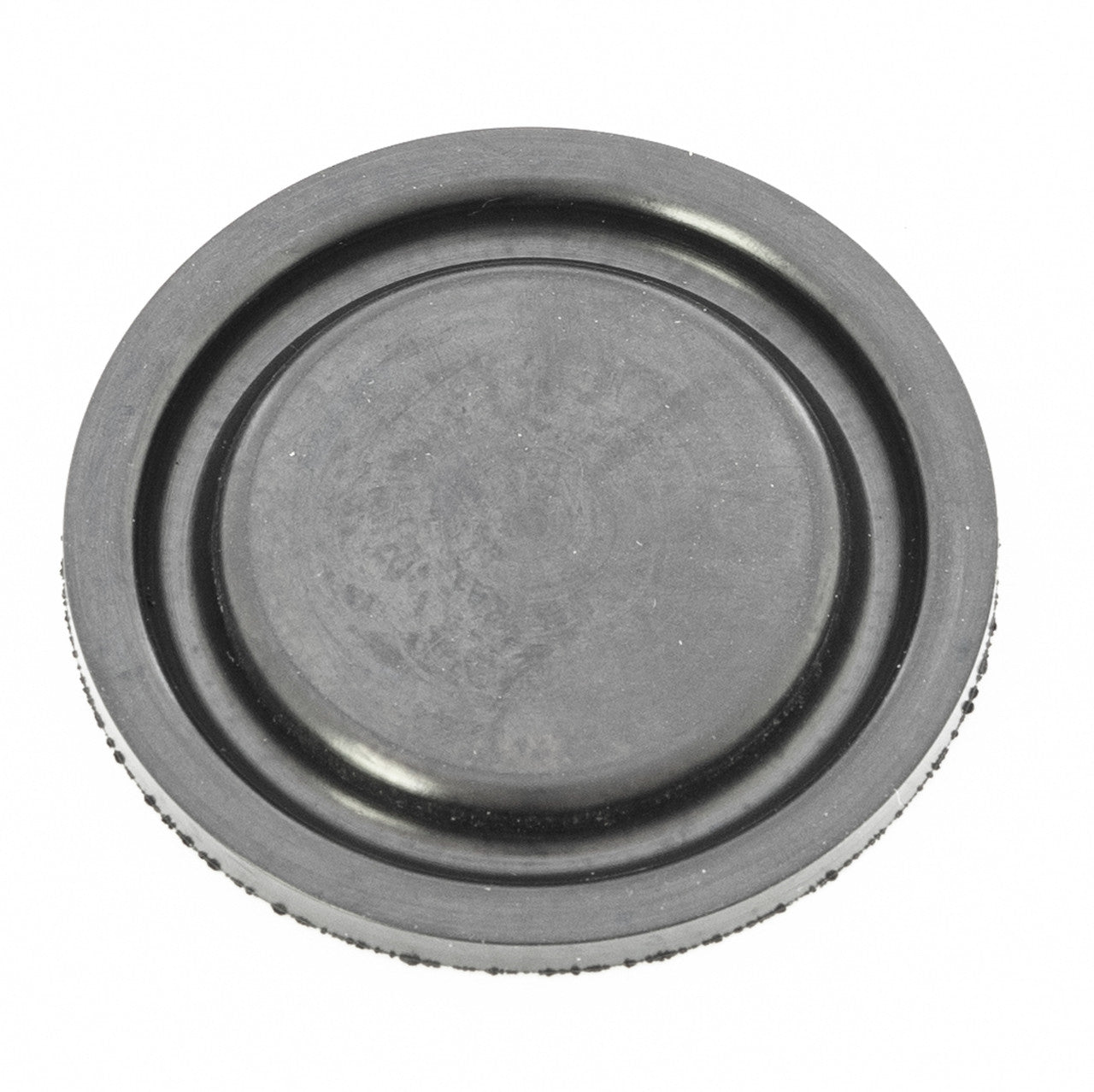

This 57mm valve cover diaphragm is a separate repair component for the listed applications. Match the original cover number and diaphragm seat rather than selecting by model alone.

Applications

• Fiat NUOVO ULYSSE (2001-2010).
• Fiat ULYSSE (1994-2002).
• Fiat SCUDO (1995-2004).
• Fiat SCUDO FL.2004 (2004-2006).
• Lancia "Z" (1994-2002).
• Lancia PHEDRA (2001-2010).
• Citroen C5.
• Citroen C5 II.
• Citroen C8.
• Citroen EVASION.
• Citroen JUMPY I & II.
• Peugeot 406 RESTYL.
• Peugeot 607.
• Peugeot 607 RESTYL.
• Peugeot 806.
• Peugeot 807.
• Peugeot EXPERT.
• Suzuki Grand Vitara 2.0 hdi.

Diaphragm and Housing Selection

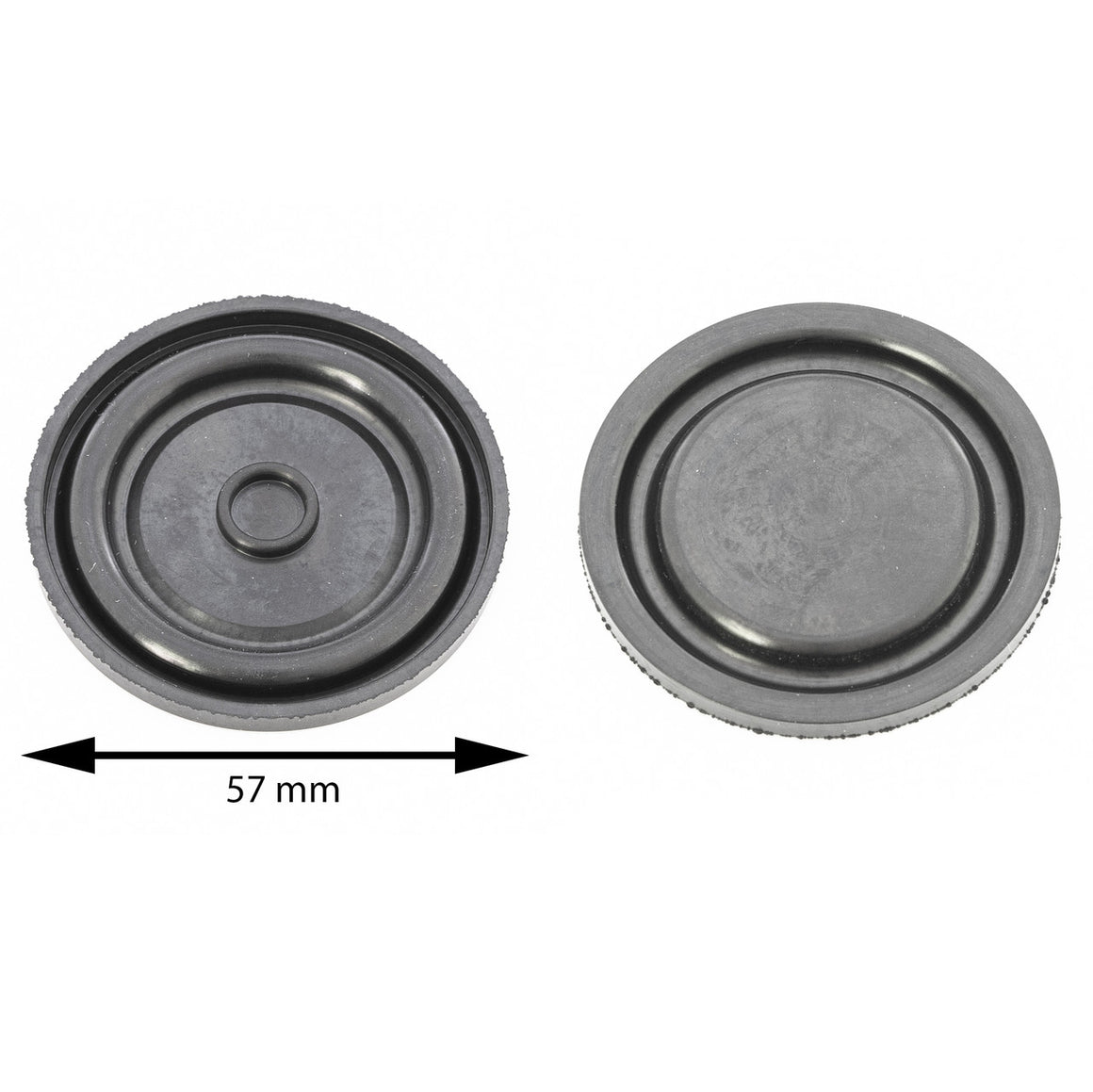

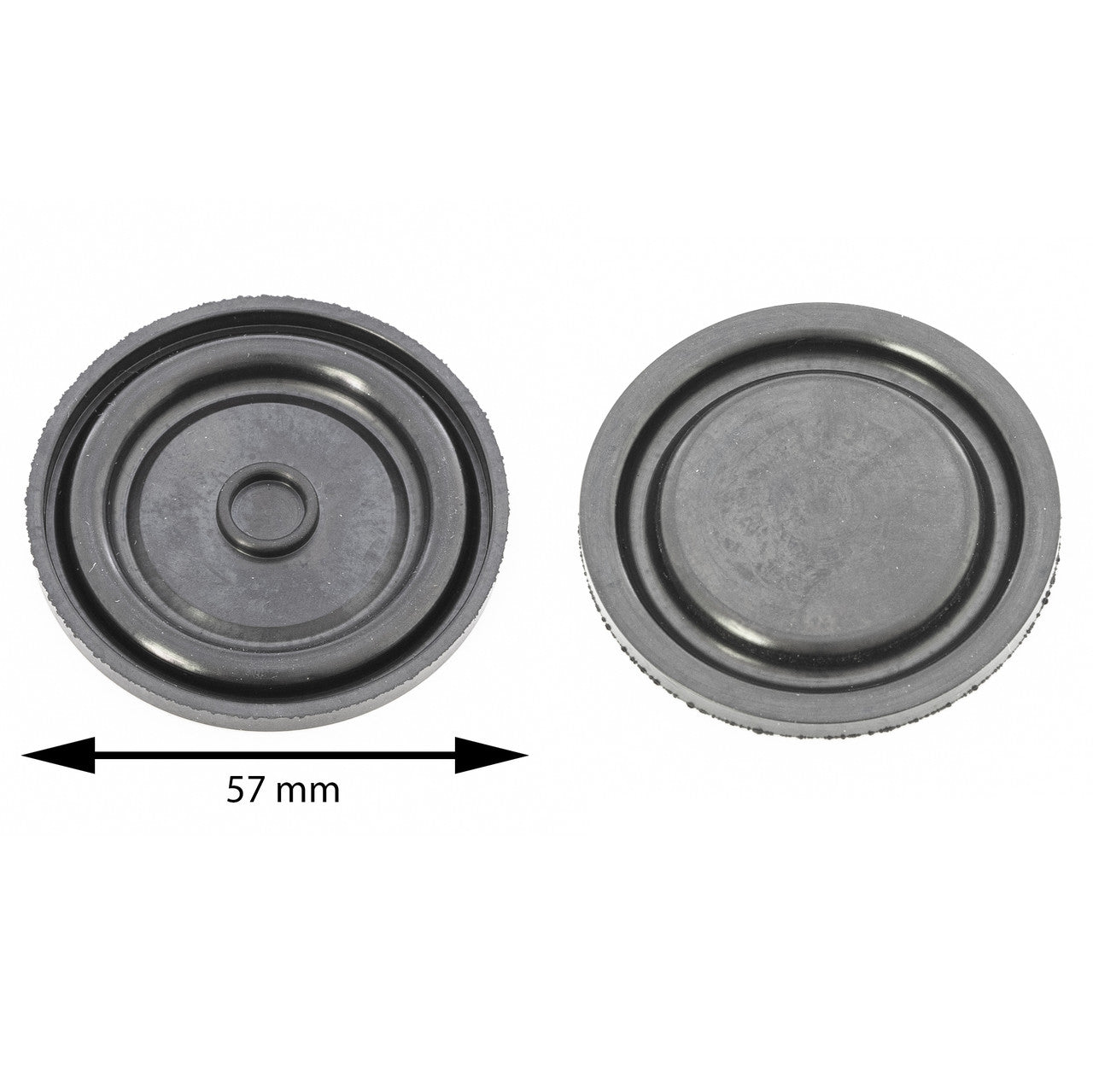

Diaphragm diameter: 57mm. Compare 9631367880, 0248H7 and 11170-67J00. Suzuki application context: Grand Vitara 2.0 hdi.

When to Inspect the Cover and Ventilation

• Oil leakage or oil mist around the valve cover.
• Burnt-oil smell after warm-up.
• Intake air leaks through the cover or crankcase ventilation.
• Unstable idle.
• Increased oil consumption.
• Whistling, abnormal vacuum or mixture faults associated with leakage.

Check the cover, diaphragm and ventilation system to establish the cause. These symptoms do not confirm diaphragm failure on their own.

Repair Scope

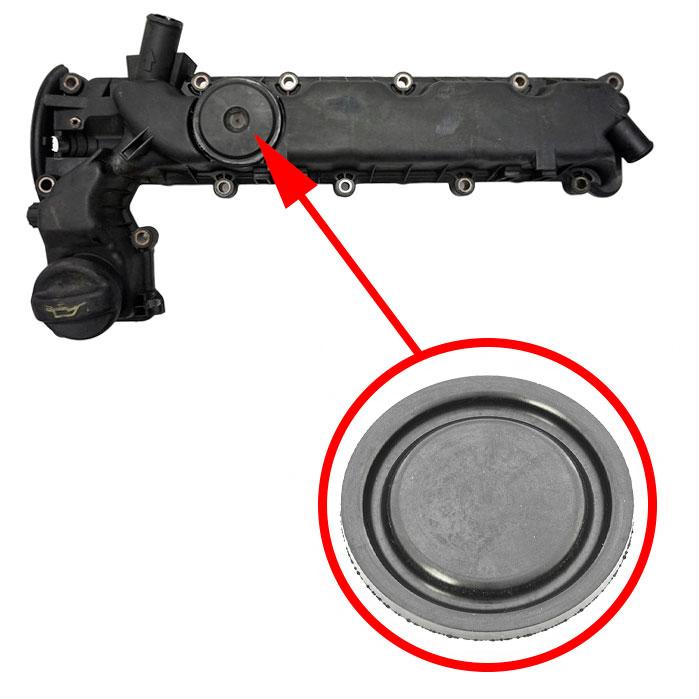

This is the separate valve cover diaphragm, rather than a complete cover. Check the housing, seating surfaces and ventilation pipes for cracks or damage. If the housing is damaged, replacing the diaphragm alone may be insufficient.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What is the diaphragm diameter?

57mm.

Is the complete valve cover supplied?

No. The product is the replacement diaphragm.

What should I inspect before fitting?

Check the cover or separator housing, seating surfaces and ventilation pipes for cracks or damage; match the original reference.

Part Number / PN

9631367880,0248H7,11170-67J00

SKU: KL9631367880.
