VAG oil separator membrane 1.8 / 2.0 / 2.5 TSI TFSI 06H103495

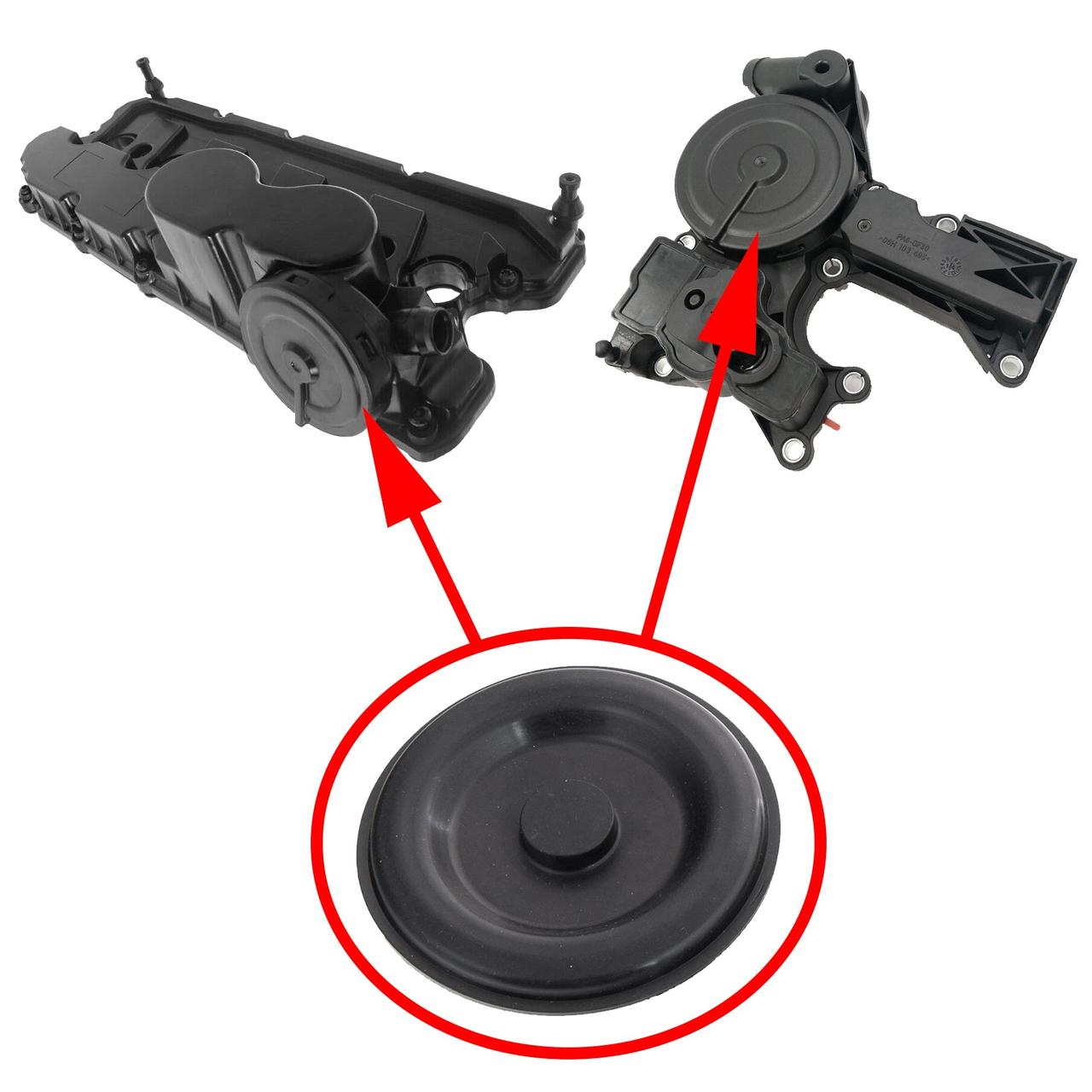

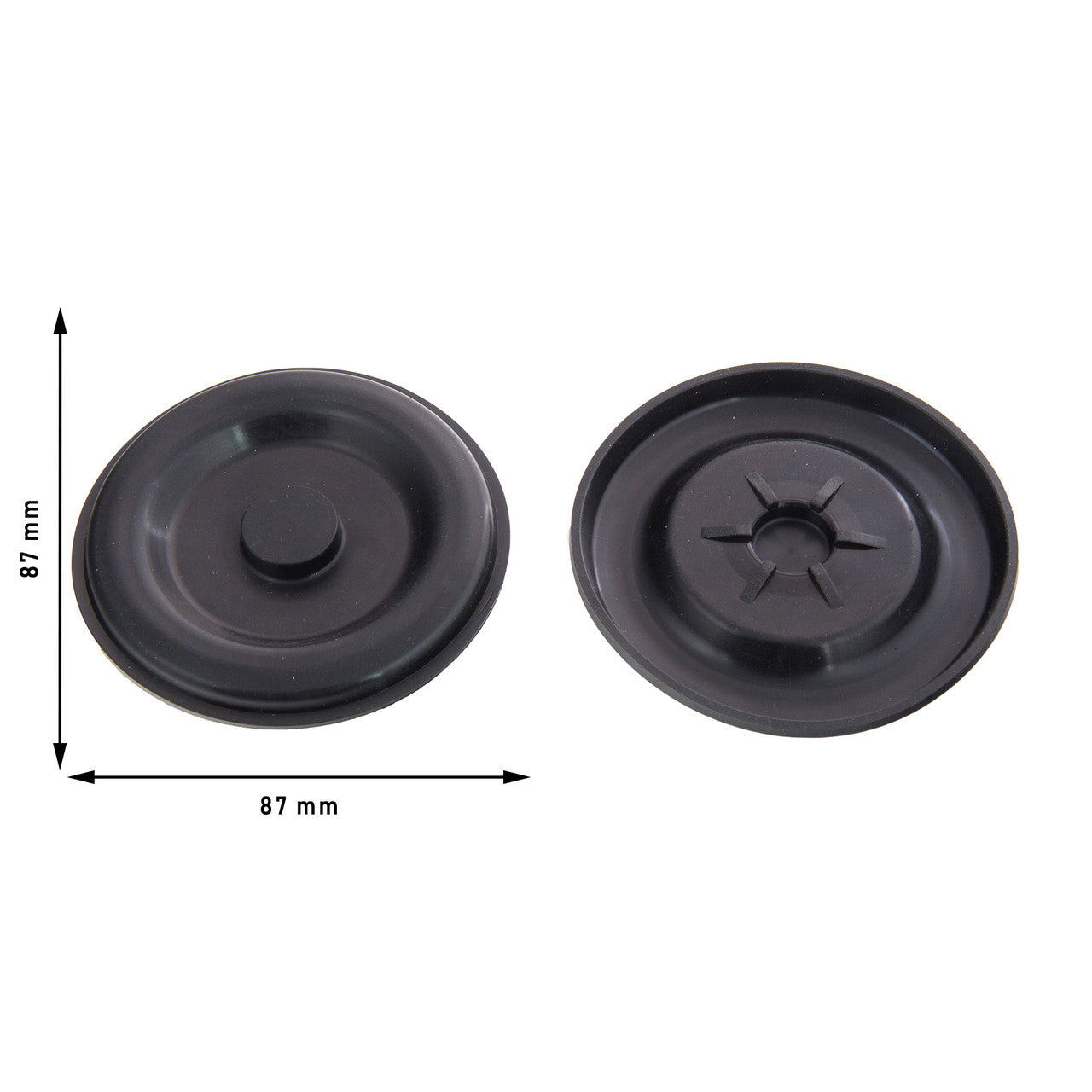

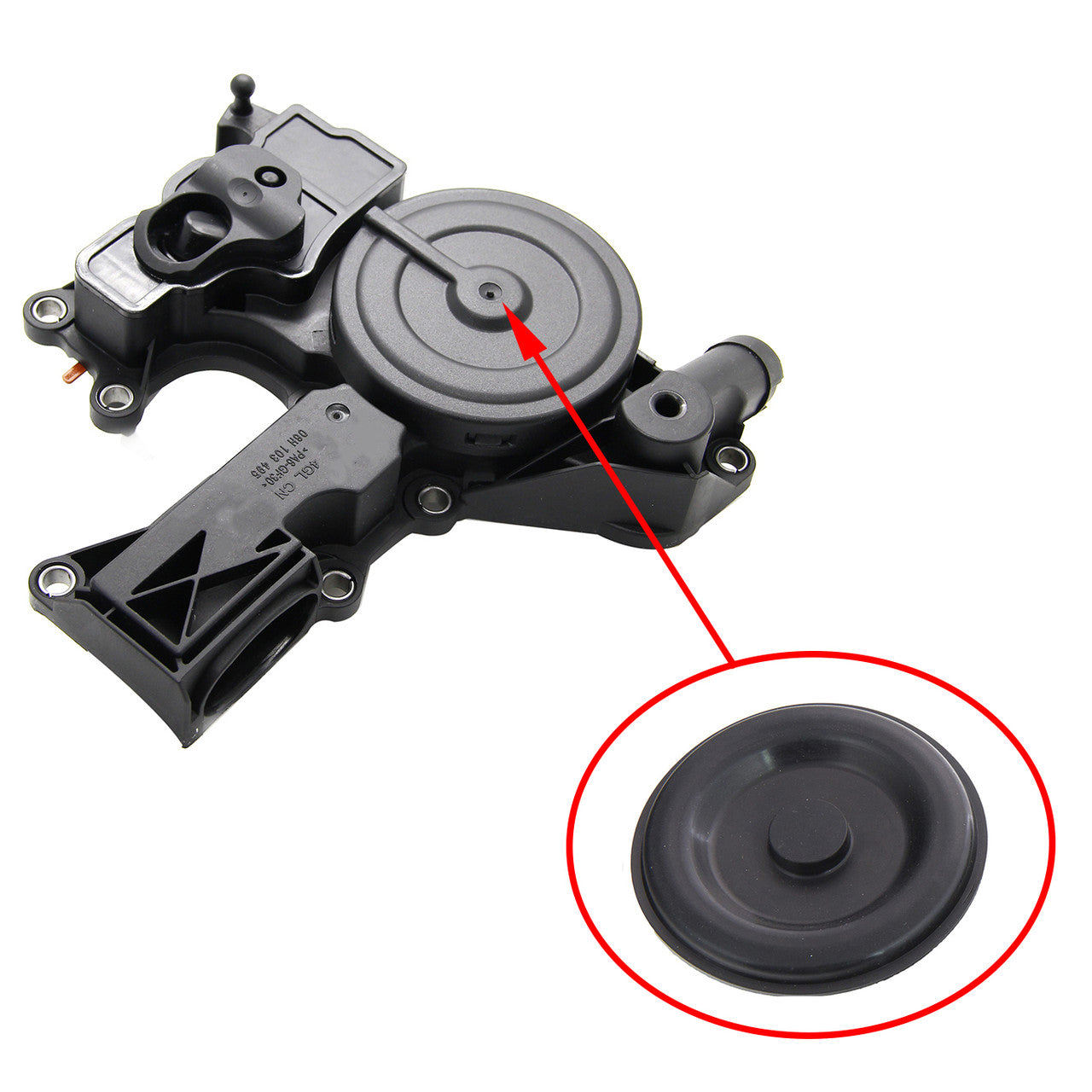

Membrane PCV oil separator VAG 06H103495, 06K103495R, 07K103469L.Engine 1.8 TSI / 2.0 TSI TFSI / 2.5

When the car is in operation for a certain time and it is actively used for its intended purpose, or after reaching a mileage of 100,000 kilometers, parts such as the oil separator membrane become unsuitable for further use. This spare part is covered with cracks, flaws appear on its surface, it becomes rigid, elasticity is lost. And as a result, this leads to complete damage, that is, rupture of the diaphragm. Further, it is not possible to use it, because it disrupts the normal functioning of the motor.

Understand that replacement of the VAG oil separator membrane is required 1.8 / 2.0 / 2.5 TSI TFSI 06H103495 is a non–trivial task:

• You hear an unusual whistle (air intake) at the location of the oil separator.
• You regularly notice intermittency while the machine is idling.
• The consumption of fuel and lubricants has significantly increased.
• There is instability in the ignition, up to a complete failure to start.

It is logical that the oil separator diaphragm should be replaced as soon as possible. However, the car manufacturers Volkswagen, Audi, Seat, Skoda and many others did not provide for the supply of this spare part as a separate part, only in assembly. This causes serious costs for motorists. For this reason, Klifex produces and sells oil separator diaphragms for most modern cars without the need to purchase a whole repair kit. The membrane is made in exact accordance with the original spare part – both in terms of parameters and quality characteristics, but only the price is several times lower.

If you have any questions about compatibility or other aspects of repairing your car, just contact our representative. Our manager will be happy to answer all the topics you are interested in.

VAG Oil Separators:

• 06H103495

• 06H103495AC

• 06H103495AD

• 06H103495AE

• 06H103495AG

• 06H103495A

• 06H103495B

• 06H103495C

• 06H103495D

• 06H103495E

• 06H103495H

• 06H103495J

• 06H103495K

• 06H103495N

• 06K103495Q

• 06K103495AH

• 06H103495AK

• 06K103495AC

• 06K103495AP

• 06K103495C

• 06K103495R

• 06K103495AS

• 06K103495T

• 06K103495J

• 06K103495AF

• 06K103495BL

• 07K103469G

• 07K103469L

• 07K103469M

• 07K103469F

The VAG 06H103495 oil separator (06H 103 495 A, 06H 103 495 B, 06H 103 495 J, 06H103495A, 06H103495B, 06H103495E, 06H103495J, 06H103495AD, 06H103495AC, 06H103495H, 07K103469G 07K103469L) was installed on the following cars:

• VW Passat 2009 - 2011
• VW Passat CC 2009 - 2012
• VW Passat/4Motion/Santana 2009 - 2015
• Audi A3 Cabriolet 2008 - 2013
• Audi A3/S3/Sportb./Lim./qu 2008 - 2013
• Audi A4 allroad quattro 2010 - 2015
• Audi A4/Avant 2008 - 2012
• Audi A4/S4/Avant/quattro 2008 - 2012
• Audi A5/S5 Cabriolet 2010 - 2011
• Audi A5/S5 Coupe/Sportback 2008 - 2011
• Audi Q5 2009 - 2012
• Audi TT Coupe/Roadster 2007 - 2015
• Audi TT/TTS Coupe/Roadster 2007 - 2015
• Seat Exeo/ST 2009 - 2014
• Skoda Octavia 2004 - 2013
• Skoda Superb 2008 - 2015
• Skoda Yeti 2010 - 2015
• VW Amarok 2010 - 2015
• VW Beetle 2012 - 2015
• VW CC 2012 - 2015
• VW Eos 2009 - 2015
• VW Golf Variant 2010 - 2014
• VW Golf/R32/GTI/Rabbit 2010 - 2013
• VW Golf/Variant/4Motion 2007 - 2014
• VW Jetta 2005 - 2014 VW Jetta Variant 2008 - 2014

• Audi
• Seat
• SKODA
• Volkswagen
