Air Extraction Flap Diaphragm – VAG / Audi 2.4 / 2.8 / 3.2 FSI | OEM 06E103547E
Save 19%
In stock
Regular price
$21.00
Sale price
$21.00
Regular price
$26.00
Delivery within the USA
Ships from Miami, FL when the ordered quantity is available in our US warehouse.
USPS Ground Advantage / FedEx
US delivery: typically 2–5 business days after dispatch
Checking warehouse availability…
Couldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns

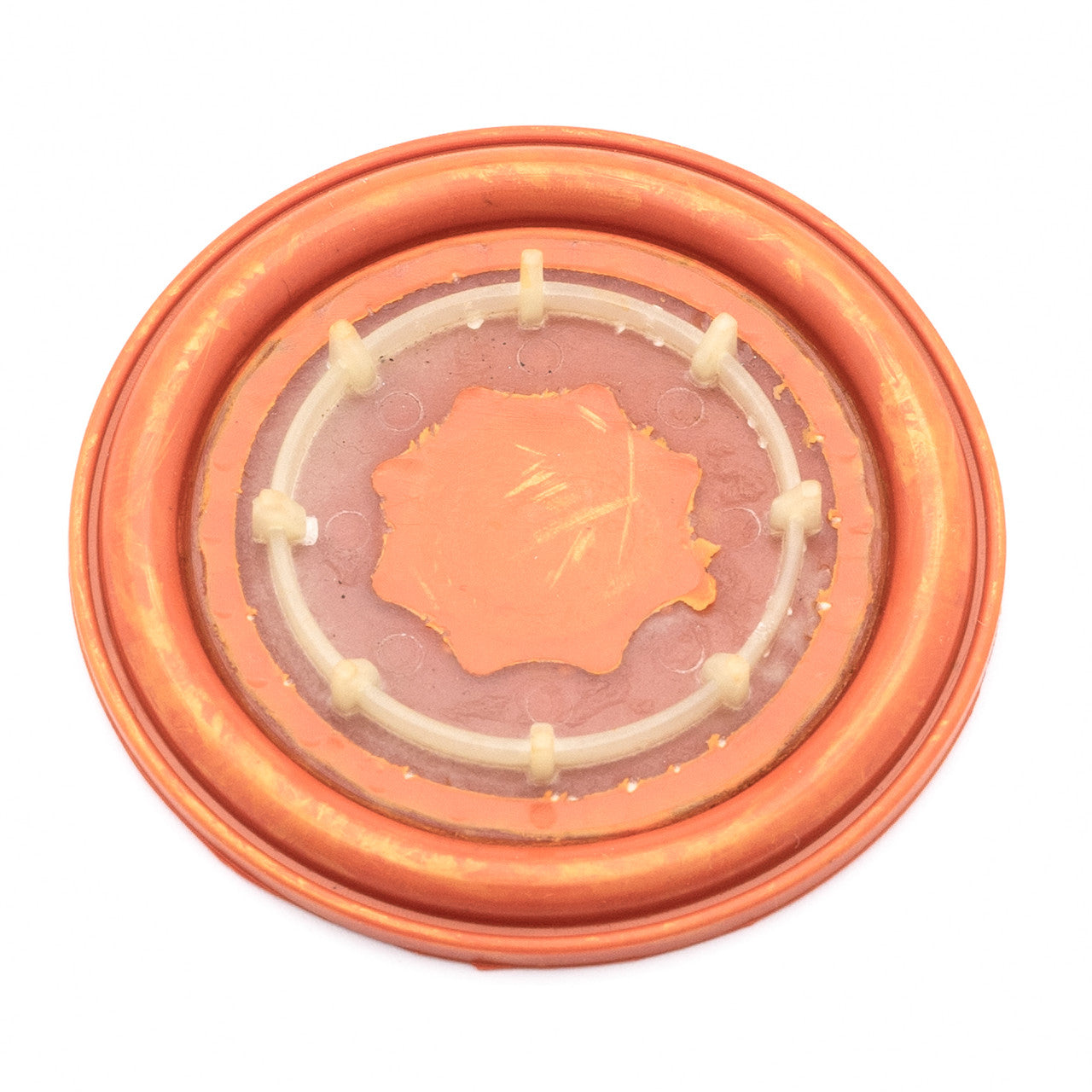

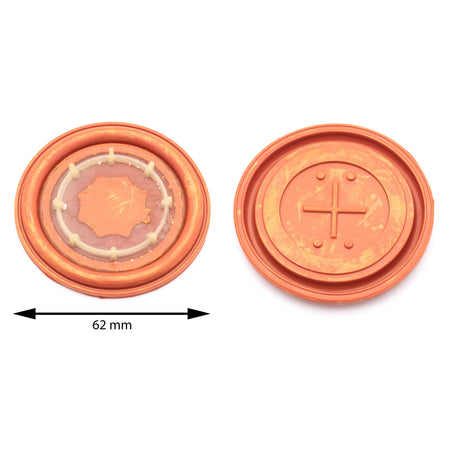

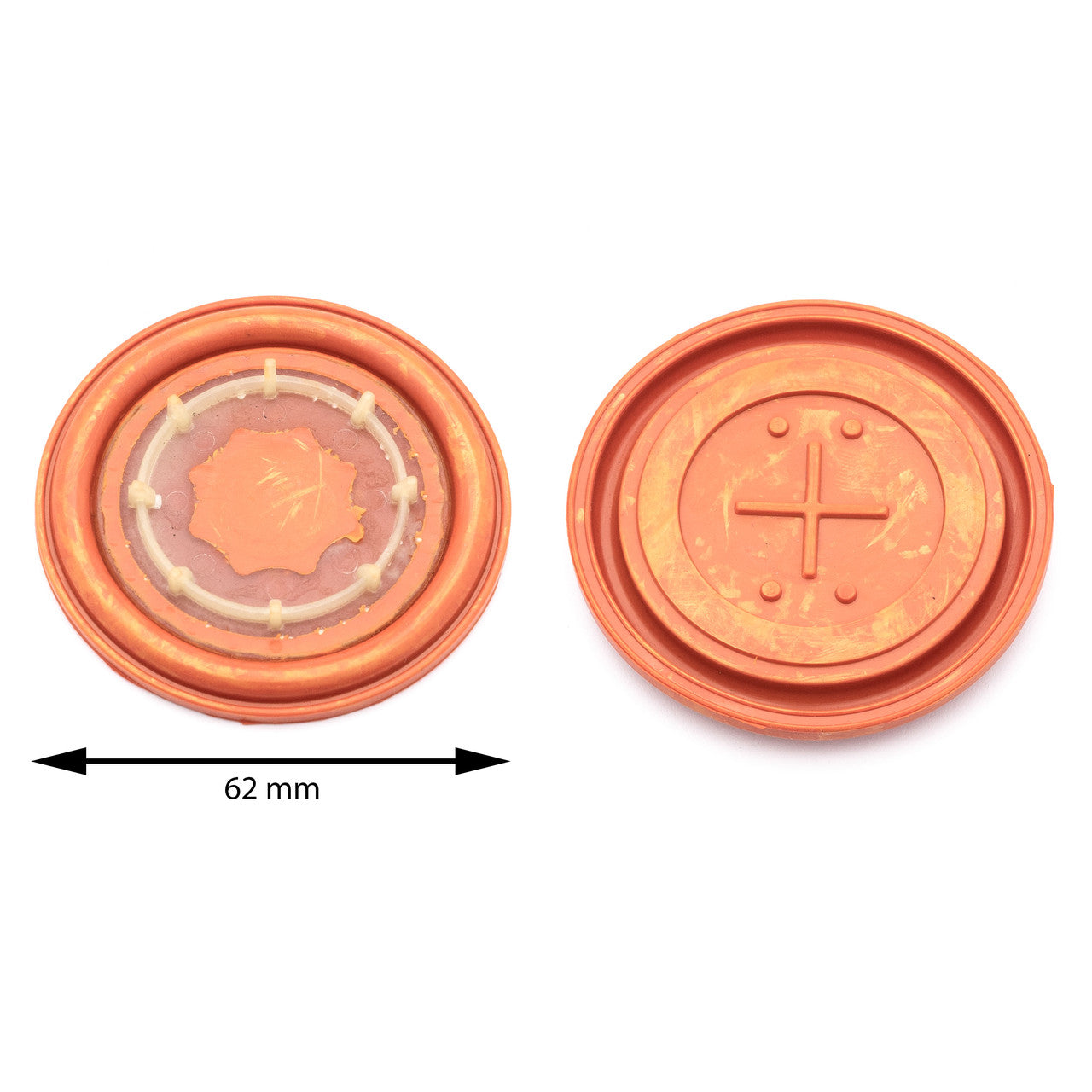

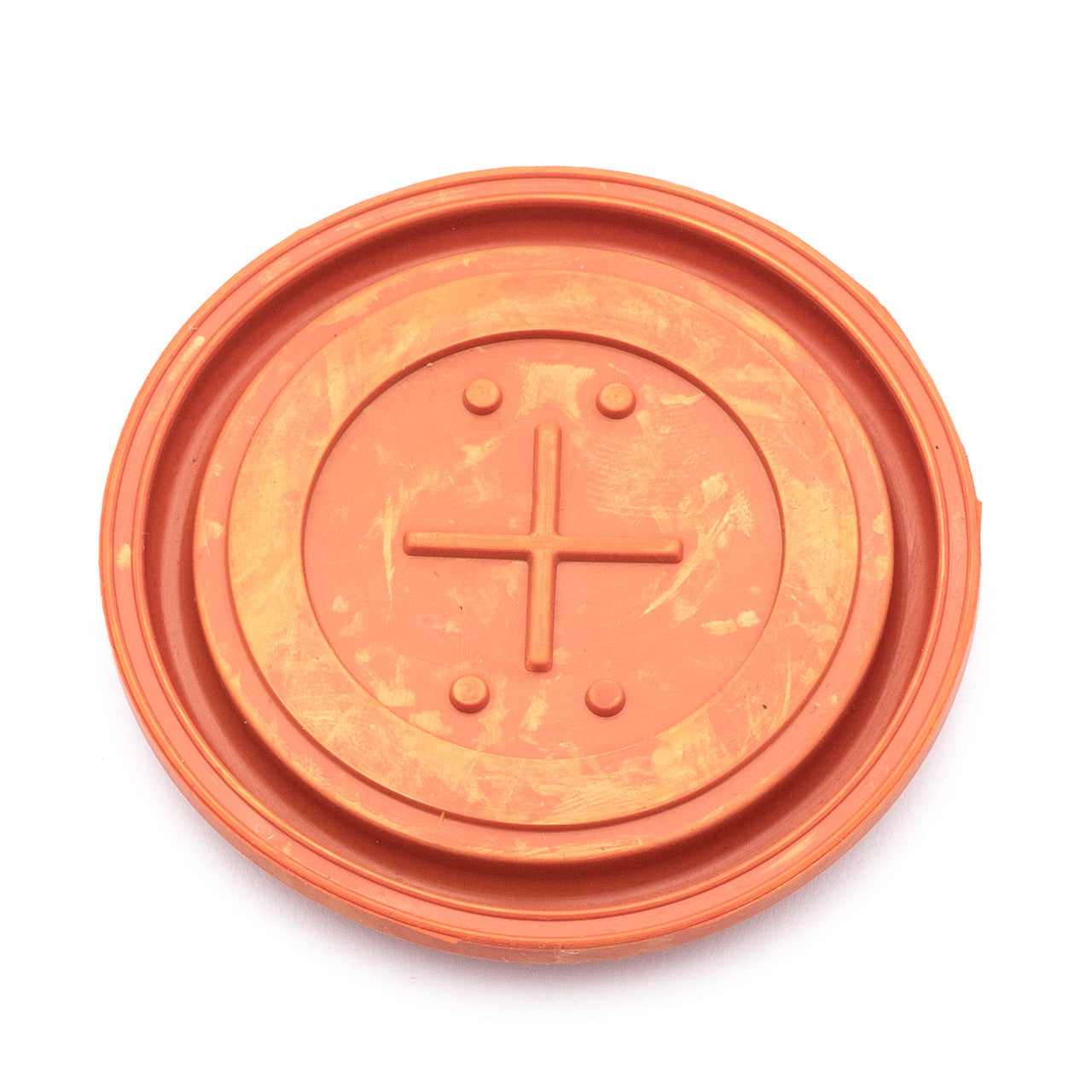

06E103547E Air Extraction Flap Diaphragm for Audi 2.4 2.8 3.2 FSI

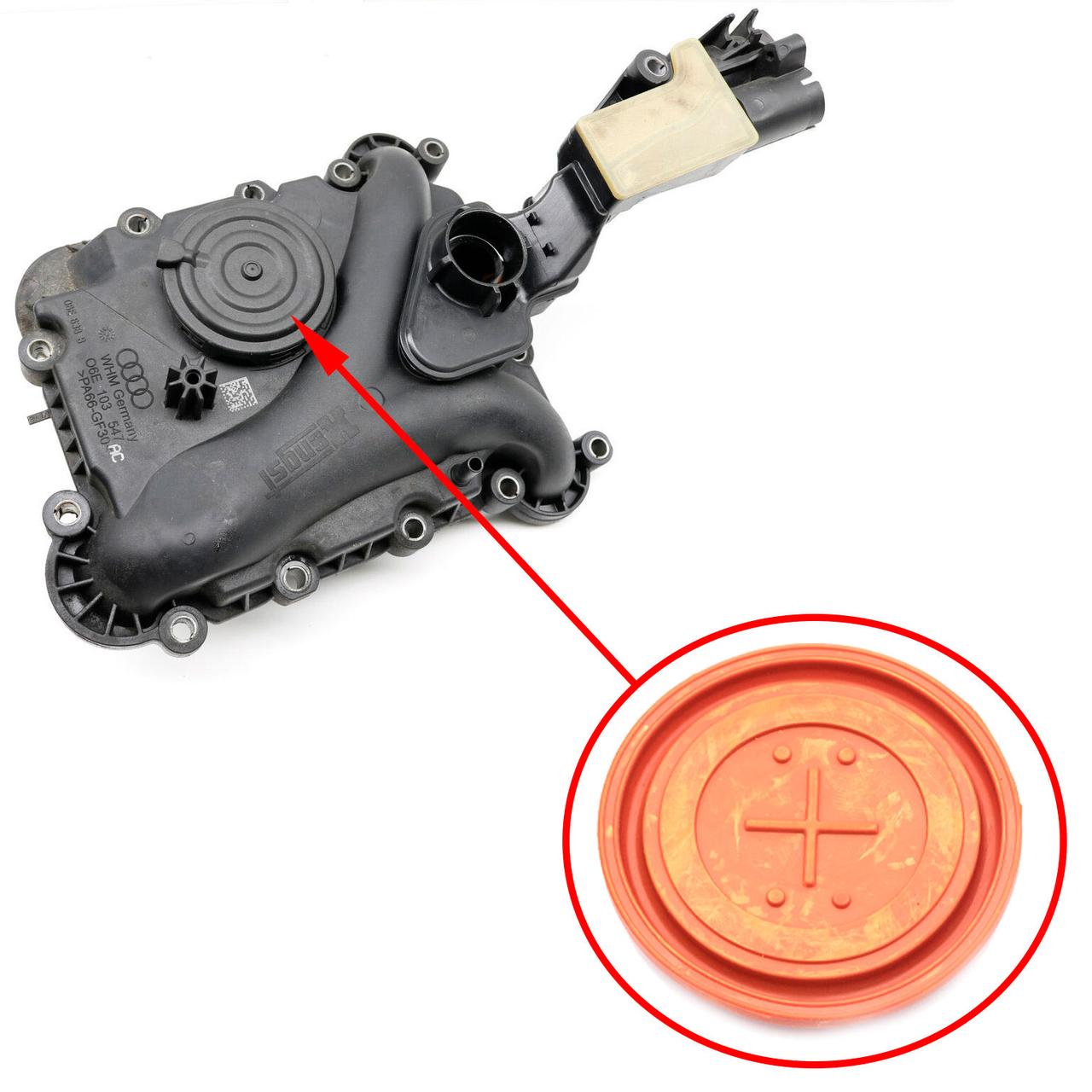

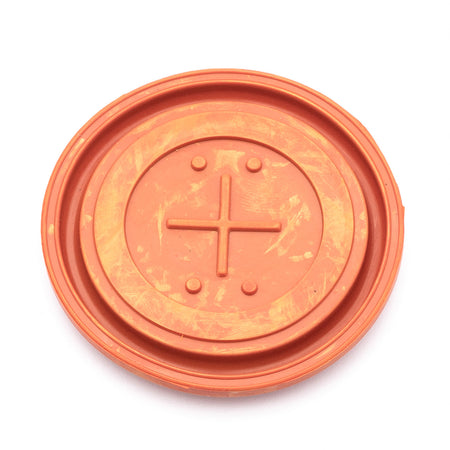

The 06E103547E air extraction flap diaphragm is a replacement membrane for selected Audi 2.4, 2.8 and 3.2 FSI applications. It is designed to repair the existing air extraction flap actuator system without replacing the complete flap assembly.
This product is an air extraction flap diaphragm only. It should not be treated as a PCV membrane, oil separator diaphragm, valve cover diaphragm or complete actuator assembly.
OEM / Reference Numbers
Primary OEM: 06E103547E
Related / Reference Numbers:
- 06E103547P
- 06E103547A
- 06E103547C
- 06E103547F
- 06E103547G
- 06E103547R
- 06E103547L
- 06E103547
Part Type
- Air extraction flap diaphragm
- Flap actuator membrane
- Vacuum diaphragm
- Audi FSI flap diaphragm
What This Part Does
This diaphragm works inside the flap actuator system and helps the actuator move correctly under vacuum control. When the original membrane becomes damaged, the flap mechanism may stop operating correctly and can affect system response.
Compatible Vehicles
This diaphragm is intended for selected Audi 2.4, 2.8 and 3.2 FSI applications using the matching 06E103547E air extraction flap actuator design.
Please verify OEM number, engine type and flap actuator design before ordering.
Engine / Engine Family / Technical Detail
- Engine focus: Audi 2.4 FSI, 2.8 FSI, 3.2 FSI
- Part format: air extraction flap diaphragm only
Common Symptoms of Failure
- Flap actuator not operating correctly
- Vacuum leak symptoms at the actuator
- Reduced flap control function
- Unstable system operation related to actuator failure
- Need to repair the flap unit instead of replacing the complete assembly
Why Choose This Replacement
- Targets exact OEM intent for 06E103547E

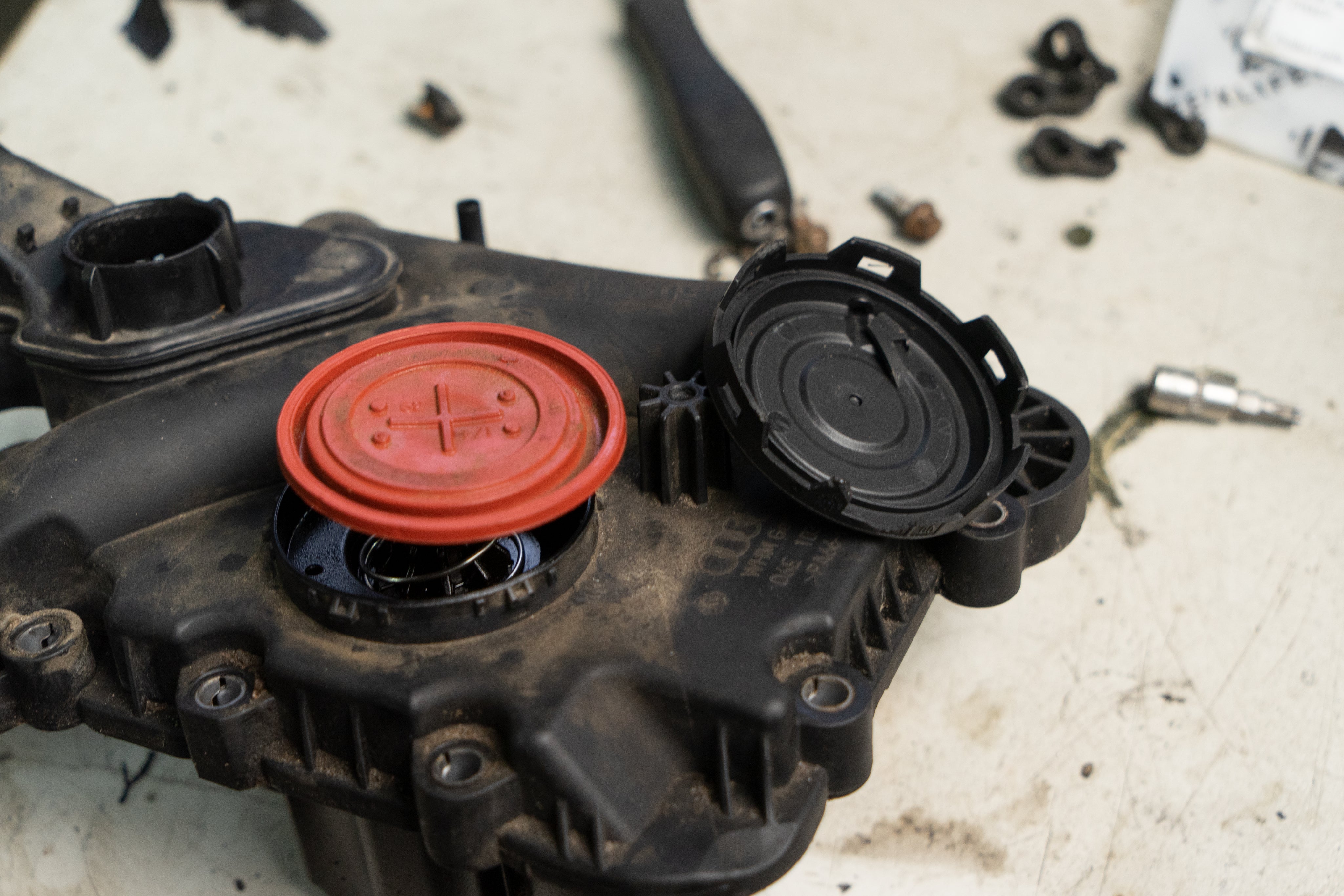

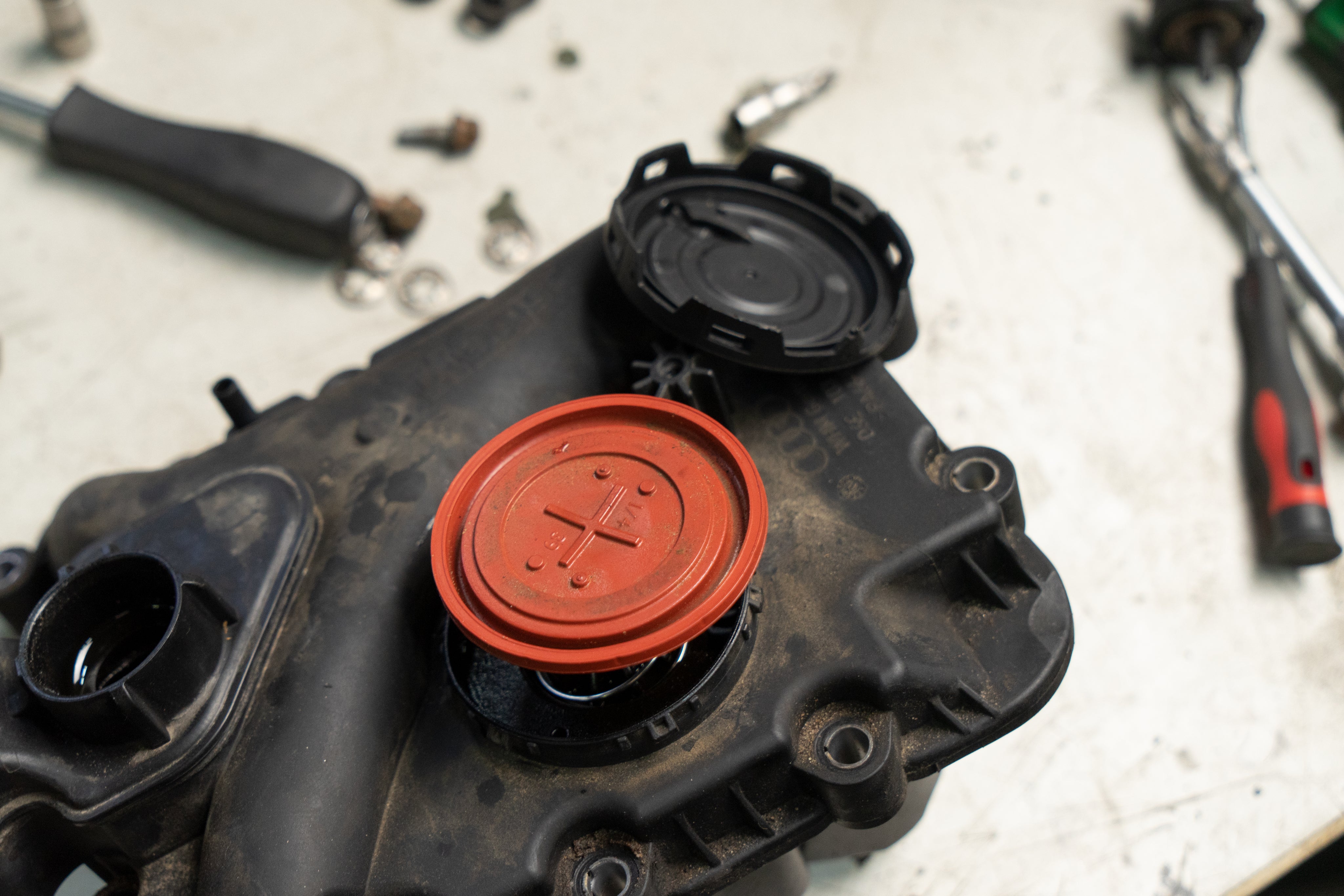

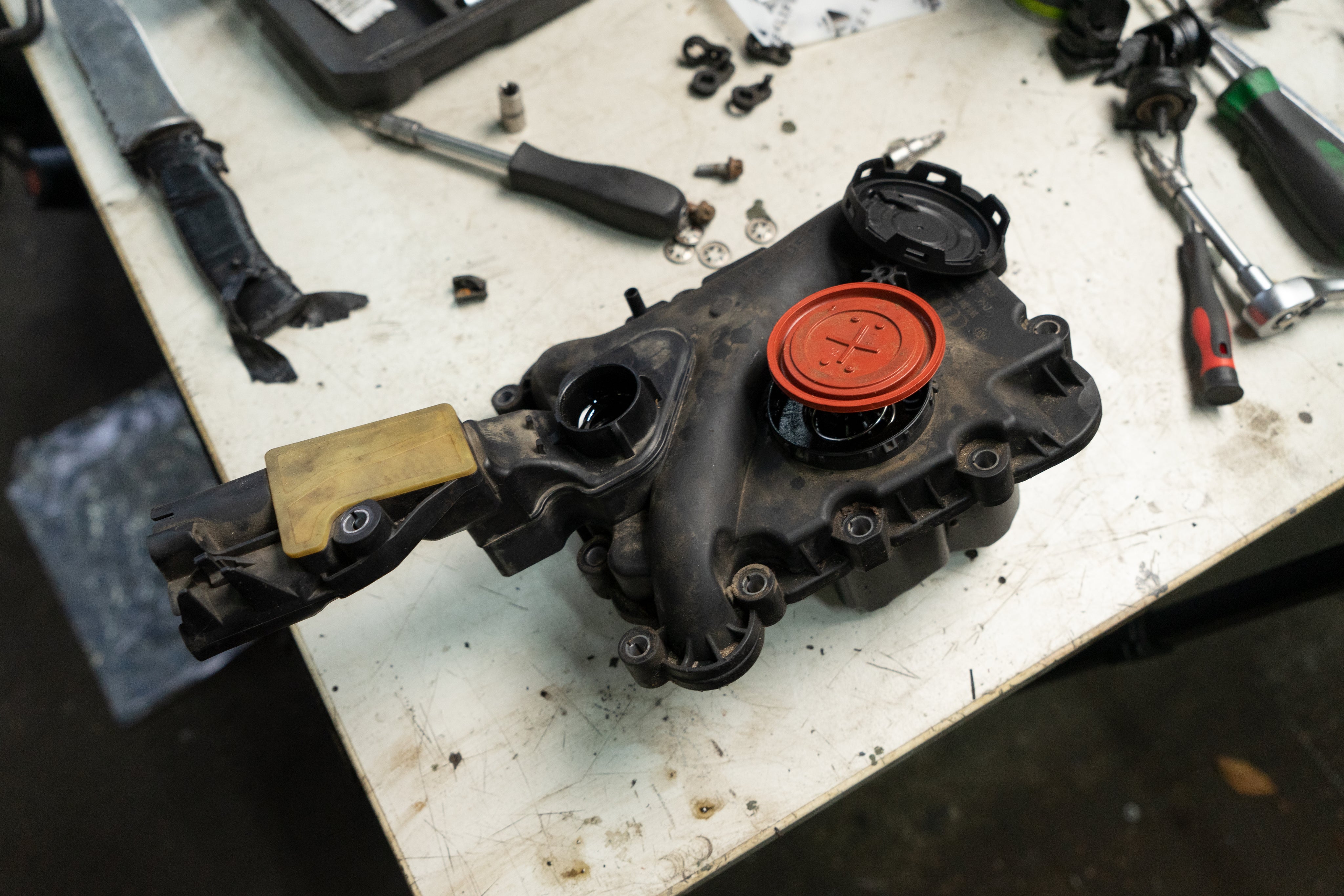

- Supports repair of the existing air extraction flap actuator
- Cost-effective alternative to replacing the complete actuator assembly
- Includes supporting related OEM coverage for the 06E103547 family
Important Before Ordering

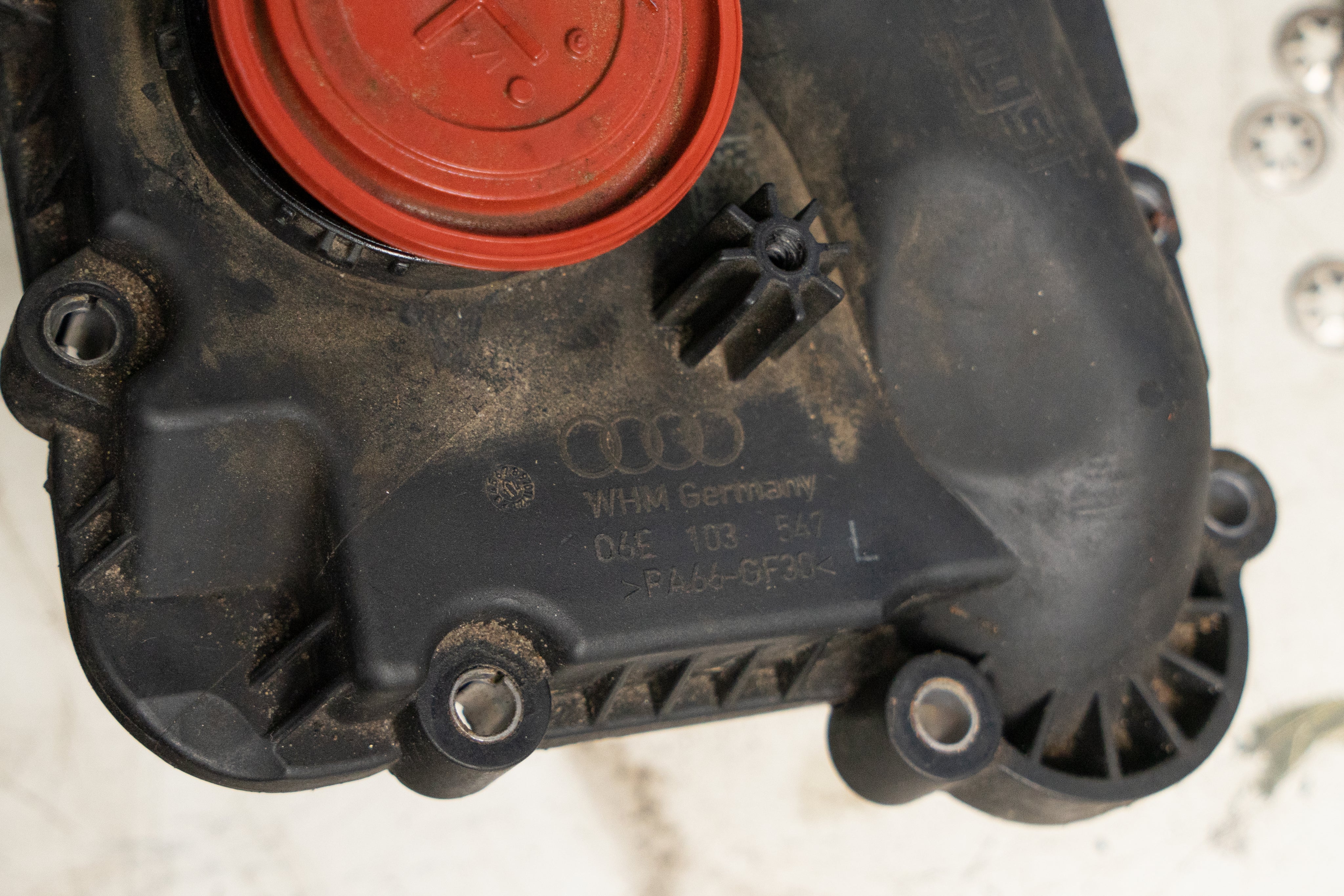

- Verify OEM 06E103547E against your original part
- Compare related references where applicable
- Confirm your Audi FSI application and actuator design
- Make sure you need an air extraction flap diaphragm, not a PCV or oil separator membrane
What does 06E103547E fit?
06E103547E is used for selected Audi 2.4, 2.8 and 3.2 FSI air extraction flap diaphragm applications using the matching actuator design.
Is 06E103547P the same type of part as 06E103547E?
06E103547P is a related reference within the same air extraction flap diaphragm application family. The original actuator design should be checked before ordering.
What does this air extraction flap diaphragm do?
It helps the flap actuator move correctly by maintaining vacuum control inside the existing flap system.
What symptoms can indicate diaphragm failure?
Possible symptoms include incorrect flap actuator movement, vacuum leak behavior, reduced flap control function or actuator-related operating issues.
Is this a PCV membrane or air extraction flap diaphragm?
This product is an air extraction flap diaphragm. It is not a PCV membrane, valve cover diaphragm or oil separator membrane.
How do I confirm compatibility before ordering?
Match OEM 06E103547E with your original part, compare related references and confirm the engine type and flap actuator design.
