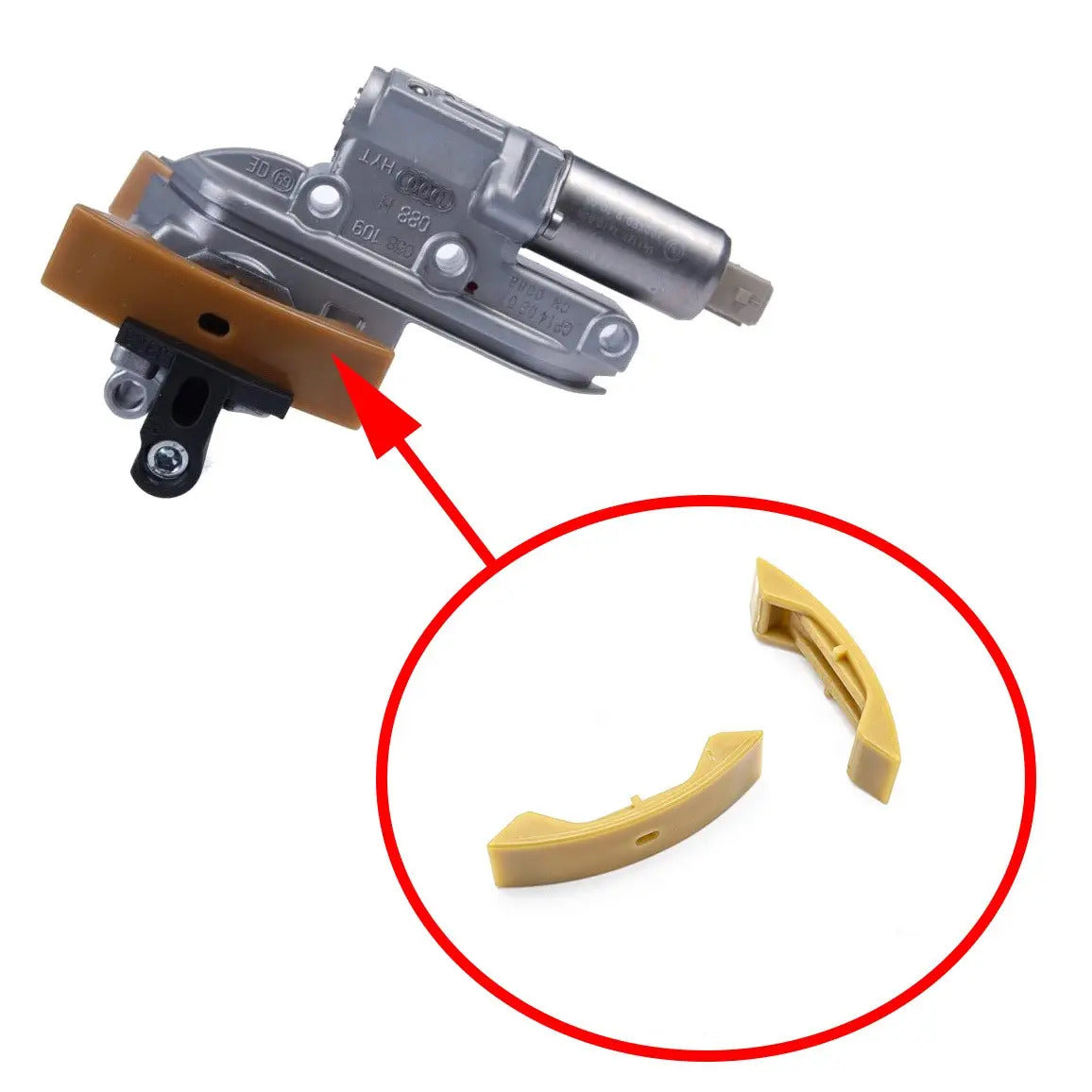

VAG 1.8, 2.4, 2.7, 2.8, 4.2 Timing Chain Tensioner Repair Kit 058109217B, 078109087C, 078109088C

The timing chain synchronizes the operation of the camshafts. Timing chain tensioner VAG 1.8, 2.7, 2.8, 4.2 058109217B, 078109087C, 078109088C ensures the correct operation of the mechanism. If you ignore the breakdown of the tensioner, it will lead to damage to the timing belt.

Signs of breakdown:

• A metal knock at the front of the engine means that the chain is slack.
• Weakly tensioned chain - the tensioner was deformed.

What happens as a result of riding with a slack chain:

• phase adjustment will fail;
• bad engine ignition;
• the timing valves will bend.

Repair

If the tensioner is damaged, it must be replaced. For this, our online store sells a special repair kit for VAG 1.8, 2.7, 2.8, 4.2 058109217B, 078109087C, 078109088C. Action algorithm:

1. Unscrew the nuts holding the tensioner.
2. We pull out the part with up-down movements.
3. We unscrew the upper nut of the new element, press the piston into the housing.
4. We install a new gasket.
5. We install a new tensioner, tighten the nuts.
6. We loosen the nut of the cap until it makes a characteristic sound.

Regular maintenance of the timing belt and its parts will save the driver money on future repairs of the mechanism.

To order a VAG 1.8, 2.7, 2.8, 4.2 timing chain tensioner repair kit 058109217B, 078109087C, 078109088C, use the special form on the website or contact the sales department at the above number. You can also ask questions that interest you to the manager about car repair, selection of auto parts and repair kits.

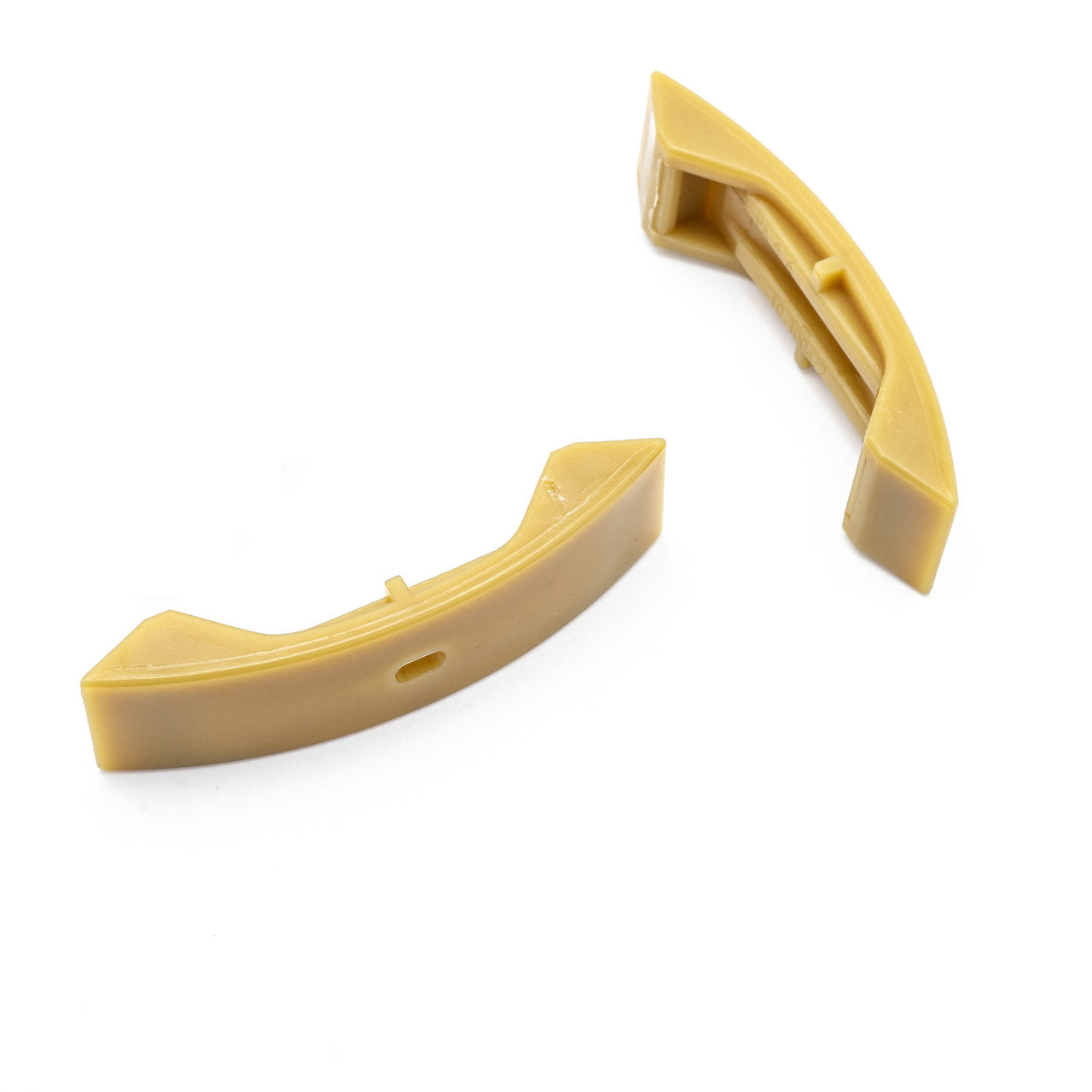

The kit consists of 4 pcs. Suitable for:

• 058109088K
• 058109088E
• 058109088D
• 058109088L
• 058109088B
• 058109088H
• 058109217B
• 077109087P
• 077109087E
• 077109087D
• 077109088P
• 077109088E
• 077109088D
• 078109087C
• 078109087F
• 078109087H
• 078109088C
• 078109088F
• 078109088H

• Audi
• Volkswagen
• SKODA
• Seat
