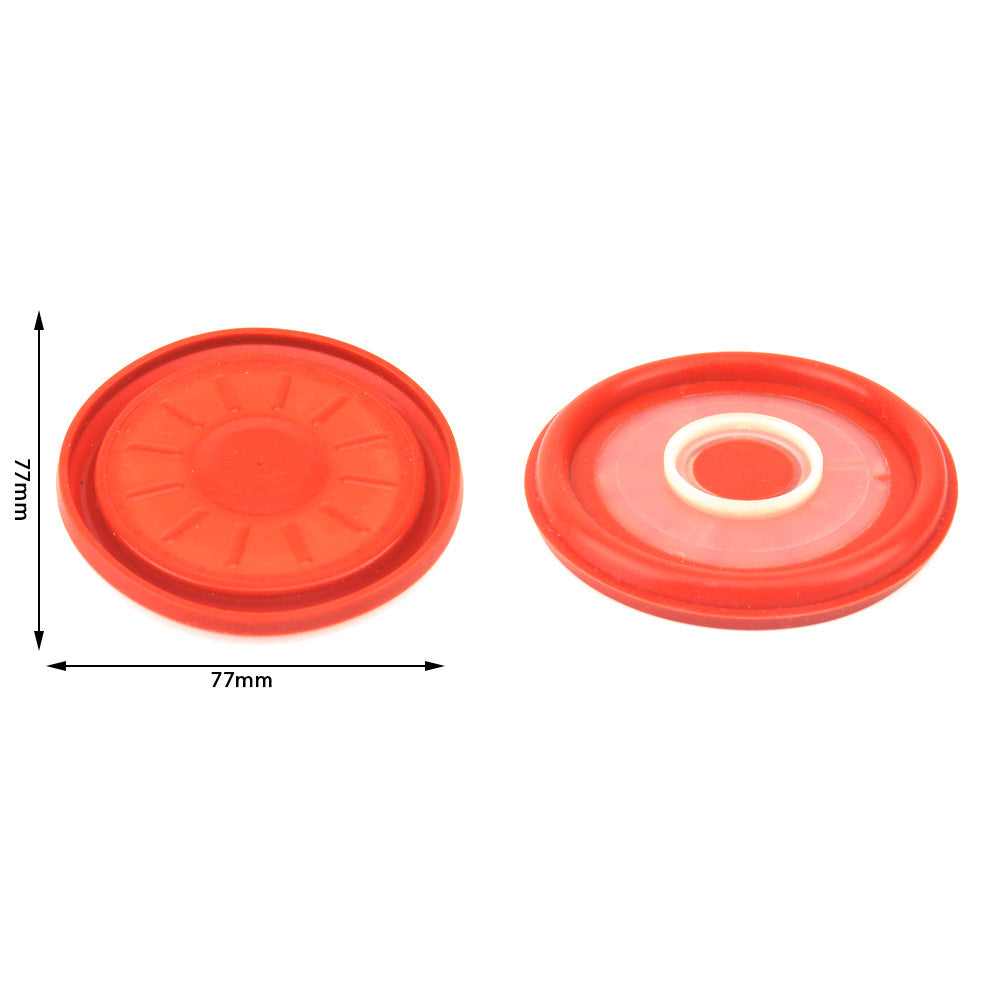

Oil Separator PCV Diaphragm - Audi / VW / Skoda / Seat 1.6L - 04E103464M

This oil separator diaphragm is a repair component for the VAG 1.6L crankcase ventilation system. A worn diaphragm can disturb crankcase pressure and allow air leaks; match the installed separator before ordering.

Applications

• Volkswagen Caddy - 2016-2018.
• Volkswagen Golf/R32/GTI/Rabbit D - 2015-2017.
• Volkswagen Golf/Variant/4Motion - 2013-2018.
• Volkswagen Jetta/syncro - 2015-2018.
• Volkswagen Polo/Derby/Vento-IND - 2015-2018.
• Volkswagen up!/e-up! - 2012-2018.
• Skoda Citigo - 2012-2018.
• Skoda Fabia - 2015-2018.
• Skoda Octavia - 2013-2017.
• Skoda Rapid - 2013-2018.
• Skoda Yeti - 2014-2018.
• Seat Ibiza/ST - 2016-2017.
• Seat Leon - 2013-2018.
• Seat Mii - 2012-2018.
• Seat Toledo - 2013-2018.

Separator Selection

Match oil separator references 04E103464M and 04E103464AN. Volkswagen Golf R32 is also listed. Audi is included at brand level; the installed separator reference must be matched rather than selecting by brand alone.

When to Inspect Crankcase Ventilation

• Whistling or excessive crankcase vacuum.
• Unstable idle.
• Increased oil consumption.
• Oil deposits in the intake.
• Exhaust smoke after warm-up.
• Mixture faults associated with air leaks.

These symptoms call for inspection of the crankcase ventilation system; confirm the cause before replacing the diaphragm.

Repair Scope

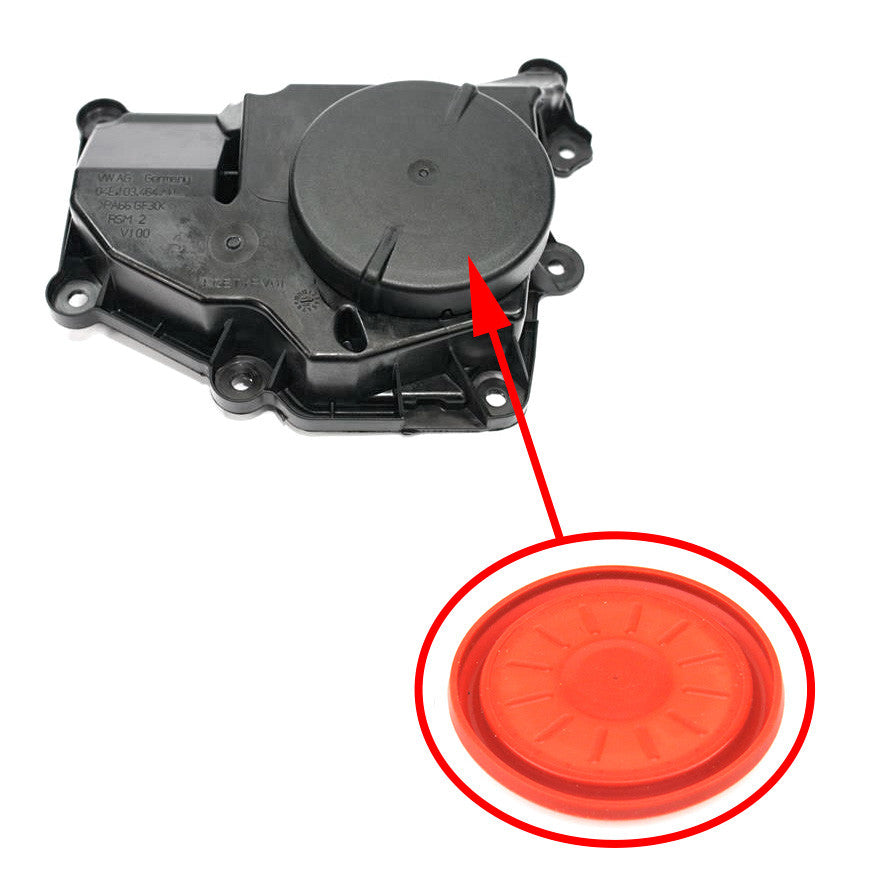

The diaphragm is a repair component for the oil separator. Inspect the separator or valve cover housing, ventilation hoses and possible cracks. Diaphragm replacement may be suitable when the housing is intact; housing damage may require a different repair.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Which separator references are listed?

04E103464M and 04E103464AN.

Can the diaphragm replace a cracked housing?

No. Inspect the separator or valve cover housing and ventilation hoses for damage.

Does the vehicle name alone confirm the version?

No. Match the separator number and original diaphragm design.

Part Number / PN

04E103464AN,04E103464M

SKU: KL04E103464M.

• Audi
• Seat
• SKODA
• Volkswagen
