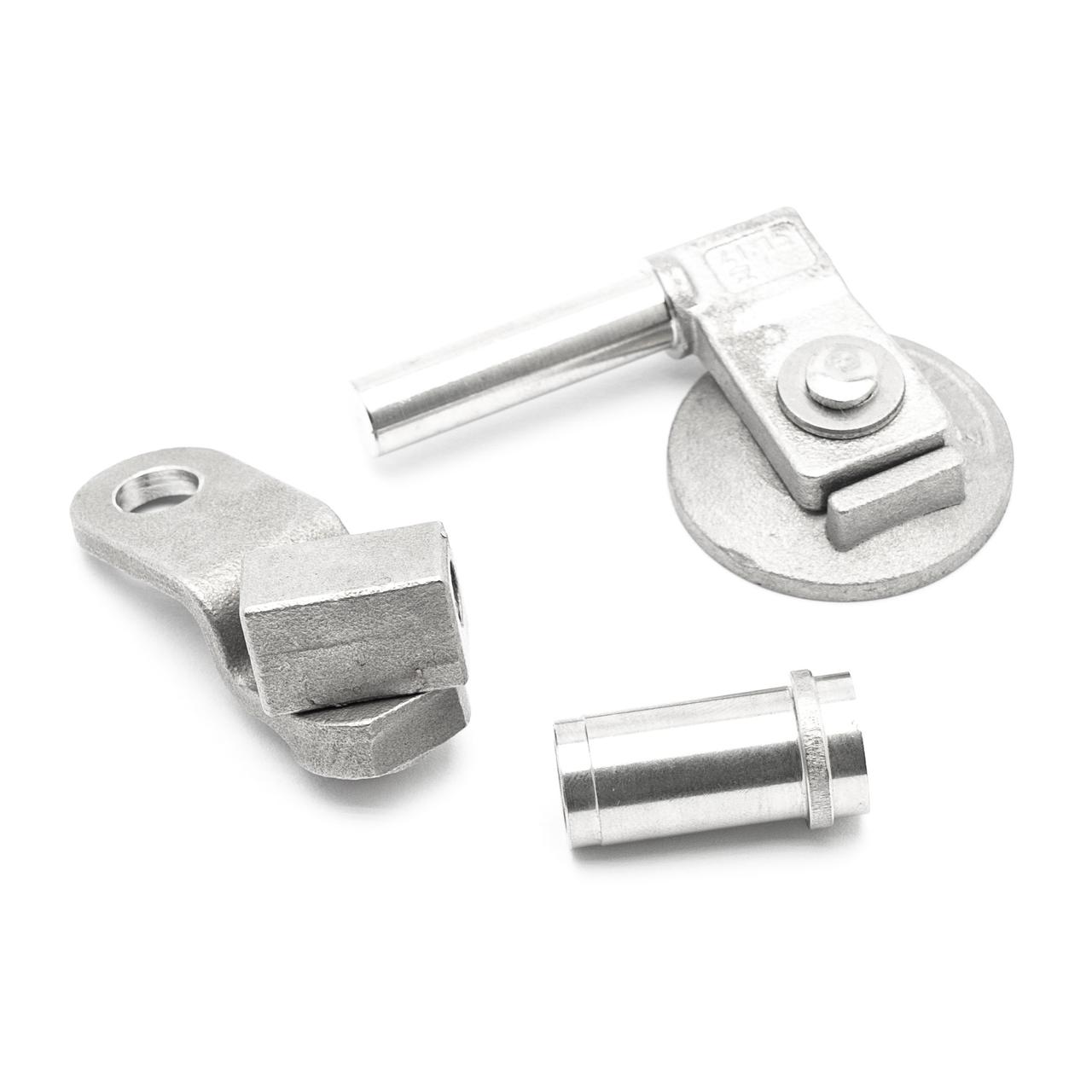

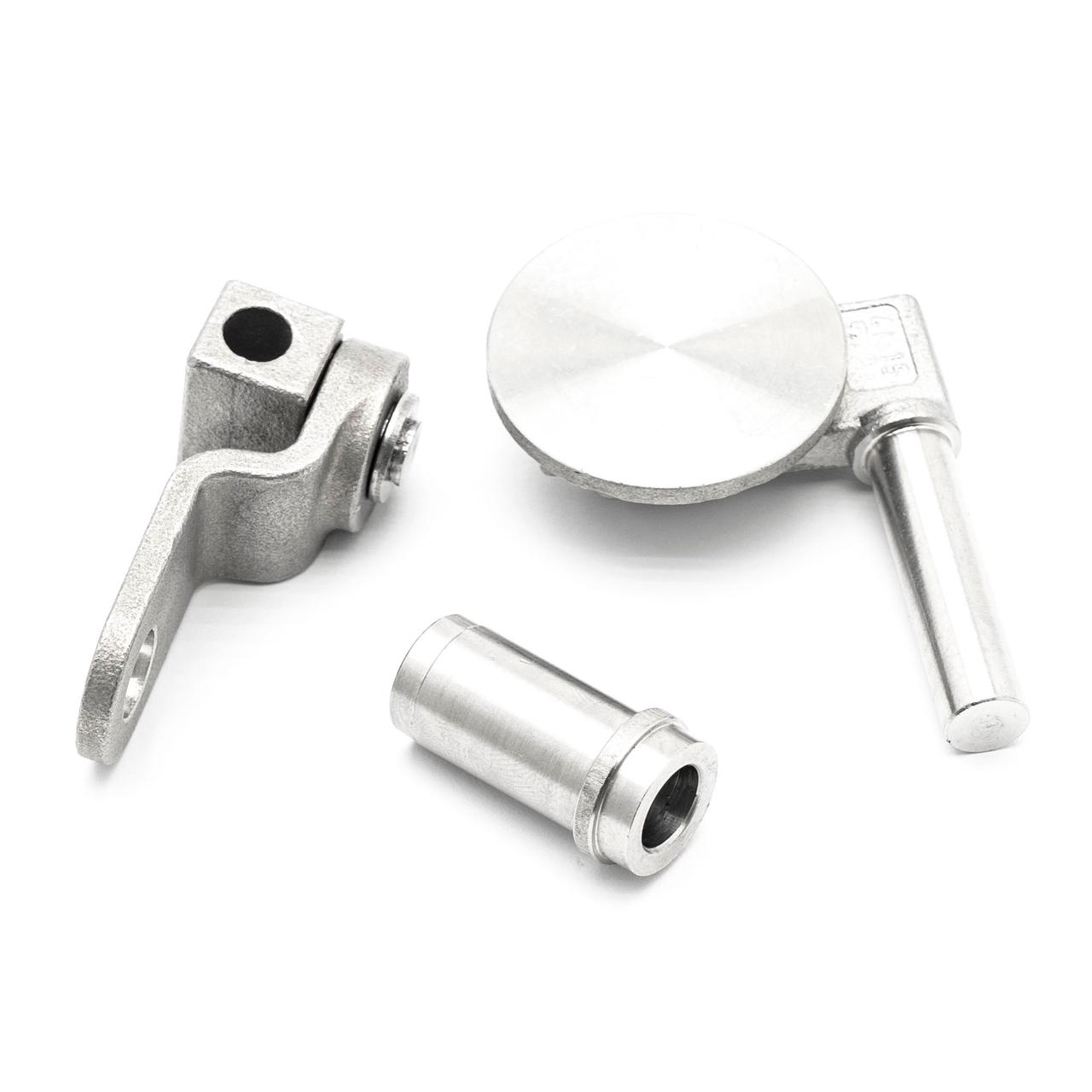

This wastegate repair kit is for the turbocharger on the listed VAG 1.4 TSI and TFSI CAVB, CAVD, BLG and BMY applications. Select by the complete original turbo number and repair component dimensions.
Applications
- VAG 1.4 TSI / 1.4 TFSI - CAVB, CAVD, BLG and BMY; select by the installed turbo reference.
Turbo and Version Selection
Before ordering, check the original turbo number and compare the component dimensions with your original parts. Listed engine codes: CAVB, CAVD, BLG and BMY.
- 53039800099
- 53039700132
- 53039880248
- 53039700248
- 53039800248
- 53039710248
- 53039880459
- 53039700459
- 53039800459
- 53039710459
- 53039710132
- 53039880132
- 53039700142
- 53039800142
- 53039880142
- 53039700150
- 53039880150
- 53039800150
- 53039700151
- 53039880151
- 53039800151
- 53039700162
- 53039880162
- 53039800162
- 03C145701B
- 03C145701BV
- 03C145701BX
- 03C145701G
- 03C145701GV
- 03C145701GX
- 03C145701K,
- 03C145701KV
- 03C145701KX
- 03C145701Q
- 03C145701QV
- 03C145701QX
- 03C145701TV
- 03C145701TX
- 03C145702P
- 03C145702PV
- 03C145702PX
- 03C145703A
- 03C145703AV
- 03C145703AX
When to Inspect the Wastegate
- Rattling from the exhaust manifold area.
- Increased fuel consumption or reduced acceleration.
- Low-boost faults during sustained hard acceleration above 90 km/h, sometimes without a Check Engine light.
- Low boost-pressure faults.
- Misfire faults at high engine speed.
Wear can be present around 100 000 km, but mileage alone does not establish the condition. Heat cycles and water, sand, dust or dirt around the rods can contribute to wear. Diagnose the wastegate and boost control before choosing the repair.
Repair Scope
This is the turbo wastegate repair kit, rather than a complete turbocharger. Match the original turbo reference and mechanism dimensions before ordering.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
Which engine codes are listed?
CAVB, CAVD, BLG and BMY.
Can I select only by 1.4 TSI?
No. Compare the complete turbo reference and original component dimensions.
Is a complete turbo supplied?
No. This is the wastegate repair kit.
Part Number / PN
53039800099,53039700132,53039880248,53039700248,53039800248,53039710248,53039880459,53039700459,53039800459,53039710459,53039710132,53039880132,53039700142,53039800142,53039880142,53039700150,53039880150,53039800150,53039700151,53039880151,53039800151,53039700162,53039880162,53039800162,03C145701B,03C145701BV,03C145701BX,03C145701G,03C145701GV,03C145701GX,03C145701K,03C145701KV,03C145701KX,03C145701Q,03C145701QV,03C145701QX,03C145701TV,03C145701TX,03C145702P,03C145702PV,03C145702PX,03C145703A,03C145703AV,03C145703AX
SKU: KL03C145702P.
