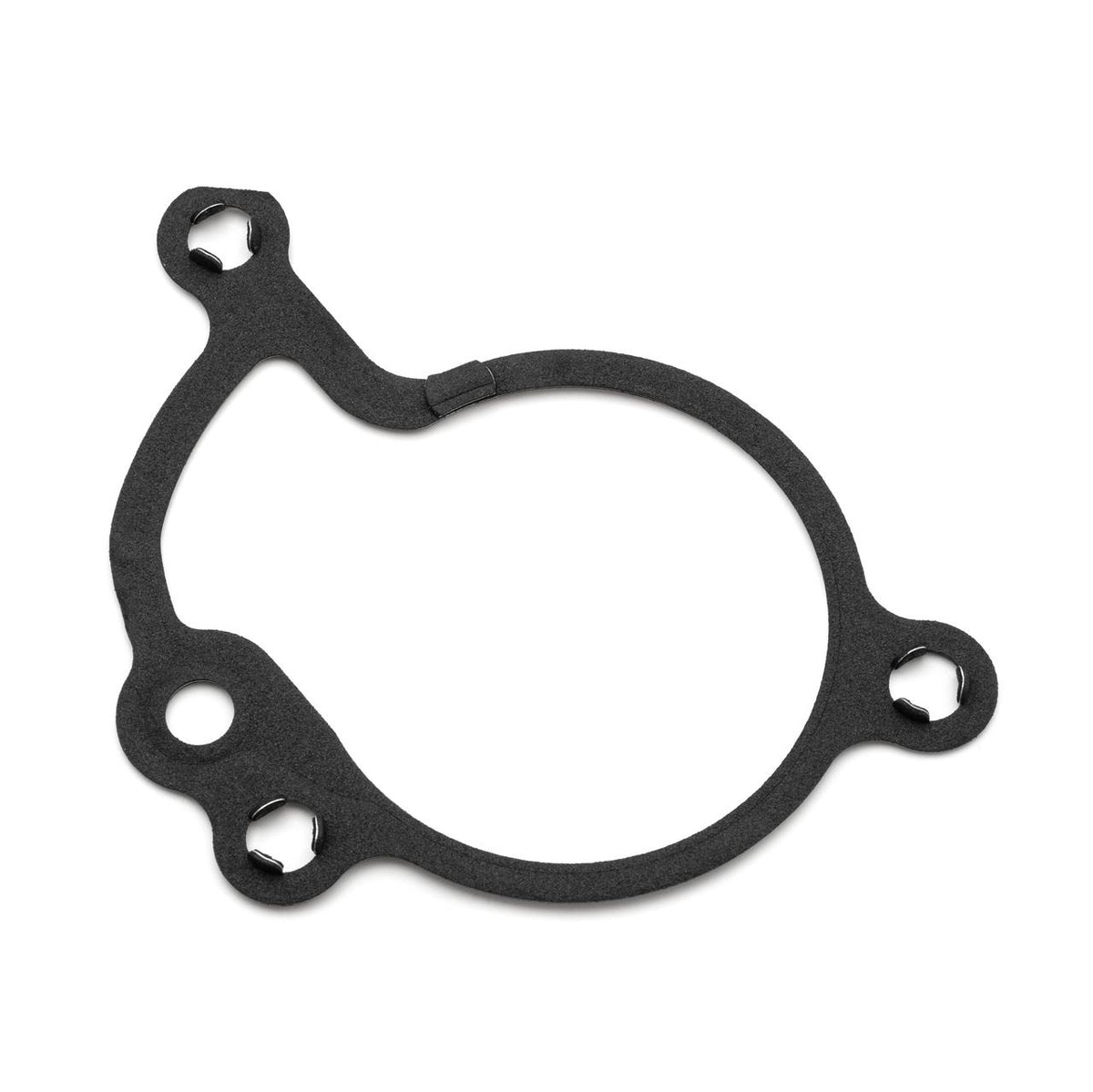

Vacuum pump gasket Volvo 2.0L Turbo 2.5L Turbo 31480558 31316143
Product Overview
The Volvo vacuum pump gasket seals the pump mounting location on the engine and prevents engine oil from leaking through the housing connection. A damaged, hardened or deformed gasket can cause fogging and oil leakage around the vacuum pump, contamination of adjacent engine parts and gradual loss of seal. The gasket is used with vacuum pumps 31480558 and 31316143 on Volvo 2.0L Turbo and 2.5L Turbo gasoline engines. When to check the vacuum pump gasket: There are traces of engine oil around the vacuum pump; there is fogging or leakage along the pump installation circuit; after cleaning the assembly, oil reappears at the connection point; the gasket has become hardened, deformed or damaged; The vacuum pump was removed for repair or maintenance. Gasket numbers: 31430546, 31339266, 31465619 Vacuum pump numbers: 31480558, 31316143 Applies to: Volvo V40 Volvo V60 Volvo V90 Volvo S60 Volvo S80 Volvo S90 Volvo S90L Volvo XC40 Volvo XC60 Volvo XC70 Volvo XC90 Engines: 2.0L Turbo 2.5L Turbo Advantages: eliminates engine oil leakage at the vacuum pump installation site; restores tightness of the connection between the pump and the engine; allows you to keep the standard vacuum pump if its housing and mechanical parts are in good condition; Fits vacuum pumps 31480558 and 31316143. Important: Before installation, check the flatness of the vacuum pump housing and the seating surface on the engine. If the pump body is warped or damaged, replacing the gasket may not correct the leak. Before ordering, check the vacuum pump number 31480558 or 31316143 and the gasket shape. FAQ What vacuum pumps is this gasket suitable for? The gasket is used with Volvo vacuum pumps 31480558 and 31316143. What numbers does the gasket itself have? Gasket numbers: 31430546, 31339266 and 31465619. What engines is the gasket used on? The gasket is used on Volvo 2.0L Turbo and 2.5L Turbo gasoline engines with corresponding vacuum pumps. What is the main sign of gasket damage? The most characteristic symptom is fogging or leakage of engine oil along the vacuum pump installation circuit. Does the vacuum pump need to be replaced due to an oil leak? If the pump is working properly, the housing is not damaged, and the leak occurs through the gasket, it is enough to replace the seal. What to check when replacing the gasket? Check the vacuum pump housing, the seating surface, the condition of the gasket seal and the absence of deformation or damage. Part number / PN: 31430546, 31339266, 31465619, 31480558, 31316143
Purpose and Fitment
This item is intended for the vacuum-pump system identified by SKU KL31430546 and OEM/P/N 31480558. Vehicle model alone is not a sufficient fitment check.
Part Number / PN
31480558, 31316143, 31430546, 31339266, 31465619, KL31430546
Package Contents
Includes the product or repair components shown in the listing images and identified by SKU KL31430546. The surrounding assembly is not included unless it is explicitly shown and described.
Benefits and Limitations
- Supports repair or replacement of the identified component when diagnosis confirms the fault.
- Does not correct faults in wiring, connectors, control modules or adjacent mechanical parts.
Pre-Order Check
Compare the exact OEM/P/N, dimensions, connectors, orientation and physical design with the installed part. Use 31480558 as the primary reference and confirm the installation procedure for the specific vehicle.
FAQ
How do I confirm fitment?
Match the OEM/P/N and physical design to the installed part before ordering.
When should this part be inspected?
Inspect it after diagnosis points to the identified assembly; similar symptoms can be caused by adjacent components.
Is professional installation recommended?
Use the service procedure and tools specified for the vehicle. Professional installation is recommended when special tools, calibration or disassembly are required.
