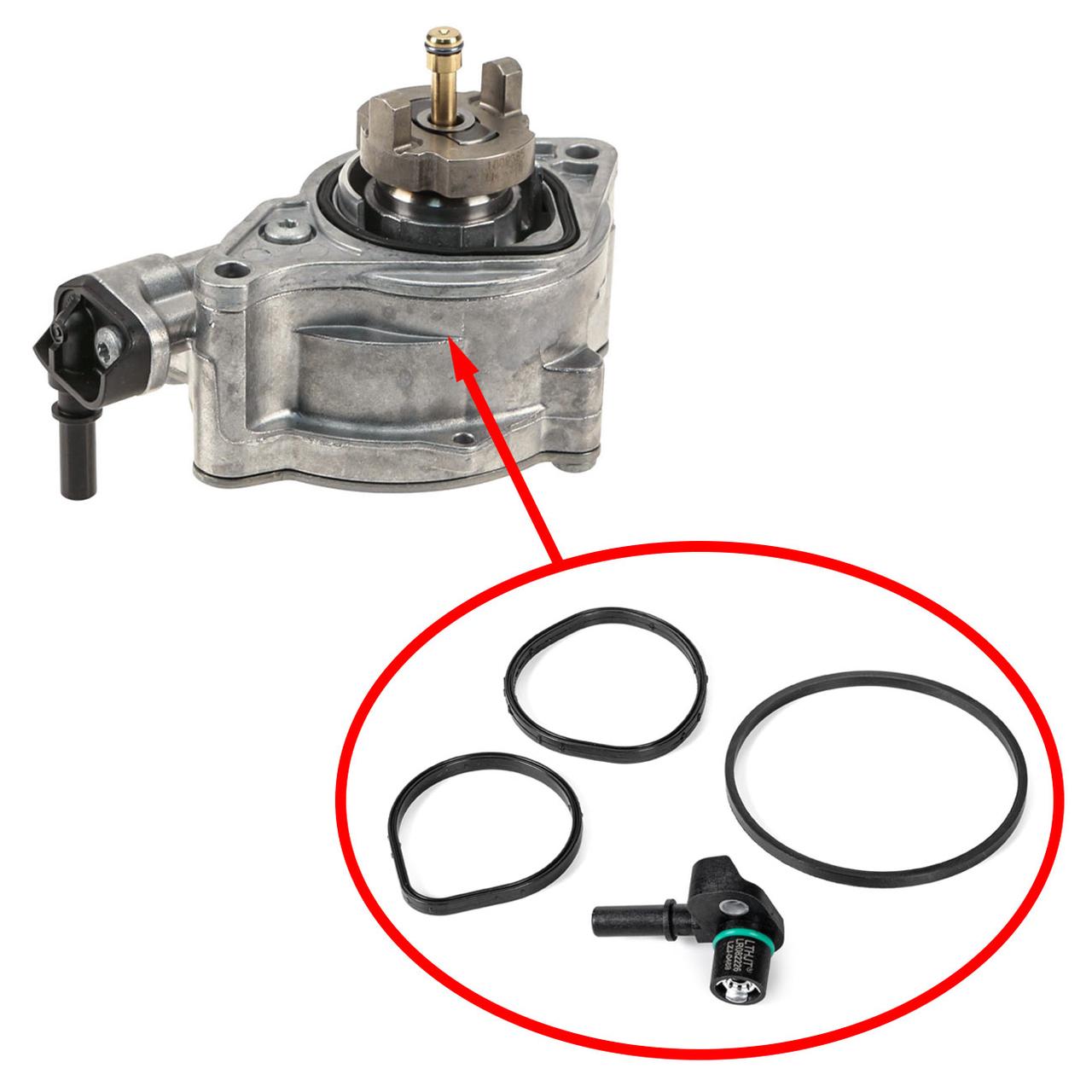

Vacuum Pump Full Rebuild Kit – Land Rover LR4 / Range Rover / Jaguar XJ / XF | OEM LR010690 LR048796
The Pierburg vacuum pump on Land Rover LR4, Range Rover, Range Rover Sport, and Jaguar XJ/XF/XFR (5.0L and 3.0L engines) fails over time — causing reduced brake boost and brake assist vacuum loss. This full rebuild kit includes all internal seals, O-rings, and wear components to restore correct vacuum pump function. Land Rover LR4/Discovery 4 (3.0L/5.0L), Range Rover L405 (3.0L/5.0L), Range Rover Sport L494 (3.0L/5.0L); Jaguar XJ X351, XF X250, XFR — 5.0L V8 SC and 3.0L SC petrol engines
Fits OEM #LR048796.
When to Inspect This Part
- reduced vacuum-system performance
- loss of vacuum assistance
- oil leakage at the pump
- related system operates intermittently
What's Included
- Repair components supplied for this SKU and shown in the product photos; no complete surrounding assembly is included
Important Limitations
Inspect the pump housing, sealing surfaces, and the rest of the vacuum circuit. A cracked or mechanically damaged pump may require complete replacement.
OEM Part Numbers and Vehicle Fitment
Additional confirmed fitment
- Land Rover LR010690, LR048796, LR060475, LR082226
- Land Rover: LR4 5.0L, 3.0L: 2010 - 2014
- Range Rover 5.0L, 3.0L: 2010 - 2014
- Range Rover Sport 5.0L, 3.0L: 2010 - 2014
- Jaguar: XJ 5.0L, 3.0L: 2010 - 2014
- XFR, XFR-S 5.0L: 2010 - 2014
- XF 5.0L, 3.0L: 2010 - 2014
- XJ, XJR 5.0L, 3.0L: 2010 - 2014
Part Number / PN
LR048796, LR010690, LR060475, LR082226, 7.01188.22.0, 7.01188.21.0, 11T344, 8W932A451DA, AJ813786, AJ811465, C2Z28245, C2D3771, LR012685, C2Z29984
Important Fitment Check
Before ordering, compare the part design, dimensions, connectors, and every available OEM/P/N marking with the part installed on the vehicle. Matching OEM/P/N LR048796 is the primary fitment check.
FAQ
How do I confirm fitment for this Vacuum Pump Full Rebuild Kit?
Compare the exact OEM/P/N and physical design with the installed part. The primary reference is LR048796. Do not select the part by vehicle model alone.
What symptoms may indicate a problem with this Vacuum Pump Full Rebuild Kit?
Confirmed symptoms include reduced vacuum-system performance, loss of vacuum assistance, oil leakage at the pump, related system operates intermittently. Diagnose the original assembly before ordering so another fault is not mistaken for this part.
What is included with this Vacuum Pump Full Rebuild Kit?
The confirmed kit contents are: Repair components supplied for this SKU and shown in the product photos; no complete surrounding assembly is included.
Does this listing include the complete surrounding assembly?
Inspect the pump housing, sealing surfaces, and the rest of the vacuum circuit. A cracked or mechanically damaged pump may require complete replacement.
What should be checked before installation?
Check the OEM/P/N, dimensions, connectors, orientation, and condition of the mating components. Installation should follow the correct service procedure for the specific vehicle and assembly.
