Garrett Turbo Wastegate Repair Kit - Isuzu Truck / Bus 4HG1-T - 704407-0004

This kit repairs the mechanical wastegate in the listed Garrett turbochargers on Isuzu 4HG1-T trucks and buses. Shaft, bushing or lever wear can cause play, metallic rattling, valve sticking and unstable boost. Separate repair requires a serviceable turbo housing, actuator, wheels and remaining turbo components.

Applications

• Isuzu Truck Highway - 4HG1-T
• Isuzu Bus - 4HG1-T

Wastegate Symptoms to Investigate

• Metallic turbo rattling or knocking.
• Noticeable lever play.
• Bypass valve sticks or moves roughly.
• Power loss under load.
• Boost pressure unstable or incorrect.
• Actuator works but cannot move the lever accurately.
• Mechanical shaft or bushing wear.

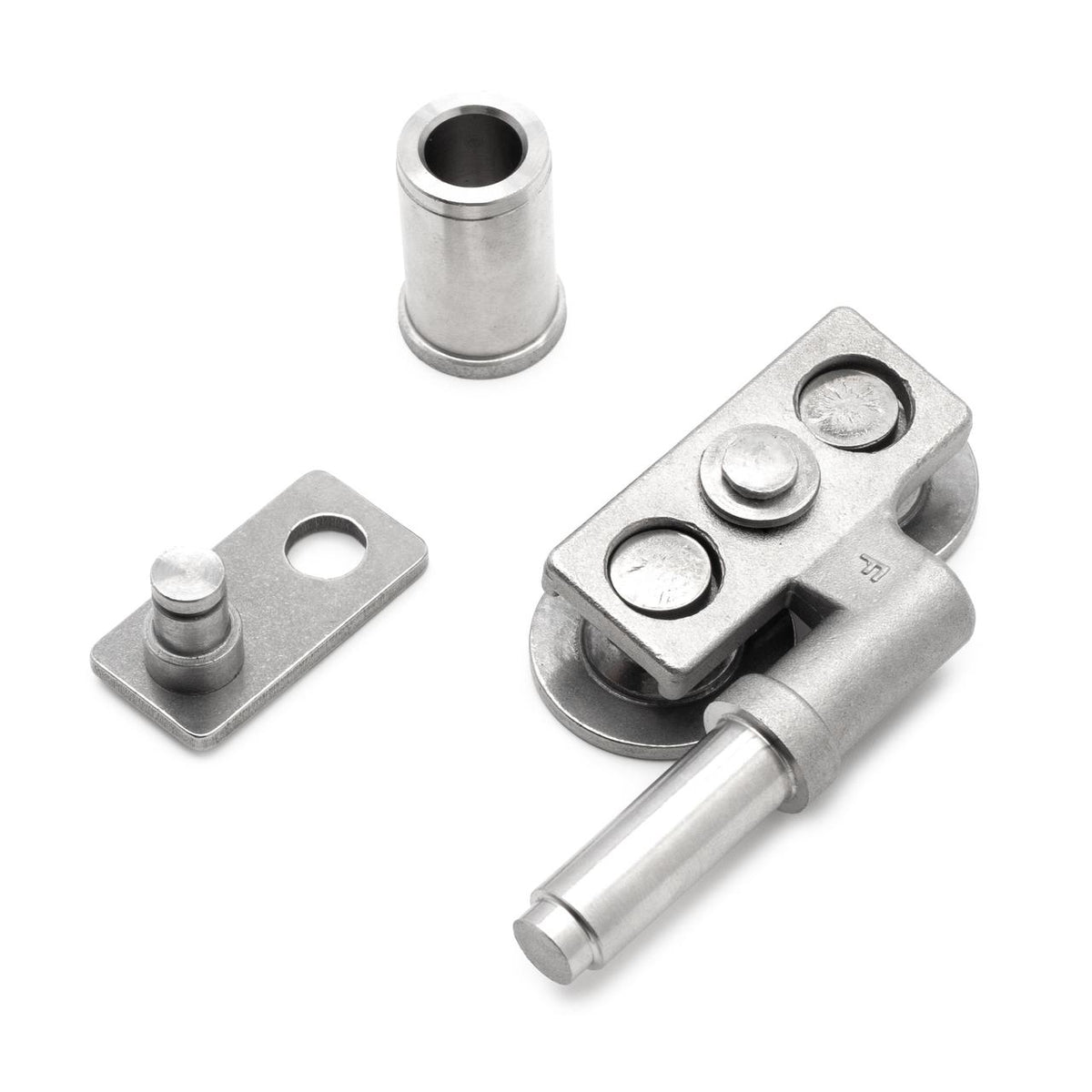

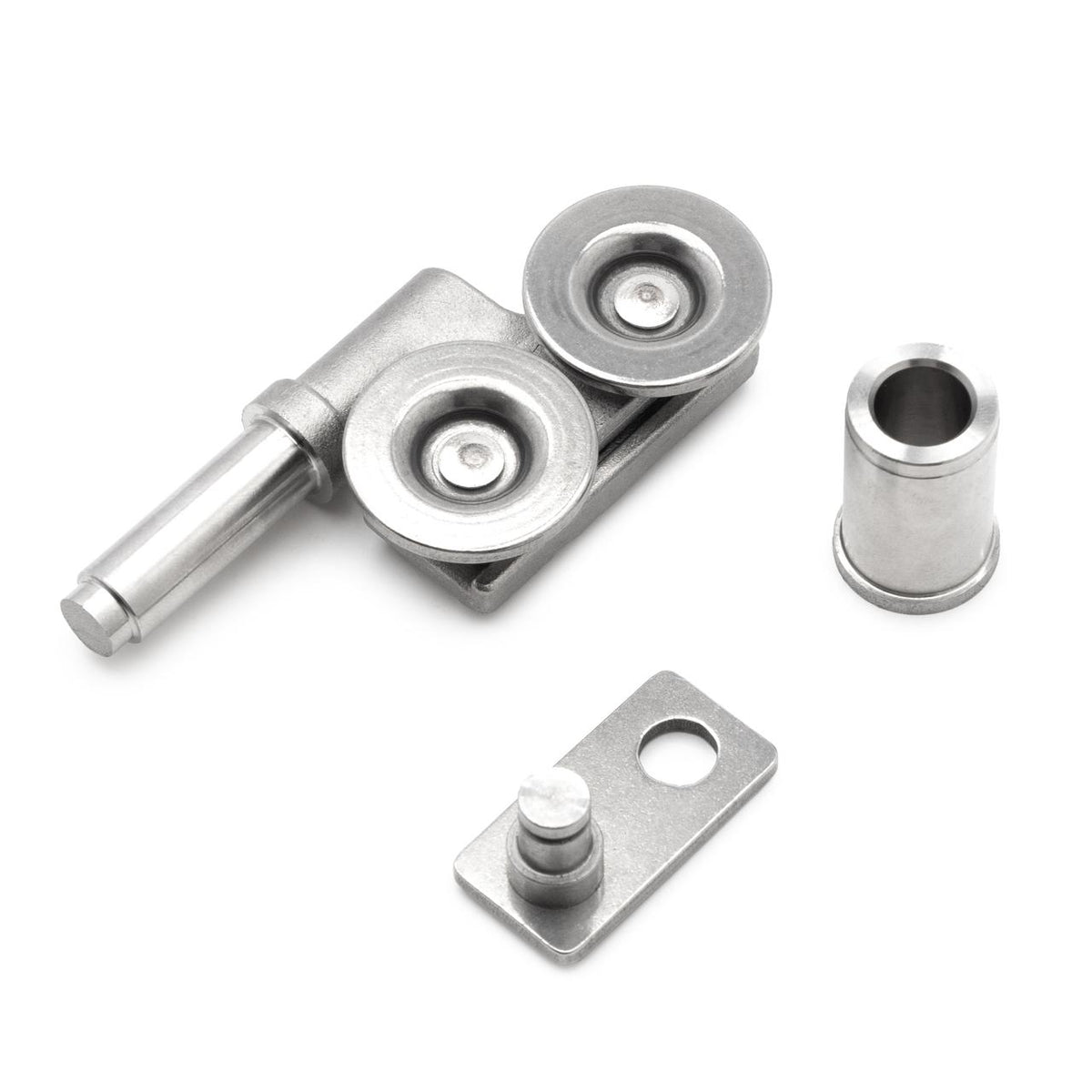

Contents and Turbo References

• Metal bushing.
• Metal drive lever.
• Metal shaft assembly.

The turbocharger and actuator are not supplied. Garrett turbo references: 704407-0004, 704407-0007, 704407-0012, 704407-0011, 704407-7. Original Isuzu references: 8926029271, 1899655844, 8943926480, 8943926481, 8976005130, 8976018350, 8976018880, 8943926482, 8976018351, 8976029270, 8976029271, 8976028460. Additional product reference: 7044070004.

Selection and Post-Repair Checks

Match the original Isuzu or Garrett turbo number and mechanical wastegate design. Engine or vehicle model alone does not confirm the version. Inspect the turbo housing, bushing seat, lever, actuator and bypass valve. Lever position adjustment may be required after installation.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What is included?

Metal bushing, drive lever and shaft assembly; no complete turbo or actuator.

Which engine is listed?

Isuzu 4HG1-T.

How should I check compatibility?

Match the full Isuzu and Garrett turbo references and original wastegate design.

Part Number / PN

8926029271, 1899655844, 8943926480, 8943926481, 8976005130, 8976018350, 8976018880, 8943926482, 8976018351, 8976029270, 8976029271, 8976028460, 704407-0004, 704407-0007, 704407-0012, 704407-0011, 704407-7

SKU: KL7044070004.
