Throttle Body Gear Repair Kit - Audi / VW / Skoda / Seat 1.2 / 1.4 TSI - for 03F133062B

This repair kit is for the mechanical gear mechanism of the throttle body on the listed VAG 1.2 / 1.4 TSI applications. Match the installed assembly reference, gear shape and tooth counts before ordering.

Applications

• Audi A1 (2010-2019)
• Audi A3 (2012-2019)
• Audi Q2 (2016-2019)
• Audi Q3 (2011-2019)
• VW Beetle (2011-2019)
• VW Caddy (2015-2019)
• VW Caddy MK IV (2015-2019)
• VW CC (2011-2016)
• VW Golf MK VII (2012-2019)
• VW Golf Sportsvan (2014-2019)
• VW Jetta MK IV (2010-2019)
• VW Passat (2014-2019)
• VW Polo 6R (2009-2019)
• VW Tiguan (2007-2019)
• VW Touran (2015-2019)
• VW Scirocco (2008-2017)
• VW Sharan (2010-2019)
• Skoda Fabia 2

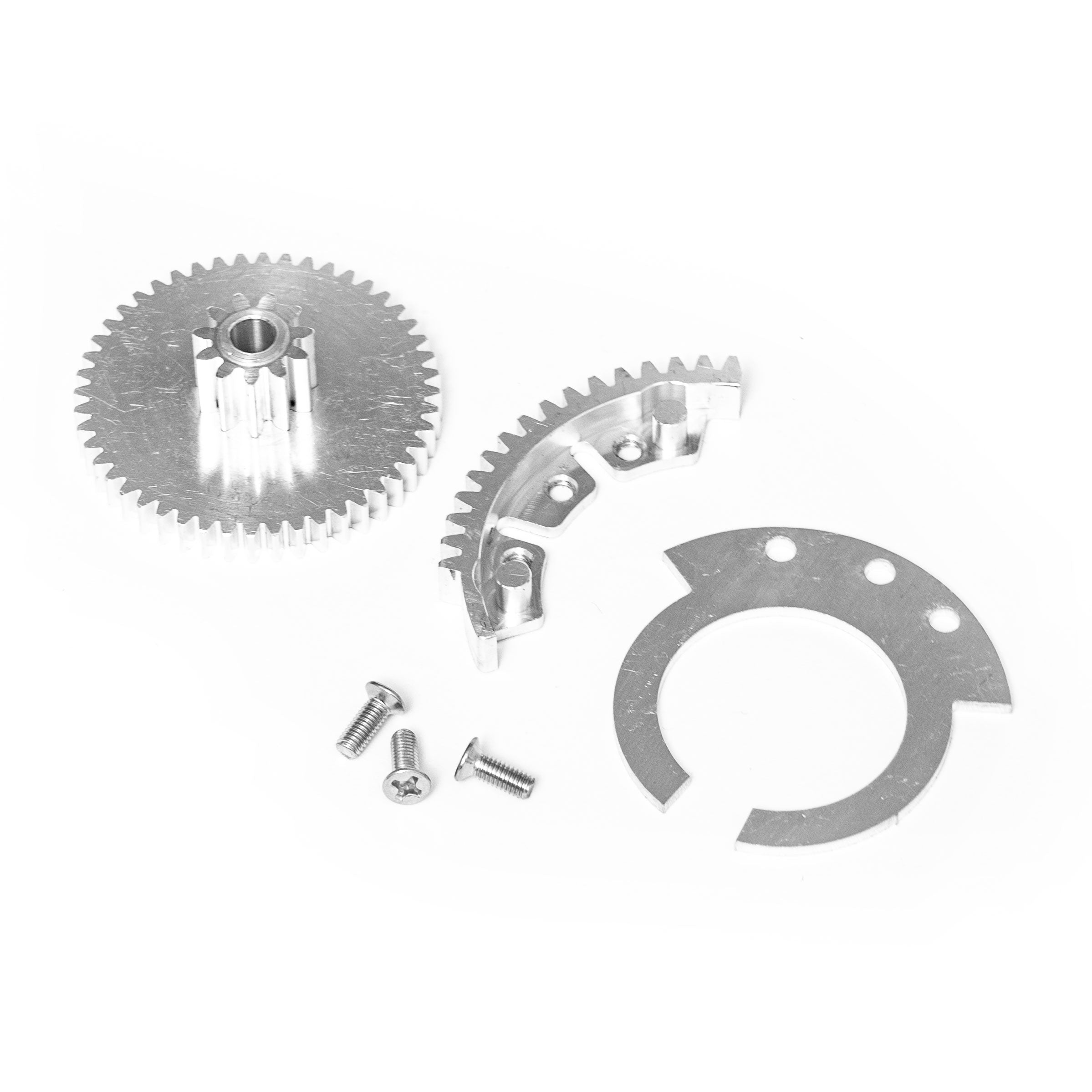

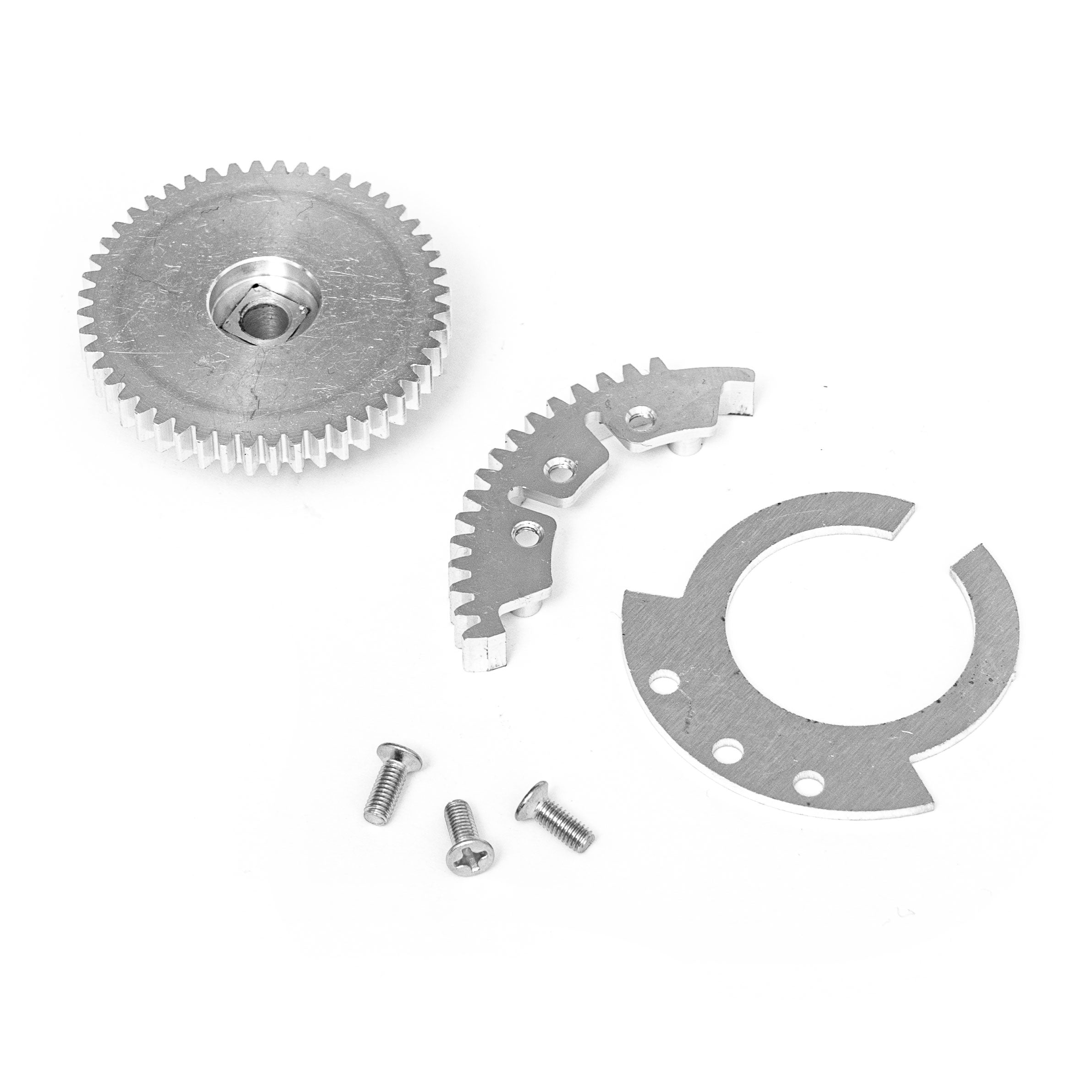

Kit Contents

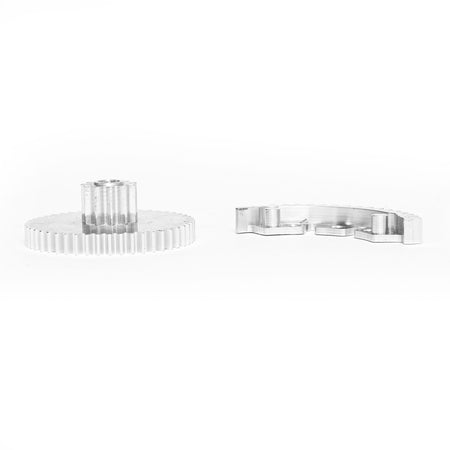

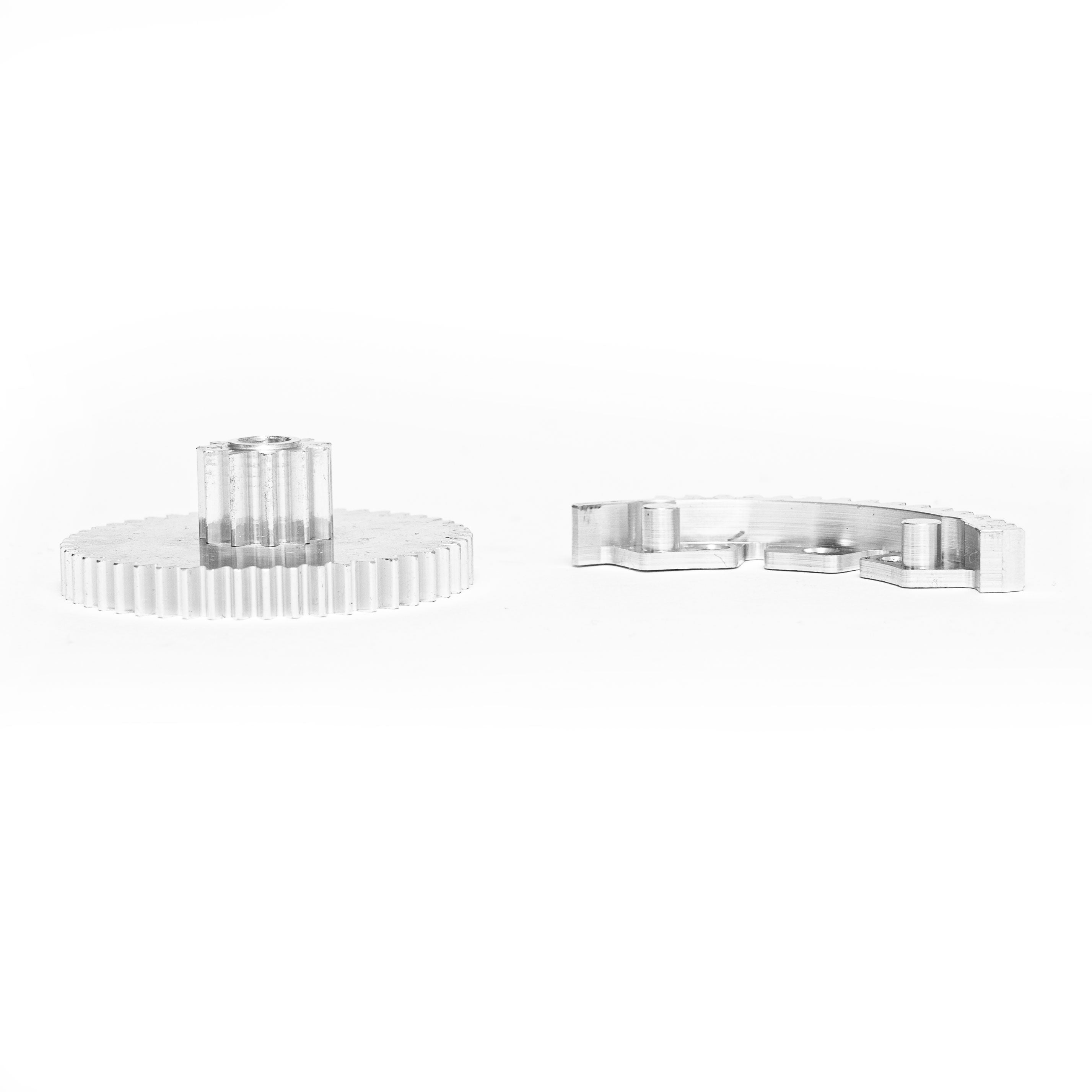

• Main gear.
• Repair insert for the sector gear.
• Sector gear template.
• 3 screws.

Throttle Body and Engine Selection

Engine designations: CBZA, CBZB, CBZC, CAXA and CBZ. Assembly references: 03F133062, 03F133062B, 03F133062C, 03F133062J, 03C133062AA, 03C133062D, 03C133062M and 03C133062S. Additional model listings without production periods: Skoda Octavia, Yeti, Superb, Rapid, Roomster; VW Eos; Seat Leon, Toledo, Altea, Cordoba, Ibiza. These require matching the installed throttle body reference and gear design.

Gear Tooth Counts

• Sector / crescent: 16 teeth.

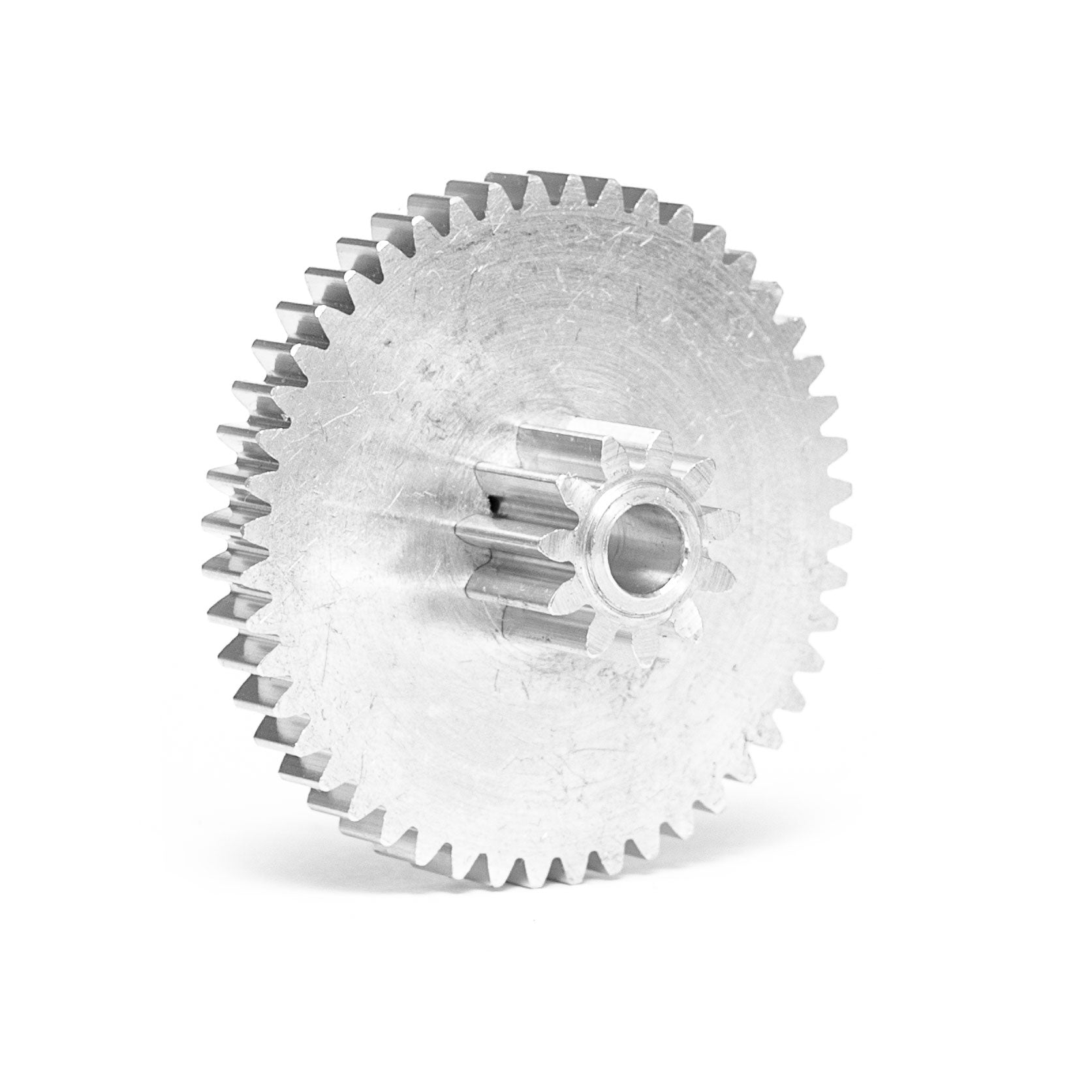

• Large circular gear: 48 teeth.
• Small circular gear: 11 teeth.

When to Inspect the Throttle Body

• Unstable idle.
• Fluctuating engine speed.
• Delayed accelerator response.
• Throttle position faults.
• Sticking or play in the mechanism.
• Uneven running after contamination or component wear.

Diagnose the throttle body before selecting repair parts; these symptoms do not establish a gear fault by themselves.

Checks After Repair

Check free flap movement, absence of play and housing cleanliness. Clean the unit and perform throttle body adaptation with diagnostic equipment if required for the vehicle.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

How many teeth does the sector have?

16 teeth.

What are the circular gear tooth counts?

48 for the large gear and 11 for the small gear.

Is adaptation required?

Perform diagnostic adaptation if required for the vehicle after checking free movement, play and cleanliness.

Part Number / PN

03F133062B,03F133062C,03F133062J,03C133062AA,03C133062D,03C133062M,03F133062,03C133062S

SKU: KL03F133062.
