Throttle Body Gear Repair Kit - Opel Fiat Alfa Romeo Iveco Lancia Saab - 55186519

This repair kit is for the throttle body mechanical gear mechanism on the listed applications. Match the original throttle body reference, gear design and tooth counts before ordering.

Applications

• SAAB 9-3 (YS3F) 1.9 TiD (2004 - 2015)
• ALFA ROMEO 159 (939_) 1.9 JTDM (2005 - 2012)
• ALFA ROMEO 159 Sportwagon (939_) 1.9 JTDM (2006 - 2012)
• ALFA ROMEO 159 (939_) 2.0 JTDM (939AXP1B) (2009 - 2012)
• ALFA ROMEO BRERA (939_) 2.0 JTDM (2009 - 2011)
• ALFA ROMEO GIULIETTA (940_) 1.6 JTDM (2010 - 2020)
• ALFA ROMEO GIULIETTA (940_) 2.0 JTDM (2010 - 2020)
• ALFA ROMEO MITO (955_) 1.6 JTDM (2008 - 2018)
• FIAT CROMA (194_) 1.9 D Multijet (2005 - 2012)
• FIAT CROMA (194_) 1.9 D Multijet (2005 - 2012)
• FIAT CROMA Furgon (194_) 1.9 MJTD (2006 - 2012)
• FIAT GRANDE PUNTO (199_) 1.9 D Multijet (2005 - 2011)
• FIAT GRANDE PUNTO (199_) 1.9 D Multijet (2005 - 2011)
• FIAT GRANDE PUNTO (199_) 1.9 D Multijet (2005 - 2011)
• FIAT GRANDE PUNTO (199_) 1.3 D Multijet (2005 - 2012)
• FIAT GRANDE PUNTO (199_) 1.6 D Multijet (2008 - 2012)
• FIAT GRANDE PUNTO (199_) 1.9 D Multijet (2005 - 2012)
• FIAT PUNTO EVO (199_) 1.6 D Multijet (2009 - 2012)
• FIAT SEDICI (FY_) 1.9 D Multijet (2006 - 2012)
• FIAT SEDICI (FY_) 1.9 D Multijet 4x4 (2006 - 2012)
• FIAT BRAVO II (198_) 1.6 D Multijet (2007 - 2015)
• FIAT BRAVO II (198_) 2.0 D Multijet (2008 - 2015)
• FIAT DOBLO (263_) 1.6 D Multijet (2010 - 2018)
• FIAT DOBLO (263_) 2.0 D Multijet (2010 - 2018)
• FIAT FREEMONT (345_) 2.0 JTD (2011 - 2018)
• FIAT LINEA (323_, 110_) 1.6 D Multijet (2009 - 2016)
• FIAT DUCATO 2.3 D / JTDM / Multijet (2006 - 2014)
• FIAT DUCATO (250_, 290_) Multijet 2,0 D (2011 - 2018)
• FIAT 500L (351_, 352_) 1.6 D Multijet (2012 - 2018)
• OPEL ASTRA H (A04) 1.9 CDTI (2004 - 2011)
• OPEL ASTRA H Furgon (L70) 1.9 CDTI (2005 - 2011)
• OPEL ASTRA H GTC (A04) 1.9 CDTI (2005 - 2011)
• OPEL SIGNUM liftback (Z03) 1.9 CDTI (2004 - 2008)
• OPEL VECTRA C (Z02) 1.9 CDTI (2004 - 2009)
• OPEL VECTRA C GTS (Z02) 1.9 CDTI (2004 - 2009)
• OPEL VECTRA C ESTATE (Z02) 1.9 CDTI (2004 - 2009)
• OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) (2005 - 2015)
• IVECO DAILY III IV 2.3 D / Multijet (2006 - 2014)
• LANCIA DELTA III (844_) 1.6 D Multijet (2008 - 2015)
• LANCIA DELTA III (844_) 1.9 D Multijet (2008 - 2015)
• LANCIA DELTA III (844_) 2.0 D Multijet (2008 - 2015)
• Peugeot - additional brand context; match the installed throttle body reference.

Throttle Body Reference Selection

• 55186519 ; 55199970 ; 093178706 ; 093186494 ; 93178706 ; 93186494 ; 5825241 ; 5825253 ; 93186494 ; 93178706 ; 93186494 ; 802001924506 ; 88.074 ; 89074 ; 504099669 ; 504345920 ; 504351131 ; 71724304 ; 71724306 ; 55215486 ; 7.03703.98.0 ; 802009525507 ; LTH462 ; XPOT550 ; 68323 ; KTB142 ; LTB096 ; TB3105 ; 70101458 ; V40-81-0021 ; V40-81-0021-1 ; WG1925556

Product context includes 1.9 CDTI; use the exact engine and period in each listed vehicle row. Match the original assembly and component design.

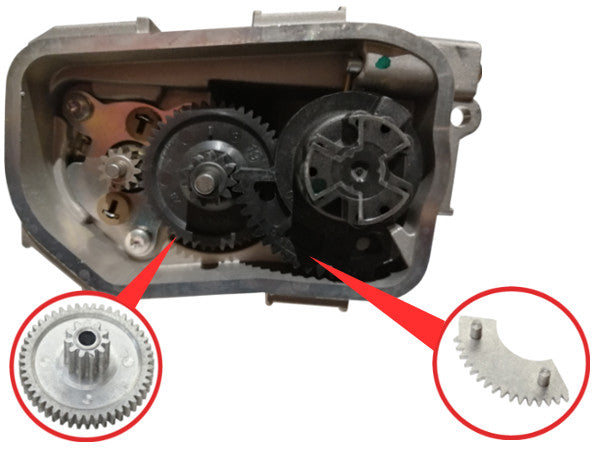

Tooth Counts and Material

• Sector / crescent: 16 teeth.
• Large circular gear: 48 teeth.
• Small circular gear: 11 teeth.

Listed material: aluminum.

When to Inspect the Throttle Body

• Unstable idle.
• Fluctuating engine speed.
• Delayed throttle response.
• Throttle position faults.
• Sticking or play in the mechanism.
• Uneven engine operation following contamination or wear.

Diagnose the affected component before repair; these signs do not establish a gear fault by themselves.

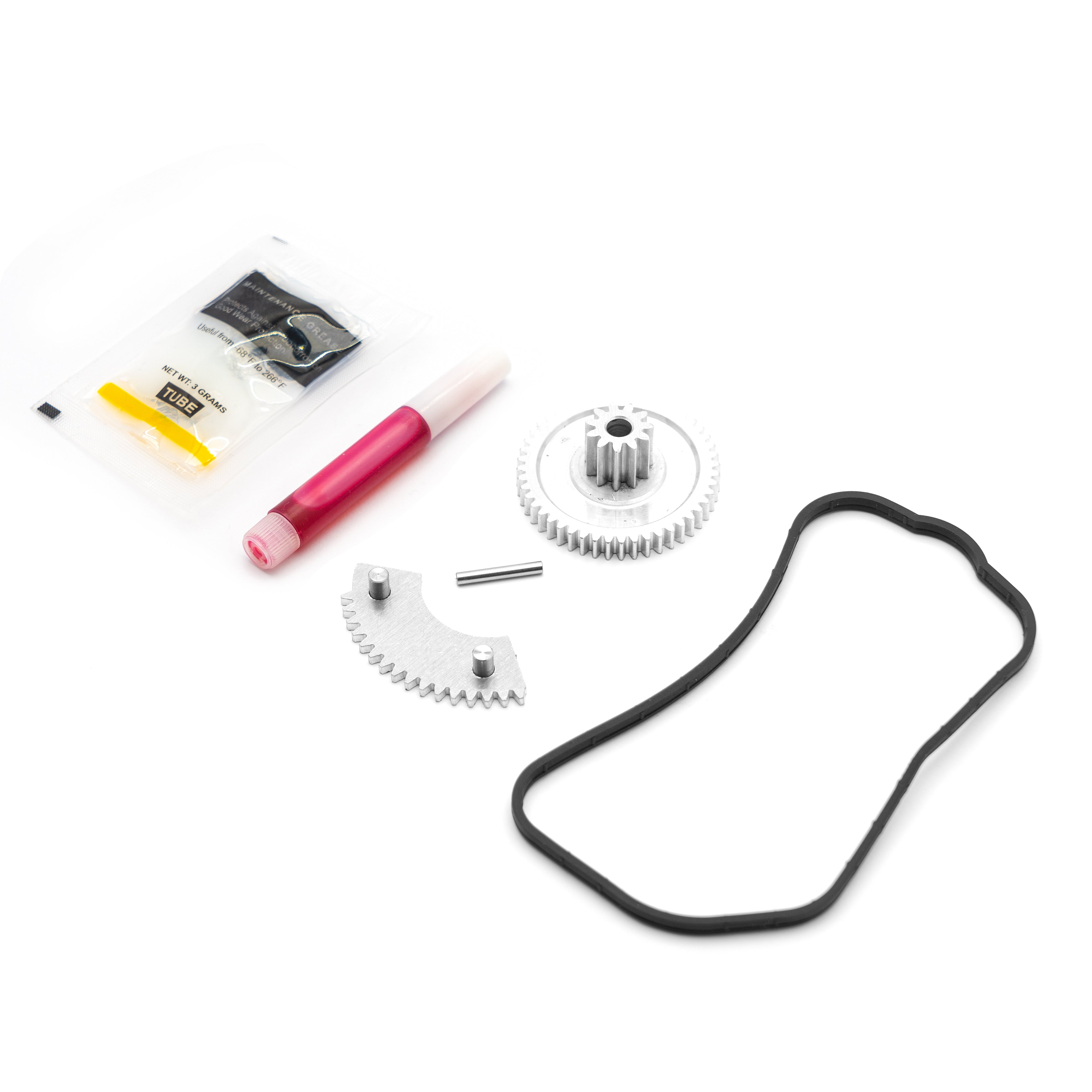

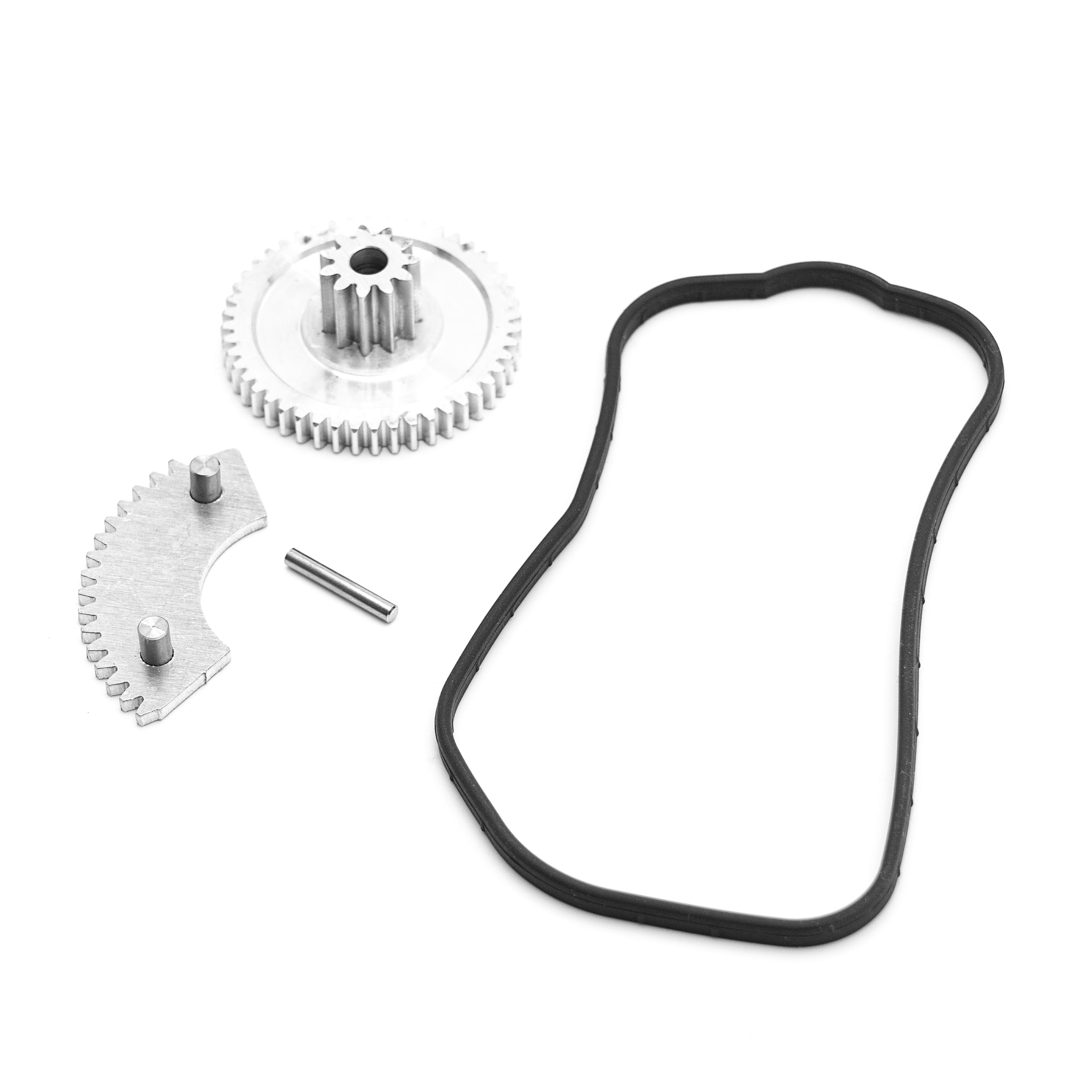

Repair Scope

This is the throttle body mechanism repair kit, rather than a complete throttle body. Match the original component shape, seating and marking.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What are the tooth counts?

16 on the sector, 48 on the large circular gear and 11 on the small gear.

What material is listed?

Aluminum.

Is adaptation always required?

Perform diagnostic adaptation if required for the particular vehicle, after checking cleanliness, free movement and play.

Part Number / PN

55199970, 093178706, 093186494, 93178706, 93186494, 5825241, 5825253, 802001924506, 88.074, 89074, 504099669, 504345920, 504351131, 71724304, 71724306, 55215486, 7.03703.98.0, 802009525507, 68323, 70101458, V40-81-0021, V40-81-0021-1, WG1925556, 55186519

SKU: KL55186519.

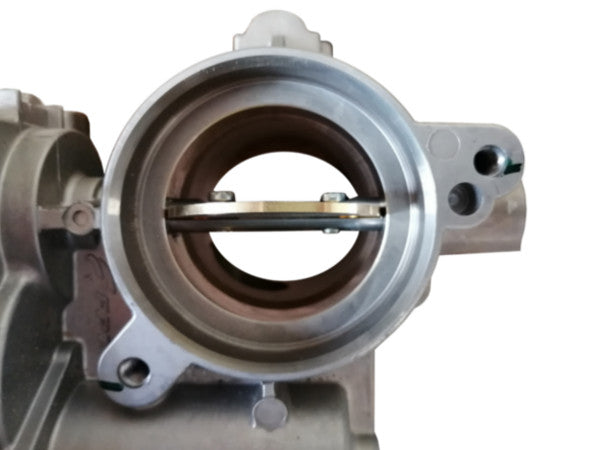

Checks After Repair

Check free flap movement, absence of play and housing cleanliness. Perform throttle adaptation using diagnostic equipment if required for the vehicle.
