Throttle Body Gear Repair Kit - Land Rover Jeep Chrysler Dodge Lancia - for LR020694

This gear repair kit replaces worn mechanical elements of the throttle body on the listed applications. Match the body reference and gear profiles before ordering, and diagnose sticking or play in the original mechanism.

Applications

• Chrysler 300 C II (LX) 3.0 CRD [EXF], 239 PS, diesel - from 2011.
• Dodge Colt [USA] sedan 1.6 [M 15746 D], 84 PS, petrol - from 2013.
• Lancia Thema II (LX) 3.0 V6 CRD [EXF], 239 PS, diesel - 2011-2014.
• Maserati Quattroporte V 3.0 D [M 15746 D], 275 PS, diesel - from 2013.
• Maserati Ghibli (M157) 3.0 D [M 15746 D], 250 PS, diesel - from 2013.
• Jeep Grand Cherokee IV (WL, WK2) - from 2011.
• Land Rover Range Rover 4.4D - 2010-2012.
• Land Rover Range Rover 4.4D - from 2013.
• Land Rover Range Rover 3.0 V6 D - from 2013.
• Land Rover Range Rover Sport 4.4D - from 2014.

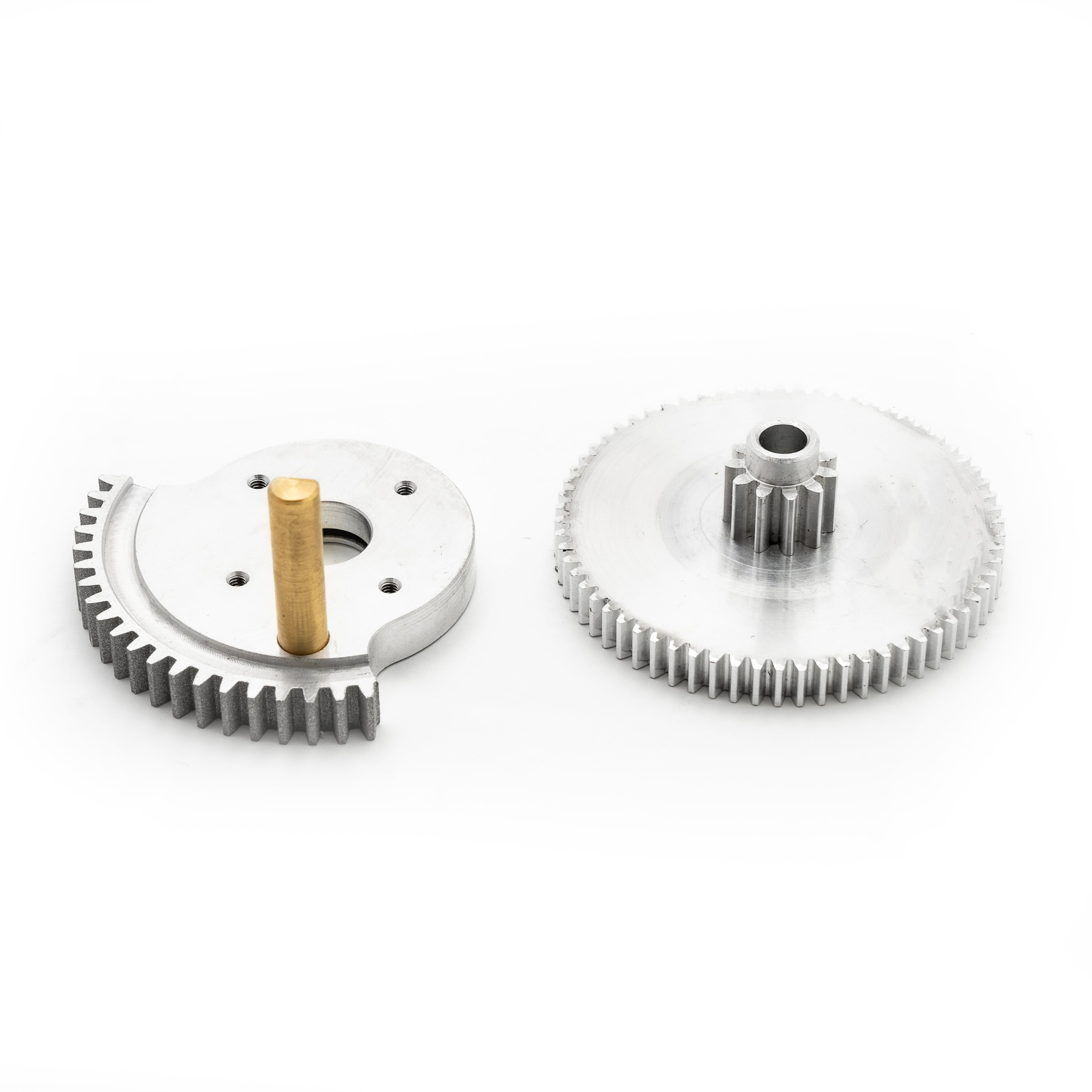

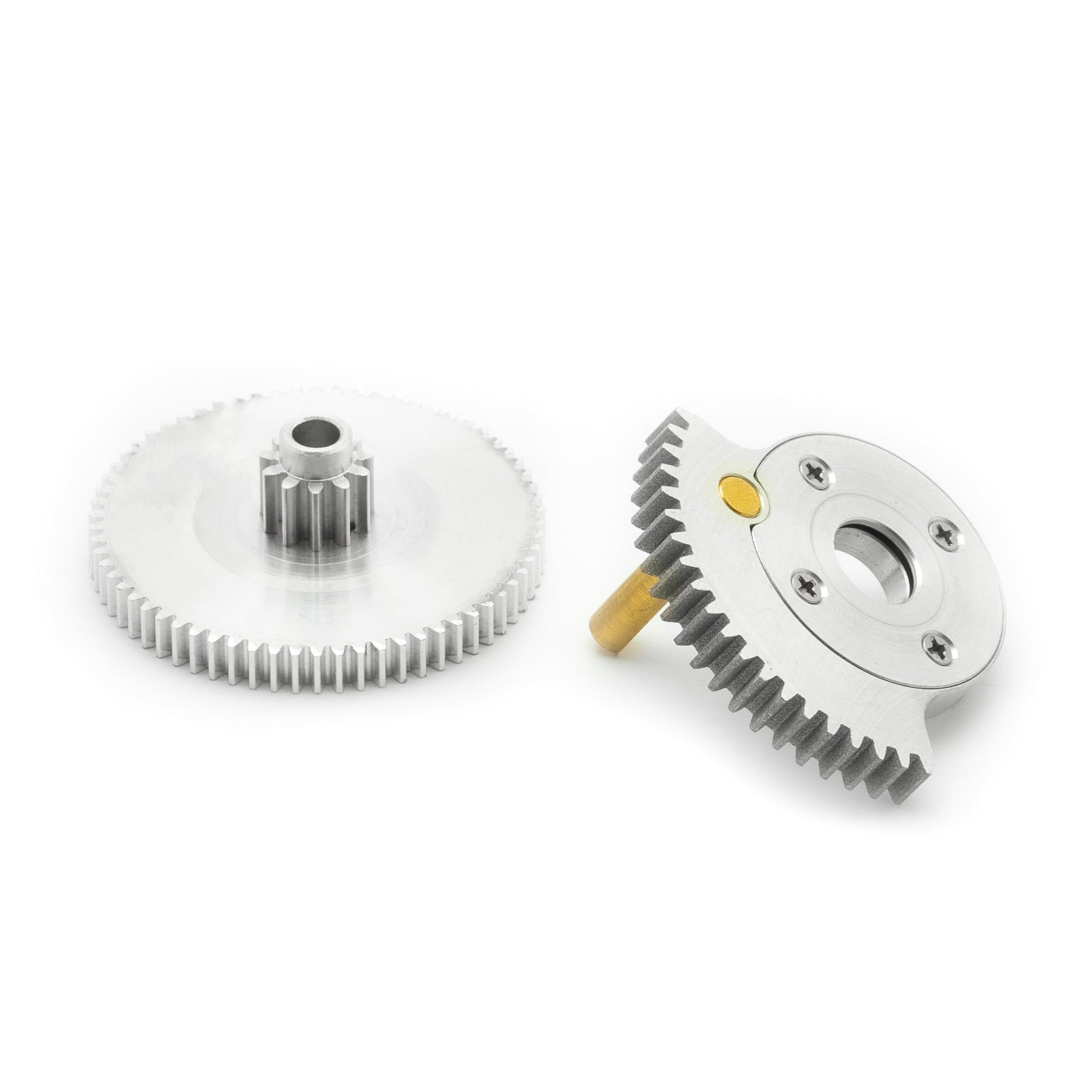

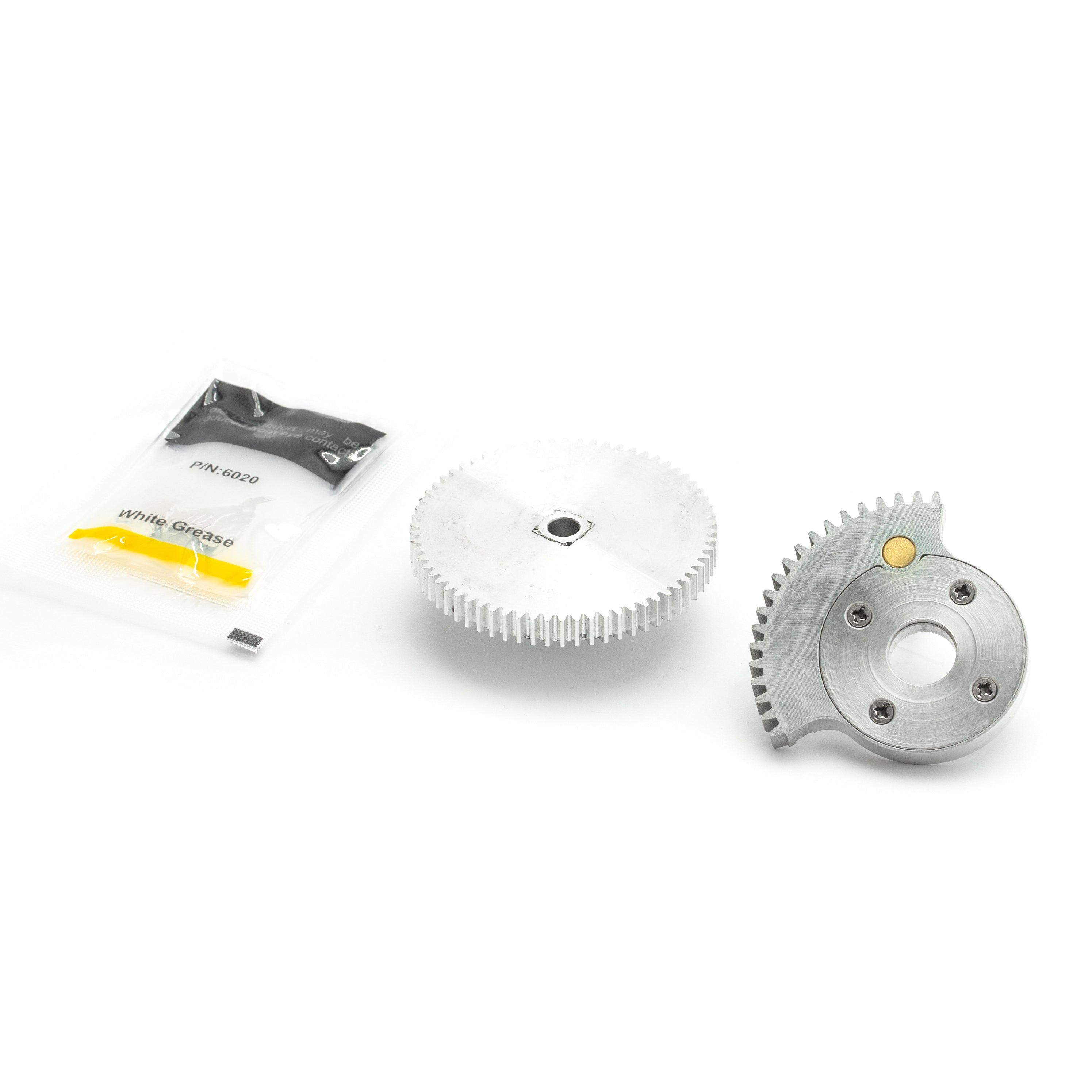

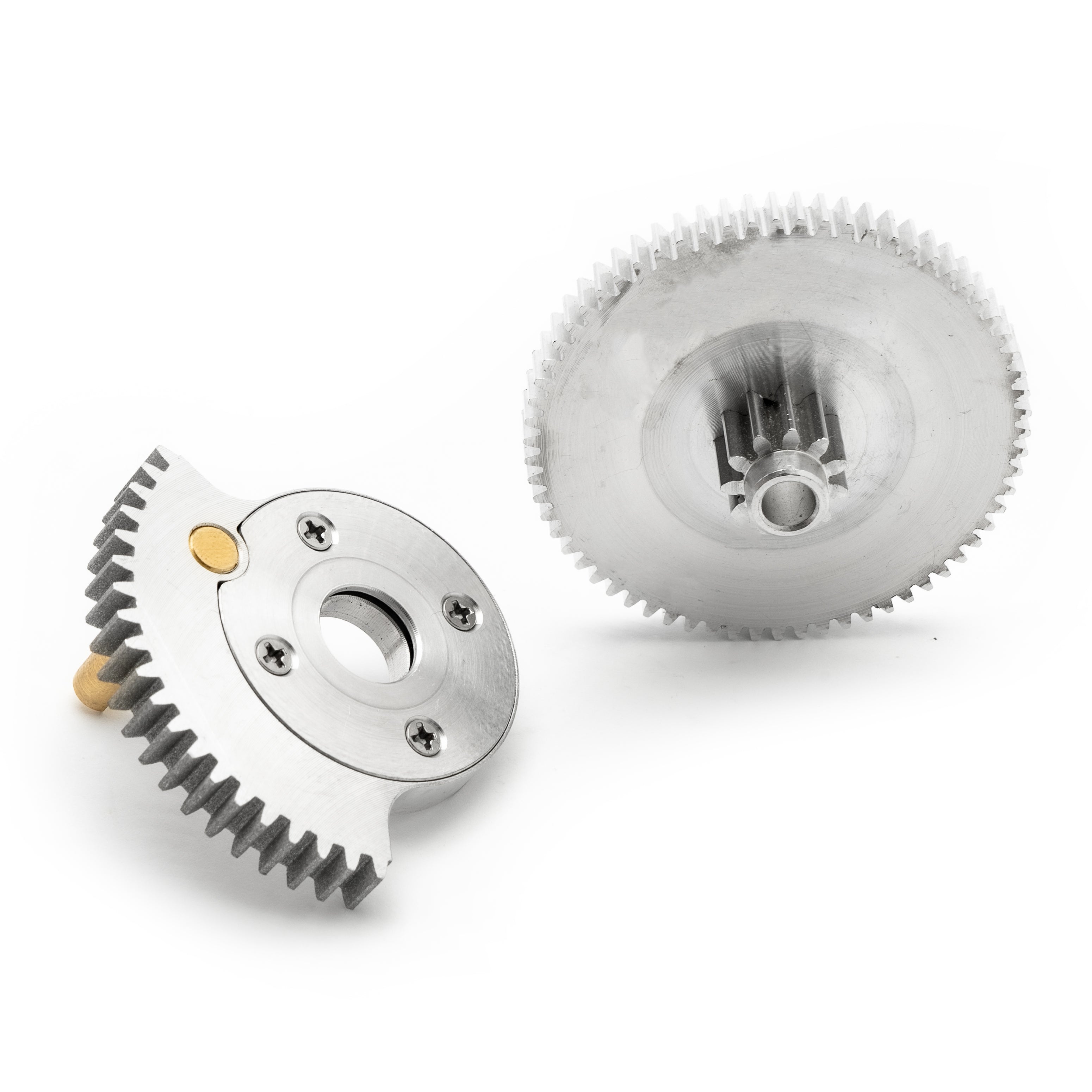

Gear Profiles and Body References

• Large circular profile: 66 teeth.
• Small circular profile: 11 teeth.
• Crescent profile: 20 teeth.

Throttle body references: 68147613AA and LR020694 (BC3Q-9F991-DA). Additional reference: 68147613.

When to Inspect the Throttle Body

• Unstable idle.
• Fluctuating engine speed.
• Delayed accelerator response.
• Throttle position faults.
• Sticking or play in the mechanism.
• Uneven running after contamination or component wear.

Diagnose the throttle body before selecting repair parts; these symptoms do not establish a gear fault by themselves.

Checks After Repair

Check free flap movement, absence of play and housing cleanliness. Clean the unit and perform throttle body adaptation with diagnostic equipment if required for the vehicle.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Which tooth counts should I compare?

66 on the large circular profile, 11 on the small circular profile and 20 on the crescent.

Which body reference is paired with LR020694?

BC3Q-9F991-DA.

What should be checked after repair?

Check free movement, absence of play and body cleanliness; perform diagnostic adaptation if the vehicle requires it.

Part Number / PN

BC3Q-9F991-DA,LR020694,68147613AA,68147613

SKU: KLLR020694.
