Throttle Body Gear Repair Kit 2.2 - Land Rover Citroen Peugeot Ford - for LR012598

This gear repair kit replaces worn mechanical elements of the throttle body on the listed Land Rover, Citroen, Peugeot, Ford, Mitsubishi and Fiat 2.2 diesel applications. Match the original body reference and all gear profiles.

Applications

• Citroen C-CROSSER 2.2 HDi (2007-...)
• Citroen C5 II 2.2 HDi (2006- )
• Citroen C5 III 2.2 HDi (2008-...)
• Citroen C6 2.2 HDi (2006-2012)
• Citroen C8 2.2 HDi (2006-...)
• Peugeot 407 2.2 HDi (2006-...)
• Peugeot 407 SW 2.2 HDi (2006-...)
• Peugeot 508 SW 2.2 HDI (2010-...)
• Peugeot 607 2.2 HDi (2006-2010)
• Peugeot 807 2.2 HDi (2006-2010)
• Peugeot 4007 2.2 HDi (2007-...)
• Ford Mondeo IV (BD BG BE) 2.2 TDCI (2008-2015)
• Ford Galaxy II (WM) 2.2 TDCI (2008-...)
• Ford S-Max 2.2 (WS) TDCI (2008-...)
• Land Rover Freelander II 2.2 TDCI TD4 (2006-2015)
• Range Rover Evoque 2.2 eD4 TD4 SD4 (2011-2016)
• Fiat Ulysse II 2.2 D Multijet / JTD (2008-2011)
• Mitsubishi Outlander XL II 2.2 DI-D (2007-2012)
• Additional model designation: Discovery Sport - match the original throttle body reference and gear profiles.

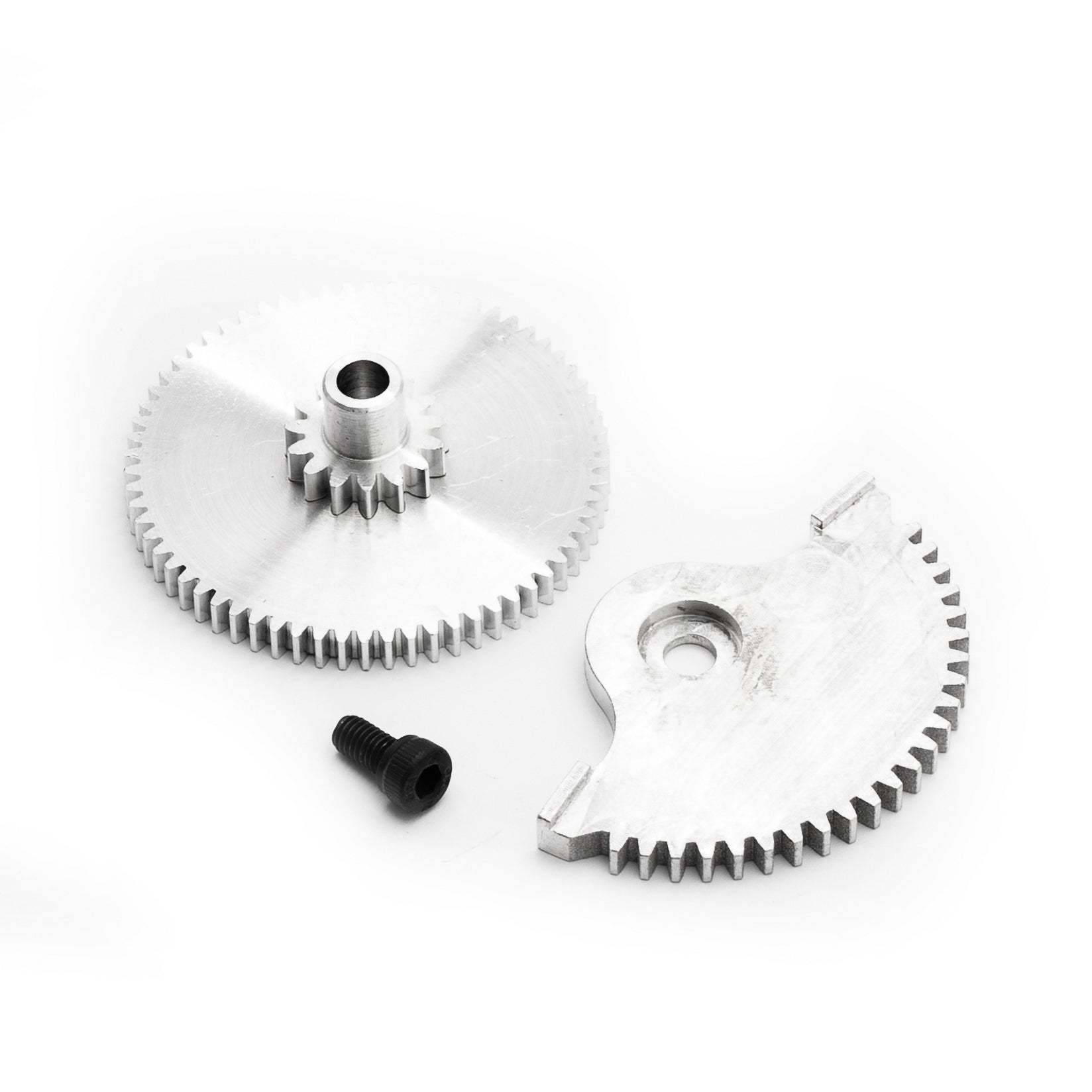

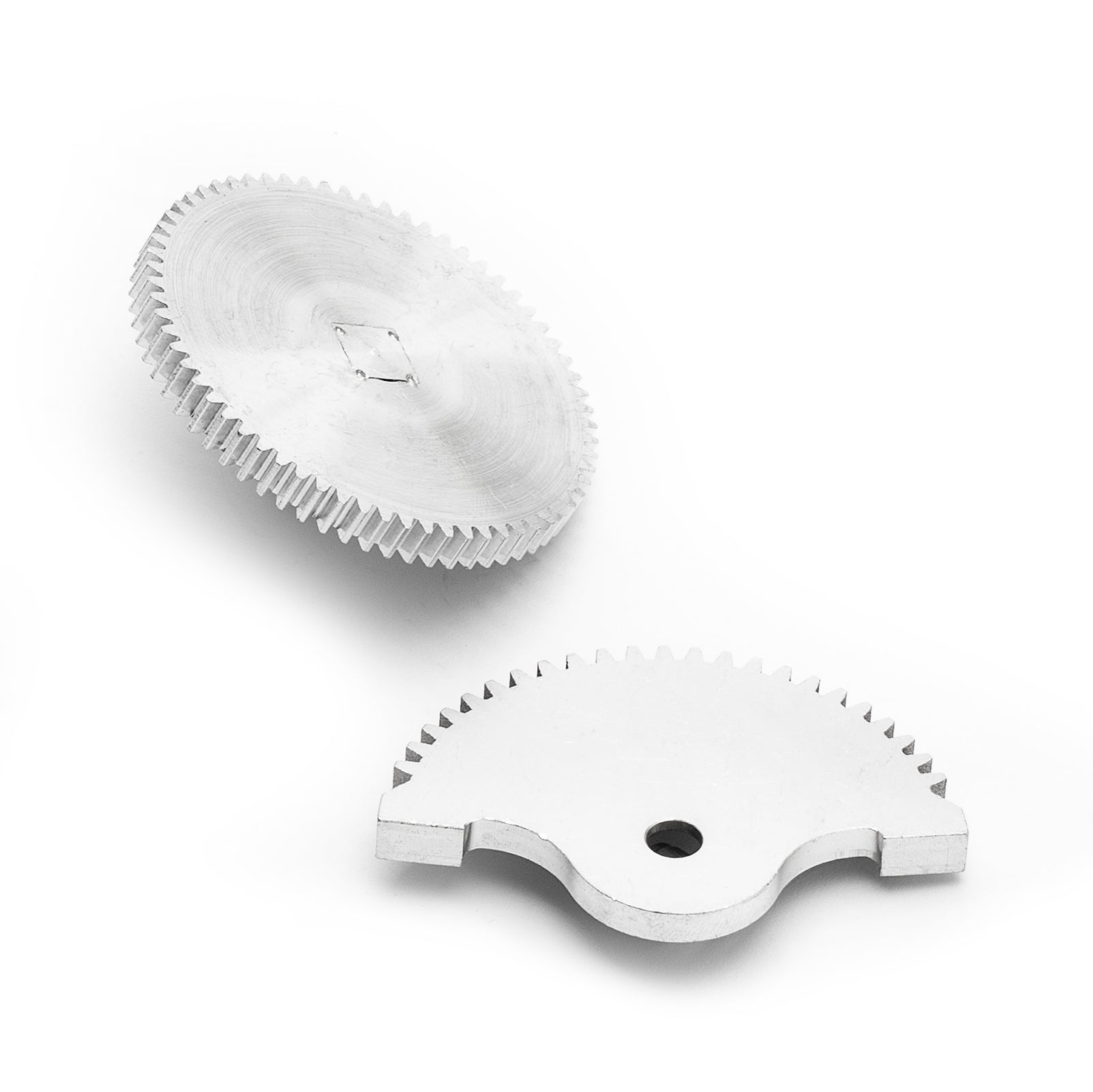

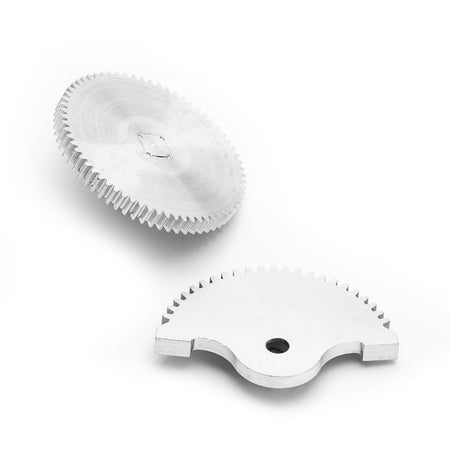

Gear Tooth Counts and Reference Forms

• Crescent: 23 teeth.
• Large circular profile: 66 teeth.
• Small circular profile: 15 teeth.

Additional exact reference forms: 0345.E and 0345.F7. Compare these and the complete throttle body references below.

When to Inspect the Throttle Body

• Unstable idle.
• Fluctuating engine speed.
• Delayed accelerator response.
• Throttle position faults.
• Sticking or play in the mechanism.
• Uneven running after contamination or component wear.

Diagnose the throttle body before selecting repair parts; these symptoms do not establish a gear fault by themselves.

Checks After Repair

Check free flap movement, absence of play and housing cleanliness. Clean the unit and perform throttle body adaptation with diagnostic equipment if required for the vehicle.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

Which tooth counts should I compare?

23 on the crescent, 66 on the large circular profile and 15 on the small circular profile.

Which exact dotted reference forms are listed?

0345.E and 0345.F7.

Is diagnostic adaptation required?

Check movement, play and cleanliness; perform adaptation if required for the vehicle.

Part Number / PN

0345F7,9656932580,9687888280,1427361,1566190,6G9Q9E926CA,6G9Q9E926BA,LR001001,LR012598,7.01002.09.0,7.01002.05.0,7.01002.07.0,7.01002.09,0345E0

SKU: KLLR012598.
