Throttle Valve Actuator Diaphragm – Peugeot / Citroen / Ford / Volvo 2.0D HDi TDCi | OEM 0345F0

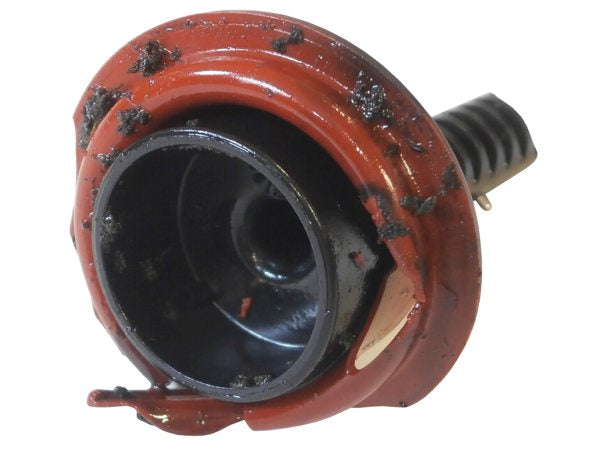

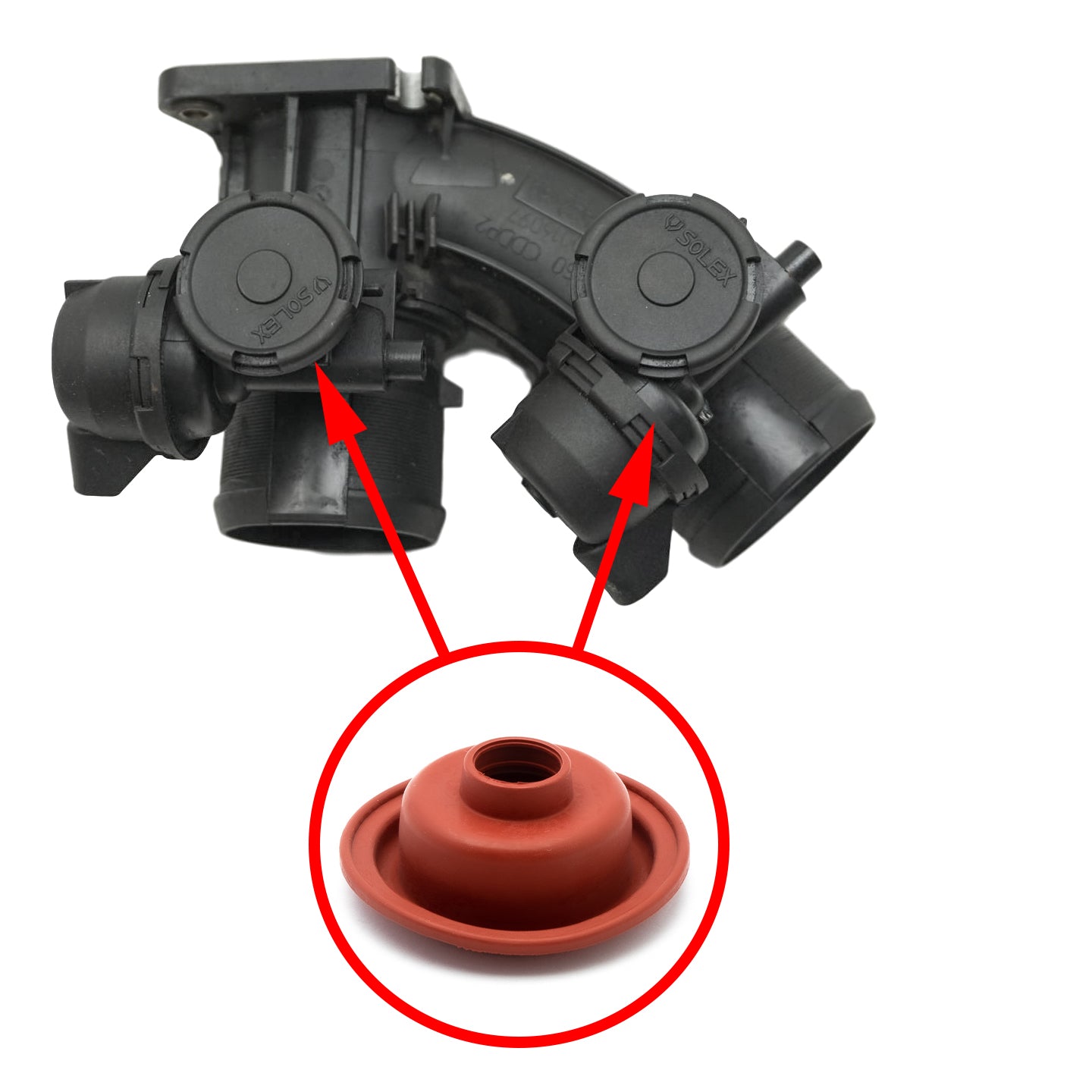

The throttle valve actuator diaphragm on Peugeot, Citroen, Ford, and Volvo 2.0D/HDi/TDCi diesel engines controls the swirl flap or EGR throttle valve via vacuum. When the diaphragm fails, the valve stops responding correctly — causing intake fault codes, EGR faults, and rough idle. This replacement membrane fits both left and right sides of the throttle body.
Fits OEM #9657522680.
When to Inspect This Part
- rough or unstable idle
- excessive play
- uneven engine operation
What's Included

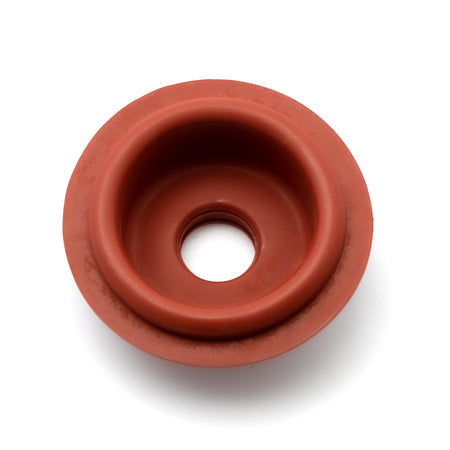

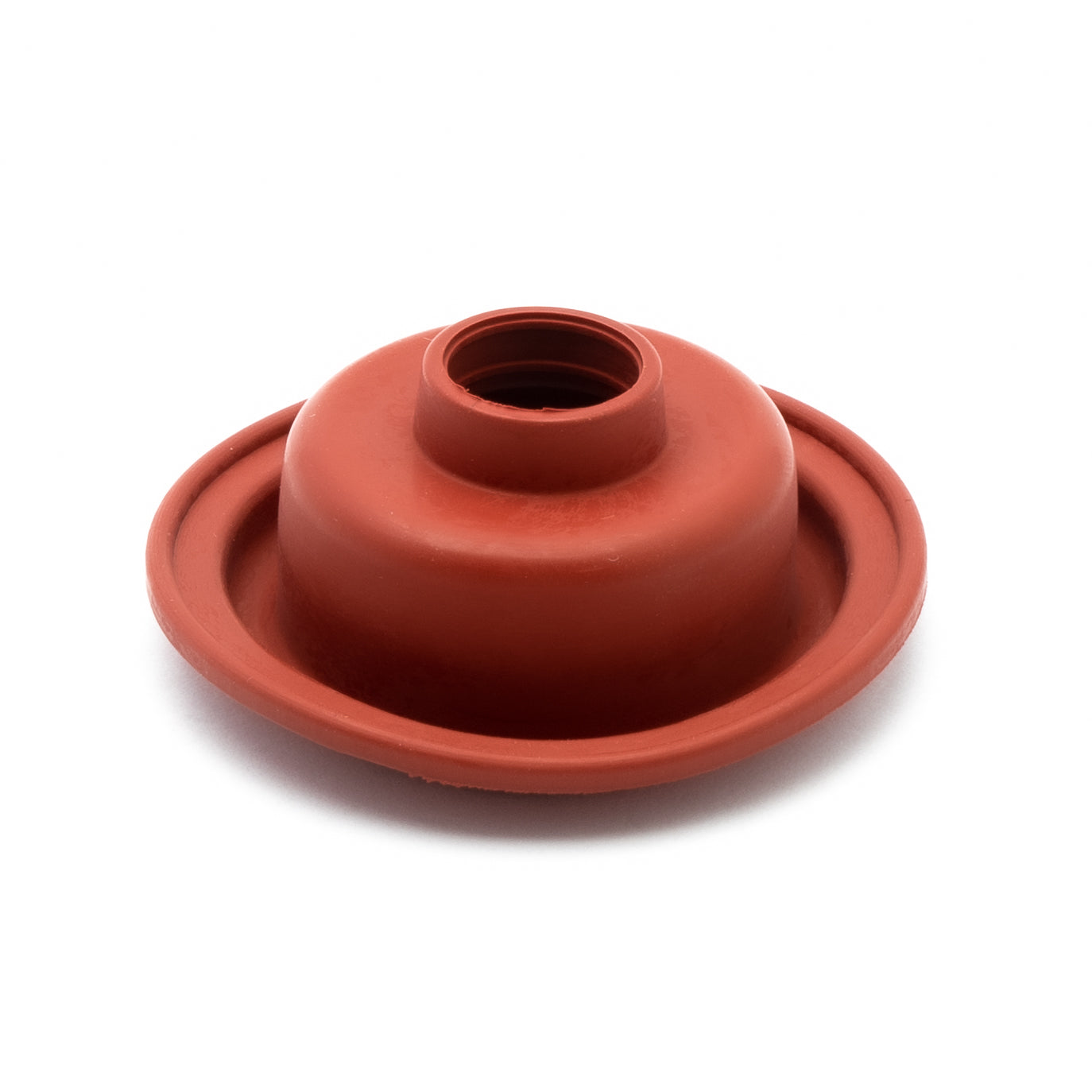

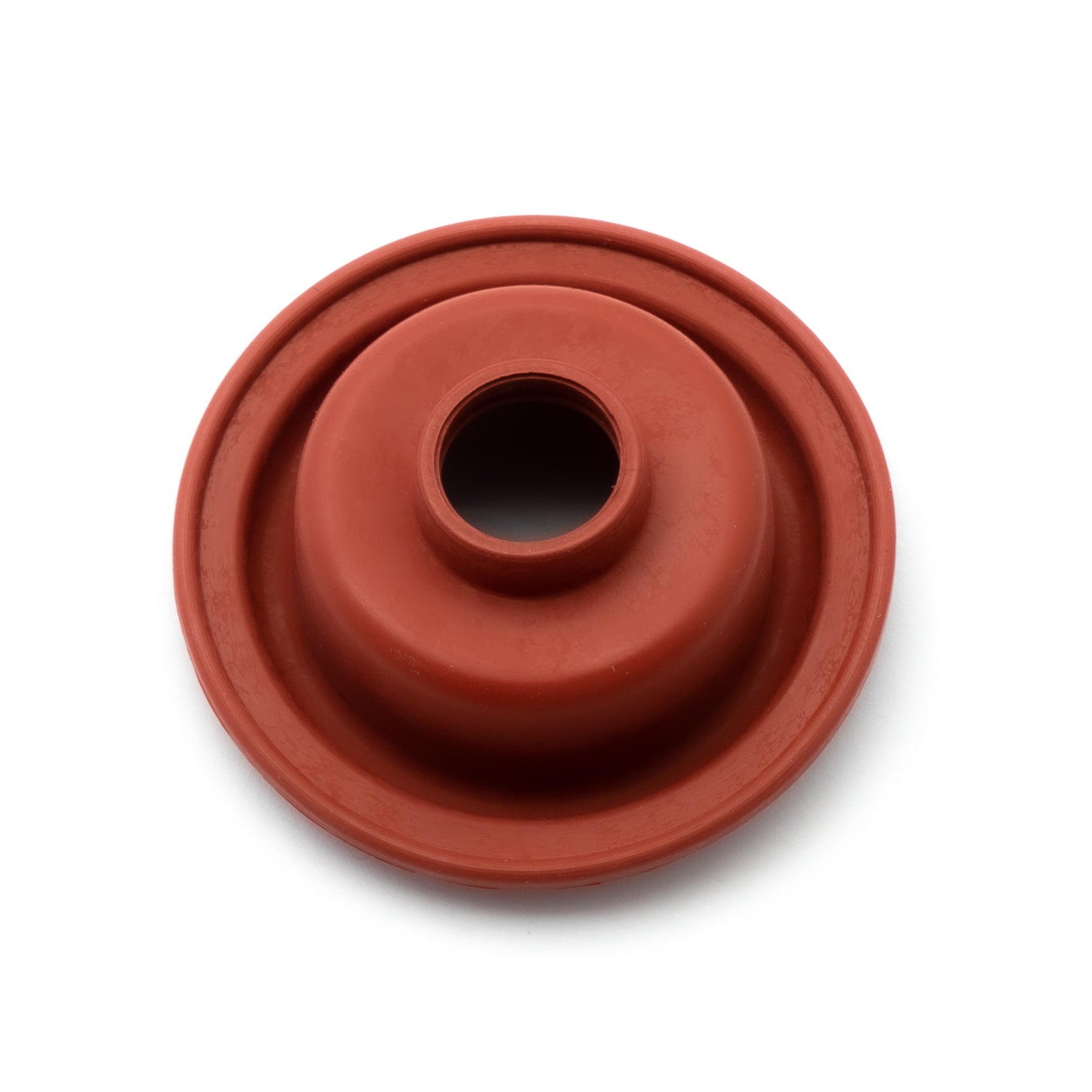

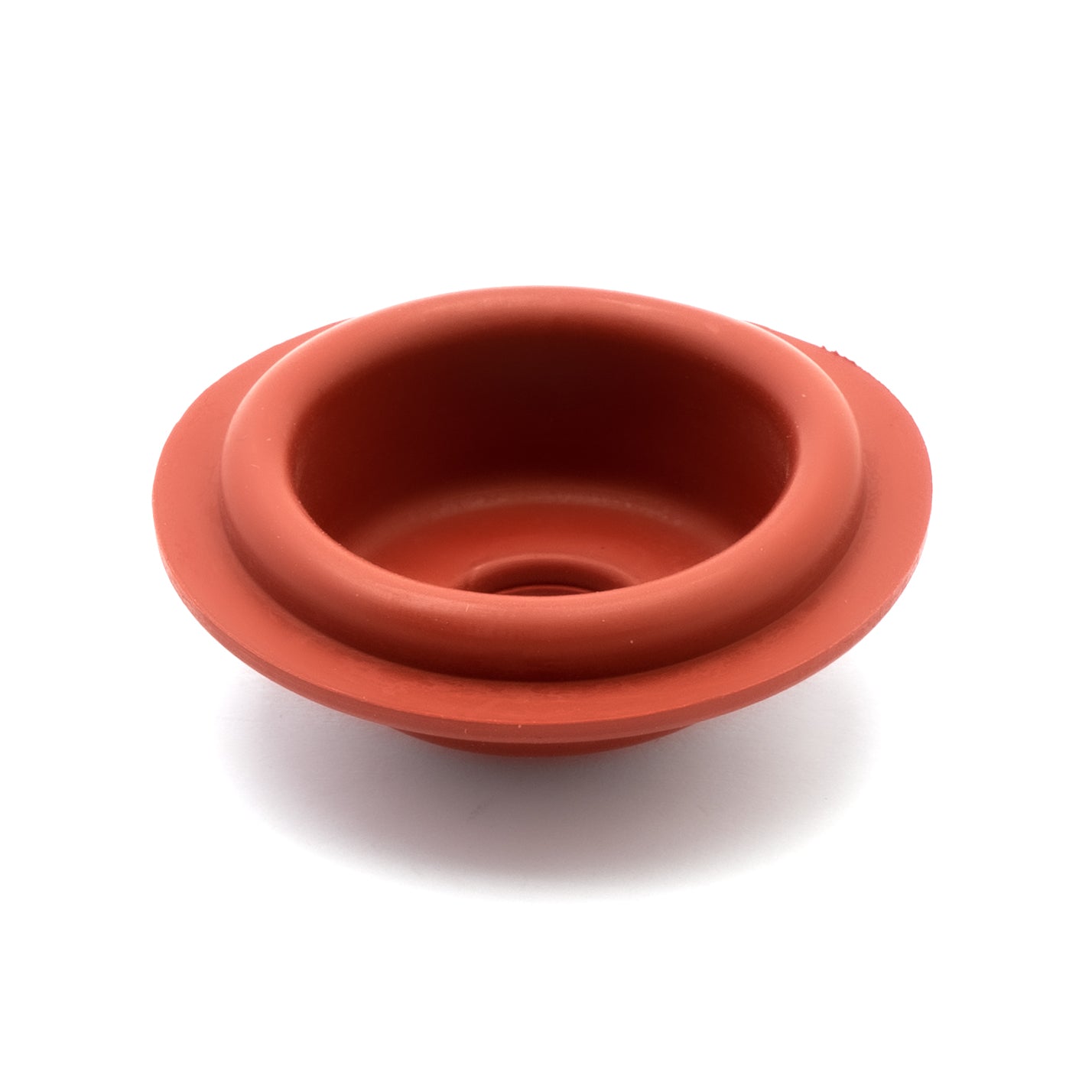

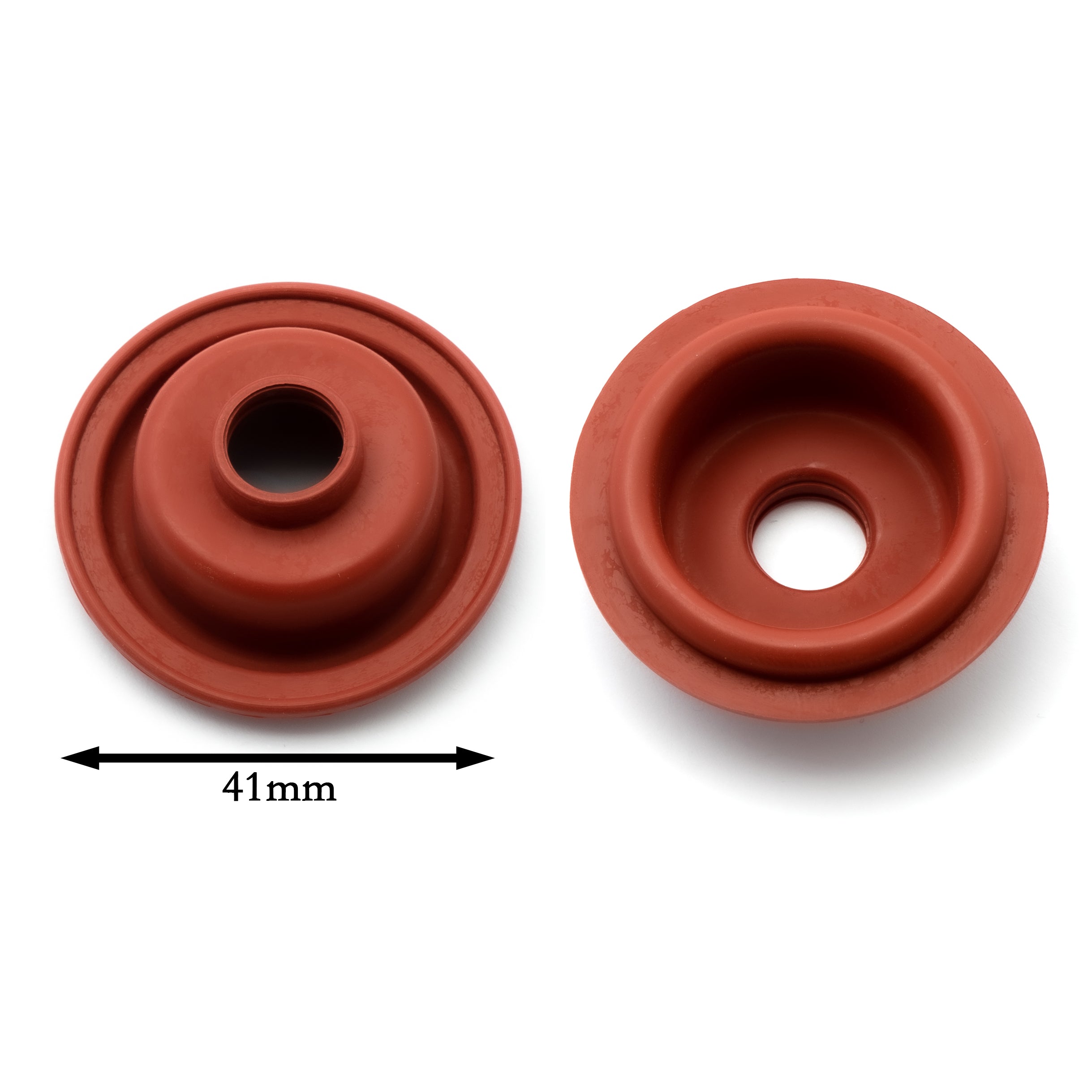

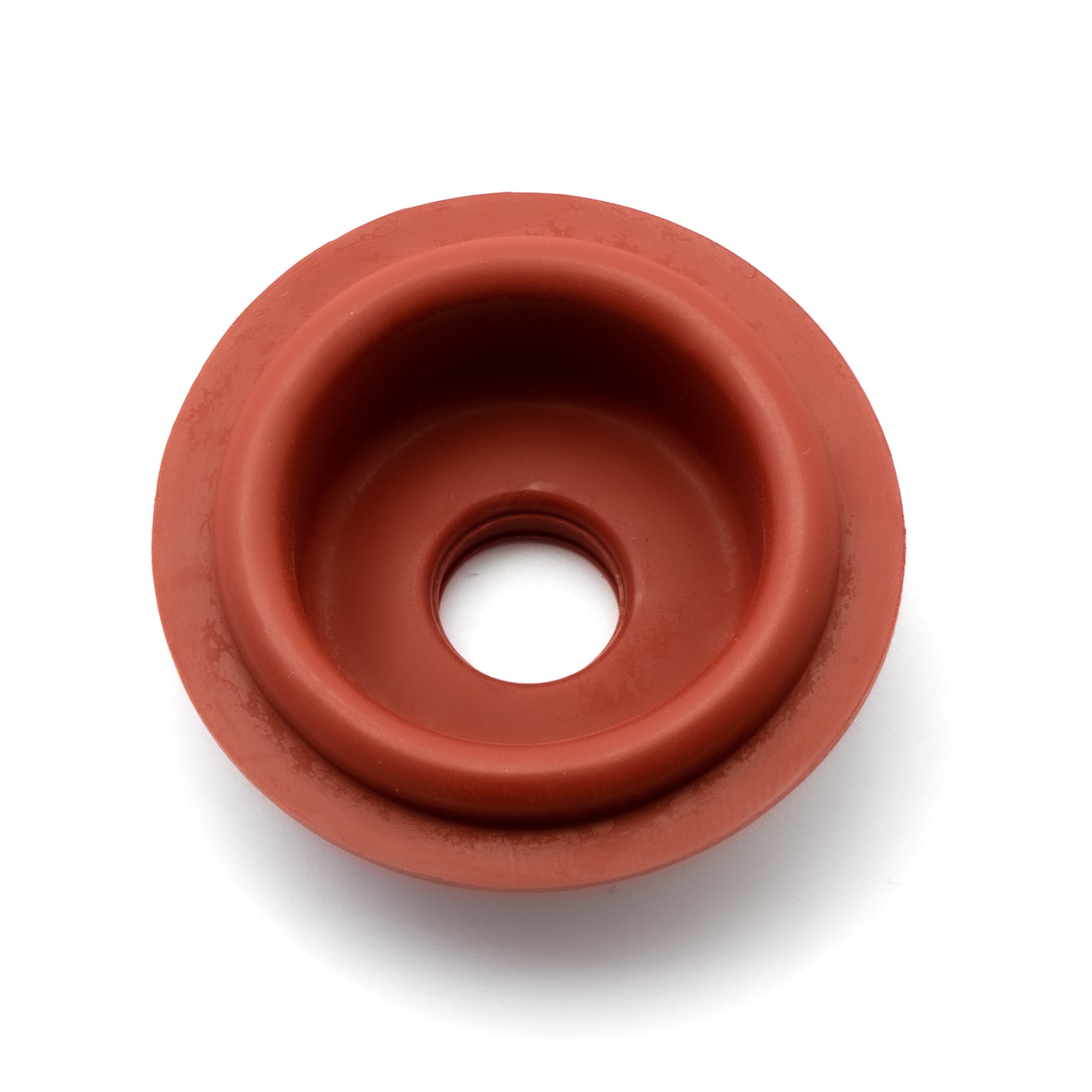

- 1 × Throttle Valve Actuator Diaphragm
OEM Part Numbers and Vehicle Fitment
Additional confirmed fitment
- Citroen C4 I, C4 Picasso, C4 Grand Picasso, C5 II III, C8 (2.0 HDI)
- Peugeot 307, 407, 607, 807 (2.0 HDI)
- Ford Focus MK2, Mondeo MK3, C-MAX, Focus C-MAX, Galaxy (2.0 TDCI)
- Volvo V50, C30, C70 II, V70, S40 II (2.0 D)
Part Number / PN
9657522680, 9647015480, 9657522480, 9662306480, 9646846380, 9684269380, 802007889313, 802009289501, 655THR734325, 3M5Q9E926CD, 3M5Q9E926CA, 3M5Q9E926CB, 3M5Q9E926CC, 50Z50CDDF4, 703703620, 70370362, 50104330, 31293233, 30650788, 30750405, 1576655, 1256639, 1376507, 1307435, 50CDDP9, 556172, 0345F0, 0345E9
Important Fitment Check
Before ordering, compare the part design, dimensions, connectors, and every available OEM/P/N marking with the part installed on the vehicle. Matching OEM/P/N 9657522680 is the primary fitment check.
FAQ
How do I confirm fitment for this Throttle Valve Actuator Diaphragm?
Compare the exact OEM/P/N and physical design with the installed part. The primary reference is 9657522680. Do not select the part by vehicle model alone.
What symptoms may indicate a problem with this Throttle Valve Actuator Diaphragm?
Confirmed symptoms include rough or unstable idle, excessive play, uneven engine operation. Diagnose the original assembly before ordering so another fault is not mistaken for this part.
What is included with this Throttle Valve Actuator Diaphragm?
The confirmed kit contents are: 1 × Throttle Valve Actuator Diaphragm.
Does this listing include the complete surrounding assembly?
No. It includes only the item or repair components identified for this SKU. Inspect related parts separately and replace them only when diagnosis confirms a fault.
What should be checked before installation?
Check the OEM/P/N, dimensions, connectors, orientation, and condition of the mating components. Installation should follow the correct service procedure for the specific vehicle and assembly.
