Aluminum Throttle Body Gear Repair Kit - Kia Hyundai CRDI - for 35100-27410

This aluminum gear repair kit is for the throttle body on the listed Kia Hyundai CRDI diesel applications. It contains a toothed wheel and sector for repair of worn original plastic gears. Match the assembly and gear design before ordering.

Applications

• Kia / Hyundai Grandeur.
• Kia / Hyundai I30 (i30).
• Kia / Hyundai IX55 (ix55).
• Kia / Hyundai Santa Fe.
• Kia / Hyundai Sonata.
• Kia / Hyundai Tucson.
• Kia / Hyundai H-100 (H100 / H 100).
• Kia / Hyundai Mohave.
• Kia / Hyundai Bongo 3 (Bongo).
• Kia / Hyundai K2500 (K-2500).
• Kia / Hyundai Borrego.

Version Selection

Engine designations: 1.6 CRDI, 1.7 CRDI, 2.0 CRDI and 2.2 CRTD. For throttle bodies with either a black plastic cover or an aluminum cover. Assembly references: 35100-27410 (3510027410), 35100-2A900 (351002A900), A2C59515171, 351004A710. Compare the original marking and gear shape.

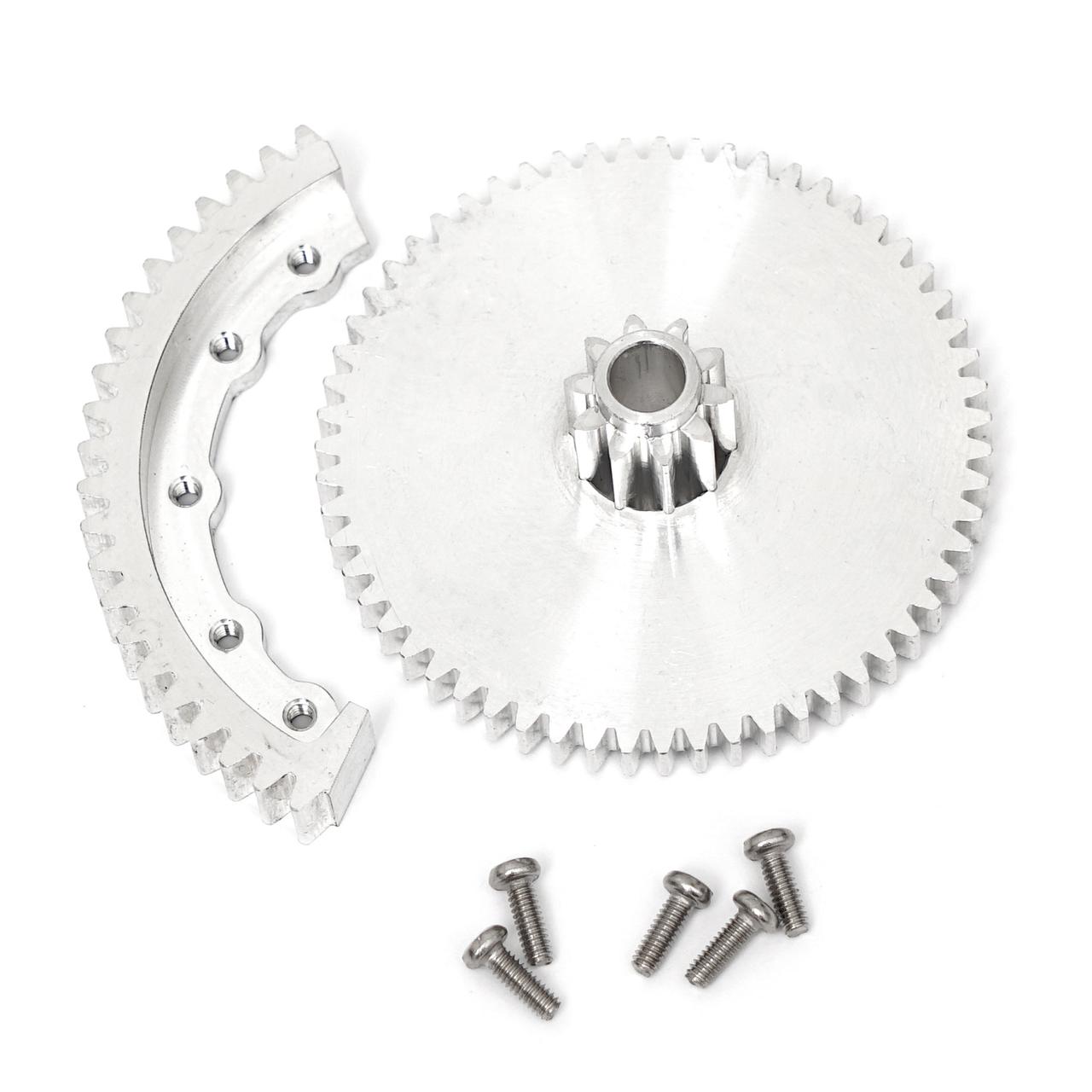

Kit and Tooth Counts

• Aluminum toothed wheel and sector.
• Sector / crescent: 22 teeth.
• Large circular gear: 59 teeth.
• Small circular gear: 10 teeth.

Function and Fault Checks

The diesel throttle body supports EGR / AGR operation and closes the airflow for prompt engine shutdown. Original plastic gear teeth can wear. Throttle faults or a Check Engine warning, and an engine that no longer stops promptly after switching off, call for diagnosis. Confirm a mechanical gear fault before repair.

When to Inspect the Throttle Body

• Unstable idle.
• Fluctuating engine speed.
• Delayed accelerator response.
• Throttle position faults.
• Sticking or play in the mechanism.
• Uneven running after contamination or component wear.

Diagnose the throttle body before selecting repair parts; these symptoms do not establish a gear fault by themselves.

Checks After Repair

Check free flap movement, absence of play and housing cleanliness. Clean the unit and perform throttle body adaptation with diagnostic equipment if required for the vehicle.

Important Before Ordering

Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.

FAQ

What parts are supplied?

An aluminum toothed wheel and sector.

Which cover versions are listed?

Both black plastic and aluminum throttle body covers; match the installed assembly.

What are the tooth counts?

22 for the sector, 59 for the large circular gear and 10 for the small circular gear.

Part Number / PN

35100-2A900,351004A710,A2C59515171,75E0387,112031,0892457

SKU: KL3510027410.

• Hyundai
• Kia
