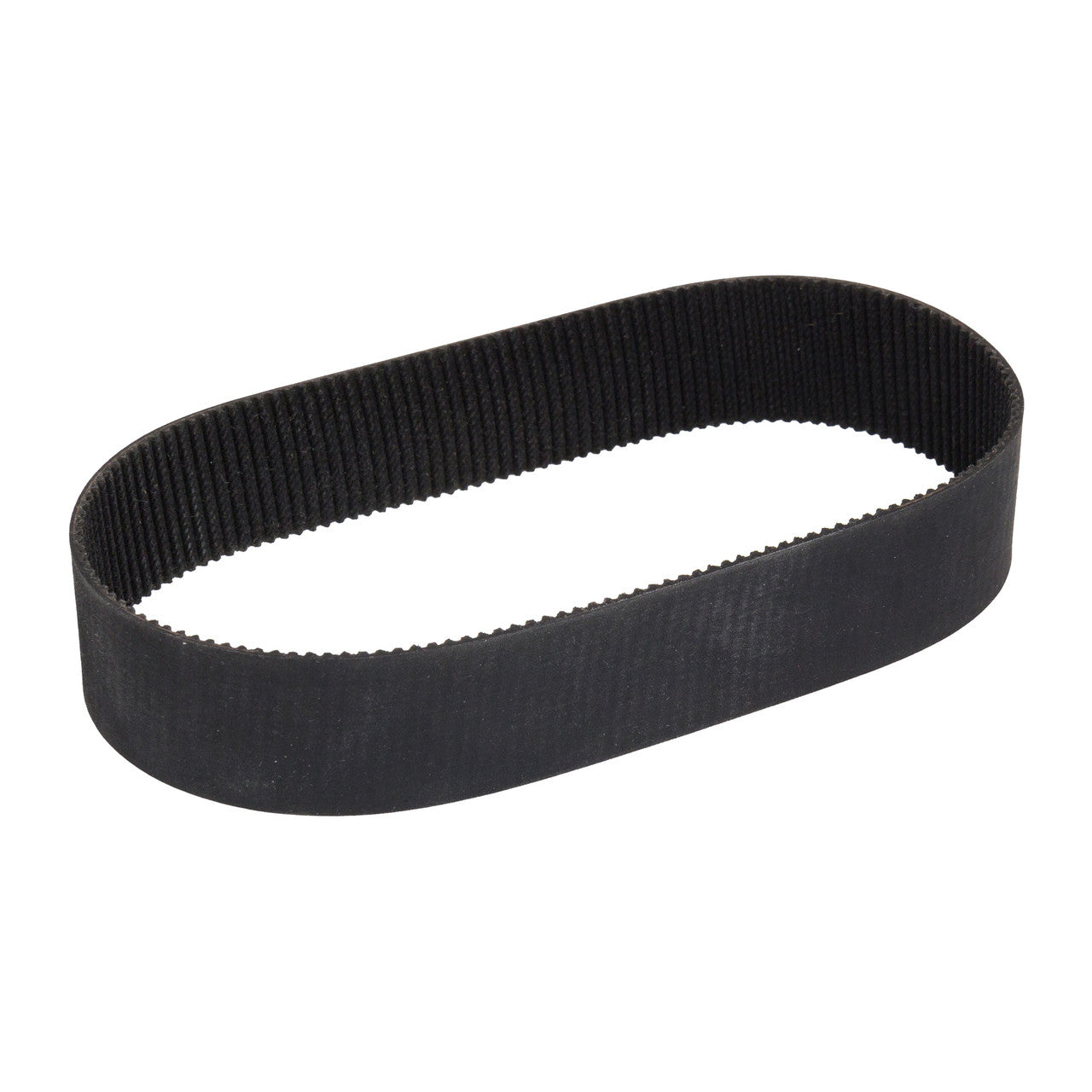

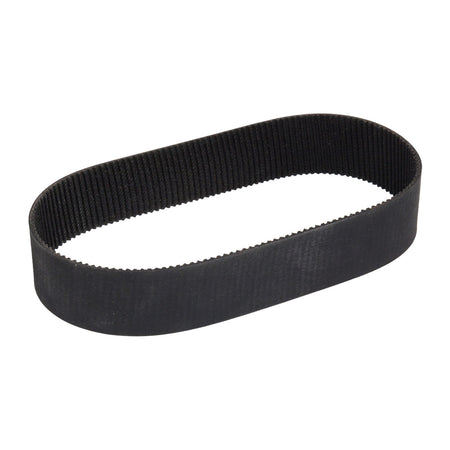

This drive belt is a replacement component for the electric steering rack on the listed applications. Inspect the old belt and rack to confirm wear or damage and match the rack number, belt dimensions and tooth form before ordering.
Applications
- Ford C-MAX II - 2010-2019, 1.6 TDCi.
- Ford Focus III - 2012-2019: 1.6 EcoBoost, 1.6 Flexifuel, 1.6 TDCi, 1.6 Ti, 2.0 TDCi, 2.0 ST.
- Ford Focus III saloon - 2011-2019, 2.0 TDCi.
- Ford Kuga II - 2013-2019, 1.6 EcoBoost.
- Ford Transit Connect Wagon - 2015-2019, 1.5 TDCi.
- Ford Transit Connect van - 2013-2019, 1.6 TDCi.
- Additional listed model contexts: Transit; Tourneo Connect / Grand Tourneo Connect. Match the rack reference.
Version Selection
Match the full rack number and suffix from the reference list below. Cross-reference: Ford Motor Company 1868628. Confirm the listed model, body, engine and period.

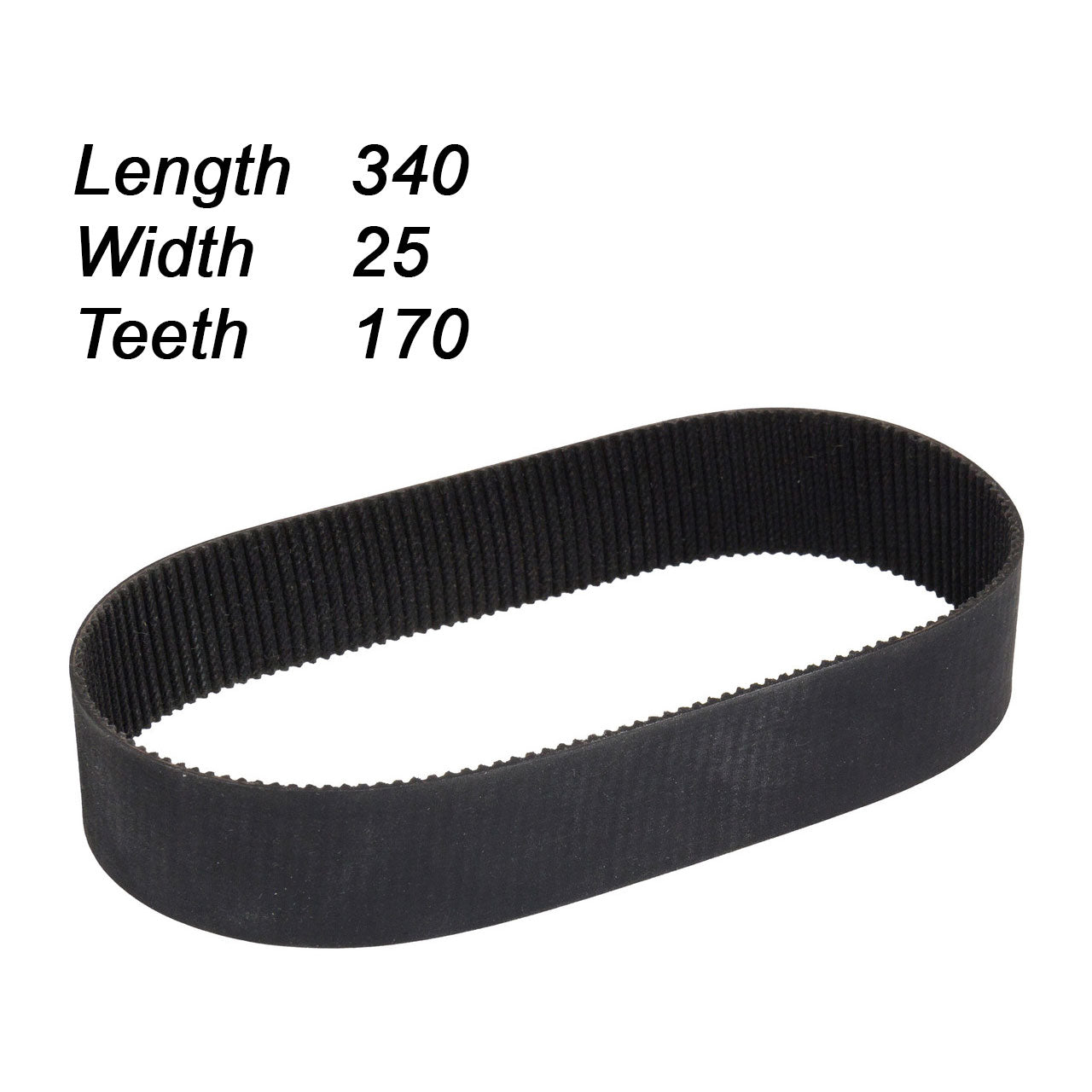

Belt Specifications
- 170 teeth.
- Width: 25mm.
- Length: 340mm.
- Angled teeth.
When to Inspect the Belt
Inspect the belt for wear, damage, deformation or incorrect seating. Check the surrounding rack mechanism when operation becomes unstable. The belt is a separate repair component, rather than a complete steering rack.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
How many teeth does the belt have?
170 angled teeth.
What are the width and length?
Width: 25mm. Length: 340mm.
What should I match before ordering?
Compare the installed rack reference, belt dimensions and tooth form; the vehicle model alone does not confirm the belt version.
Part Number / PN
1754788,1830217,1830265,1831620,1842511,bv6c3d070,1752371,1752373,1732061,CV6C3D070,1900377,1880730,1762361,1803481,2026512,1939540,AV6C-3D070-RE,1868628,2027027,1939536,1890473,1890273,41516736q,CV6C-3D070-NL,E40331RB,3GS2601,RU62361,81912014R,CV6Z-3504-VE,1862701,1869580,1880729,1897286,1939526,2057101,2163305,2272387,2308558,2019561,2068045,2117822,1855327,1870373,1855328,1874699,1868630,1893984,1903803,HEE4033ERM,HEE4132ERM,HEE4147ERM,HEE4154ERM,HEE4155ERM,HEE4093ERM,A0058833
SKU: KL1754788.
