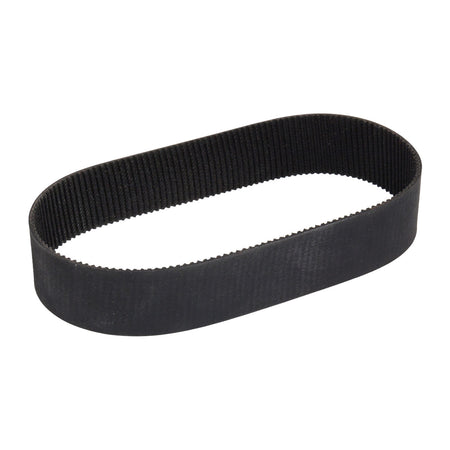

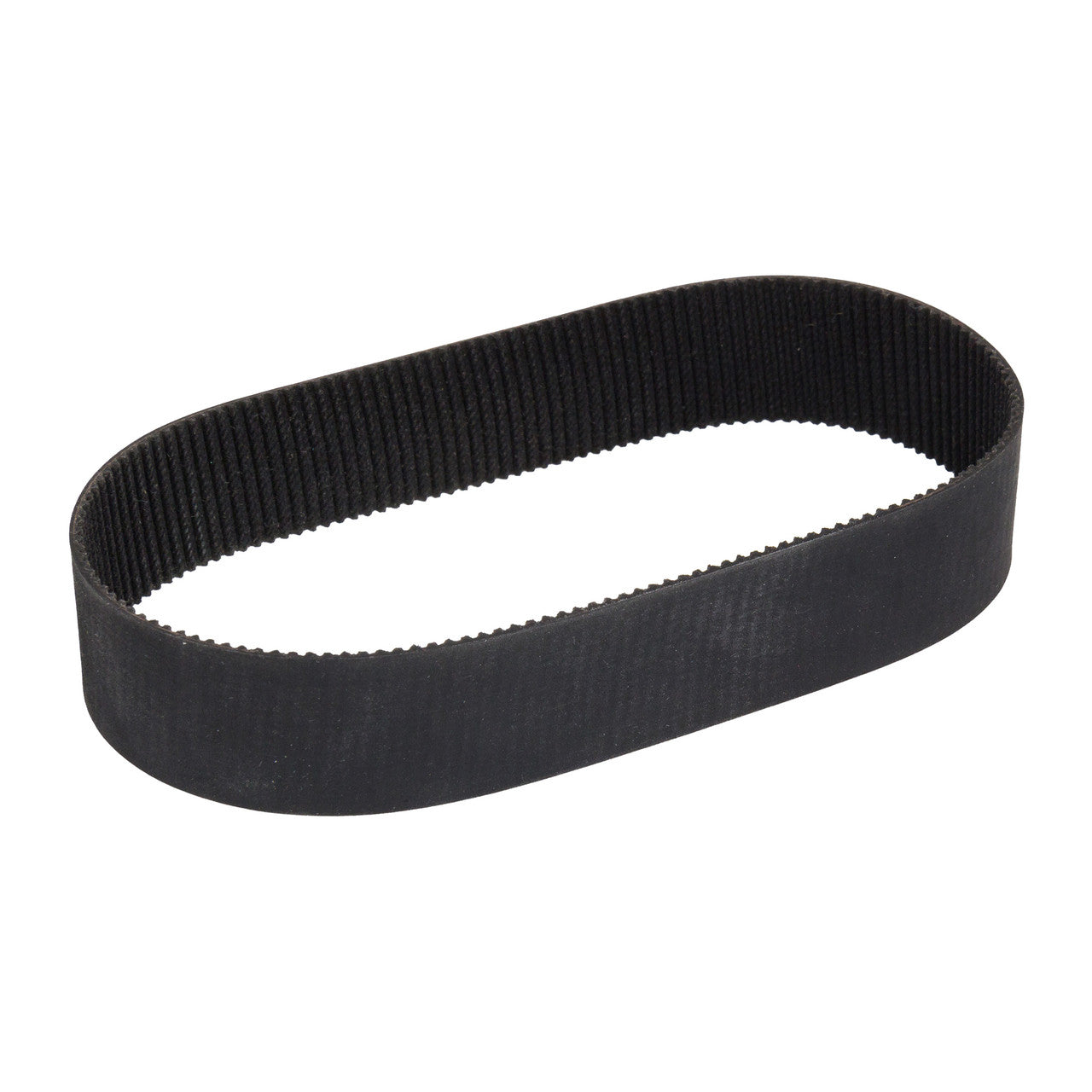

Steering Rack Drive Belt 155 Teeth 17mm - BMW - HEE4070ERM / 7806040508
Save 17%
In stock
Regular price
$40.00
Sale price
$40.00
Regular price
$48.00
Delivery within the USA
Ships from Miami, FL when the ordered quantity is available in our US warehouse.
USPS Ground Advantage / FedEx
US delivery: typically 2–5 business days after dispatch
Checking warehouse availability…
Couldn't load pickup availability
Quality Assurance
Friendly support
Hassle-free returns
This drive belt operates inside the steering rack on the listed BMW applications. Match the belt tooth profile, dimensions and installed rack reference before replacement; the vehicle model alone does not identify the belt version.
Applications
- BMW 1 Series F20
- BMW 1 Series F20 LCI
- BMW 1 Series F21
- BMW 1 Series F21 LCI
- BMW 2 Series F22
- BMW 2 Series F23
- BMW 3 Series F30
- BMW 3 Series F30 LCI
- BMW 3 Series F31
- BMW 3 Series F31 LCI
- BMW 3 Series F34 GT
- BMW 3 Series F34 GT LCI
- BMW 3 Series F35
- BMW 3 Series F35 LCI
- BMW 4 Series F32
- BMW 4 Series F32 LCI
- BMW 4 Series F36 Gran Coupé
- BMW 4 Series F36 Gran Coupé LCI
- BMW E60.
- BMW 5-Series / 3-Series designations - compare the installed steering rack.
When to Inspect the Steering Rack Belt
- Steering that turns unusually freely or without the expected effort.
- Poor, incomplete or delayed return to the straight-ahead position.
- A worn, damaged or deformed belt, unstable operation or play in the mechanism.
Have the steering system checked to identify the cause before selecting the repair component.

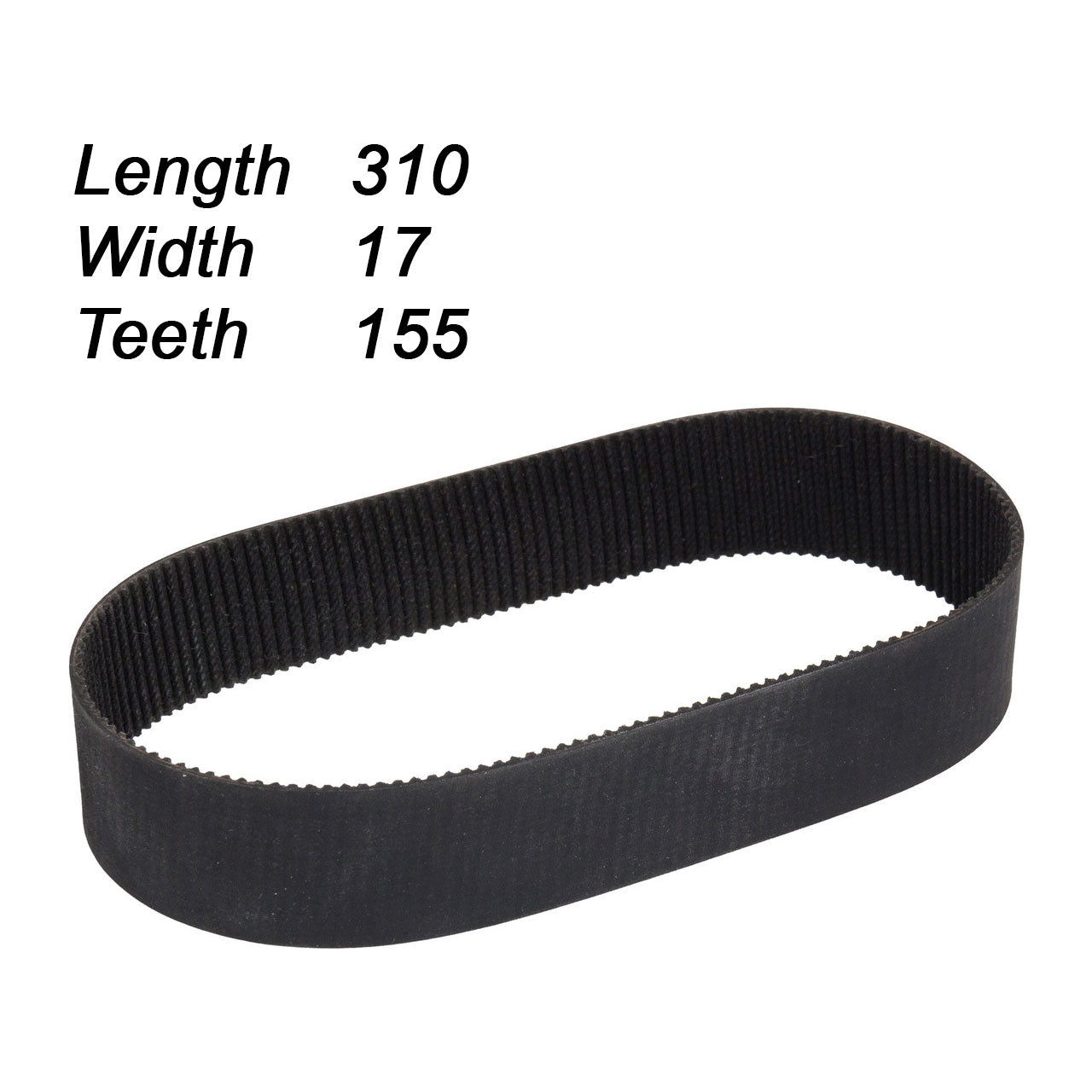

Belt Specifications
- Reference: HEE4070ERM.
- 155 teeth.
- Angled tooth profile.
- Width: 17mm.
- Length: 310mm.
- Additional belt references: E40701RB, 7806040508.
Selection by Rack Reference
The complete rack and related reference list is in Part Number / PN. Match the installed rack number, original belt design and dimensions. Replacement of a worn belt addresses that component; diagnose the remaining rack mechanism before repair.
Important Before Ordering
Compare the original part number, marking, shape and mounting design before ordering. A model name alone does not confirm the required version.
FAQ
What are the belt dimensions?
Width is 17mm and length is 310mm.
How many teeth are specified?
155 teeth with an angled tooth profile.
Is this a complete steering rack?
No. This product is the steering rack drive belt.
Can I select it by BMW chassis alone?
Compare the installed rack number and the original belt dimensions and tooth profile as well.
Part Number / PN
HEE4070ERM,32106854894,32106856588,32106857150,32106858011,32106858538,32106858782,32106859253,32106862370,32106863856,E40701RB,32106864247,32106864769,32106868827,32106868237,32106874418,32106874839,32106874852,32106883264,32106884404,7806040508,32106891186,32106892977
SKU: 7806040508.
Replacement Preparation
Replacement is best carried out by a skilled repairer. The listed tools and supplies are sealant, Torx T45, 34 or 36mm open-ended spanners, 10 and 8mm sockets, M8 bolts and the matching spanner, and a screw or band clamp.
